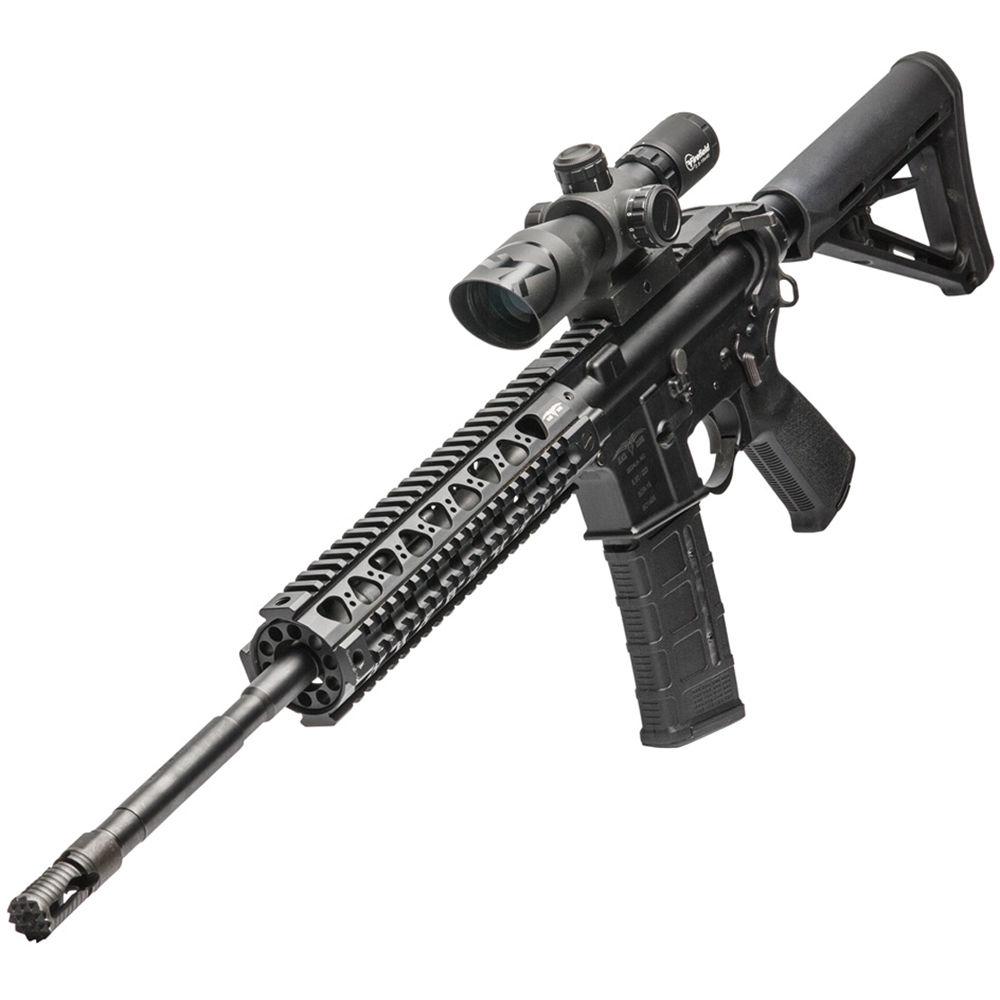

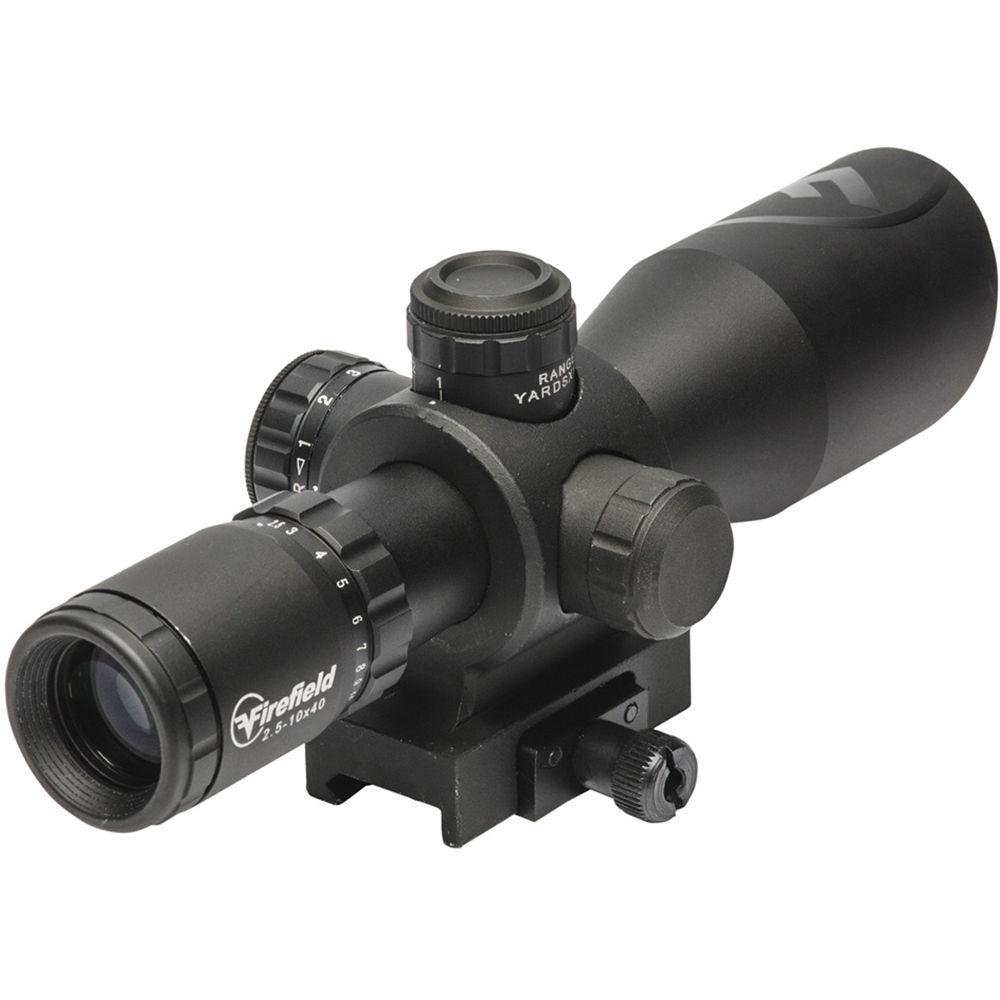

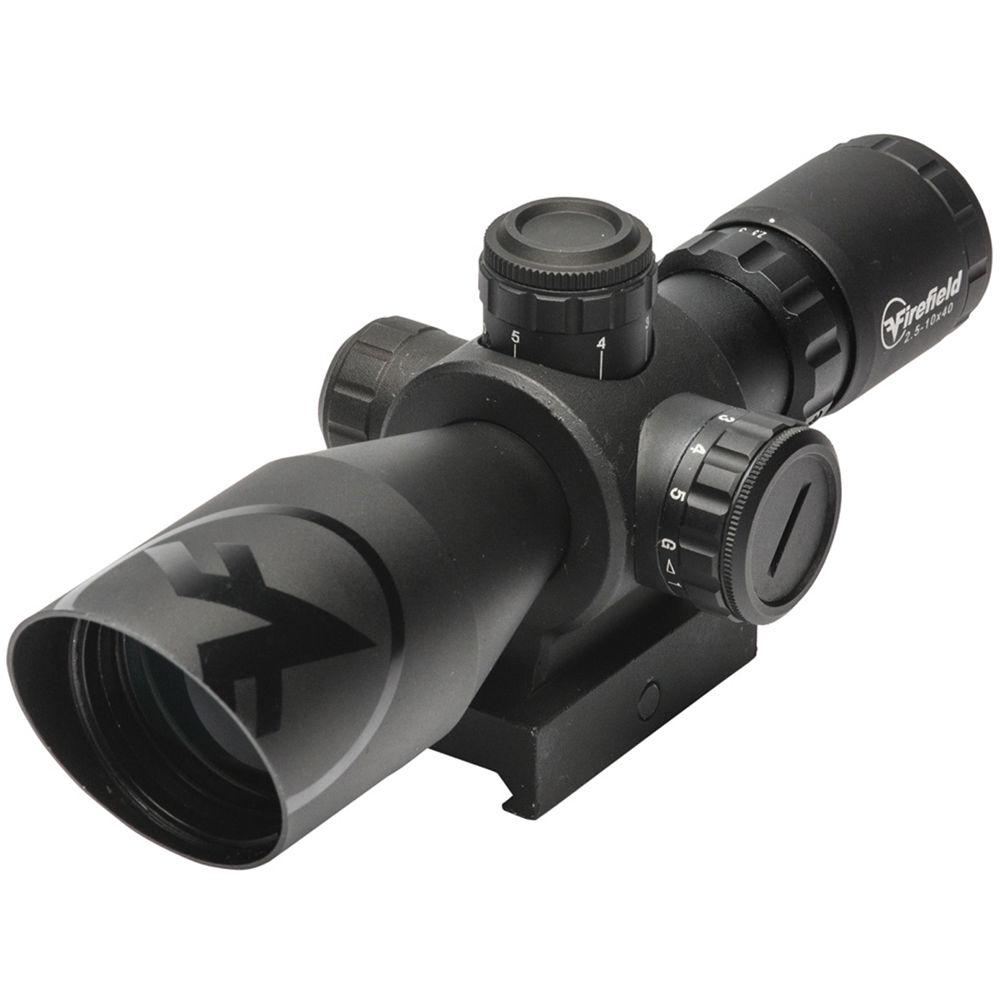

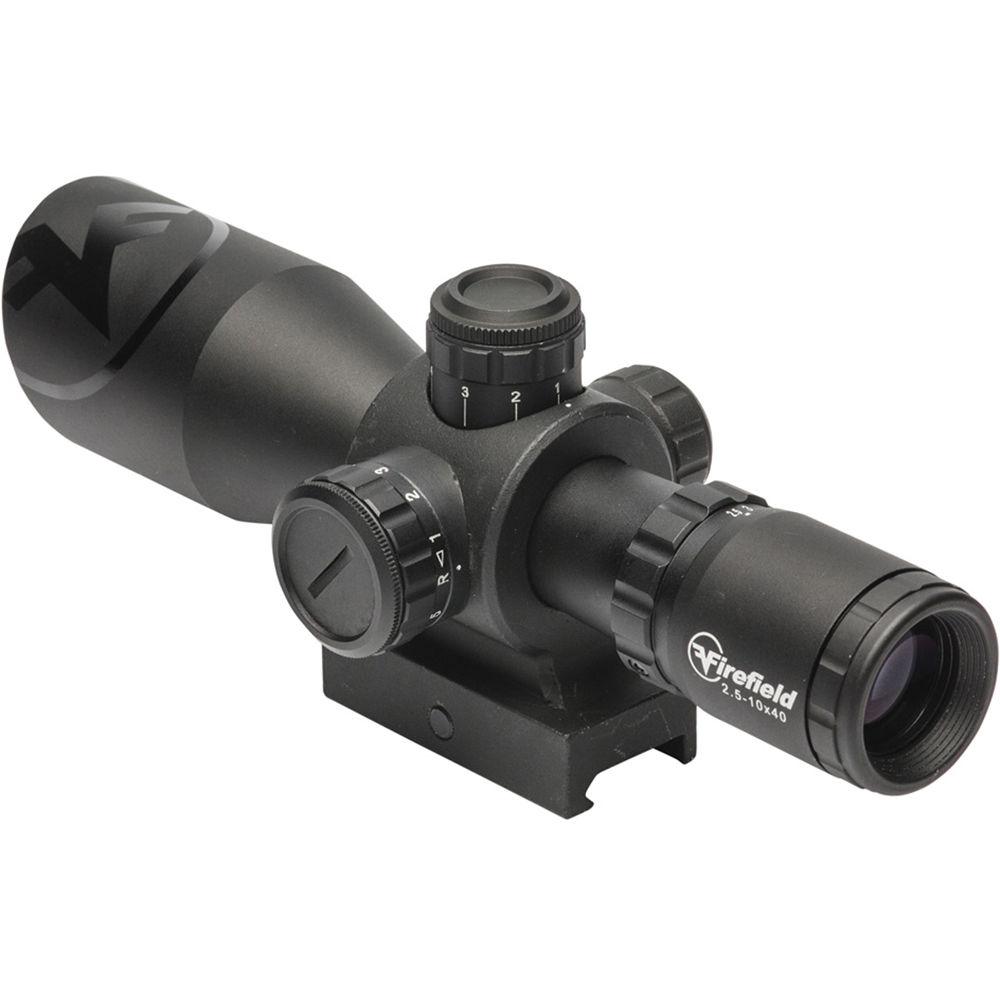

Product description Get on target with the FireField 2.5-10x40 Barrage Riflescope. This compact and lightweight riflescope offers a 2.5-10x zoom magnification for mid-to-long-range close-ups and a Mil-Dot reticle with green or red variable illumination. Other highlights of this riflescope are its bright and clear fully multi-coated lenses, parallax-free distance of 100 yd, and generous windage and elevation adjustment ranges.
To be able to follow you anywhere, the scope has a robust and impact-resistant 6061-T6 aluminum housing, which is also nitrogen-filled fogproof and weather-resistant. To block glare from the sun or other bright light sources that may reduce your accuracy, the objective bell has a built-in angled sunshade. - Optical Performance
-
- 2.5 - 10x zoom magnification
- 40mm objective diameter
- Fully multi-coated optics
- 34.9-11.5' at 100 yards linear field of view
- Mil-Dot Reticle and Laser
-
- Second focal plane

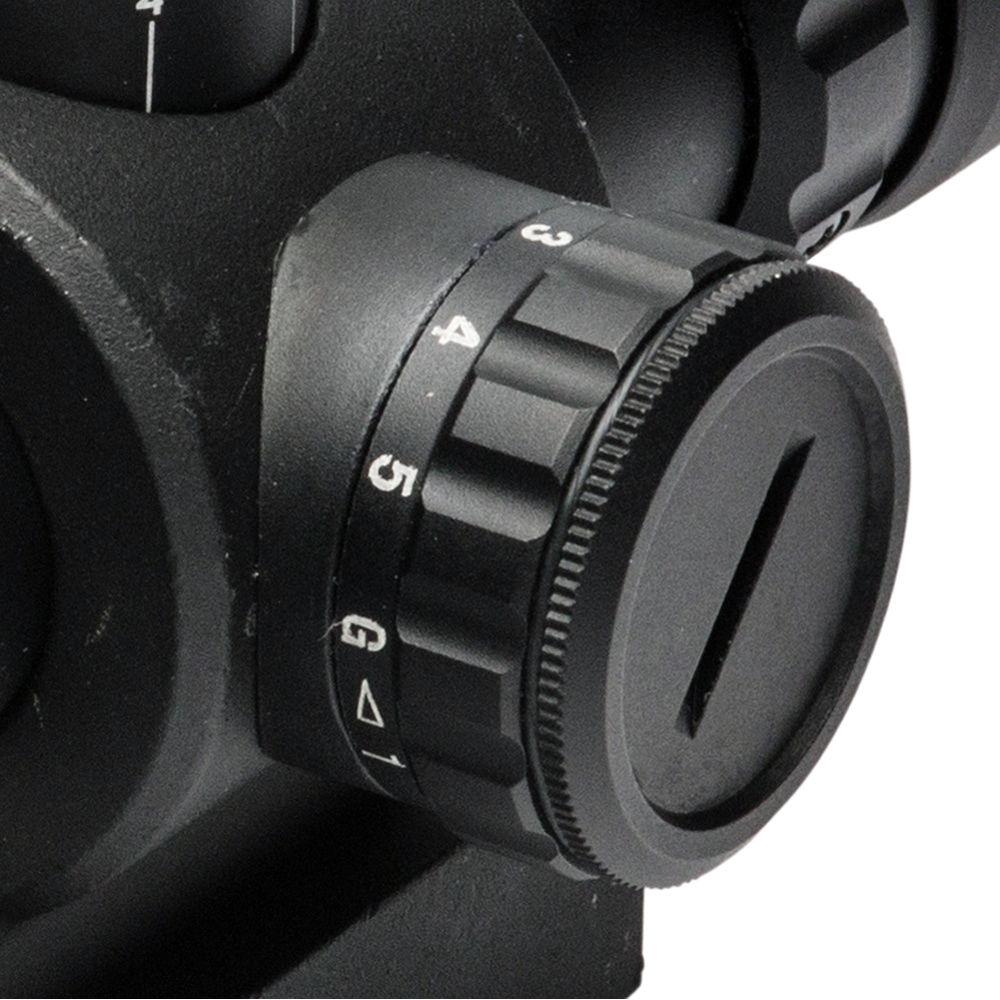

- Red or green illumination settings
- Five brightness levels
- Parallax-free at 100 yd
- Use and Handling
-
- 1/4 MOA per click impact point correction clicks
- 110 MOA windage and elevation adjustment

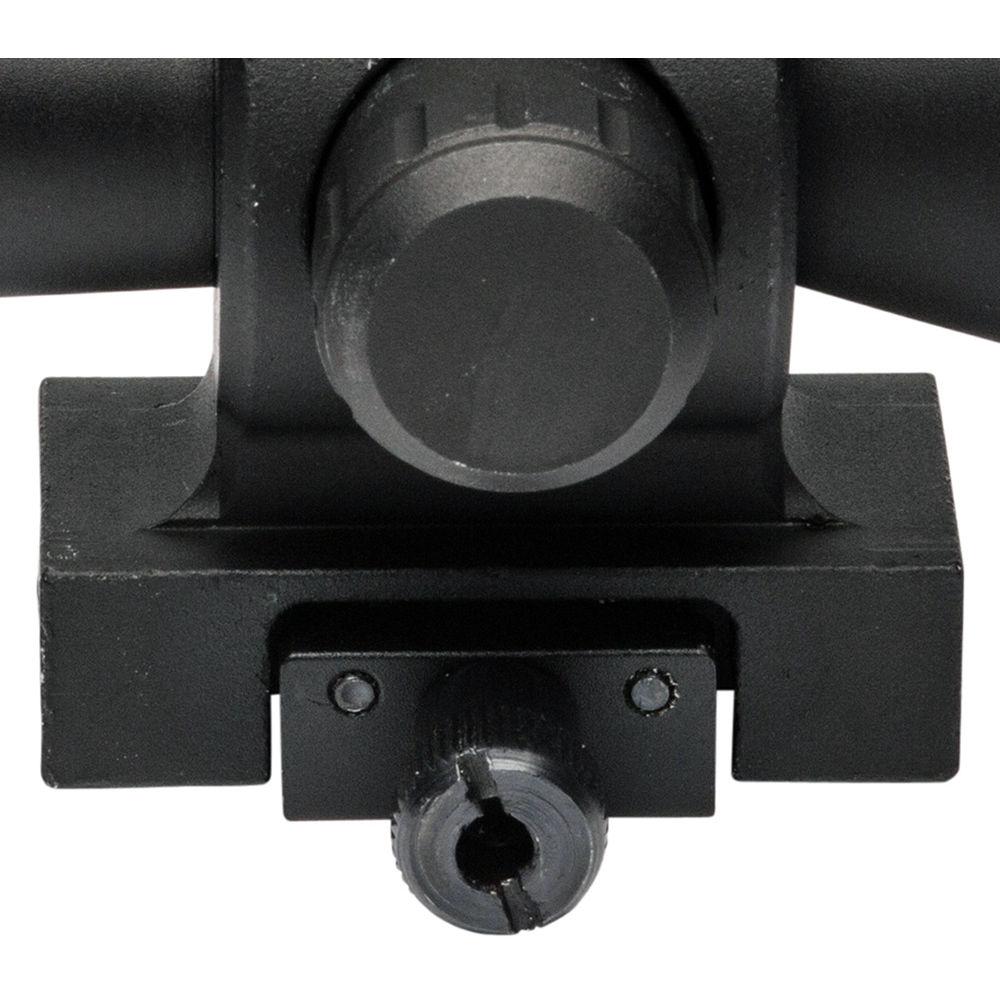

- Two-piece Picatinny/Weaver mount
- Exit pupil diameter: 16 - 4mm
- 2.4-2.2" eye relief
- Construction Details
-
- 6061-T6 aluminum housing
- Anodized matte black finish
- Capped adjustment turrets
- Weather-resistant, fogproof, shock-resistant

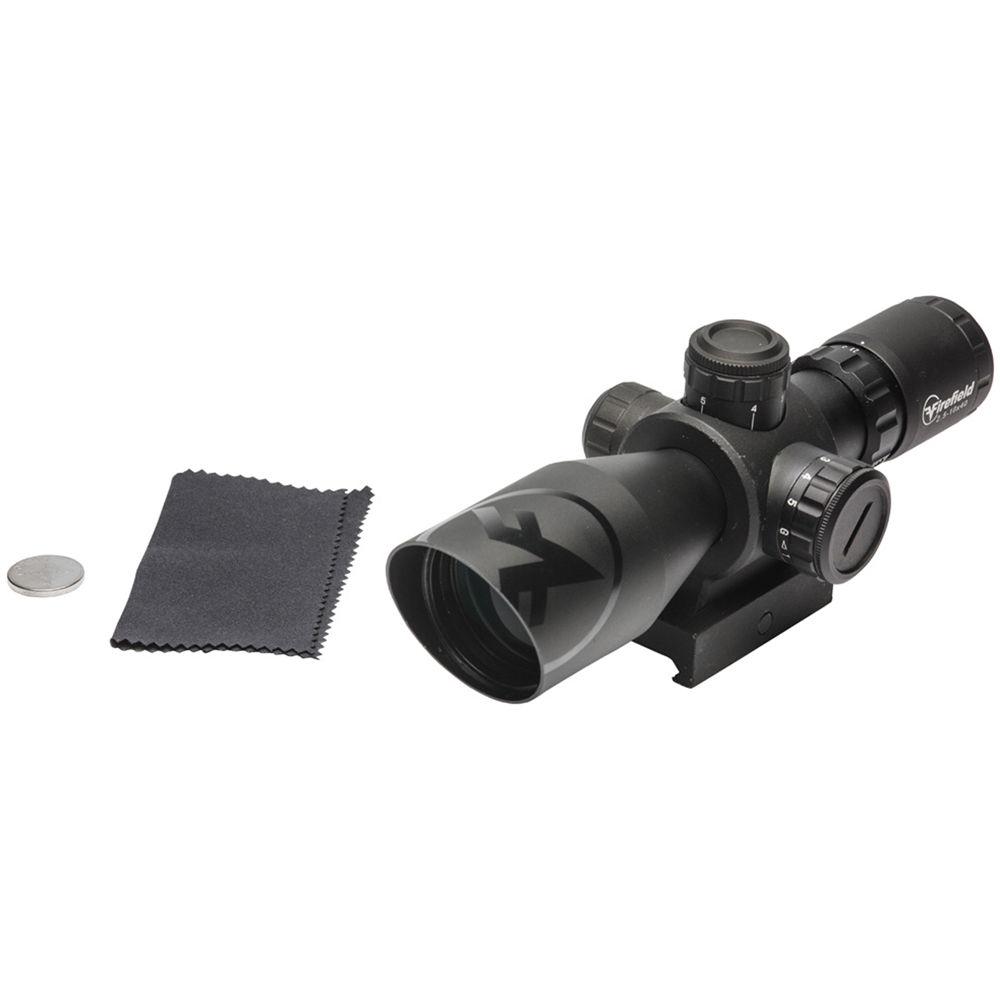

UPC: 812495022111 In the Box Firefield 2.5-10x40 Barrage Riflescope (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 2.5-10x40 Barrage Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13064 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 40 mm | | Field of View | 2.5x: 34.9' @ 100 yd / 11.6 m @ 100 m
10x: 11.5' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 16 mm
10x: 4 mm | | Eye Relief | 2.2 to 2.4" / 55 to 60 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX4 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 0 to 120°F / -17.8 to 49°C | | | | Battery | 1 x CR2032 | | Battery Runtime | 100 Hours | | Dimensions | Length: 8.1" / 20.5 cm
Height: 3.4" / 8.5 cm
Width: 3.2" / 8 cm | | Weight | 17.7 oz / 501.2 g | | | | Package Weight | 1.64 lb | | Box Dimensions (LxWxH) | 9.6 x 4.45 x 3.4" |
