User Manual for Firefield 2.5-10x40 Barrage Riflescope with Green Laser Click to enlarge the picture
Contents of the user manual for the Firefield 2.5-10x40 Barrage Riflescope with Green
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 2.5-10x40 Barrage Riflescope with Green contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

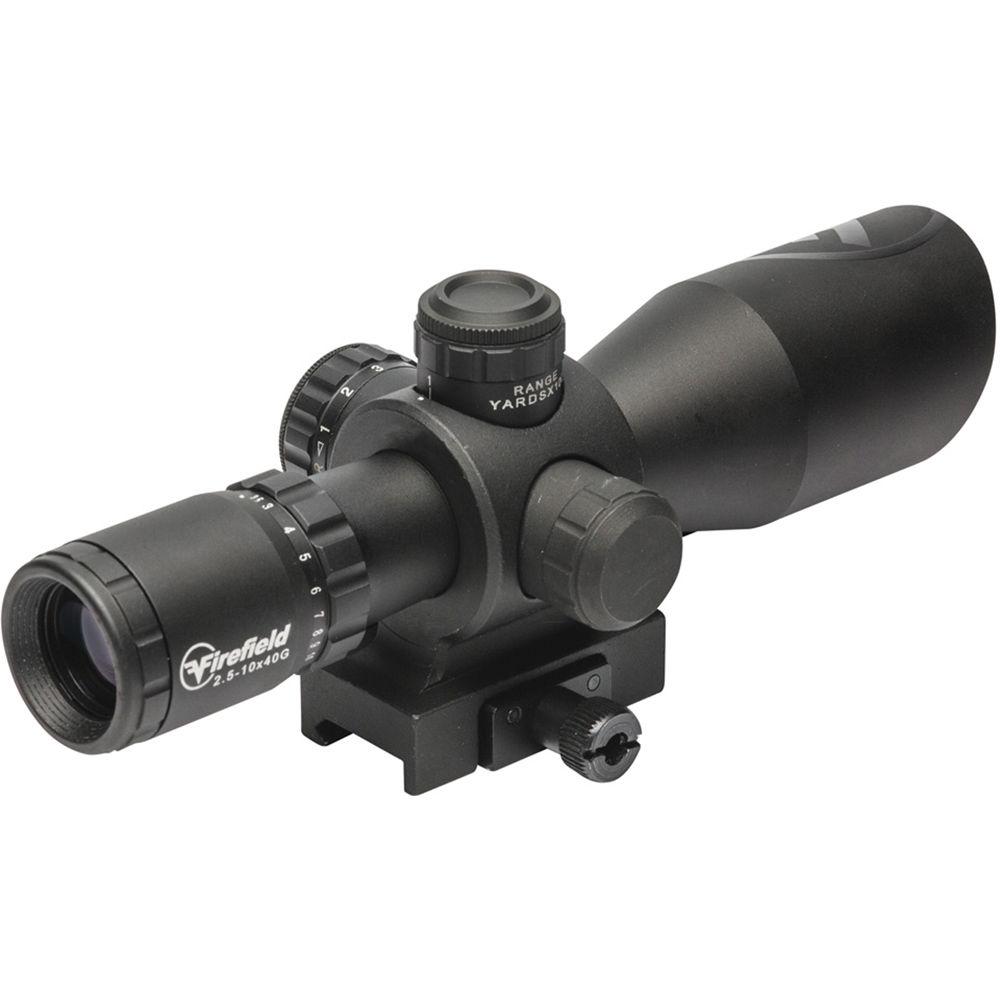

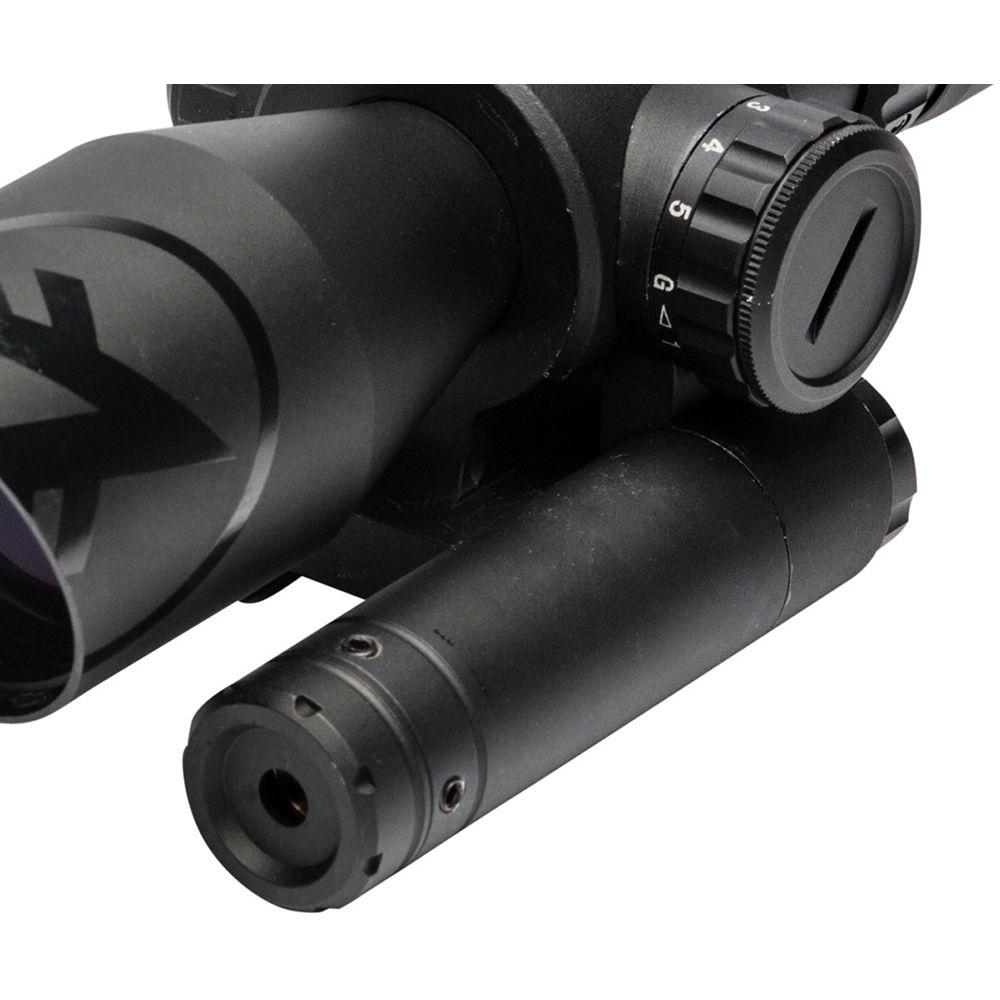

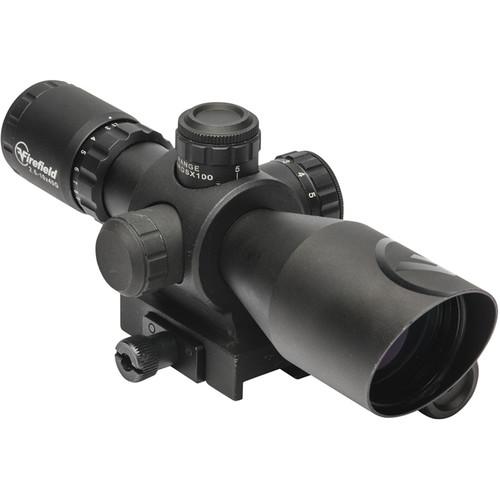

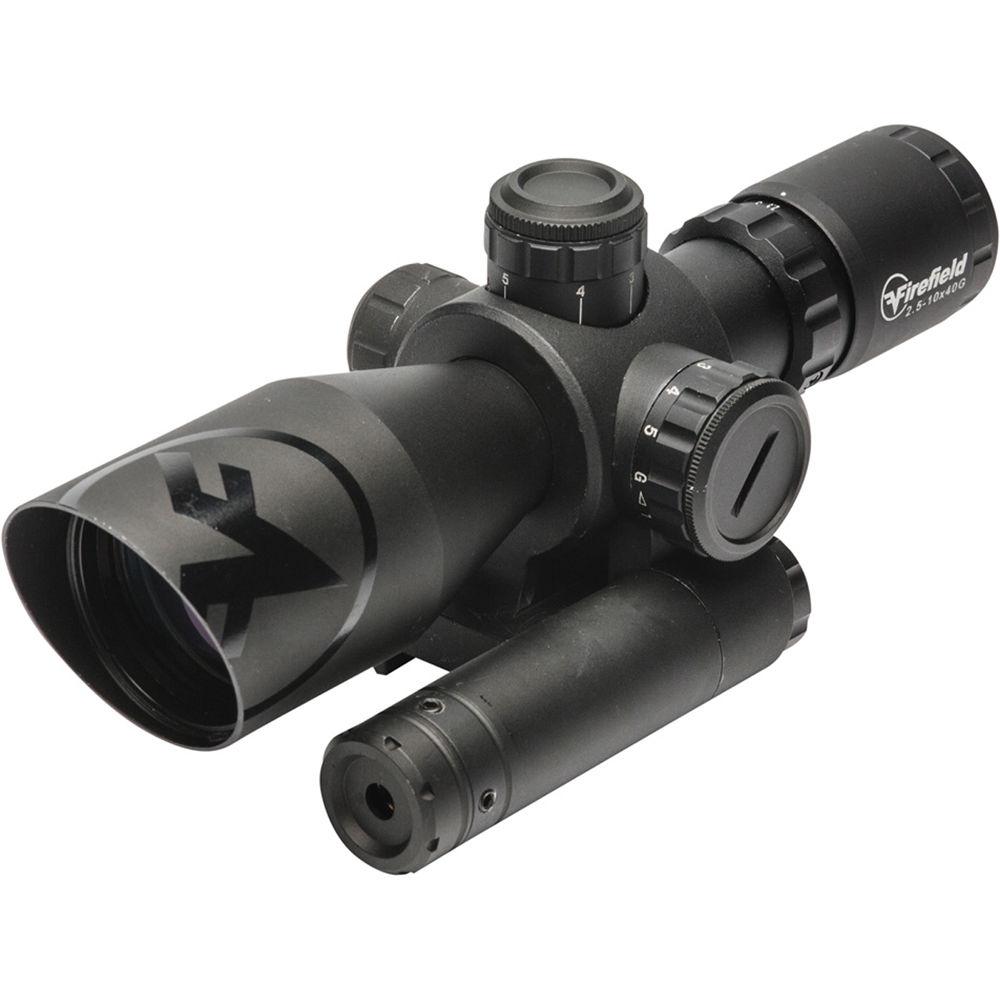

Product description Get on target with the FireField 2.5-10x40 Barrage Riflescope with Green Laser. This compact and lightweight riflescope offers a 2.5-10x zoom magnification for mid-to-long-range close-ups and a Mil-Dot reticle with green or red variable illumination. This scope includes a green aiming laser to make your aiming process laser-sharp by adding a brilliant laser target dot on you targets. The laser is mounted on the side of the scope and draws power from a separate included battery. Other highlights of this riflescope are its bright and clear fully multi-coated lenses, parallax-free distance of 100 yd, and generous windage and elevation adjustment ranges.
To be able to follow you anywhere, the scope has a robust and impact-resistant 6061-T6 aluminum housing, which is also nitrogen-filled fogproof and weather-resistant. To block glare from the sun or other bright light sources that may reduce your accuracy, the objective bell has a built-in angled sunshade. - Optical Performance
-
- 2.5 - 10x zoom magnification
- 40mm objective diameter
- Fully multi-coated optics
- 34.9-11.5' at 100 yards linear field of view
- Mil-Dot Reticle and Laser
-
- Second focal plane

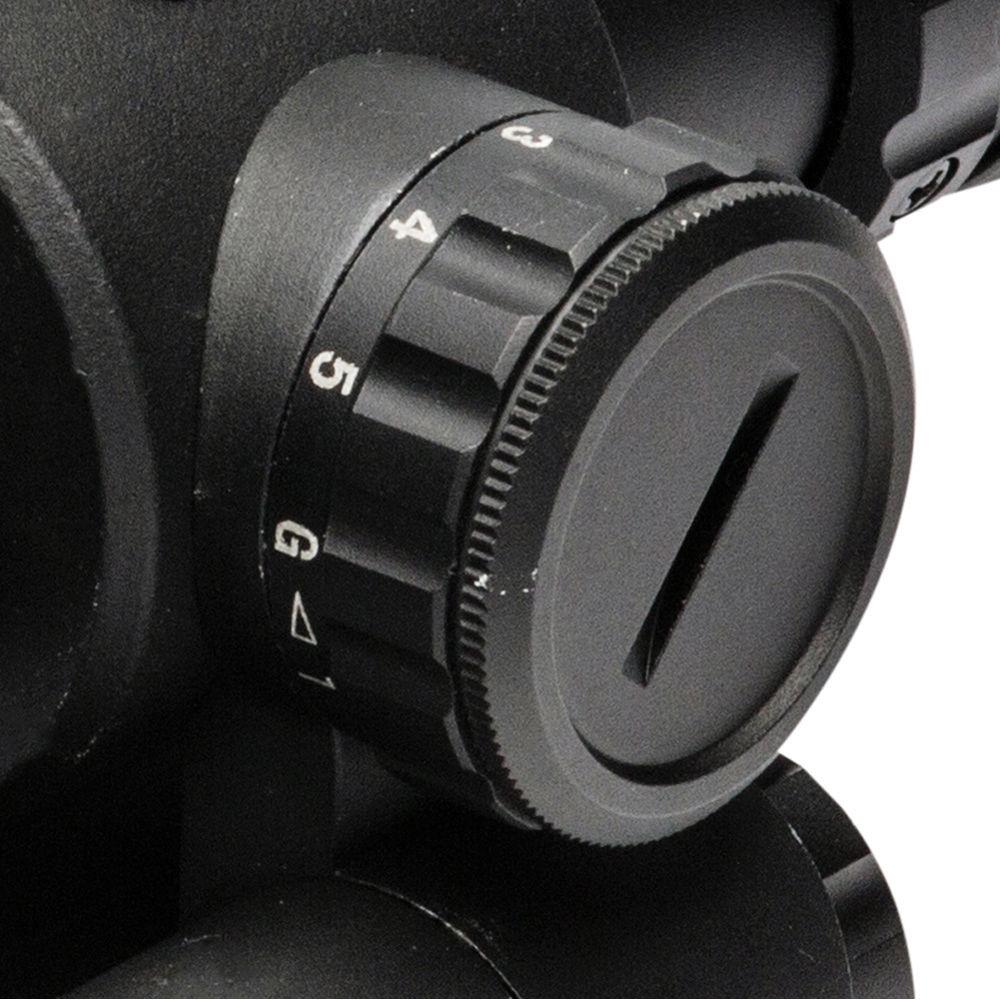

- Red or green illumination settings
- Five brightness levels
- Parallax-free at 100 yd
- Green 5mW laser illuminator
- Use and Handling
-
- 1/4 MOA per click impact point correction clicks
- 110 MOA windage and elevation adjustment
- Two-piece Picatinny/Weaver mount
- Exit pupil diameter: 16 - 4mm
- 2.4-2.2" eye relief
- Construction Details
-
- 6061-T6 aluminum housing
- Anodized matte black finish
- Capped adjustment turrets
- Weather-resistant, fogproof, shock-resistant

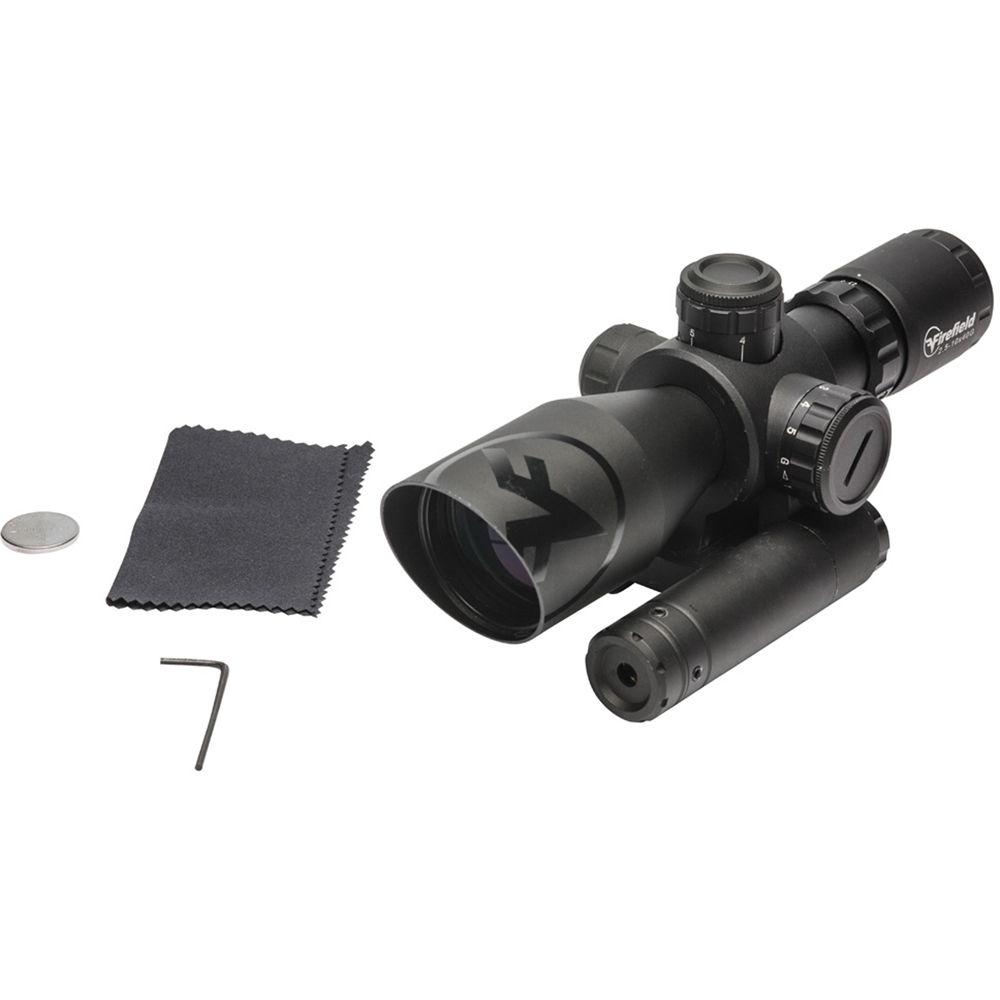

UPC: 812495022135 In the Box Firefield 2.5-10x40 Barrage Riflescope with Green Laser (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- CR2 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 2.5-10x40 Barrage Riflescope with Green Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Firefield 2.5-10x40 Barrage Riflescope with Green Laser can be downloaded in PDF format at the link stated below.
Technical parametersFirefield FF13066 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 40 mm | | Field of View | 2.5x: 34.9' @ 100 yd / 11.6 m @ 100 m
10x: 11.5' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 16 mm
10x: 4 mm | | Eye Relief | 2.2 to 2.4" / 55 to 60 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Diameter | 1" / 2.5 cm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX4 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 0 to 120°F / -17.8 to 49°C | | | | Battery | Reticle: 1 x CR2032
Laser: 1 x CR2 | | Battery Runtime | Reticle: 100 Hours
Laser: 16 Hours | | Dimensions | Length: 8.1" / 20.5 cm
Height: 3.4" / 8.5 cm
Width: 3.2" / 8 cm | | Weight | 21.4 oz / 606.7 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Firefield 2.5-10x40 Barrage Riflescope with Green Laser
| Subject: Crosshairs. | | Date: 28.08.2022 21:47:57 | Name: Corey evans | | I have the scope on a mossberg 715 pistol. I noticed the more I shoot the crosshairs are turning. It’s at a 2o clock position. How do I get them back level. | | Post reply |
