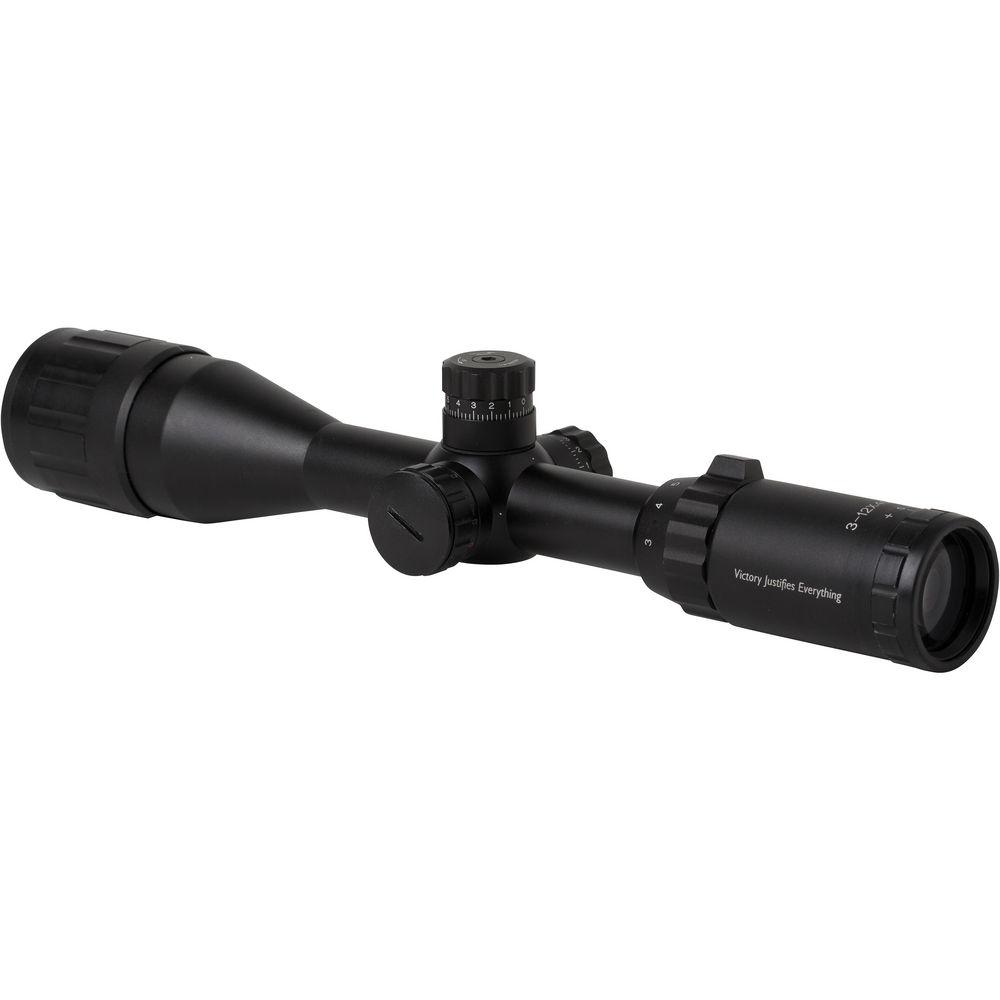

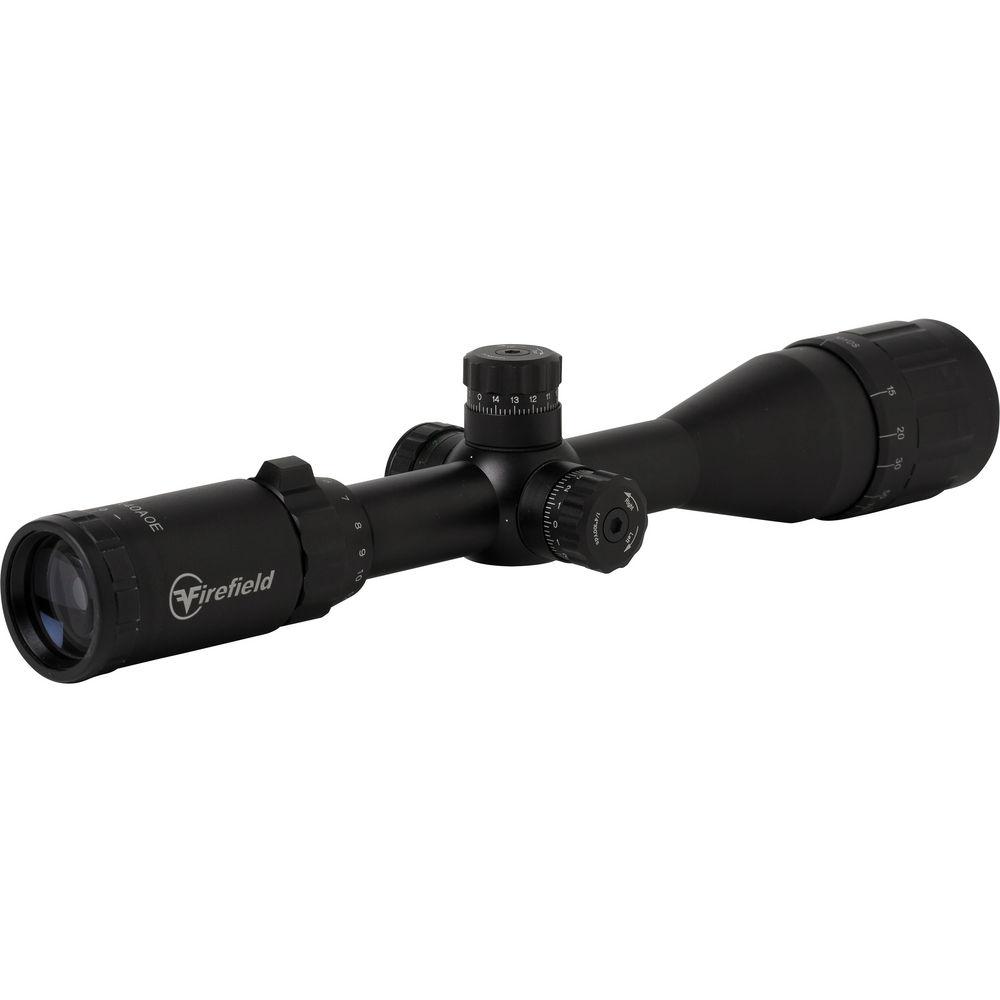

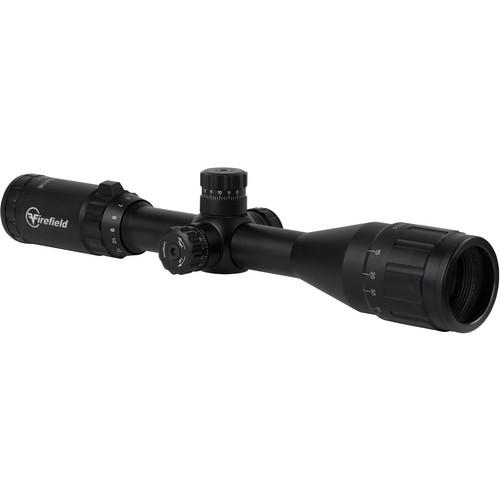

User Manual for Firefield 3-12x40 AO IR Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield 3-12x40 AO IR Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 3-12x40 AO IR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description The 3-12x40 AO IR Riflescope from Firefield is a water-resistant zoom optic for close to mid-range targeting. This scope features a Mil-Dot reticle that can be illuminated in red or green using a dedicated reticle brightness side turret. The illumination control has five selectable brightness settings for each color; green illumination is more visible than red in low-light conditions and red is useful for targeting subjects among a woodland landscape. In addition to multicoated lenses and illuminated reticle, the 3-12x40 AO IR riflescope comes with mounting rings and is backed by Firefield's lifetime warranty. - Optical Performance
-
- 3-12x magnification
- 40mm objective lens
- Multicoated optics
- Parallax adjustment on objective bell
- Illuminated Mil-Dot reticle, 2nd focal plane
- Use and Handling
-
- Red or green reticle illumination
- 5 reticle brightness settings
- 1/4 MOA impact point correction
- Easy grip windage and elevation turrets
- Scope mounting rings included
- Construction Details
-
- IPX4 compliant water-resistant housing
- Length: 13.1"
- Weight: 18 oz weight
UPC: 810119018458 In the Box Firefield 3-12x40 AO IR Riflescope (Mil-Dot) Mounting Rings Lens Covers Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 3-12x40 AO IR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13043 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 36' @ 100 yd / 13.1 m @ 100 m
12x: 12' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
12x: 3.3 mm | | Eye Relief | 3 to 3.3" / 75 to 85 mm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Battery Runtime | 80 Hours (Maximum) | | Dimensions | Length: 13.2" / 33 cm
Height: 3.1" / 8 cm
Width: 2.2" / 6 cm | | Weight | 18 oz / 899 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 15.7 x 4.1 x 3.4" |
