User Manual for Firefield 3.5x18 PU Mosin-Nagant Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield 3.5x18 PU Mosin-Nagant Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 3.5x18 PU Mosin-Nagant Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

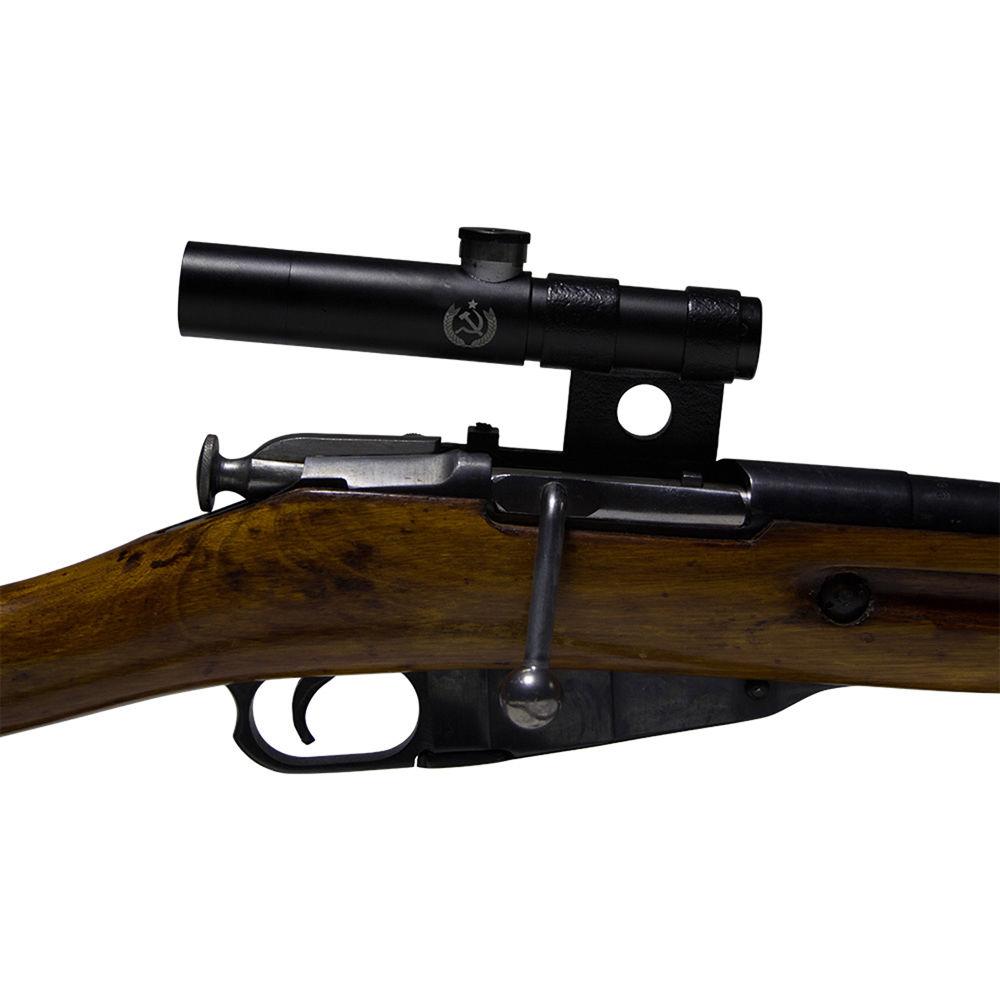

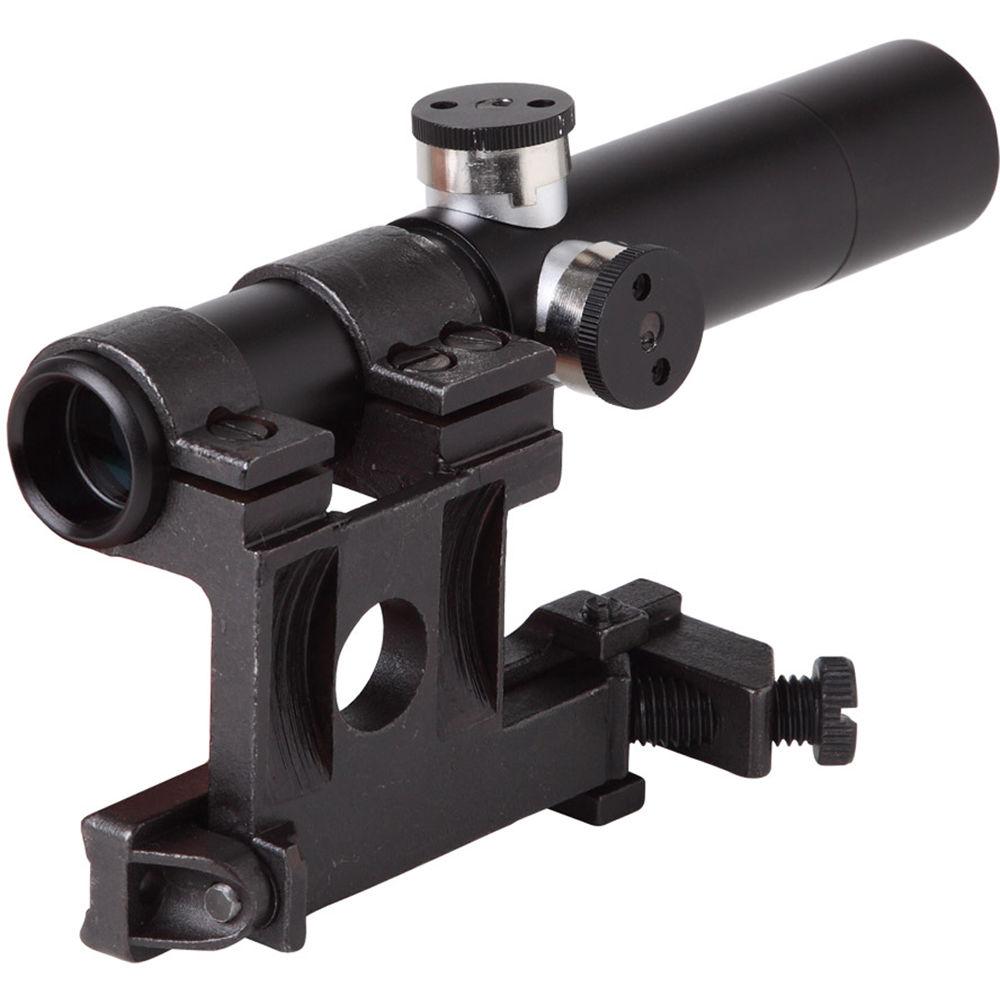

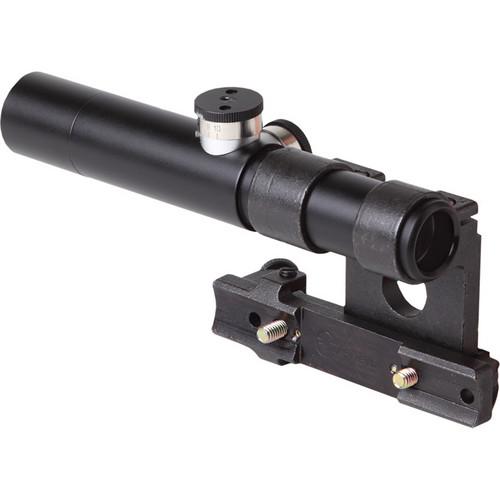

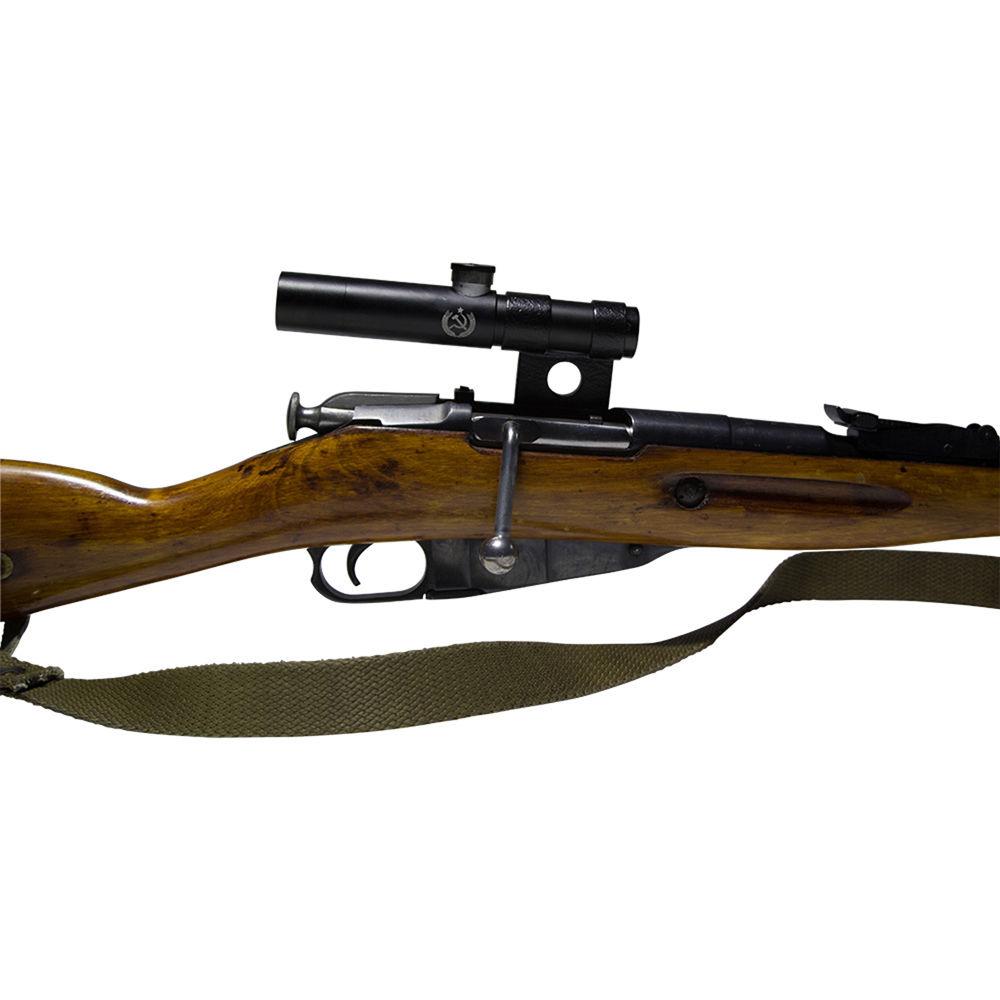

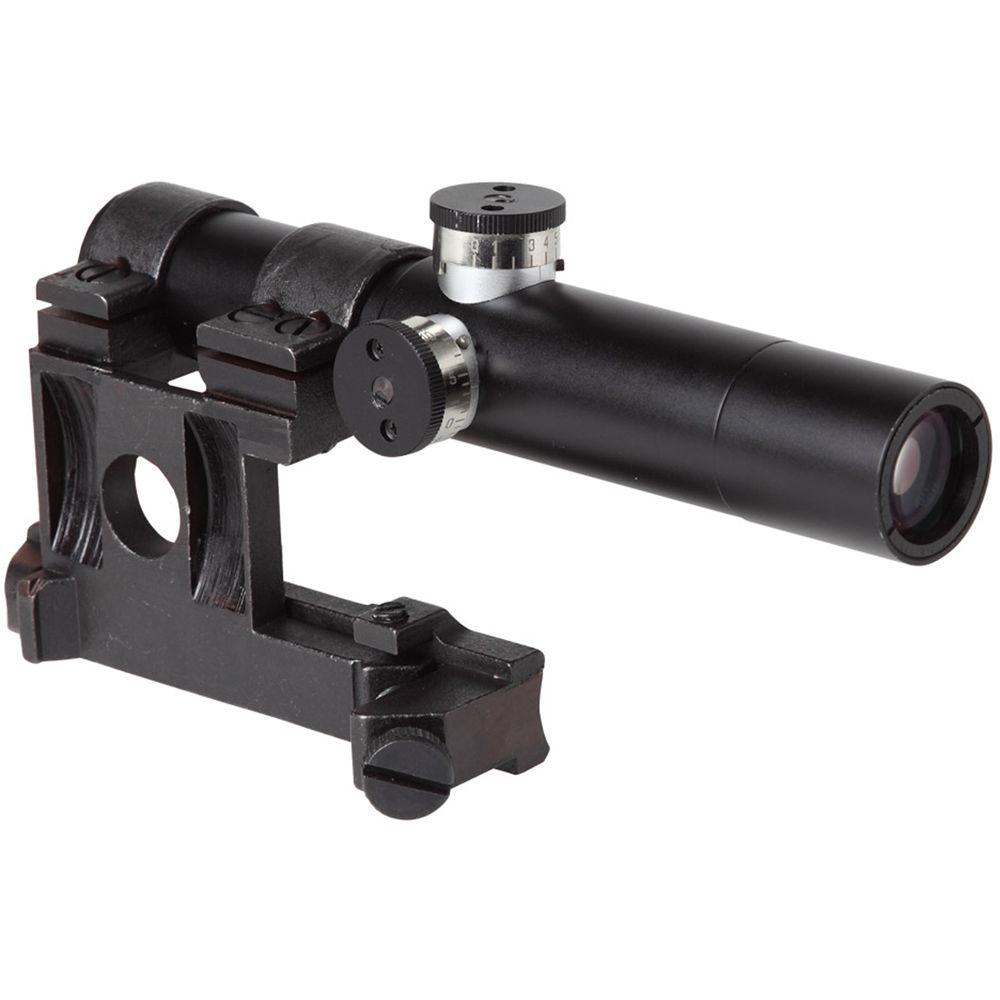

Product description The 3.5x18 PU Mosin-Nagant Riflescope from Firefield is a fixed-power rifle optic designed for close to mid-range targets. This is a reproduction of the original POSP Russian telescopic sighting optic. The riflescope features a classic three-post reticle, multicoated optics, and shockproof housing, making the PU scope useful on the hunt or at the range. - Optical Performance
-
- 3.5x magnification, 18mm objective
- 3 post reticle
- Multicoated optics
- Parallax free at 100 yd (91 m)
- 21.4 ft (6.5 m) at 100 yd field of view
- Construction Details
-
- Steel housing
- 1" tube diameter
- Shockproof housing
- IPX3-rated waterproof
- 20-140°F (-7-60°C) operating temperature
- 3.5 MOA windage, 7 MOA elevation adjustments
- Mosin-Nagant Mount
UPC: 810119017352 In the Box Firefield 3.5x18 PU Mosin-Nagant Riflescope Lens Cloth Set Pins Mosin-Nagant Mount Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 3.5x18 PU Mosin-Nagant Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13024 Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 18 mm | | Field of View | 21.4' @ 100 yd / 6.5 m @ 100 m | | Exit Pupil Diameter | 6 mm | | Eye Relief | 2.6" / 65 mm | | Diopter Correction | -0.8 | | | | Reticle Type | Three Post Reticle | | | | Impact Point Correction | 3.5 MOA per Click (Windage)
7.0 MOA per Click (Elevation) | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX3 | | Operating Temperature | 20 to 140°F / -7 to 60°C | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 6.8" / 17.4 cm
Height: 3.7" / 9.5 cm
Width: 1.6" / 4 cm | | Weight | 20.2 oz / 573 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.6 x 4.9 x 2.5" |
