User Manual for Firefield 3x30 Prismatic Sight with Red-Black Circle Dot Reticle Click to enlarge the picture
Contents of the user manual for the Firefield 3x30 Prismatic Sight with Red-Black
- Product category: Red Dot/Holographic Sights Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Red Dot/Holographic Sights
 |
User manual for the Firefield 3x30 Prismatic Sight with Red-Black contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

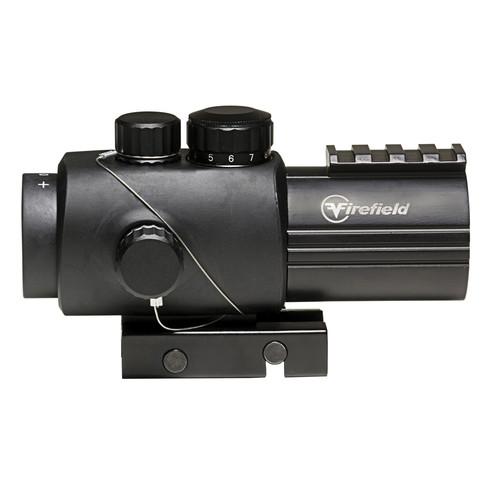

Product description The 3x30 Prismatic Sight with Red-Black Circle Dot Reticle from FireField is a prismatic sight with a red-black circle dot reticle, eleven reticle brightness levels, and is free of parallax at 20 yards. The sight features 3x magnification, 30mm objective diameter, fully multi-coated otpics, and Bak-4 prisms. To help you compensate for wind and projectile motion the sight has a 160 MOA windage and elevation adjustment range with 1/4 MOA per click.
The matte black aluminum housing with rubber armoring is weatherproof, nitrogen-purged fogproof, and fits on a Picatinny or Weaver mount. To help you mount additional accessories on the top of the sight it has an integrated short Weaver rail. Also included with the sight is a CR1620 battery, protective objective caps, and a lens cloth. - Optical Performance
-
- 3x magnification
- 30mm objective diameter
- Fully multi-coated optics
- Bak-4 optical glass prisms
- 39' @ 100 yd linear field of view
- Reticle
-
- Black circle dot reticle with red illumination
- 11 brightness levels
- Parallax-free at 20 yards
- Use and Handling
-
- 160 MOA windage and elevation adjustment range
- Runs on included CR1620 battery
- Construction
-
- Attaches to Weaver or Picatinny mount
- Integrated short Weaver rail on top allows attaching accessories
- Aluminum housing with rubber armoring and matte black finish
- Nitrogen-purged fogproof
- IPX6-rated weatherproof

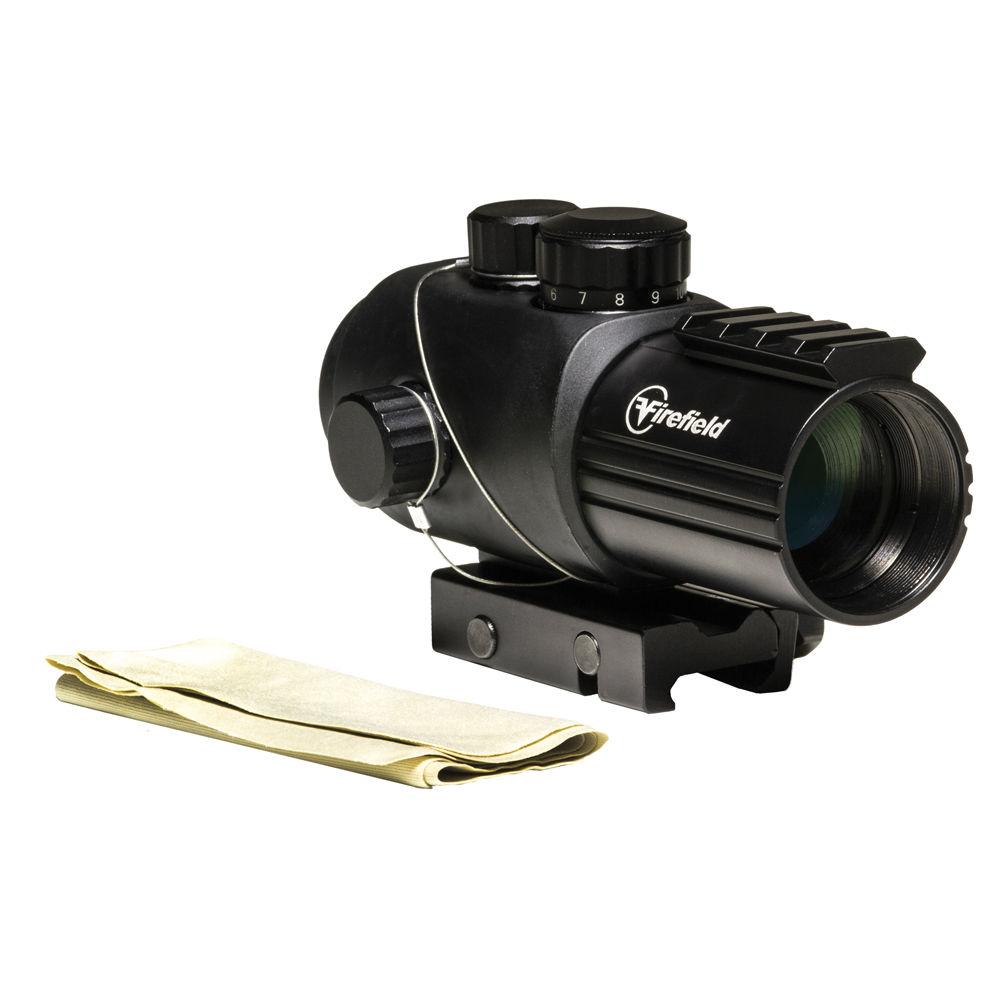

UPC: 810119019554 In the Box Firefield 3x30 Prismatic Sight with Red-Black Circle Dot Reticle CR1620 Battery Objective Cap Lens Cloth Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 3x30 Prismatic Sight with Red-Black Circle Dot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Burst Specs | | | Power Source | 1 x CR1620 | | Mounting | Picatinny / Weaver | | | | Magnification | 3 x | | Objective Lens Diameter | 30 mm | | Field of View | 39' @ 100 yd / 12.9 m @ 100 m | | Exit Pupil Diameter | 10 mm | | | | Impact Point Correction | 1/4 MOA | | Windage Adjustment | 160 MOA | | Elevation Adjustment | 160 MOA | | | | Water Resistance | IPX6 | | Fogproof | Yes | | Dimensions | L: 4.8 x W: 3.1 x H: 2.2" / L: 12.2 x W: 7.9 x H: 5.6 cm | | Weight | 14 oz / 396.9 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
