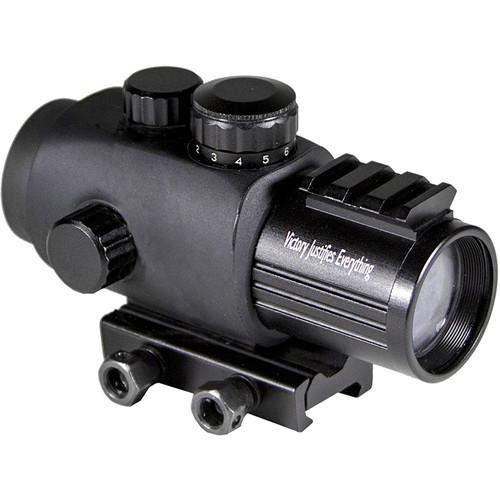

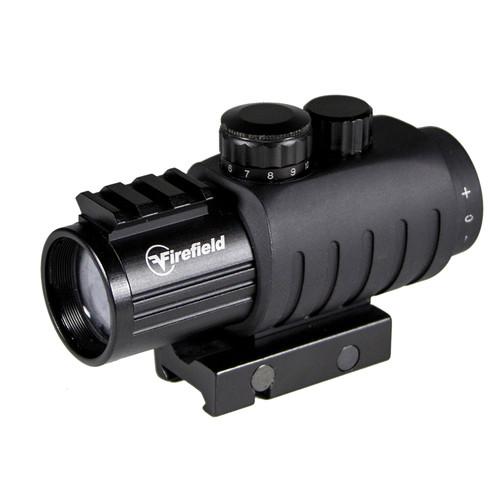

Product description The 3x30 Prismatic Sight with Red-Black Circle Dot Reticle, 1.5x Lens Converter from FireField is a prismatic sight with a red-black circle dot reticle, eleven reticle brightness levels, and is free of parallax at 20 yards. The sight features 3x magnification, 30mm objective diameter, fully multi-coated otpics, and Bak-4 prisms. If you need additional magnification the included 1.5x lens converter can be attached to the sight and increase total magnification to 4.5x. To help you compensate for wind and projectile motion, the sight has a 160 MOA windage and elevation adjustment range with 1/4 MOA per click.
The matte black aluminum housing with rubber armoring is weatherproof, nitrogen-purged fogproof, and fits on a Picatinny or Weaver mount. To help you mount additional accessories on the top of the sight, it has an integrated short Weaver rail. Also included with the sight is one CR1620 battery, protective objective caps, and a lens cloth. - Optical Performance
-
- 3x magnification

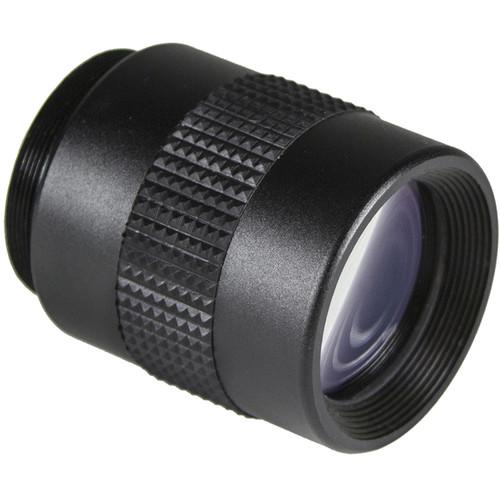

- 1.5x converter lens raises power to 4.5x
- 30mm objective diameter
- Fully multicoated optics
- Bak-4 optical glass prisms
- 39' @ 100 yd linear field of view
- Reticle
-
- Black circle dot reticle with red illumination
- 11 brightness levels
- Parallax-free at 20 yards
- Use and Handling
-
- 160 MOA windage and elevation adjustment range
- Runs on included CR1620 battery
- Construction
-

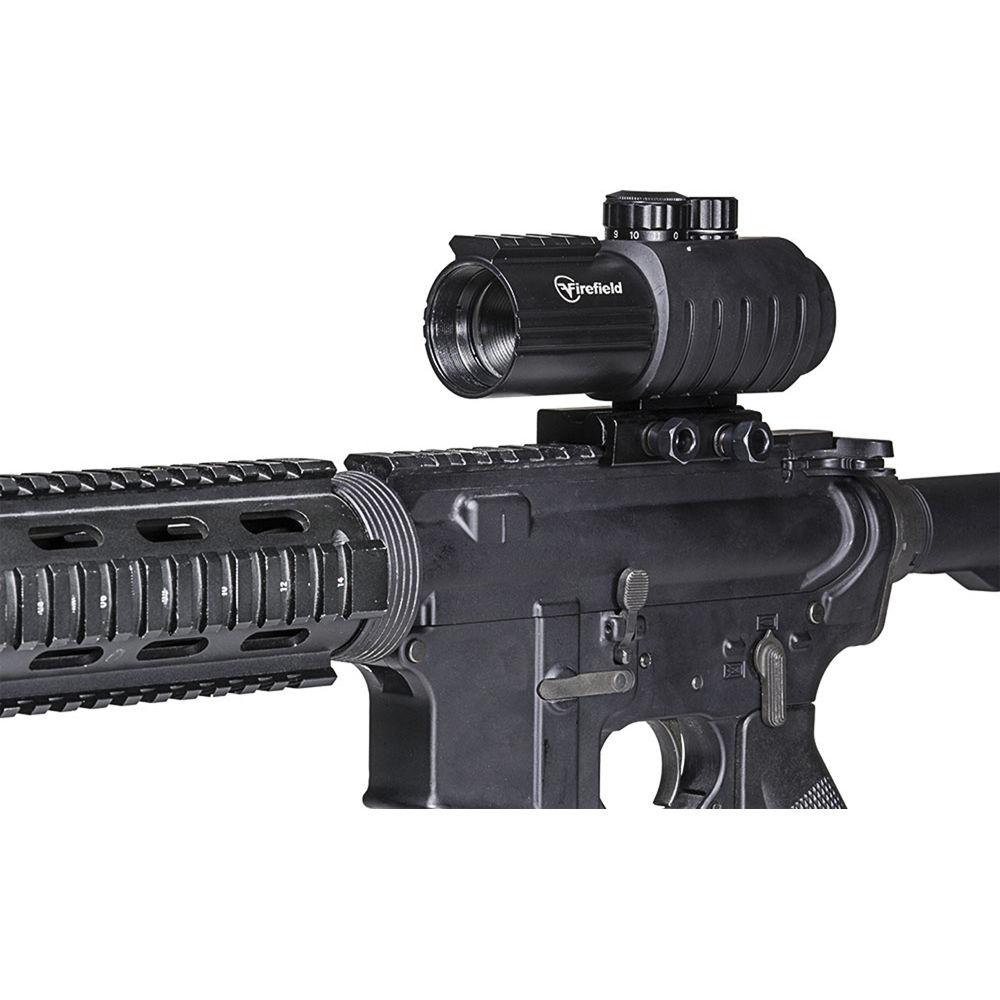

- Attaches to Weaver or Picatinny mount
- Integrated short Weaver rail on top allows attaching accessories
- Aluminum housing with rubber armoring and matte black finish
- Nitrogen-purged fogproof
- IPX6-rated weatherproof
UPC: 810119019639 In the Box Firefield 3x30 Prismatic Sight with Red-Black Circle Dot Reticle, Lens Converter - CR1620 Battery
- Objective Cap
- Lens Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 3x30 Prismatic Sight with Red-Black Circle Dot Reticle, Lens Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Prismatic Combat Specs | | | Power Source | 1 x CR1620 | | Mounting | Picatinny / Weaver | | | | Magnification | 1.5 to 4.5x | | Objective Lens Diameter | 30 mm | | Field of View | 39' @ 100 yd / 12.9 m @ 100 m | | Exit Pupil Diameter | 10 mm | | | | Impact Point Correction | 1/4 MOA | | Windage Adjustment | 160 MOA | | Elevation Adjustment | 160 MOA | | | | Water Resistance | IPX6 | | Fogproof | Yes | | Dimensions | L: 4.8 x W: 3.1 x H: 2.2" / L: 12.2 x W: 7.9 x H: 5.6 cm | | Weight | 18.1 oz / 513.1 g |
