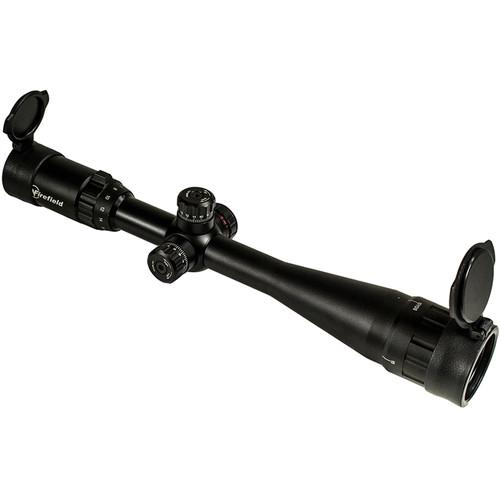

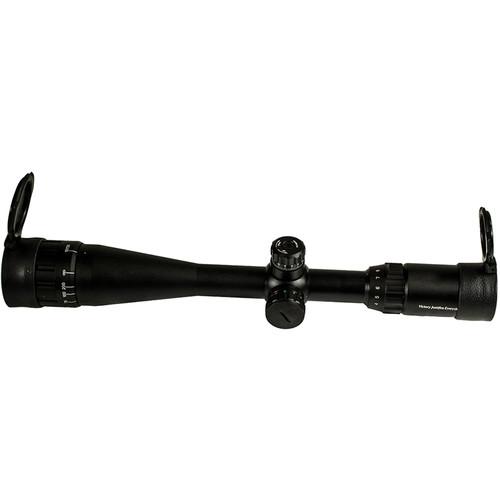

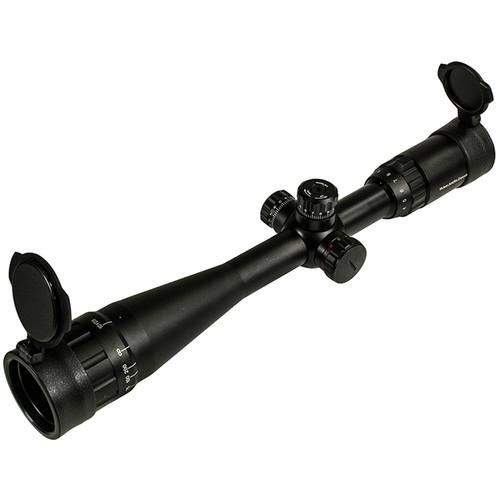

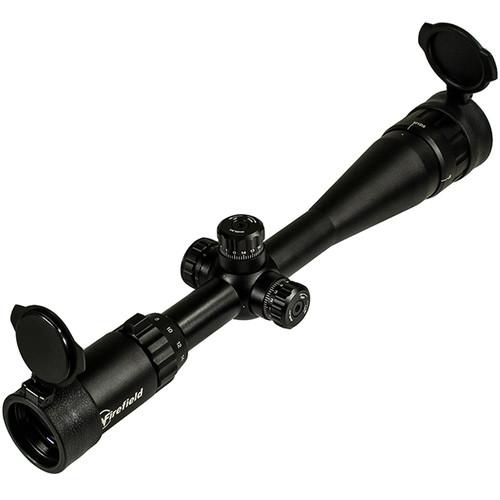

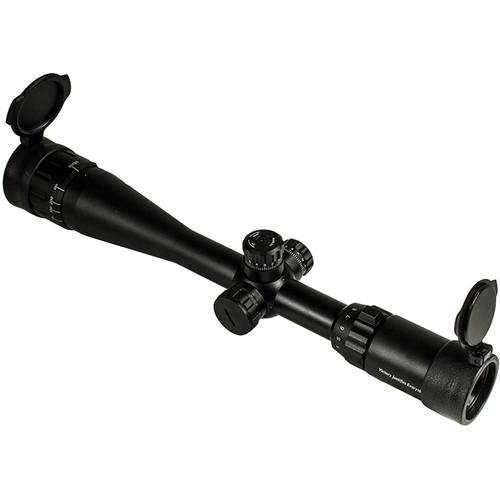

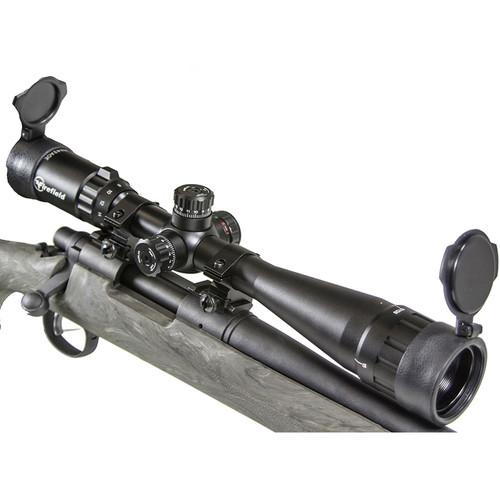

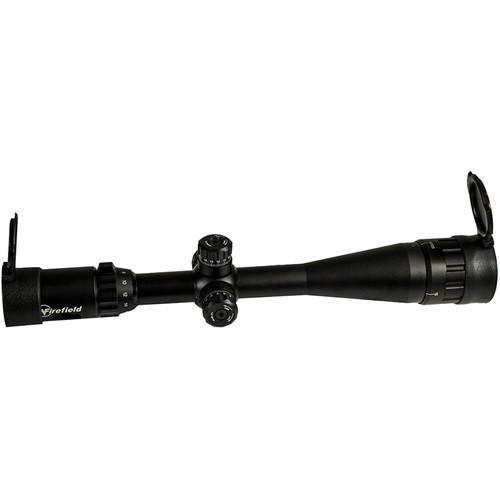

User Manual for Firefield 4-16x42 AO Tactical IR Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield 4-16x42 AO Tactical IR Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 4-16x42 AO Tactical IR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description The 4-16x42 AO Tactical IR Riflescope from Firefield is a nitrogen-filled zoom optic designed for mid-range targets. Complementing this scope's 16x maximum zoom and 1:4 zoom ratio is adjustable objective (AO) parallax correction, which can be set from 15 yd to infinity by rotating the ring on the objective bell. This scope features a Mil Dot reticle that can be illuminated in red or green using a dedicated reticle brightness side turret. The reticle illumination control has five selectable brightness settings for each color; green illumination is more visible than red in low-light conditions, but red is more useful for targeting subjects among a woodland landscape. In addition to the broad zoom range and illuminated reticle, the Tactical riflescope has a multicoated optical path, shock-resistant housing, and 1/4 MOA locking turrets, equipping this optic for reliable mid-range performance outdoors. - Optical Performance
-
- 4-16x magnification, 42mm objective
- 1" main tube diameter
- Multicoated optics
- 26.2-7 ft field of view at 100 yd
- 15 yd to infinity parallax correction
- Second plane Mil Dot reticle, red or green illuminated
- Use and Handling
-
- 1/4 MOA impact point correction
- Locking windage and elevation turrets
- Parallax adjustment objective ring
- Grooved eyepiece focus ring
- 1" mounting rings included
- Uses (1) CR2032 battery
- 5-level reticle brightness adjustment
- Construction Details
-
- Nitrogen-filled fogproof and waterproof housing
- Shockproof up to 1200g recoil force
- -4 to 140° operating temperature
- 13.4" length, 26.5 oz weight

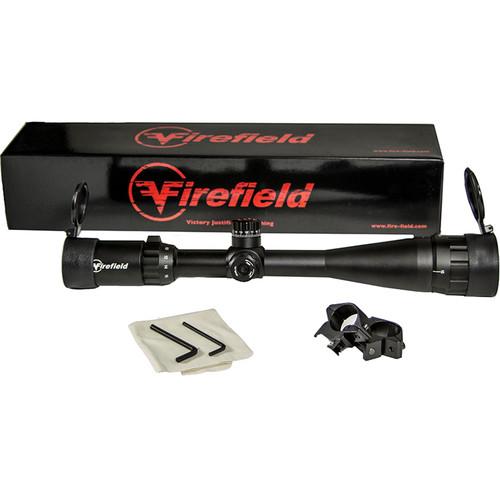

UPC: 810119018441 In the Box Firefield 4-16x42 AO Tactical IR Riflescope (Mil Dot) Flip-Down Objective Cover 1" Mounting Rings Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 4-16x42 AO Tactical IR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13044 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 42 mm | | Field of View | 4x: 26.2' @ 100 yd / 8 m @ 100 m
16x: 7' @ 100 yd / 2.1 m @ 100 m | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Battery Runtime | 150 Hours (Maximum) | | Dimensions | Length: 13.4" / 34 cm
Height: 3" / 8 cm
Width: 2.3" / 6 cm | | Weight | 26.5 oz / 751 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 17.2 x 4.1 x 3.3" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
