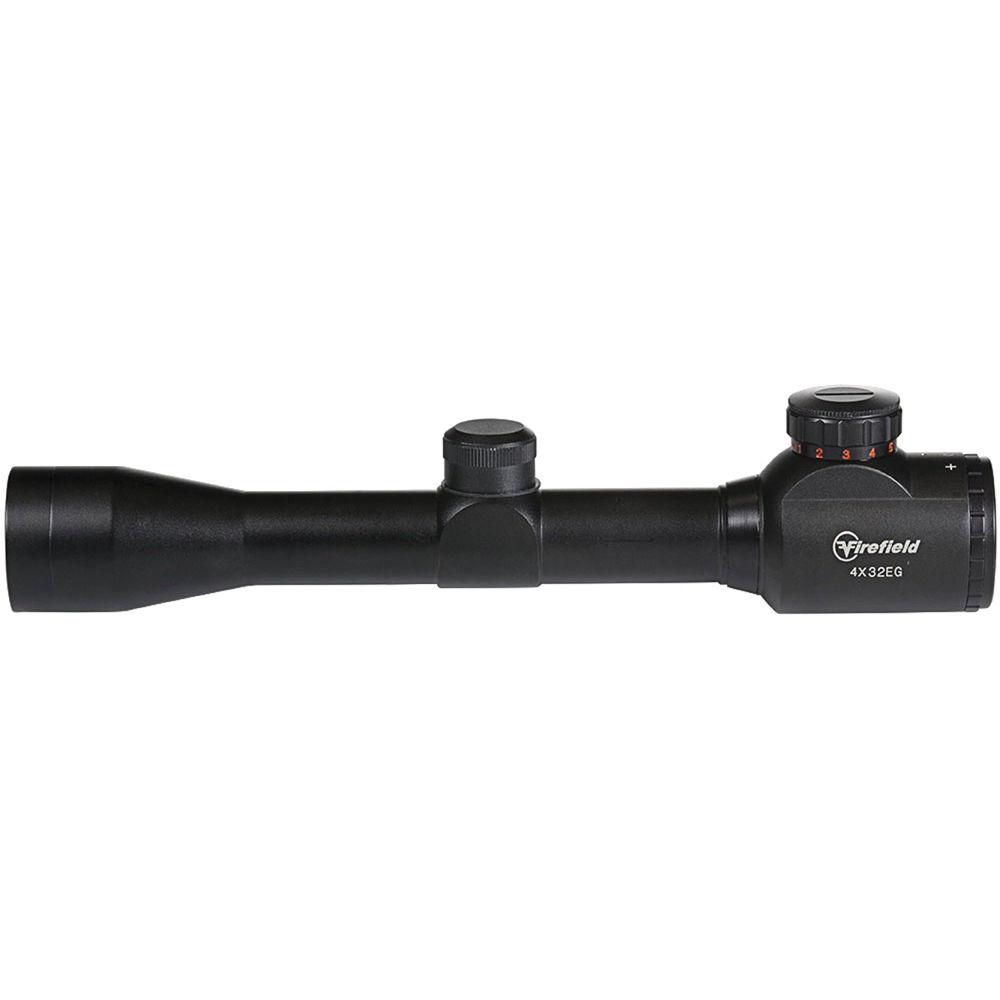

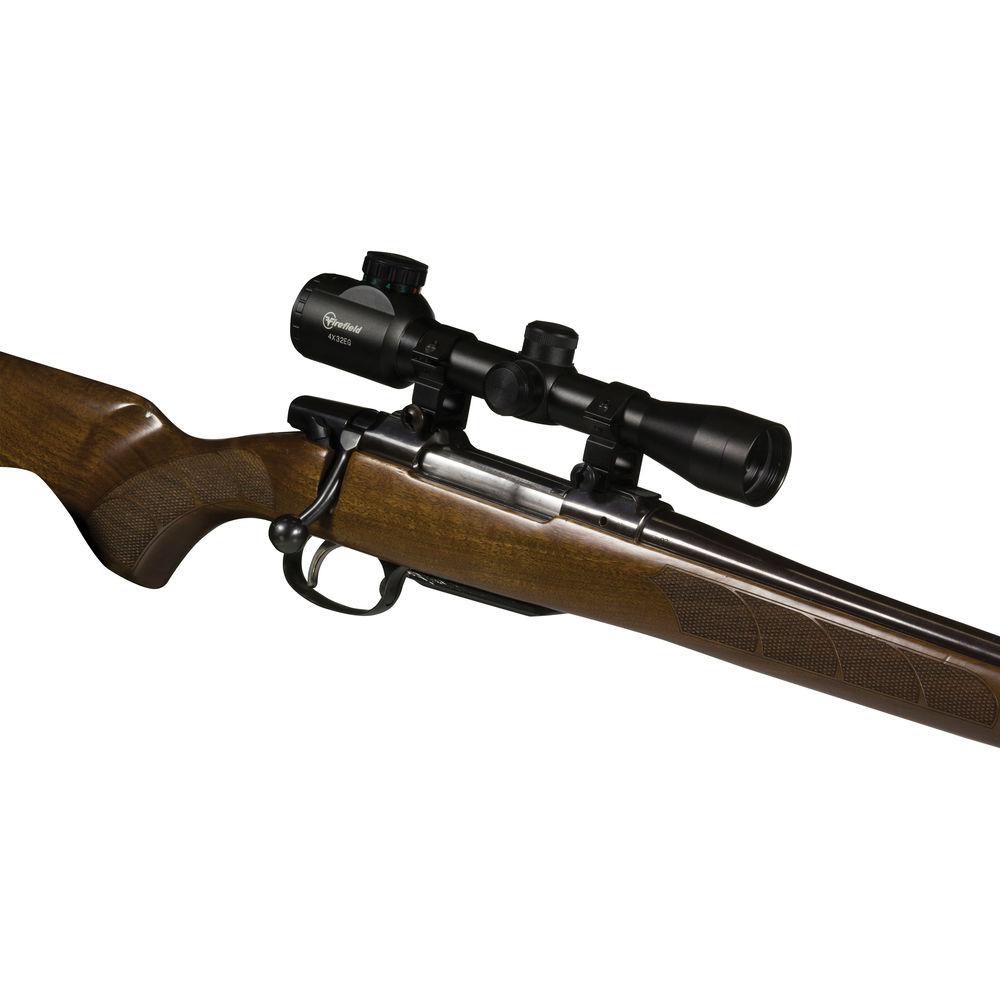

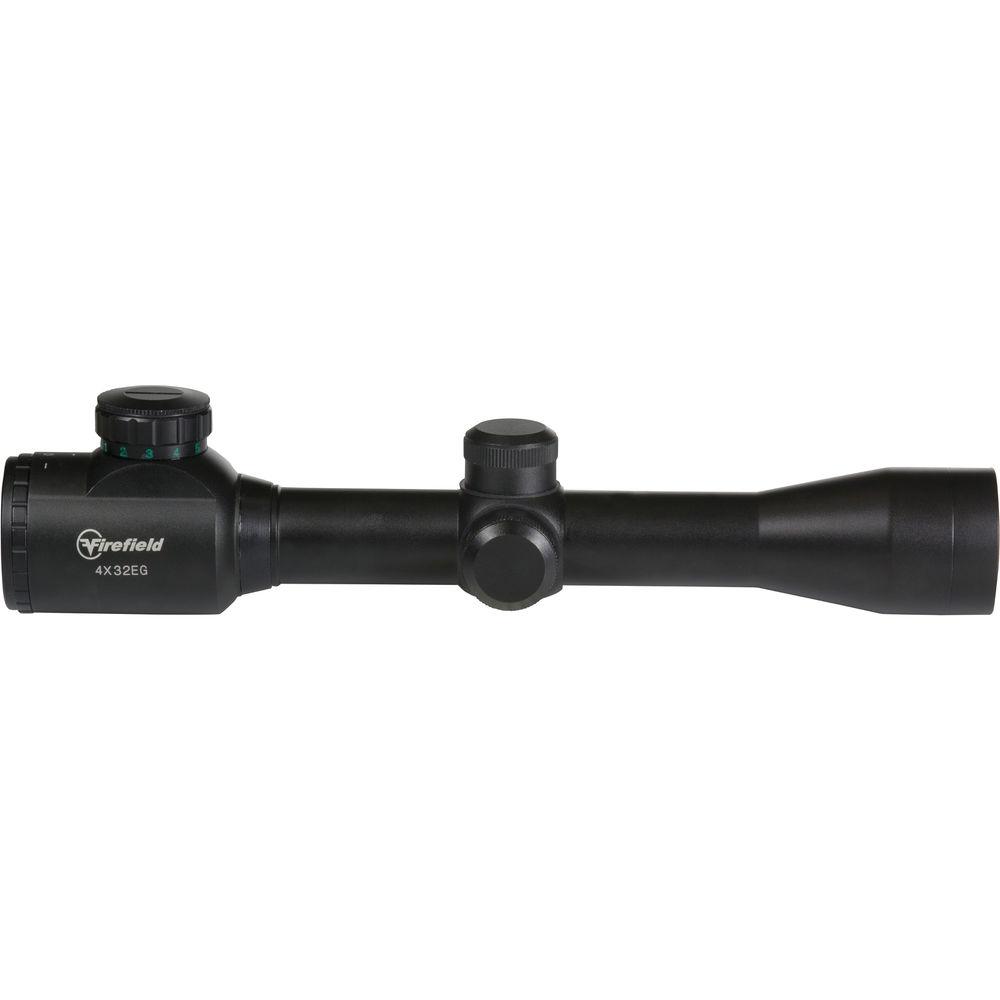

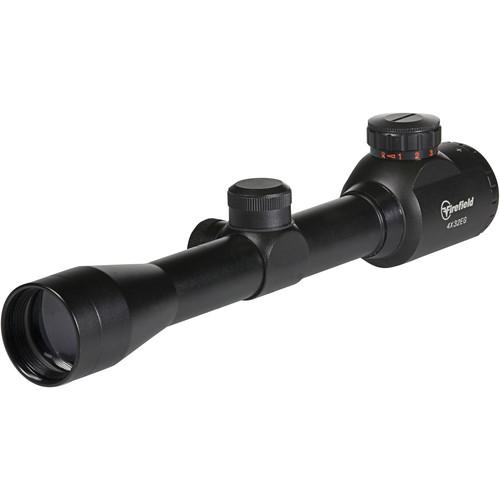

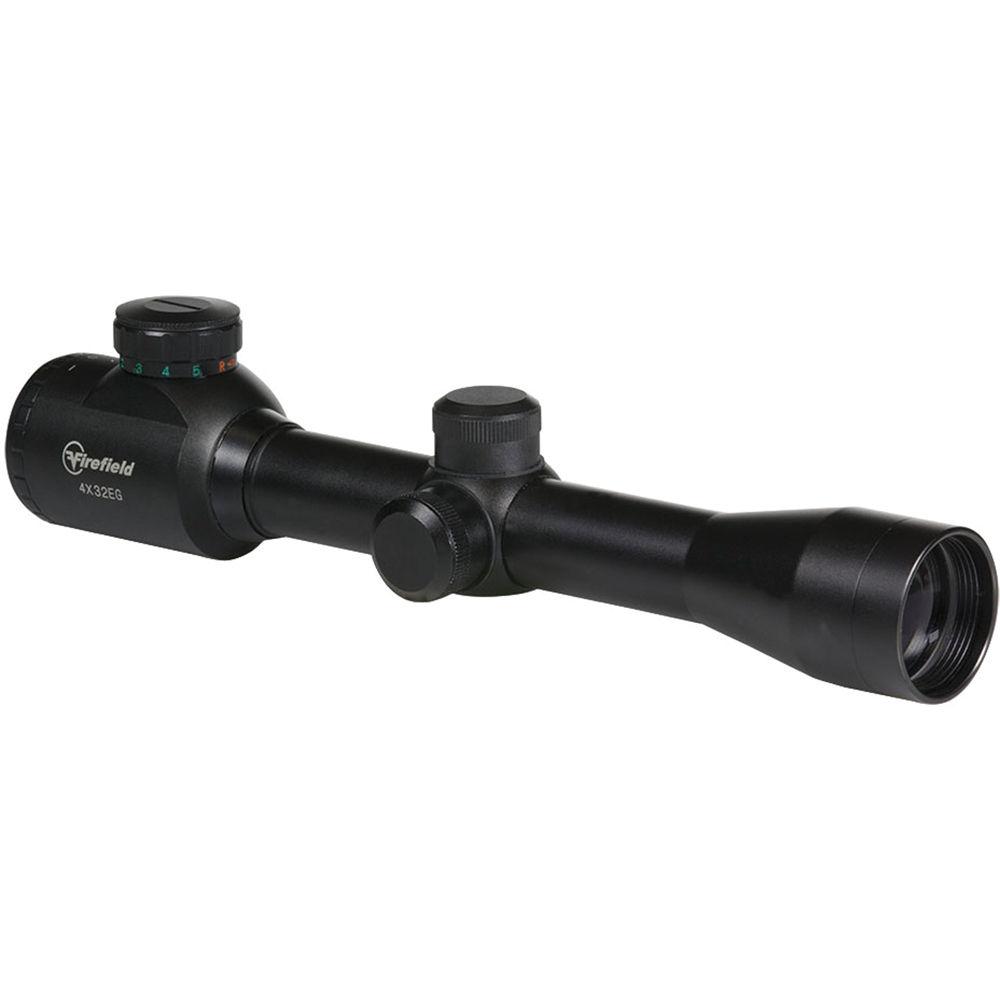

User Manual for Firefield Agility IR 4x32 Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield Agility IR 4x32 Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield Agility IR 4x32 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description Featuring a Fine Duplex illuminated reticle, the Agility IR 4x32 Riflescope from FireField offers fully multicoated lenses that provide improved brightness in low light conditions like early mornings and late evenings. While the optical system offers a 4x magnification, the Fine Duplex reticle has red or green illumination for visibility in a variety of lighting conditions. To help you compensate for wind drift and projectile motion, the scope offers 80 MOA windage and elevation adjustment range with a 1/4 MOA per click impact point correction.
The aluminum housing is weather-resistant, shock-resistant, fogproof, and has low profile capped adjustment turrets. Also included with the scope are mount rings, a CR2032 battery, and a cleaning cloth. Optical Performance -
- Zoom magnification: 4x
- Objective lens diameter: 32mm
- Fully multicoated optics
- Linear field of view range is 27.5' at 100 yd
Reticle -
- Fine Duplex reticle
- Red-green illumination
Use and Handling -
- 1/4 MOA per click impact point correction
- 80 MOA windage and elevation adjustment range
- Eye relief: 3"
Construction Details -
- Battery compartment located on the eyepiece
- Capped low-profile turrets
- Main tube diameter: 1"
- Aluminum housing
- Weather-resistant
- Shock-resistant
- Fogproof
UPC: 810119011626 In the Box Firefield Agility IR 4x32 Riflescope (Fine Duplex Reticle) - Mount Rings
- CR2032 Battery
- Cleaning Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Agility IR 4x32 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13048 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 27.5' @ 100 yd / 9.2 m @ 100 m | | Eye Relief | 3" / 76 mm | | | | Reticle Type | Duplex Reticle | | Illumination | Illuminated | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | | | Water Resistance | Water Resistant | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 10.4" / 26.5 cm
Height: 2" / 5.2 cm
Width: 2" / 5.2 cm | | Weight | 11.8 oz / 335 g |
