User Manual for Firefield Close Combat 1-4x24 Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield Close Combat 1-4x24 Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield Close Combat 1-4x24 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

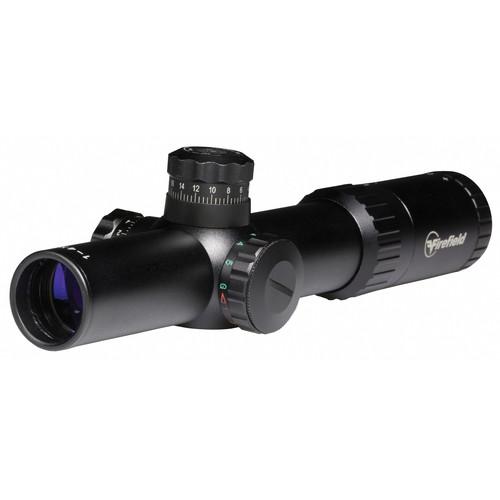

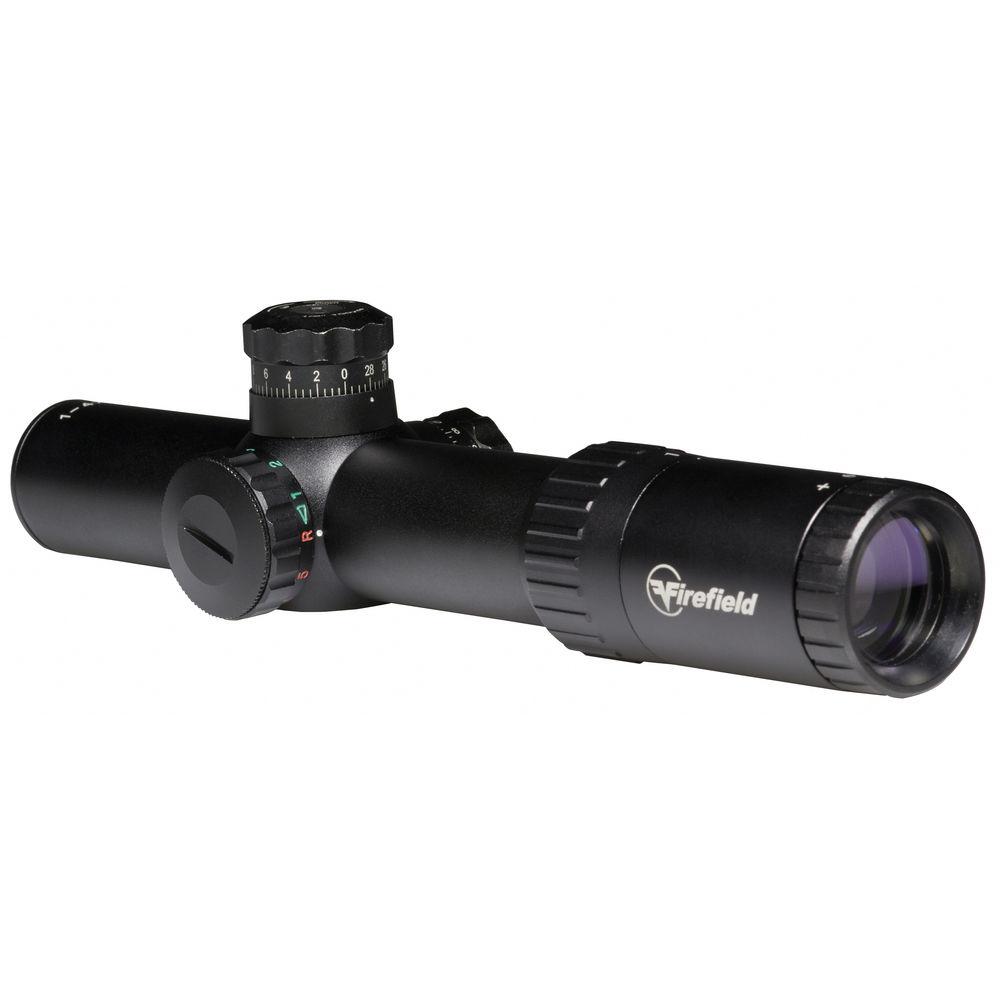

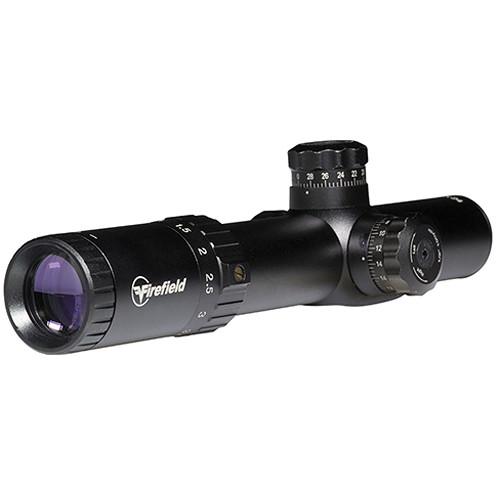

Product description Configured with the illuminated Mil-Dot reticle, the Close Combat 1-4x24 Riflescope from FireField provides a versatile tool for accurate close quarter target acquisitions. The reticle is located in the second focal plane and will remain the same in size as you change your zoom factor. It has red or green illumination options with five brightness settings to provide you with adequate visibility in various lighting conditions. The parallax-free operation is set at 100 yd. To help you compensate for wind drift and ballistic bullet drop, the scope offers 120 MOA windage and elevation adjustments ranges with 1/2 MOA increments.
The optics are fully multicoated to improve light transmission and image clarity and brightness. Depending your zoom setting, you will be able to see an edge-to-edge field from 24' to 88.3' at a distance of 100 yards. The scope also offers a diopter adjustment range from +3 to -3, an eye relief of 4.8-4.2", and has a 12.3-6.2 mm exit pupil.
The hard anodized aluminum housing is lightweight and durable, weather-resistant, fogproof, and shock-resistant. It features a 30mm main tube, exposed adjustment turrets, and a fast focus eyepiece. Also included with the riflescope are a cleaning cloth, mounting rings, and a CR-2032 battery. - Mil-Dot Reticle
-
- 2nd focal plane
- Red or green illumination settings
- Five brightness levels
- Optical Performance
-
- 1-4x zoom magnification range
- 24mm objective diameter
- Fully multicoated optics
- 88.3-24" @ 100 yd field of view
- Eye Relief:4.8-4.2"
- Exit Pupil Diameter: 12.3-6.2 mm
- Diopter Adjustment:+3 to -3
- Use and Handling
-
- 1/2 MOA per click impact point correction clicks
- 120 MOA windage and elevation adjustment
- Construction Details
-
- 30mm main tube diameter
- Fast focus eyepiece
- Exposed adjustment turrets
- Aluminum housing
- Hard anodized matte black finish
- Weather-resistant, fogproof, shock-resistant
UPC: 812495020223 In the Box Firefield Close Combat 1-4x24 Riflescope (Red-Green Mil-Dot) - CR-2032 Battery
- Mounting Rings
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Close Combat 1-4x24 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13060 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 88' @ 100 yd / 27.2 m @ 100 m
4x: 3.2' @ 100 yd / 7.3 m @ 100 m | | Exit Pupil Diameter | 1x: 12.3 mm
4x: 6.2 mm | | Eye Relief | 4.2 to 4.8" / 105 to 120 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Mounting | Weaver | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX6 | | Fogproof | Yes | | Operating Temperature | 0 to 120°F / -18 to 49°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 80 to 150 Hours (Maximum) | | Dimensions | Length: 8.9" / 22.5 cm
Height: 2.7" / 6.8 cm
Width: 2.2" / 5.6 cm | | Weight | 14.2 oz / 402 g |
