User Manual for Firefield Hog Laser Designator Click to enlarge the picture
Contents of the user manual for the Firefield Hog Laser Designator
- Product category: Laser Sights Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Laser Sights
 |
User manual for the Firefield Hog Laser Designator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

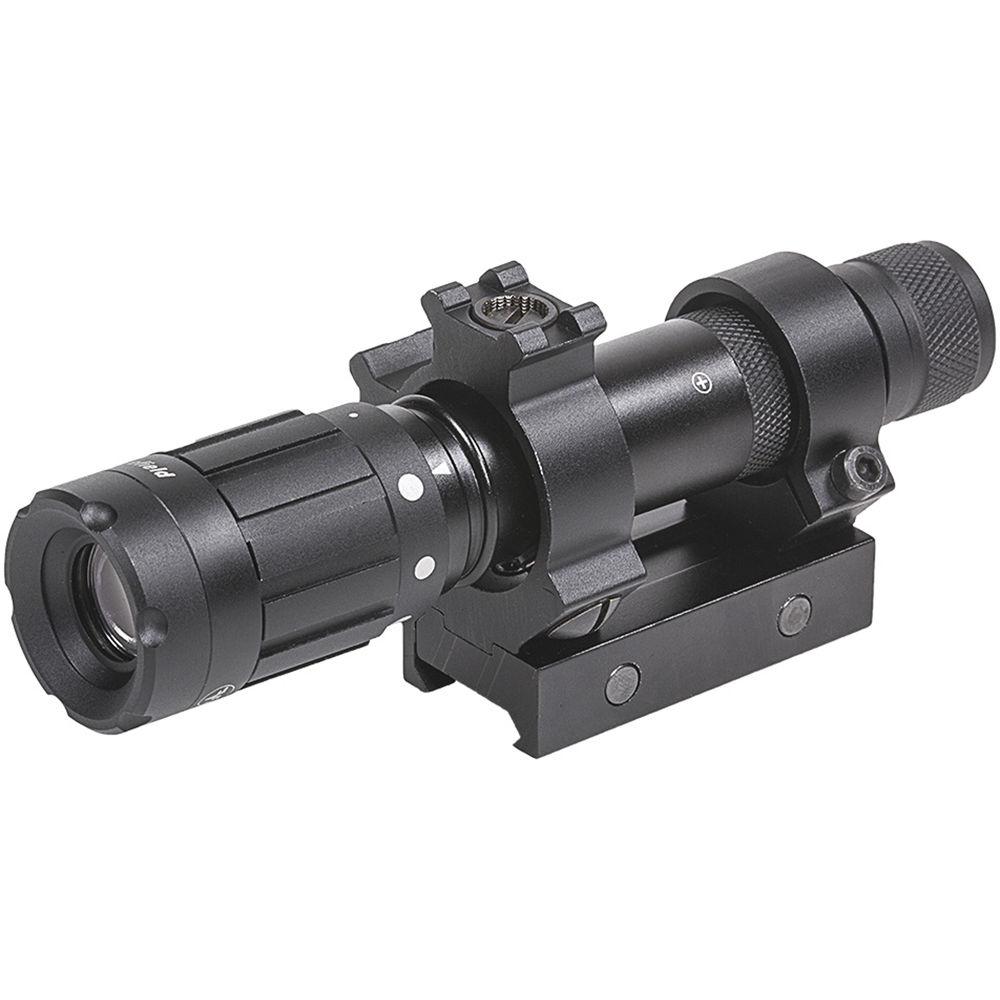

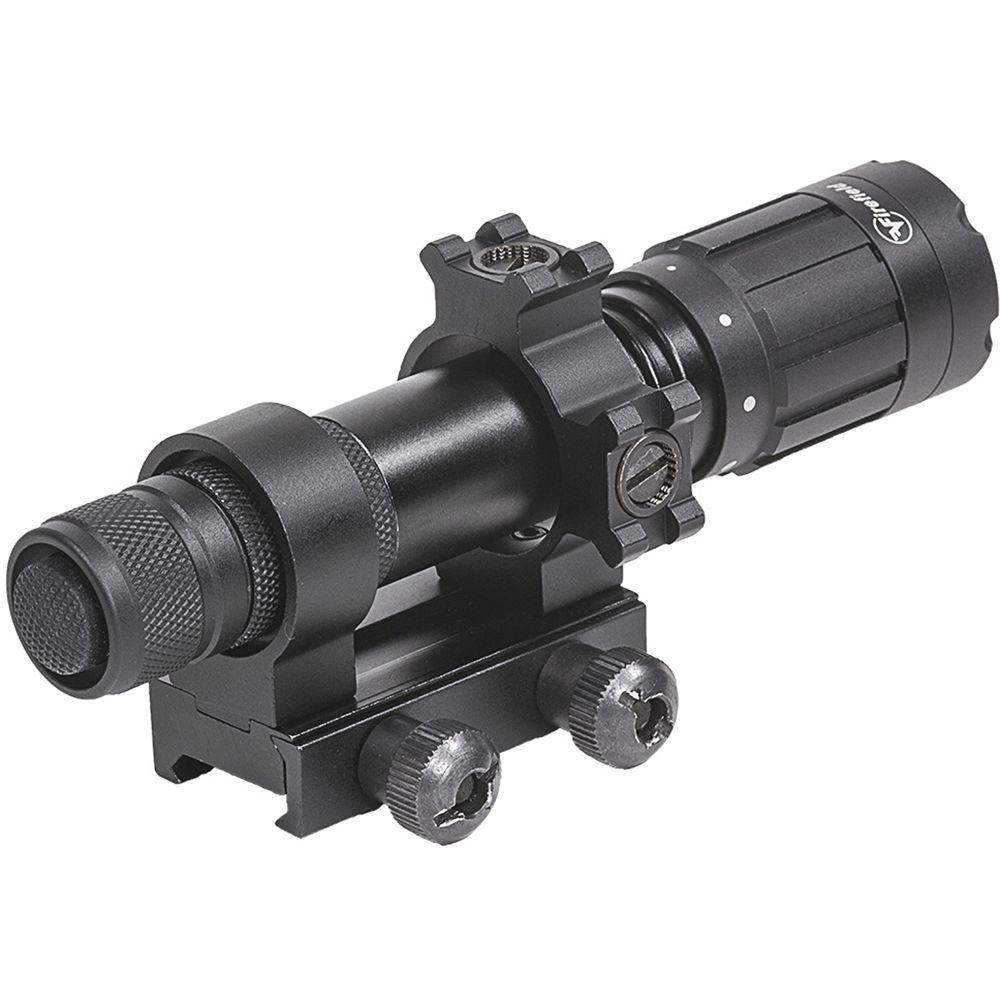

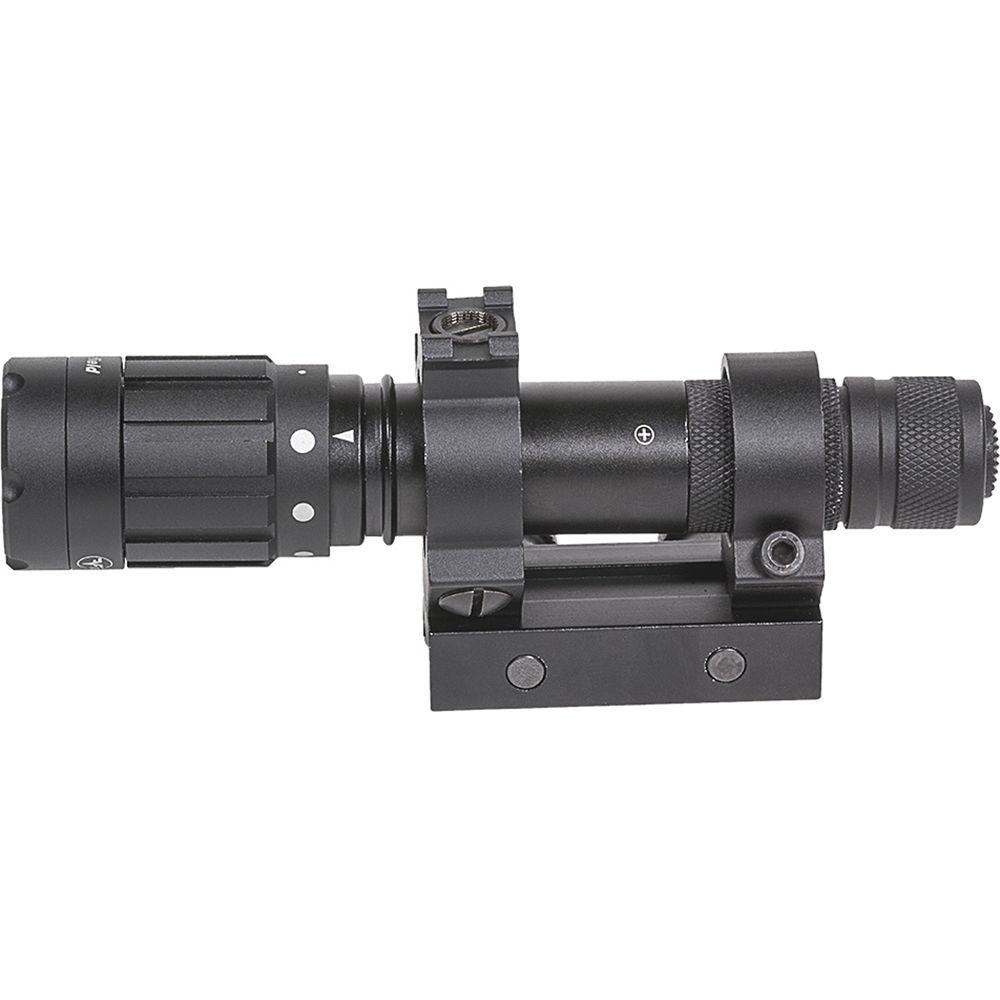

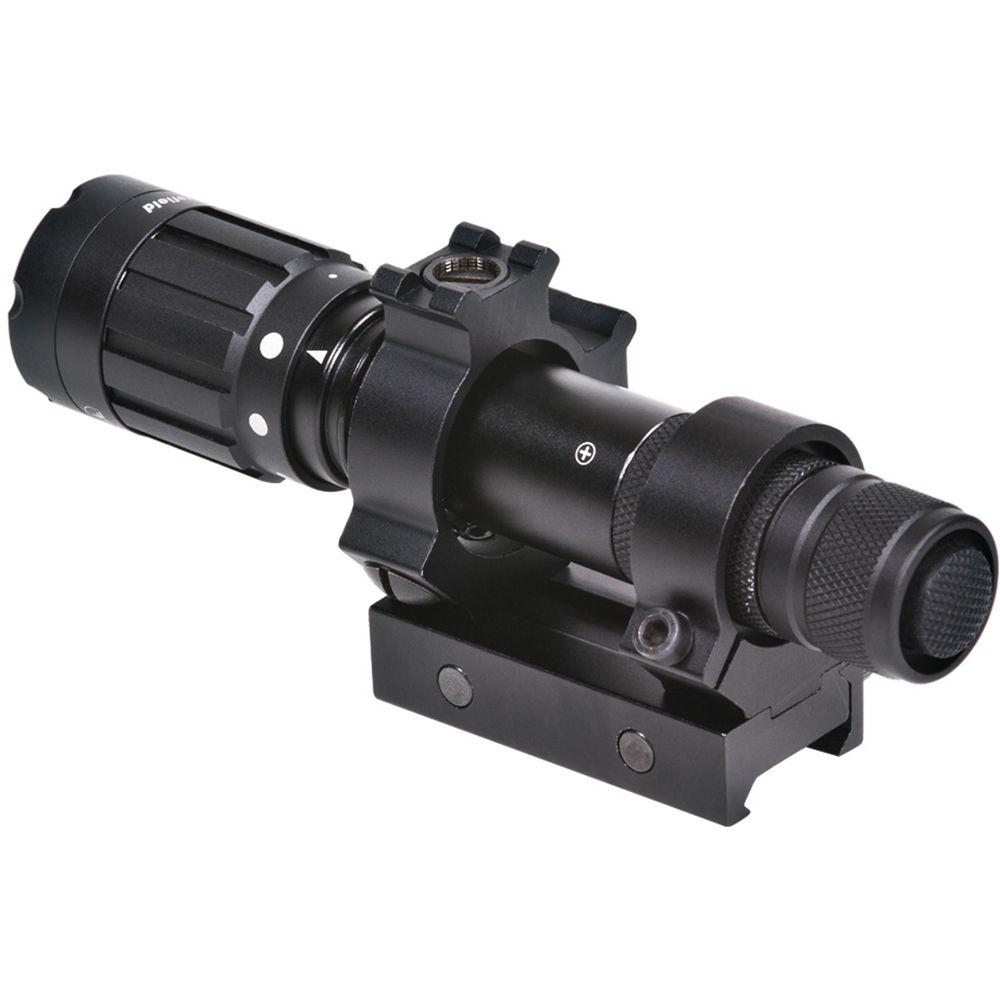

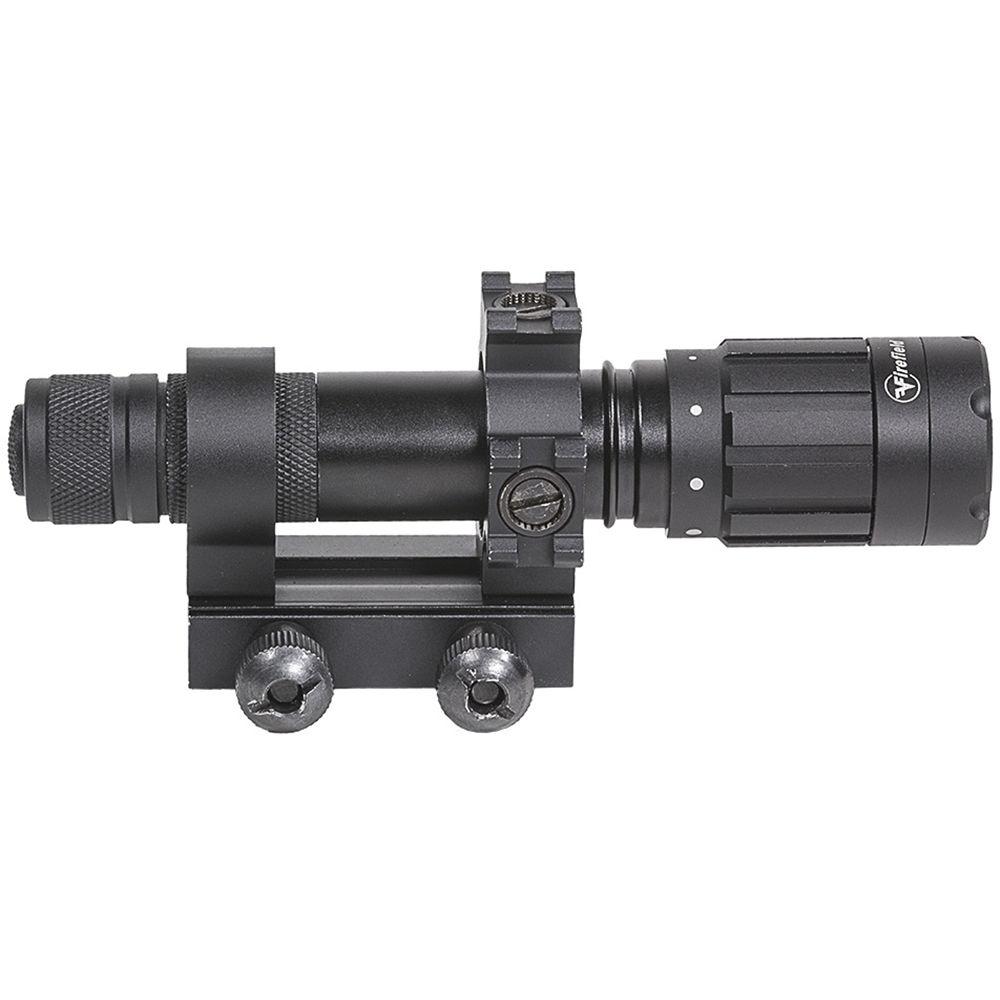

Product description Haunt your game using the FireField Hog Laser Designator. This laser aiming device features a 5mW green laser that can be used for aiming or illumination. You can activate this device using its tailcap pushbutton switch or using the included pressure pad remote control, which allows you to keep both of your hands on your firearm at all times. The front ring can be rotated to achieve the ideal laser spot for the task at hand. Using three included masks that can be attached on the front bell of the laser, you can generate three beam patterns that resemble reticles: a target dot, a crosshair, and a multi-dot. For alignment with your firearm's trajectory on other optics, the designator offers beam direction adjustments in two axes with a 180 MOA range and continuous tuning. To ensure durability for years of service, the water-resistant and impact-resistant housing is made of aircraft-grade aluminum. It features two accessory mounting points and ships with a Picatinny/Weaver-style mount. - Laser
-
- Green Class IIIA laser
- 5mW maximum output
- Flood/spot focusing via rotating front bell
- 2.5-175" dot size at 50 yards
- Use and Handling
-

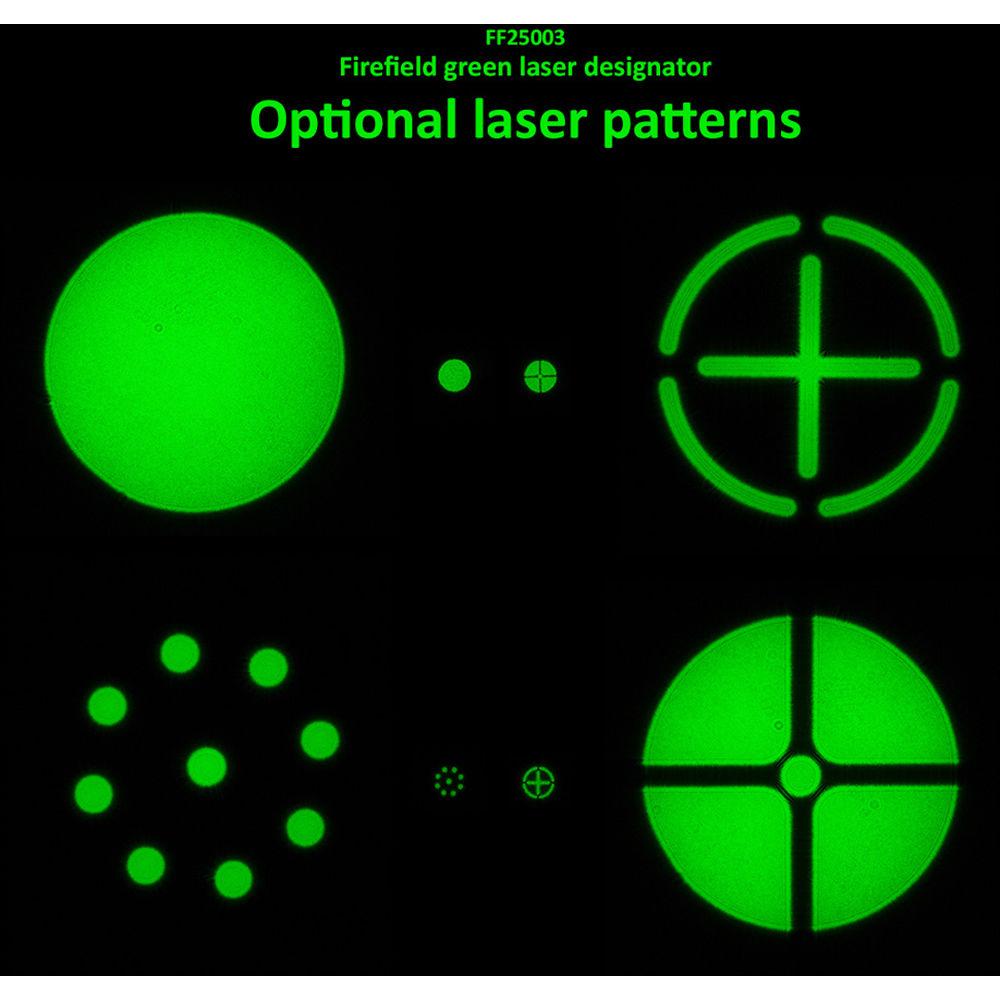

- Three masks with reticle patterns: target dot, crosshair, and multi-dot
- Activation: tailcap pushbutton or pressure pad
- Continuously adjustable 180 MOA windage and elevation
- Picatinny/Weaver firearm mount included
- Powered by one CR123A battery
- Construction
-
- Aluminum with matte black finish
- Protective bezel around laser aperture
- Knurled focusing ring
- Textured tailcap, tailcap pushbutton, and grip ring
- Two mounting points for accessories
- IPX6-rated, water-resistant

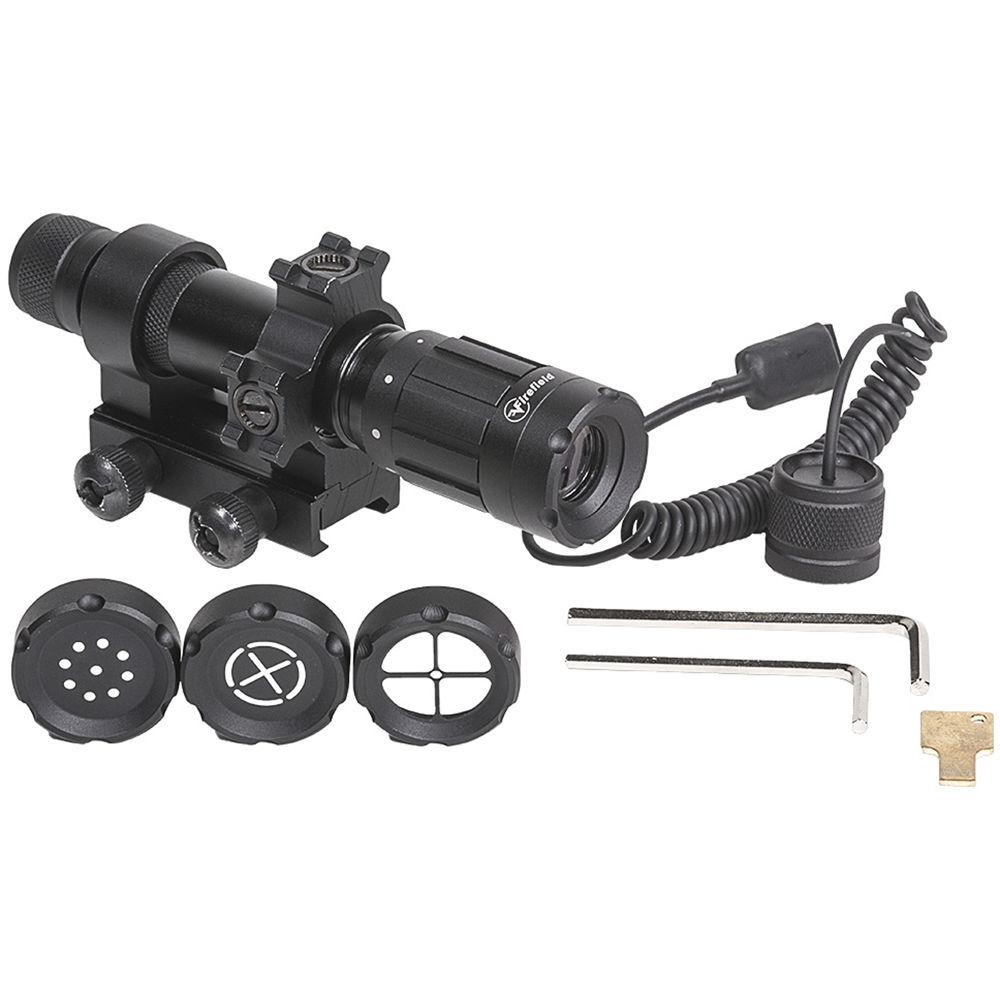

UPC: 812495021268 In the Box Firefield Hog Laser Designator (Matte Black) - CR123A Battery
- Pressure Pad Remote Control
- Weapon Mount
- 3 x Reticle Masks
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Hog Laser Designator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF25003 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Diameter | 2.5 to 175" / 63.5 to 4445 mm | | Beam Divergence | 5 to 350 MOA | | | | Mount | Picatinny / Weaver | | Windage Adjustment | 180 MOA | | Elevation Adjustment | 180 MOA | | | | Runtime | 5 Hours | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Water Resistance | Water Resistant, IPX6 | | Dimensions | L: 5.8 x W: 1.8 x H: 2.2" / L: 14.7 x W: 4.6 x H: 5.7 cm | | Weight | 9.6 oz / 272.2 g |
