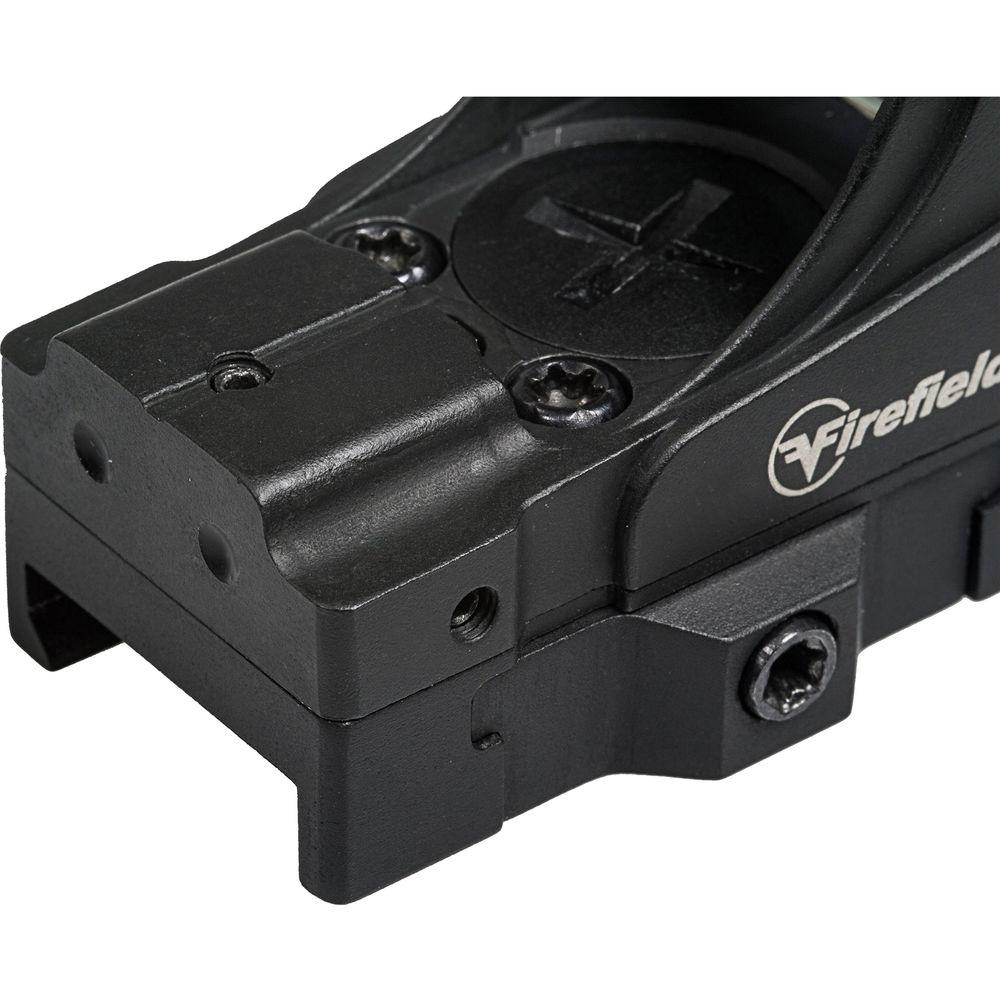

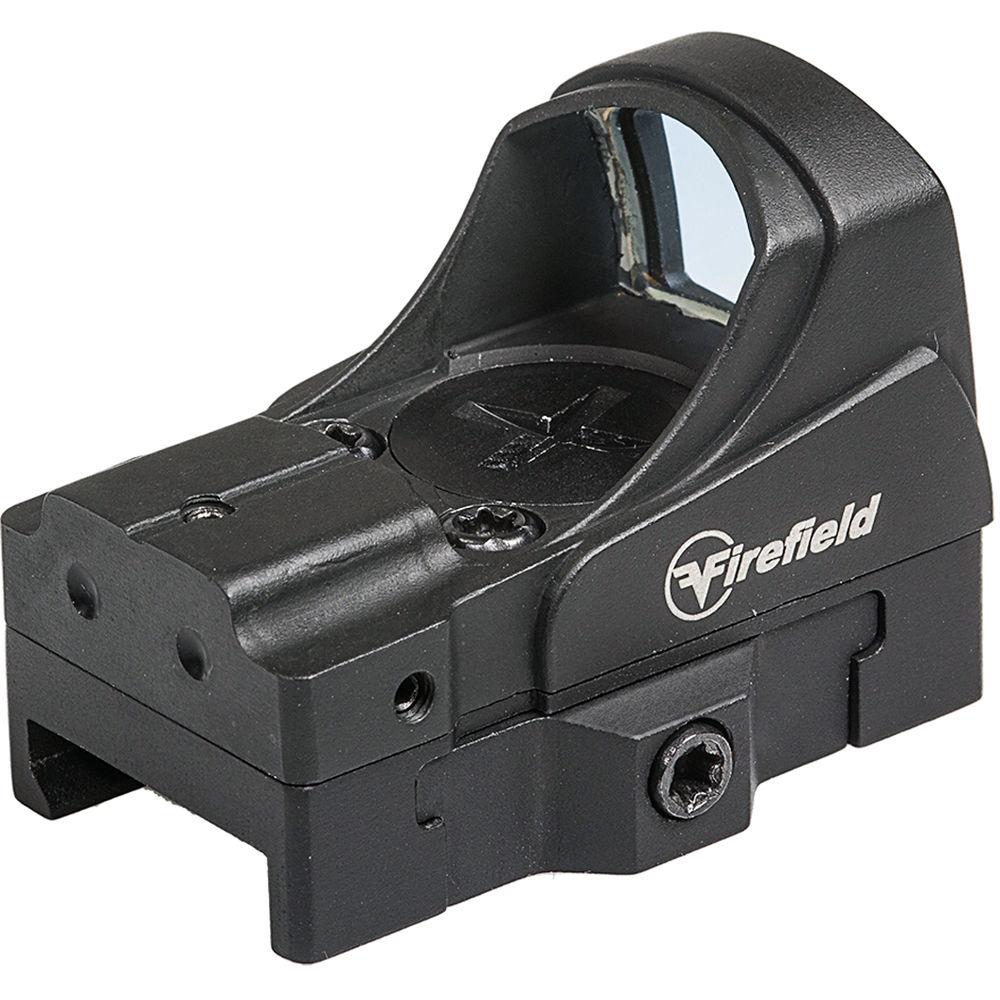

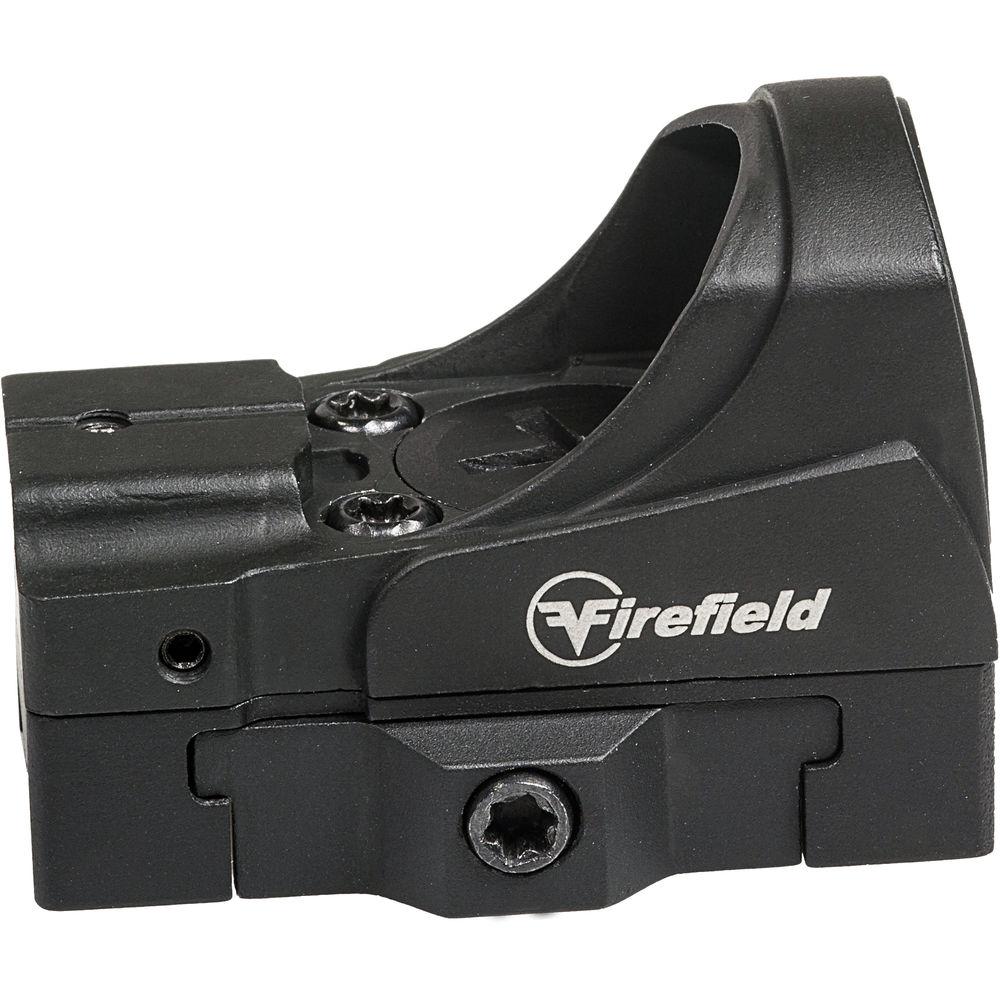

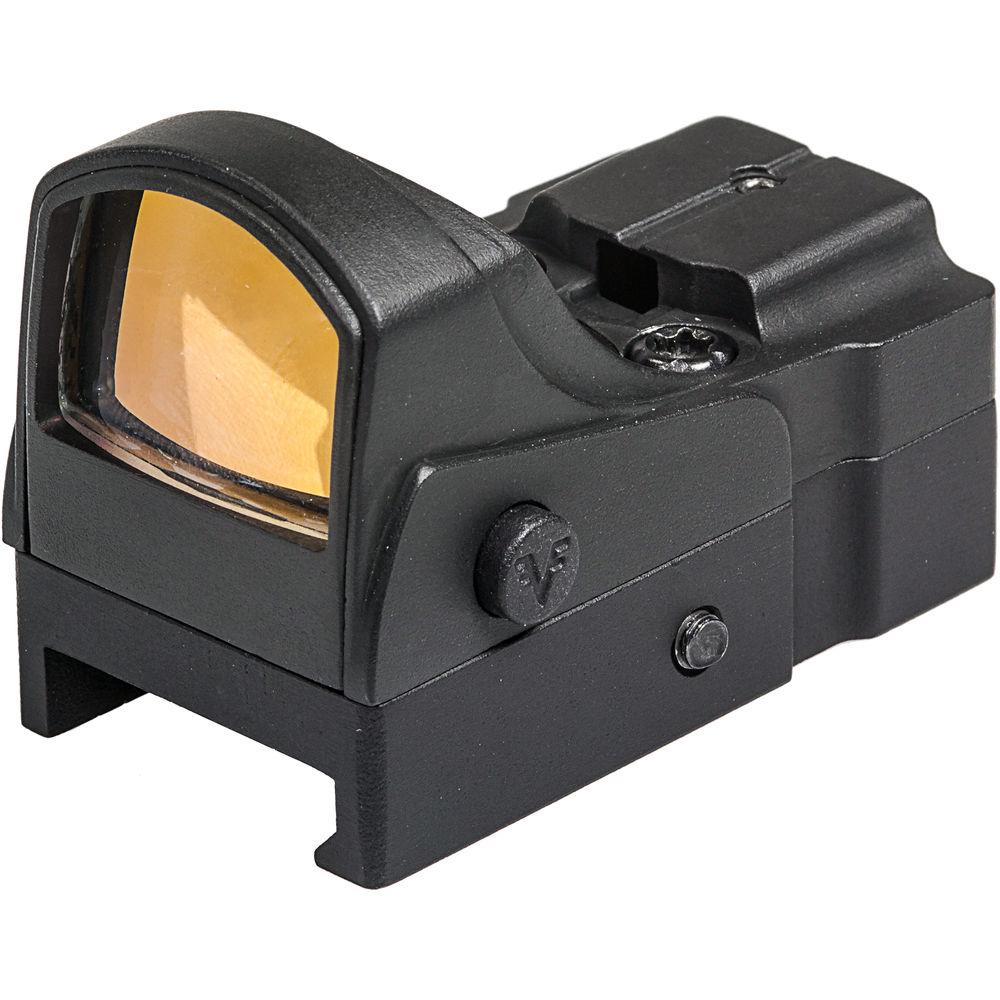

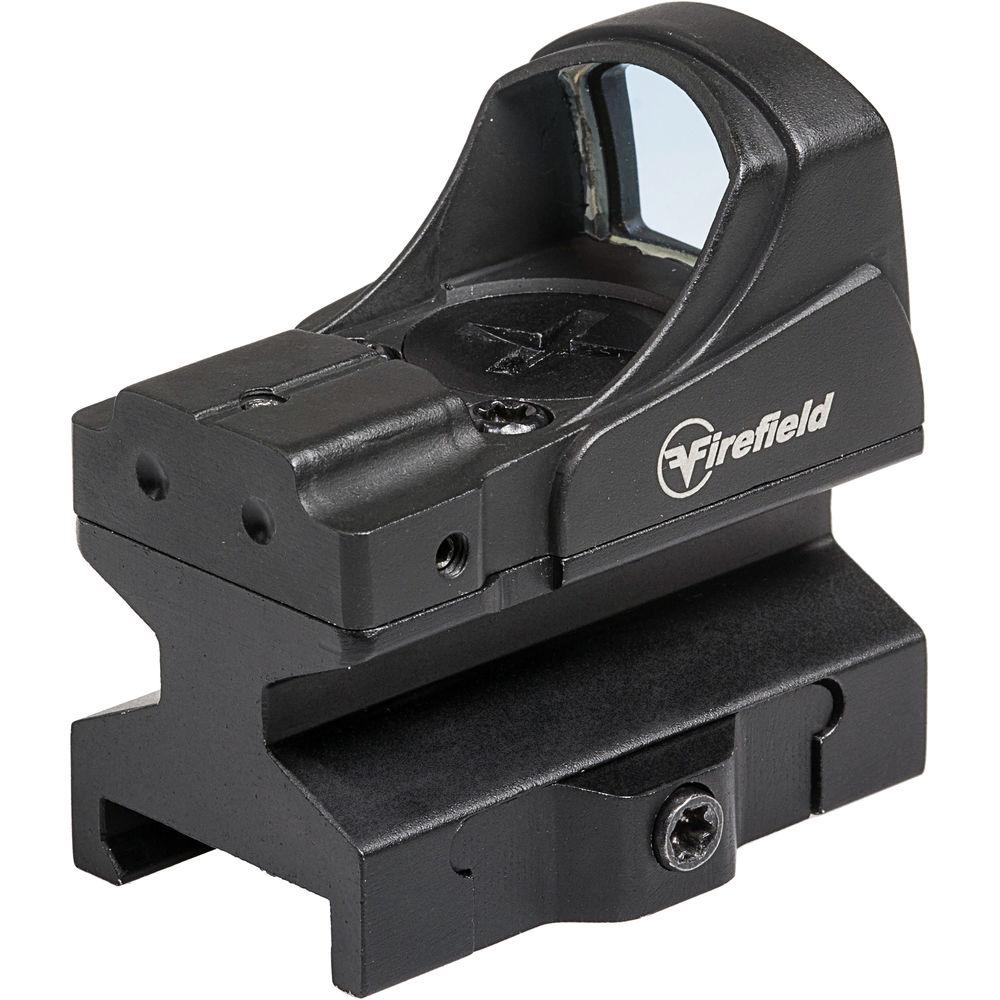

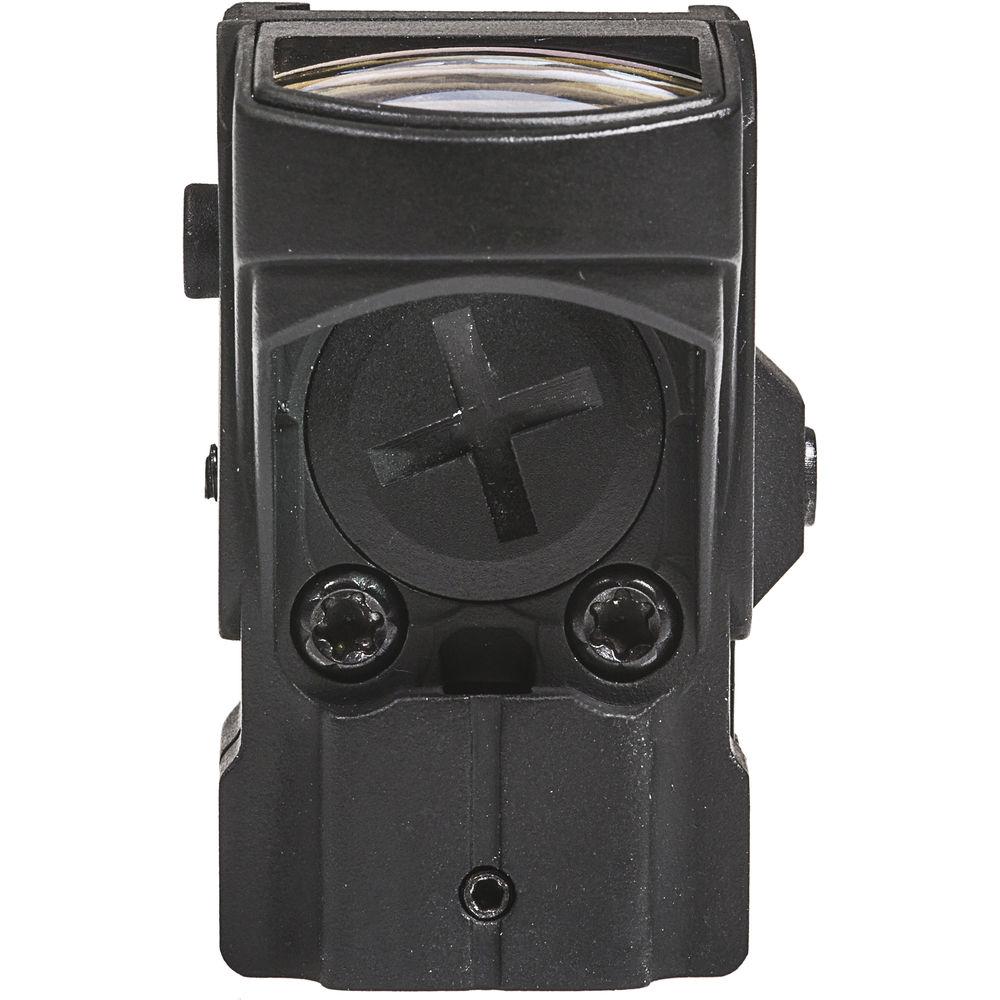

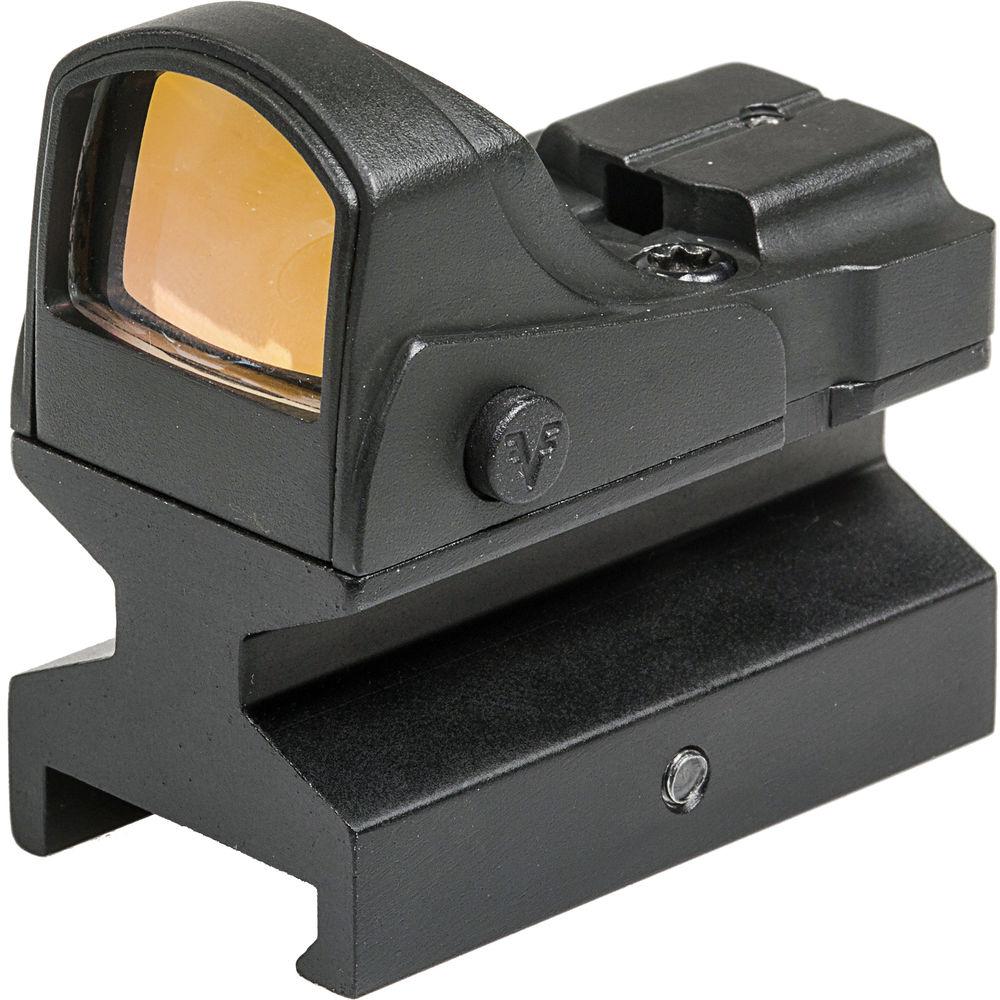

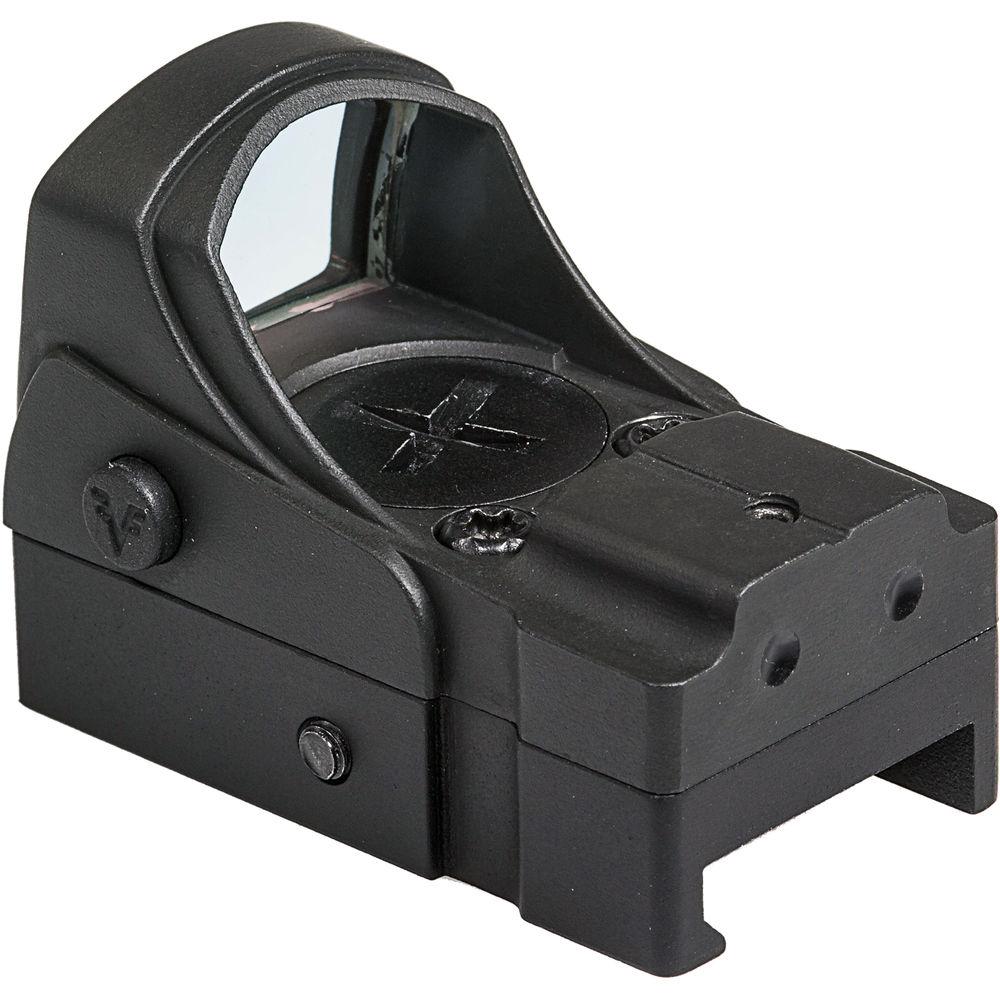

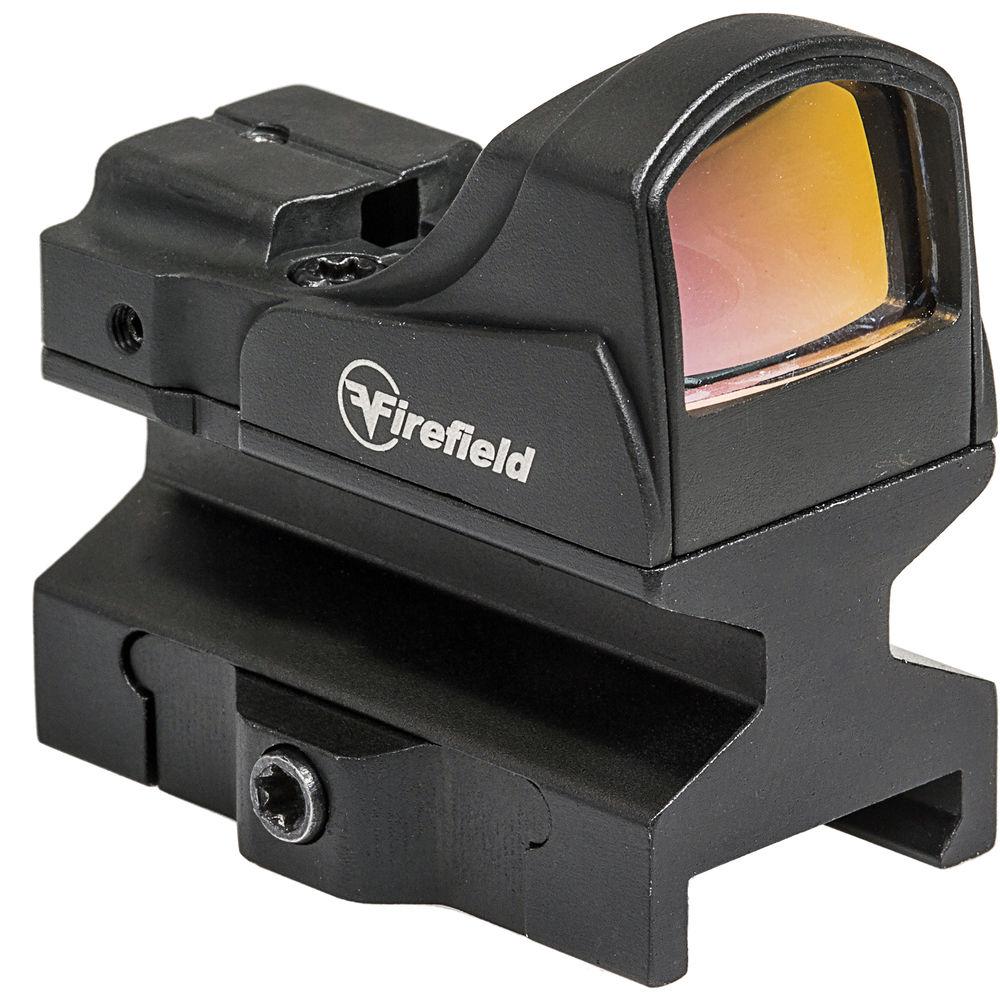

User Manual for Firefield Impact Mini Reflex Sight Click to enlarge the picture
Contents of the user manual for the Firefield Impact Mini Reflex Sight
- Product category: Red Dot/Holographic Sights Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Red Dot/Holographic Sights
 |
User manual for the Firefield Impact Mini Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

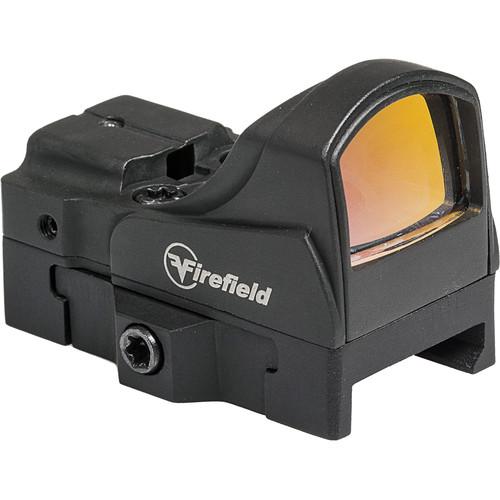

Product description Gain a tactical advantage with the Firefield Impact Mini Reflex Sight. This robust, lightweight, and compact sight is compatible with Smith & Wesson, Glock, Core, and MOS pistols but can also be attached on top of any other firearm using its low-profile Picatinny/Weaver mount. To bump up your aiming accuracy, the sight features an illuminated 5 MOA Red-Dot reticle with five adjustable brightness levels. For making trajectory adjustments to counteract the effects of winds and ballistic drop, the windage and elevation adjusters offer continuous tuning with wide maximum ranges of 120 MOA. - Optical Performance
-
- 1x magnification
- 21 x 16mm front window
- Red anti-reflection coating
- Unlimited eye relief
- Reticle
-
- 5 MOA Red-Dot reticle
- Five brightness settings
- Parallax-free at 50 yards
- Use and Handling
-
- 120 MOA windage and elevation ranges with continuous tuning
- Base compatible with Glock, S&W, Core, and MOS pistols
- Picatinny/Weaver low mount included
- Construction Details
-
- 6061-T6 aluminum housing
- Matte black finish
- Shock-resistant construction
- IPX55-rated, water-resistant
- Uses a CR1632 battery
UPC: 812495021640 In the Box Firefield Impact Mini Reflex Sight (5 MOA Red-Dot Illuminated Reticle, Matte Black) - Low Mount
- CR1632 Battery
- Sight Cover
- 2 x Adjustment Tools
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Impact Mini Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Impact Mini Specs | Magnification | 1x | | Objective Lens Diameter | 21 x 16 mm | | Field of View | Not provided by manufacturer | | Eye Relief | Unlimited | | Reticle | 5 MOA Red-Dot | | Parallax-Free | 50 yd / 45.7 m | | Mounting System | Weaver/Picatinny | | Impact Point Correction | Continuous | | Windage/Elevation Adjustment | 120 MOA | | Battery / Runtime | 1 x CR1632 battery / 40 - 200 hours | | Weatherproofing | Rated IP55, water-resistant | | Maximum Recoil | 800 g | | Material of Construction | 6061-T6 aluminum body | | Dimensions | 1.9 x 1.1 x 1" / 4.9 x 2.9 x 2.5 cm | | Weight | 1.0 oz / 28.4 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.2 x 5.9 x 0.7" |
