User Manual for Firefield Impact XL Reflex Sight Click to enlarge the picture
Contents of the user manual for the Firefield Impact XL Reflex Sight
- Product category: Red Dot/Holographic Sights Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Red Dot/Holographic Sights
 |
User manual for the Firefield Impact XL Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

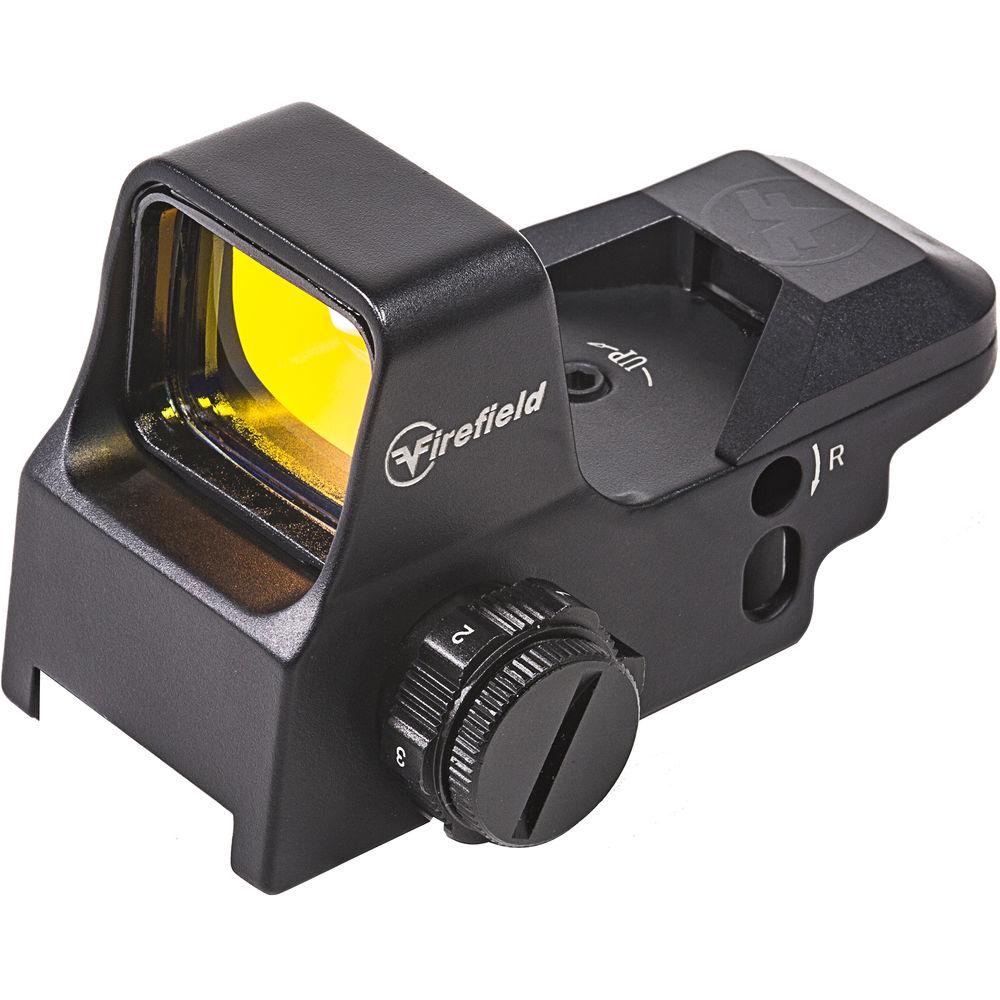

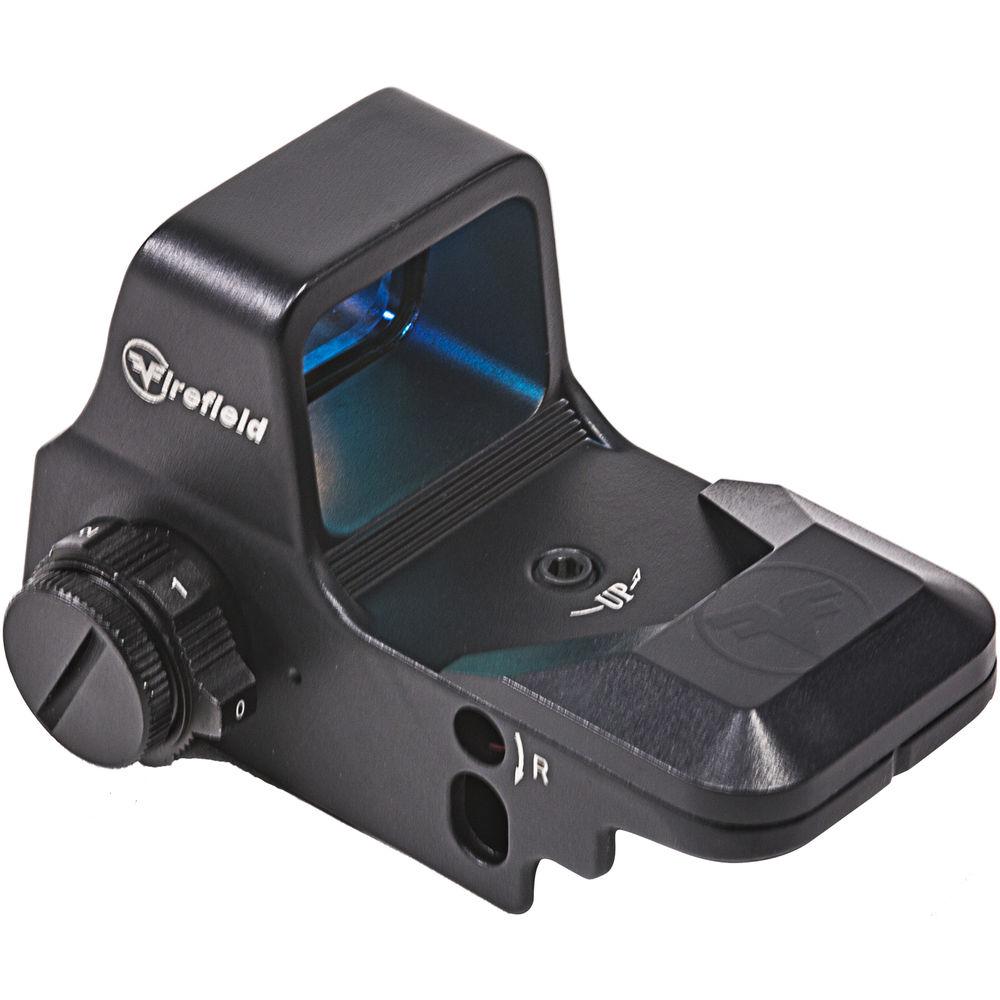

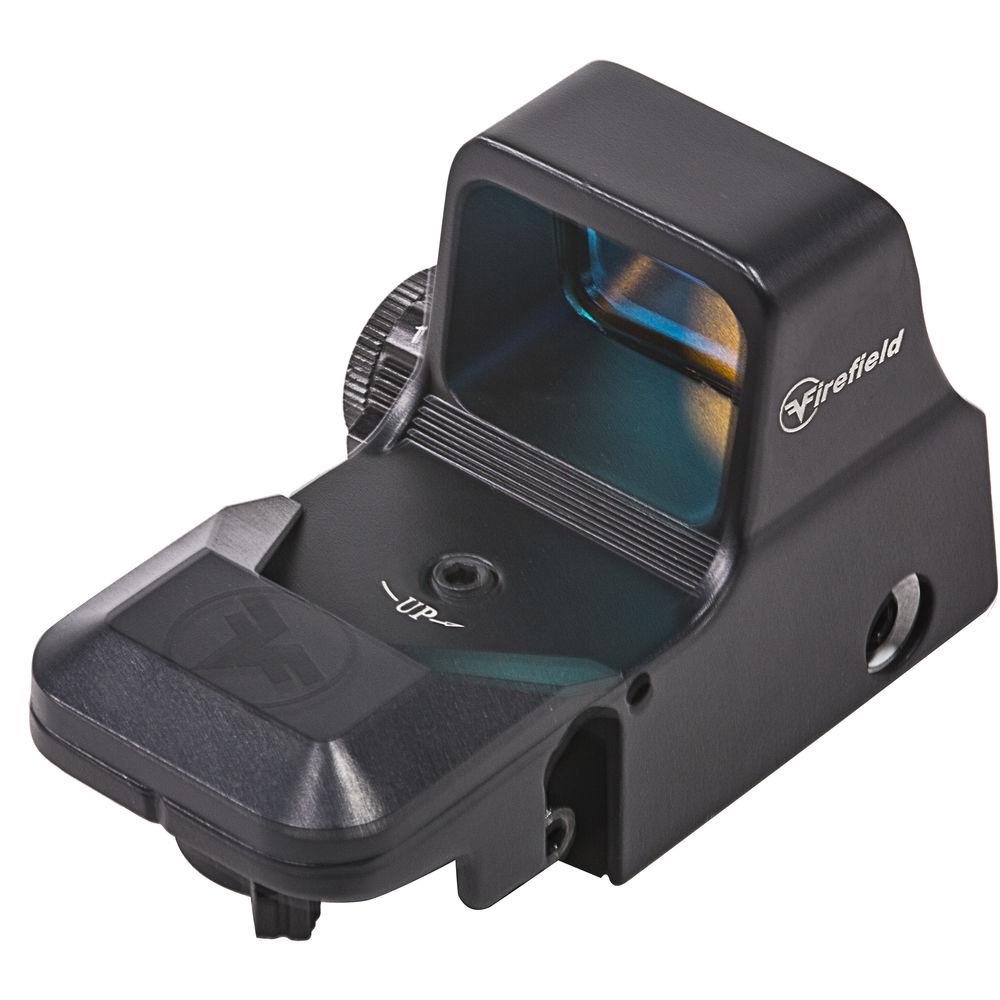

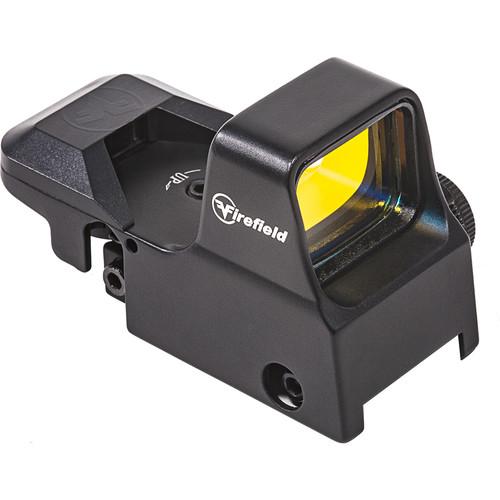

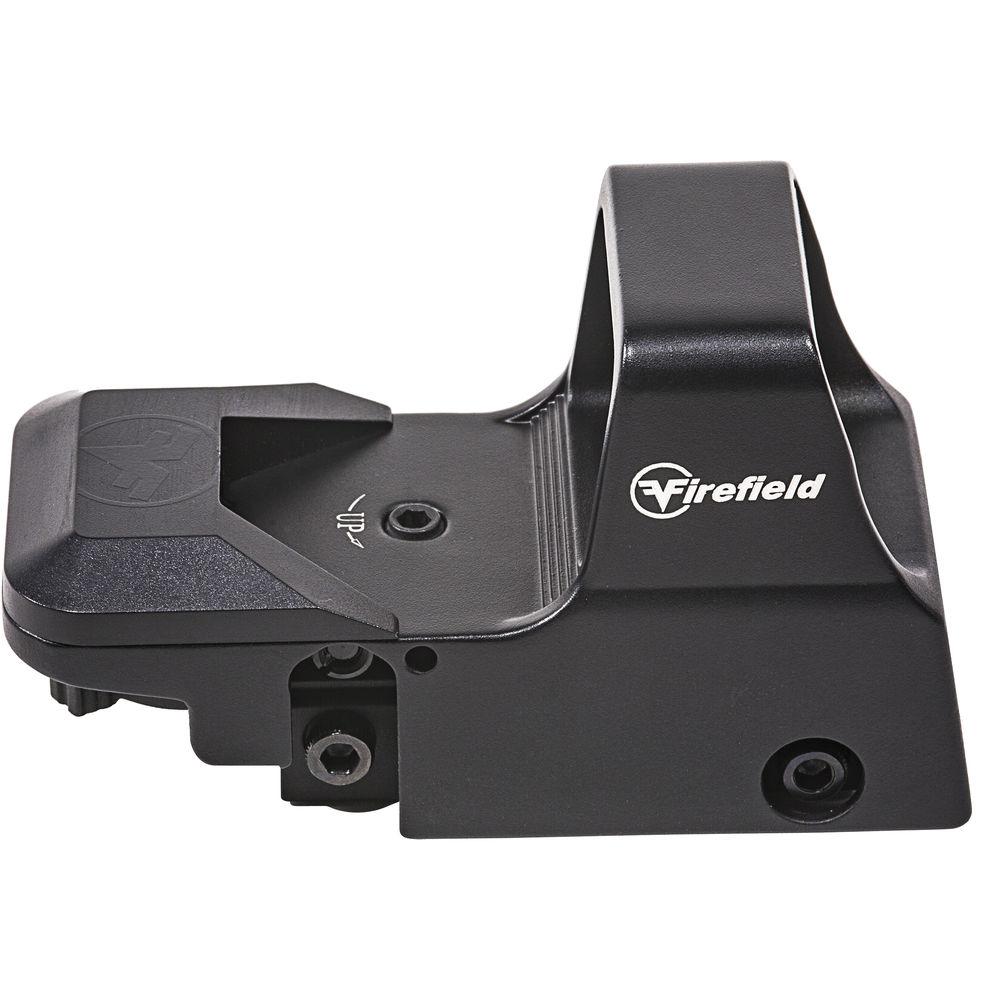

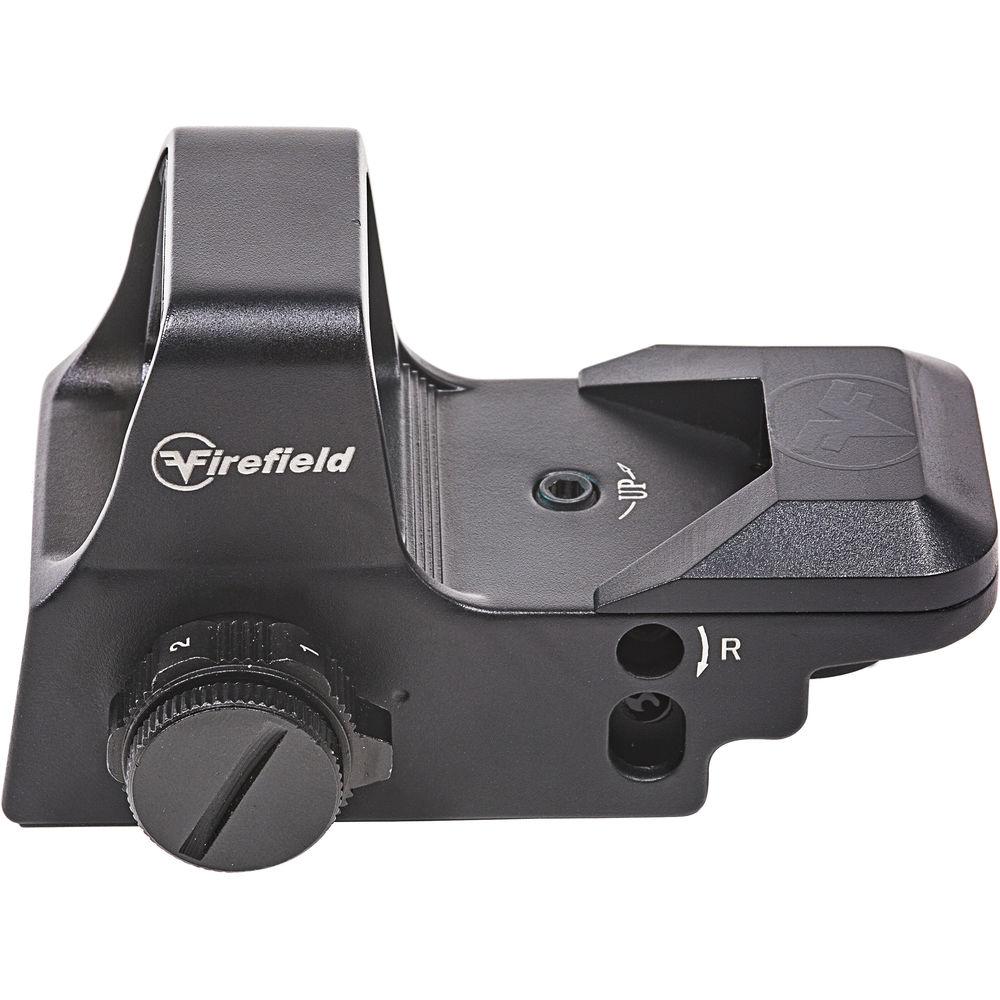

Product description Gain an upper hand on the battlefield with the FireField Impact XL Reflex Sight. This compact and lightweight reflex sight highlights four interchangeable red reticle patterns with adjustable brightness, and features Picatinny/Weaver rail compatibility. Its anti-reflection coated optics provide a 1x magnification, an unlimited eye relief, and a parallax-free range at 25 yards. Designed for use with shotguns and sporting rifles, the water-resistant and impact-resistant housing is made of cast aluminum and polymer parts and can withstand recoils from .308 calibers. - Optical Performance
-
- 1x magnification
- 33 x 24mm front window
- Red anti-reflection coating
- Unlimited eye relief

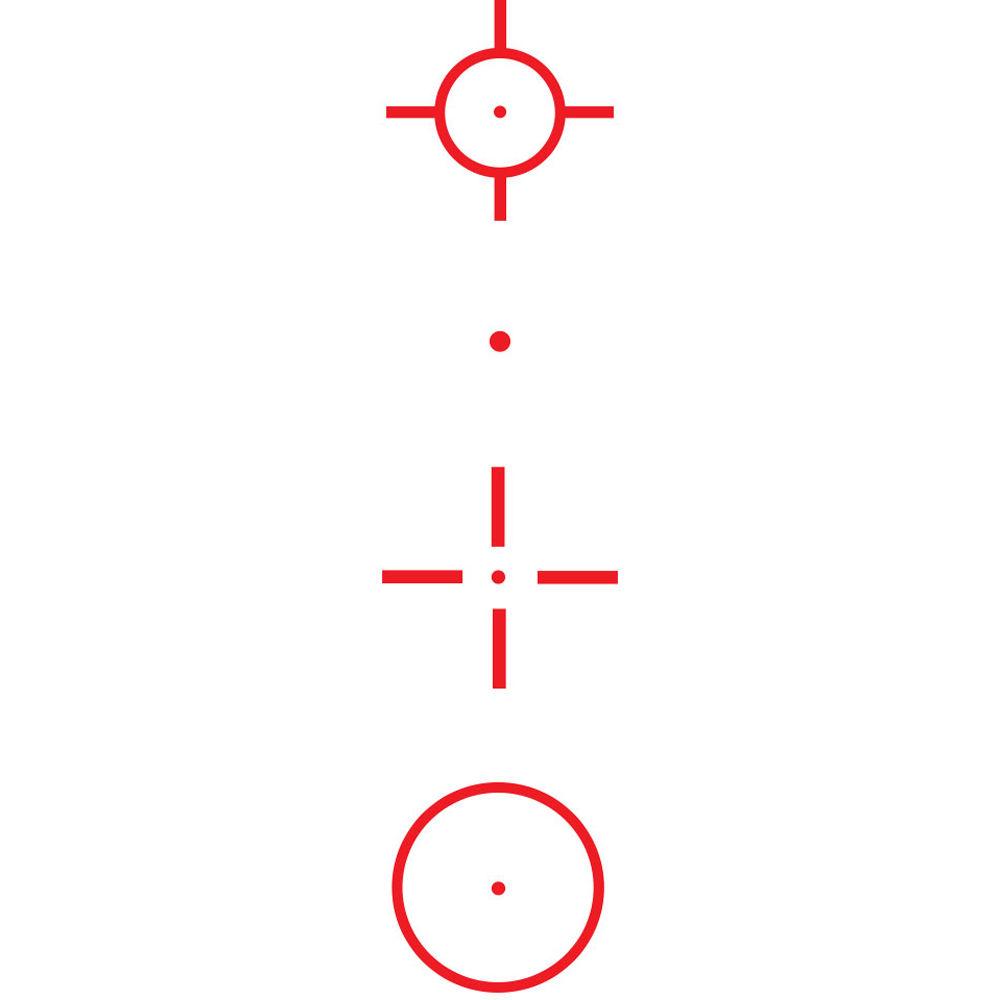

- Red Illuminated Multi-Reticle
-
- 5 MOA dot
- 3 MOA dot with 50 MOA circle
- 3 MOA dot with 50 MOA crosshair
- 3 MOA dot with 30 MOA circle and external crosshair

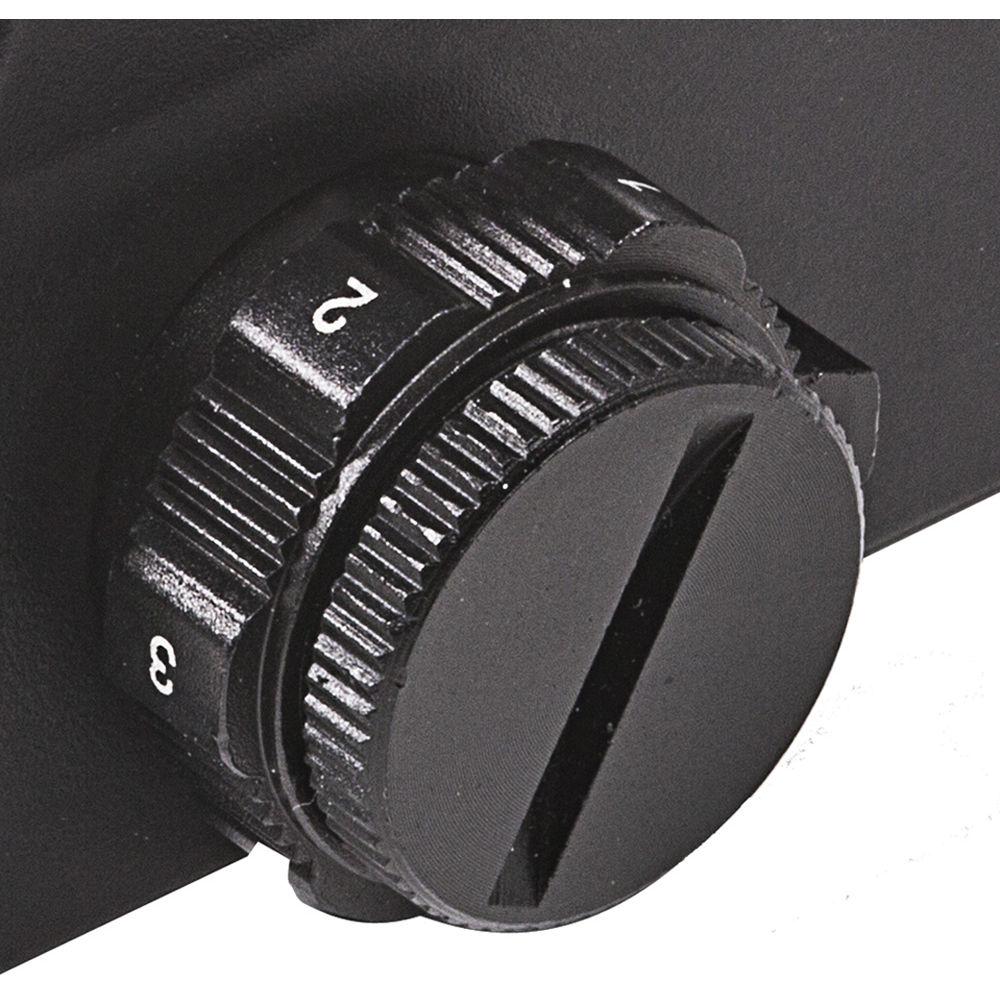

- Five brightness levels
- Parallax-free at 25 yards
- Use and Handling
-
- 1 MOA impact point correction
- 120 MOA windage and elevation ranges

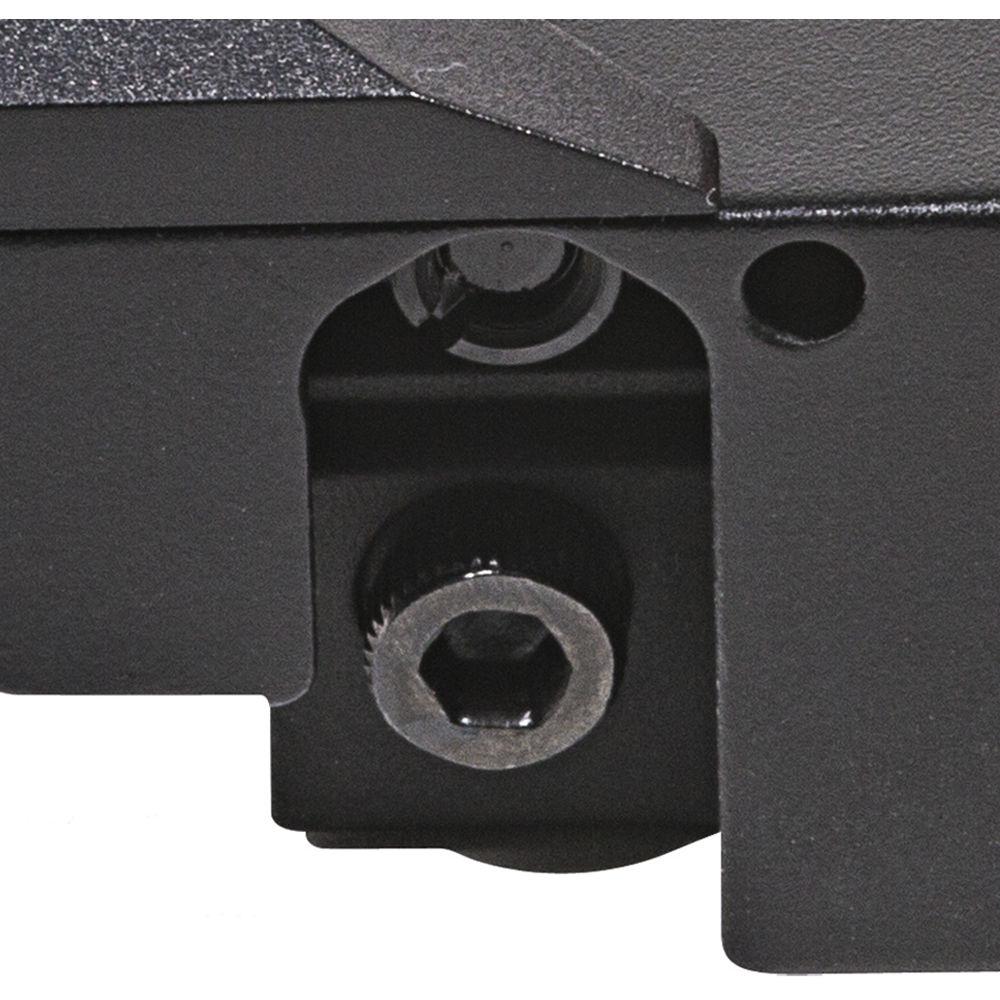

- Picatinny/Weaver mount
- Construction Details
-
- Cast aluminum and polymer housing
- Matte black finish
- Bezel protects front window
- Shock-resistant construction
- IP55-rated, water-resistant
- Uses a CR1632 battery

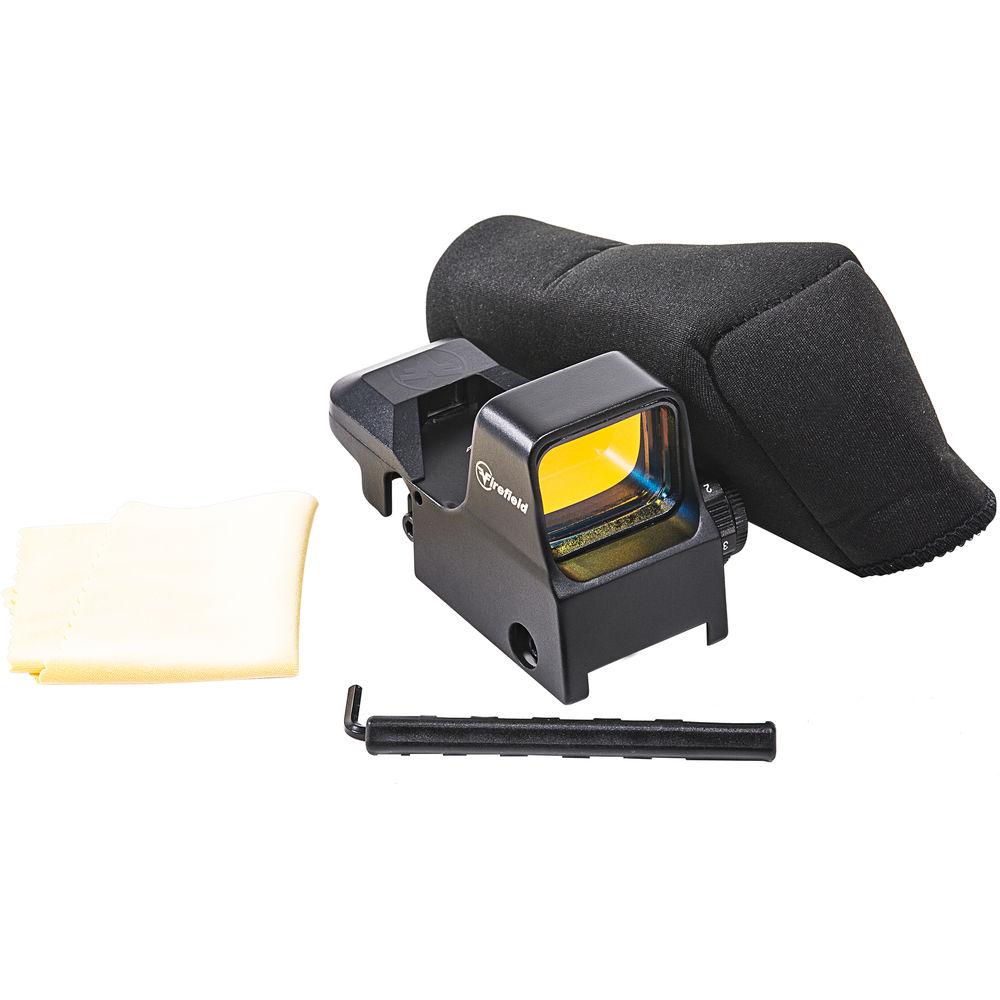

UPC: 812495023767 In the Box Firefield Impact XL Reflex Sight (Red Illuminated Multi-Reticle, Matte Black) - CR1632 Battery
- Neoprene Cover
- 2 x Adjustment Tools
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Impact XL Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Impact XL Specs | Magnification | 1x | | Objective Lens Diameter | 33 x 24mm | | Field of View | Not provided by manufacturer | | Eye Relief | Unlimited | | Reticle | 4 red reticle patterns | | Parallax-Free | 25.0 yd / 22.9 m | | Mounting System | Weaver/Picatinny | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | 120 MOA | | Battery / Runtime | 1 x CR1632 battery / 25 - 120 hours | | Weatherproofing | Rated IP55, water-resistant | | Maximum Recoil | .308 | | Material of Construction | Cast aluminum and polymer body | | Operating Temperature | 0 to 120°F / -17 to 49°C | | Dimensions | 3.6 x 2.04 2.0 " / 9.2 x 5.2 x 5.1 cm | | Weight | 5.6 oz / 158.8 g |
