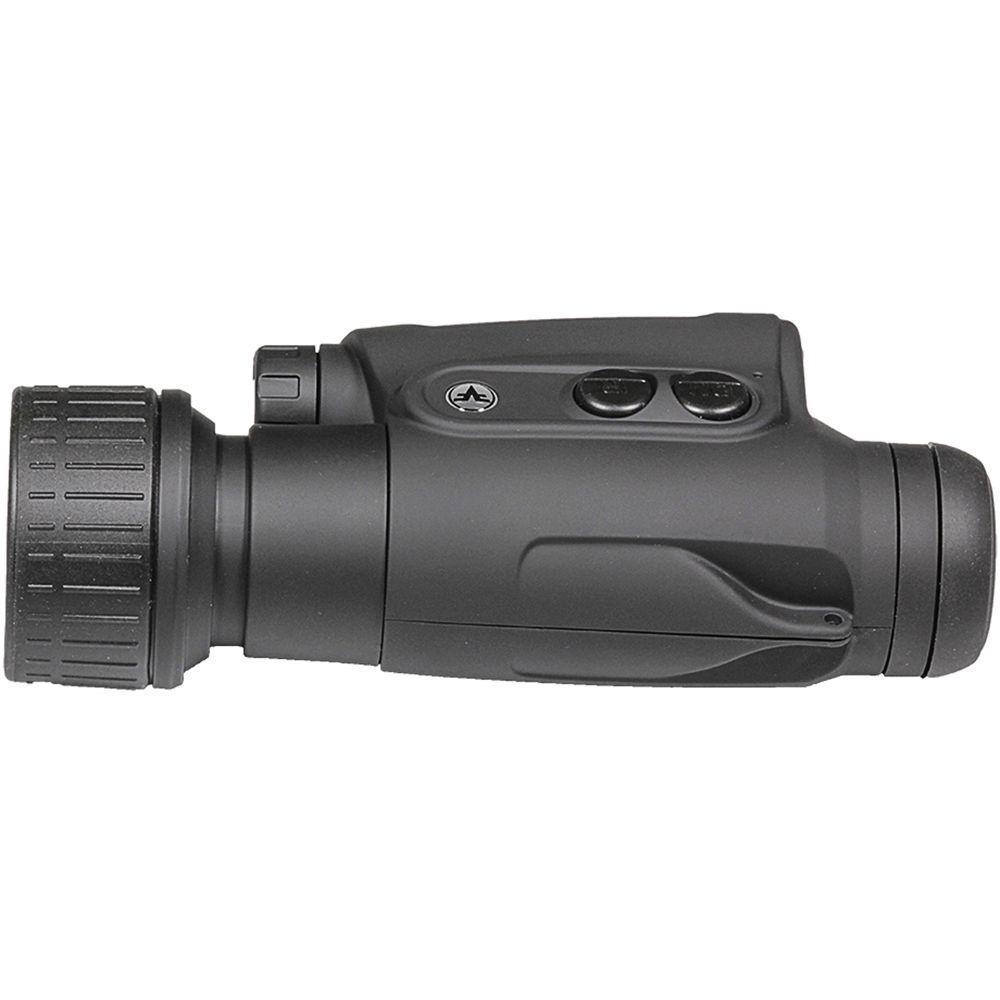

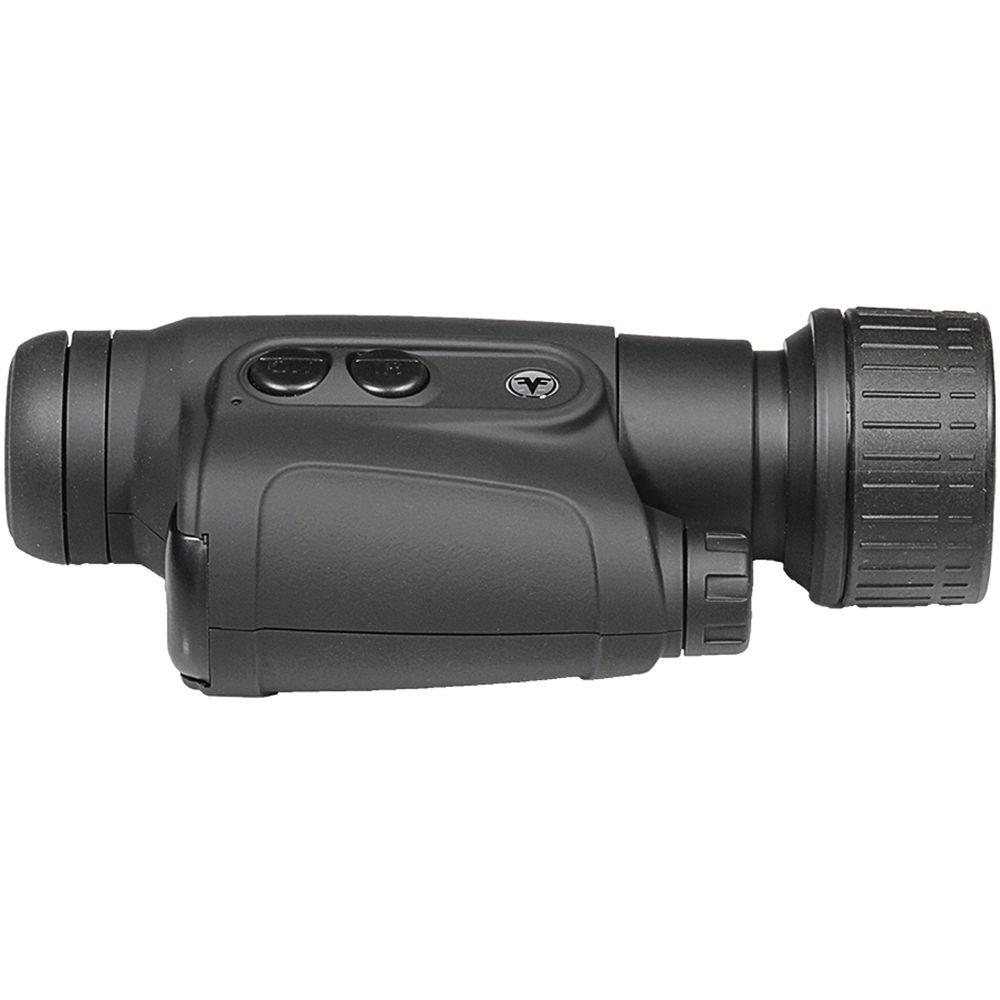

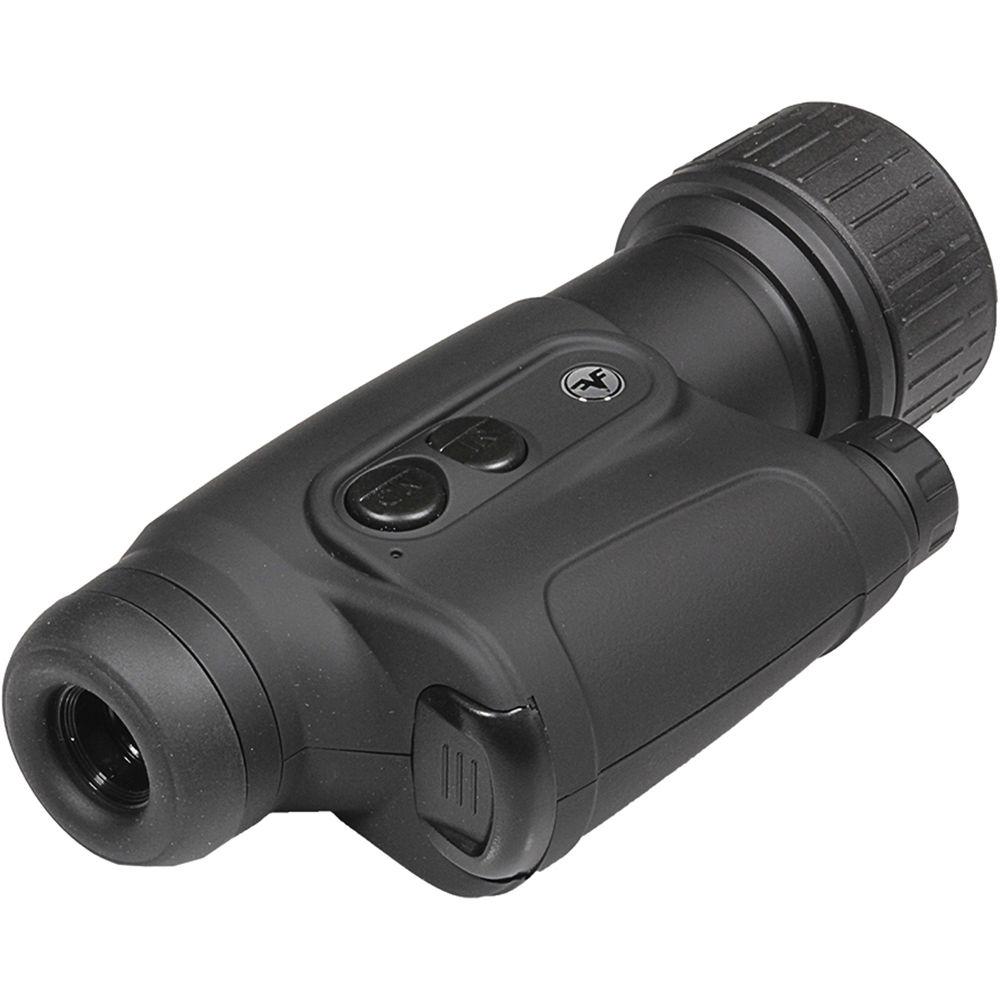

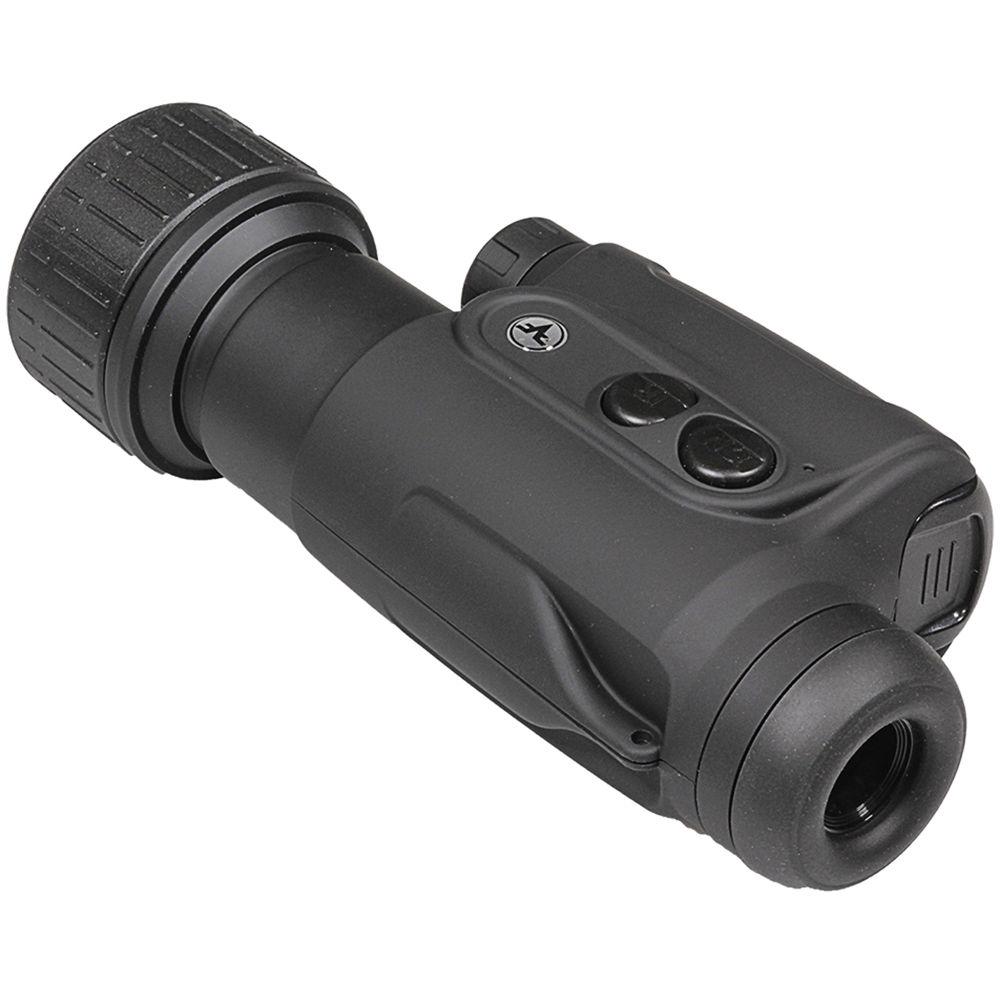

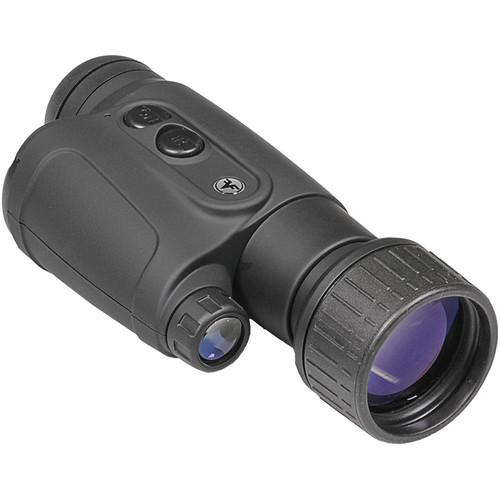

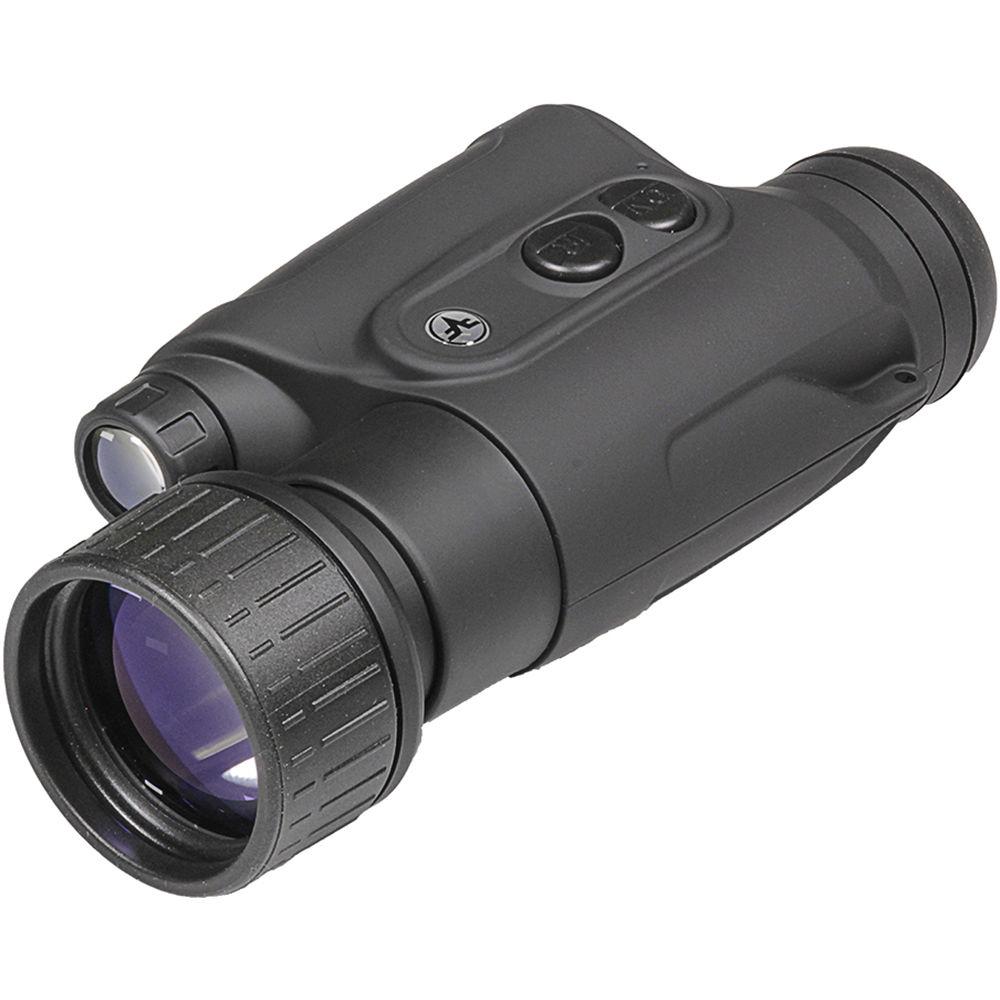

User Manual for Firefield Nightfall II Gen 1 5x50 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Firefield Nightfall II Gen 1 5x50
- Product category: NV Monoculars & Multi-Systems Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield NV Monoculars & Multi-Systems
 |
User manual for the Firefield Nightfall II Gen 1 5x50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description The Nightfall II from Firefield is a Generation 1 handheld night vision monocular with a built-in infrared illuminator, a wide angle of view, and a comfortable slip-free grip. Its electro-optics feature a Generation 1 intensifier tube with a resolution of 36 lines per millimeter and a pulsed illuminator emitting at a wavelength of 805 nm, which is outside visible spectrum. The infrared illuminator allows you to illuminate your target and make your observations in complete darkness while you remain unseen. This way, at night, you can use this night vision monocular to watch live animals on your backyard, or see intruders and trespassers on your property as far away as 197 yards. The viewing experience is enhanced with a 15° wide angle of view, 5x magnification, and 50mm objective which increases light gathering capacity. Additionally, monocular features a 5 mm exit pupil for better visibility at night, and a 12 mm eye relief to accommodate viewing with eye glasses.
Beyond optical performance, the monocular features a number of convenience features. The objective cup has a rubberized ribbed texture and can be rotated to adjust coarse focus from infinity to a minimum of 3.3'. Once you have made your coarse adjustments, you can use the diopter adjustment to fine-tune your focus. The water resistant housing protects your device from splashing water like rain and sprinklers, the rubberized armoring provides a secure non-slip grip, and slender body allows you to hold it with one hand and access to menu buttons at the same time. Also included with the monocular are a hand strap, a carrying case, and a cleaning cloth. Optical Performance -
- Intensifier: Gen 1
- Magnification: 5x
- Resolution: 36 lp/mm
- Close focus range of 1 meter
- Angular field of view: 15°
- Diopter adjustment: ± 5
- Exit pupil: 5 mm
- Eye relief: 12 mm
IR Performance -
- Infrared illuminator helps you stay undetected
- High rate pulsed operation extends battery life
- Wavelength: 805 nm
- Beam divergence: 9°
Use and Handling -
- Use objective cup for a coarse focusing
- Use diopter adjustment for fine focusing
Construction -
- Rubberized armoring provides non-slip grip
- Water resistant against splashing water
UPC: 810119018960 In the Box Firefield Nightfall II Gen 1 5x50 Night Vision Monocular - Hand Strap
- Carrying Case
- Cleaning Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Nightfall II Gen 1 5x50 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF24066 Specs | Intensifier Tube | Generation I | | Magnification | 5x | | Lens System | 50mm | | Angular Field of View | 15° | | Linear Field of View | 786' @ 1000 yd (262 m @ 1000 m) | | Minimum Focus Distance | 3.3' (1 m) | | Diopter Adjustment | ± 5 | | Exit Pupil | 5 mm | | Eye Relief | 12 mm | | Infrared Illuminator | Type: Infrared
Wavelength: 805 nm
Operation mode: pulsed
Beam divergence: 9° minimum | | Resolution | 36 lp/mm | | Battery / Runtime | 2 x AA / Without IR: 72 hr, With IR: 20 hr max | | Range | 197 yd (180 m) | | Weatherproofing | Water resistant - rated IPX4 | | Dimensions | 8 x 3.7 x 2.4" (20.5 x 9.5 x 6 cm) | | Temperature Range | -4 to 104°F (-20 to 40ºC) | | Weight | 15.2 oz (431 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.4 x 4.4 x 3.0" |
