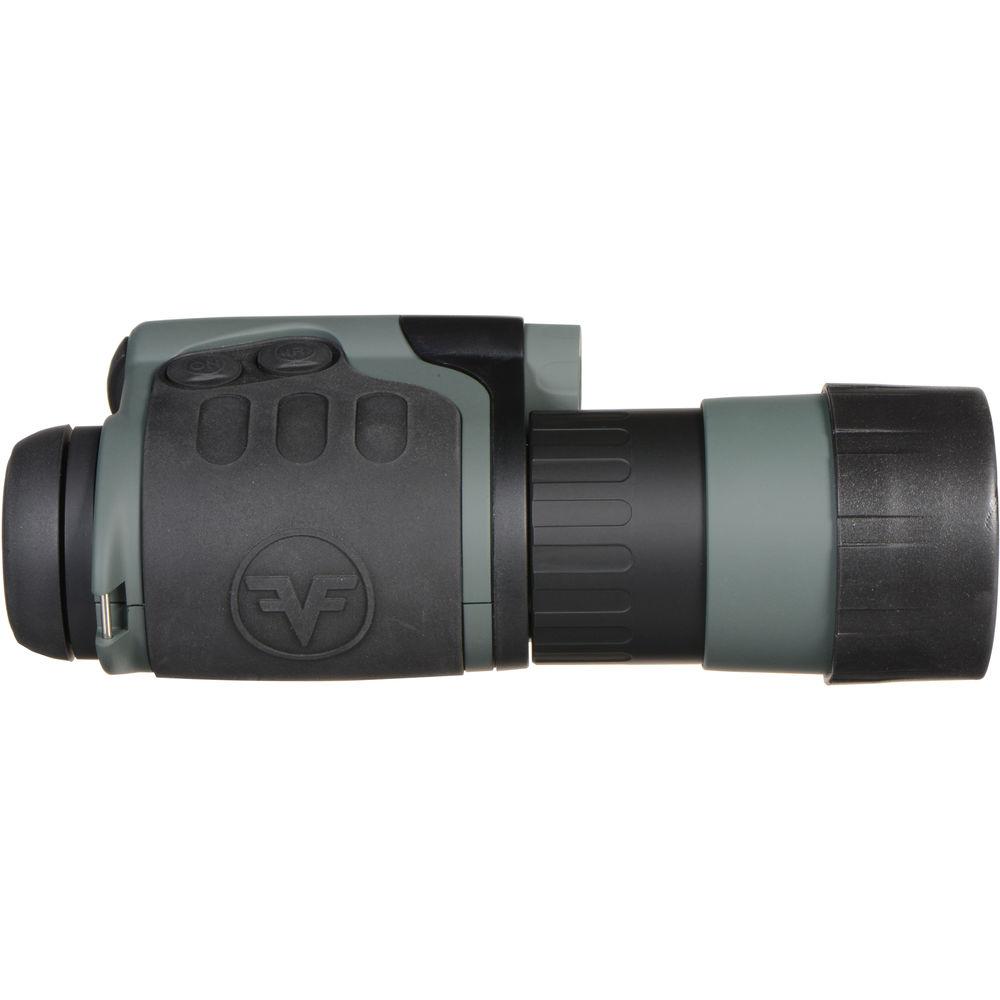

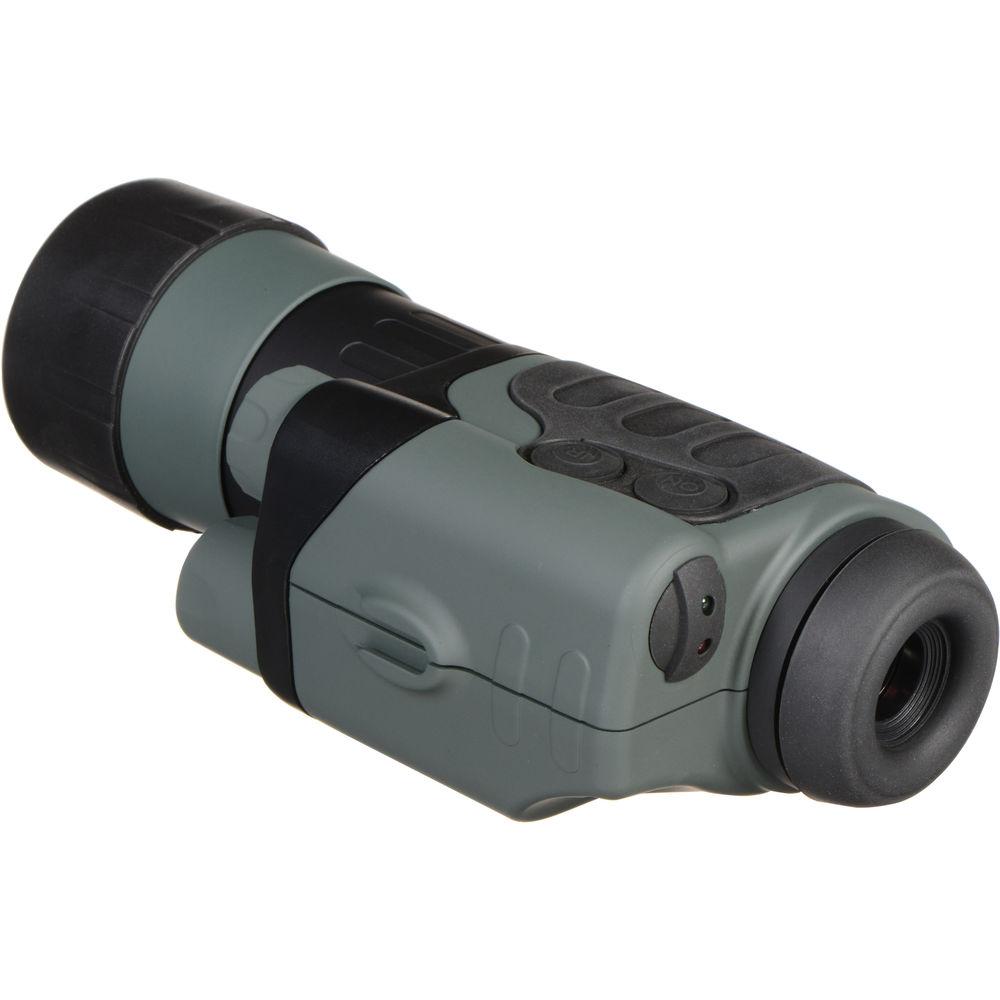

User Manual for Firefield NVMT 4x50 1st Gen Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Firefield NVMT 4x50 1st Gen Night
- Product category: NV Monoculars & Multi-Systems Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield NV Monoculars & Multi-Systems
 |
User manual for the Firefield NVMT 4x50 1st Gen Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description The NVMT 4x50 Night Vision Monocular from FireField a features 1st generation intensifier tube with a resolution of 36 lp/mm. The large aperture of 50mm objective improves image brightness by collecting more light in low light conditions. The optical system combines a notable 4x magnification and wide 15° angular field of view to provide low jitter images. If you are training or conducting a mission in complete darkness with very low ambient infrared, you can use the built-in infrared illuminator to add brightness to your targets.
The durable and lightweight composite housing is water-resistant and can also endure a wide temperature range. The monocular has a 1/4"-20 tripod socket and can be mounted on a tripod to add image stability or if you want to use it as a hands-free device. Also included with this monocular are a carrying case, a hand strap, and an objective lens cap. - Intensifier Tube
-
- 1st generation intensifier tube
- Image resolution: 36 lp/mm
- Optical Performance
-
- Main unit magnification: 4x
- Objective lens diameter 50mm
- Field of view: 15°
- Construction Details
-
- Durable and lightweight composite housing
- Mountable to 1/4"-20 tripod
- Rubberized eyecup
- Water-resistant
UPC: 812495020605 In the Box Firefield NVMT 4x50 1st Gen Night Vision Monocular - Soft Carry Case
- Lens Cap
- Hand Strap
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield NVMT 4x50 1st Gen Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF24127 Specs | Intensifier Tube | 1st generation
Resolution: 36 lp/mm | | Magnification | 4x | | Angle/Field of View | Angular: 15° | | Objective Diameter | 50 mm | | Infrared Illuminator | Yes | | Diopter Adjustment | -4 to +4 | | Battery / Runtime | 1 x CR123 battery / 20 hr max | | Weatherproofing | Water-resistant | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Humidity | 93% | | Dimensions | 7.5 x 3.4 x 2.4" (191 x 87 x 60 mm) | | Weight | 21 oz (595 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.5 x 4.6 x 3.1" |
