User Manual for Firefield NVRS Titanium 1.5x42 1st Gen Mini Varmint Hunter Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield NVRS Titanium 1.5x42 1st Gen
- Product category: Night Vision Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Night Vision Riflescopes
 |
User manual for the Firefield NVRS Titanium 1.5x42 1st Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

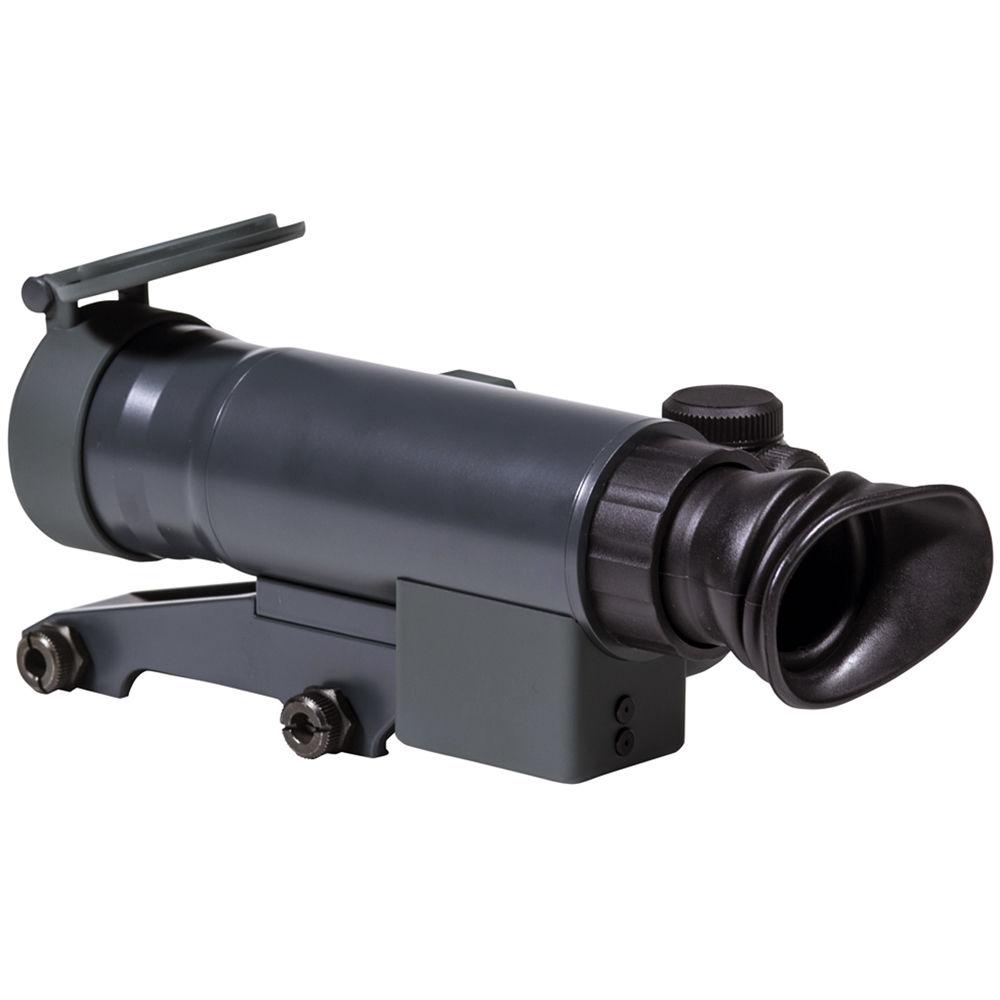

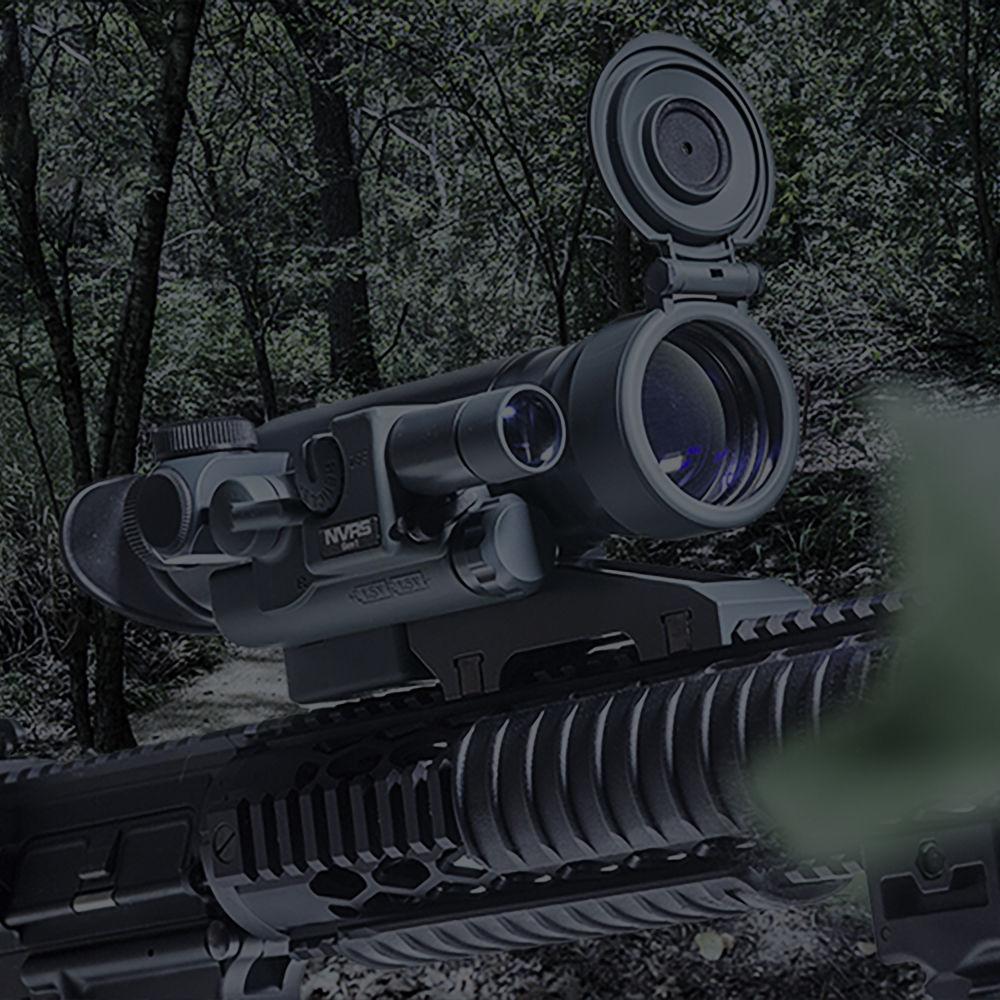

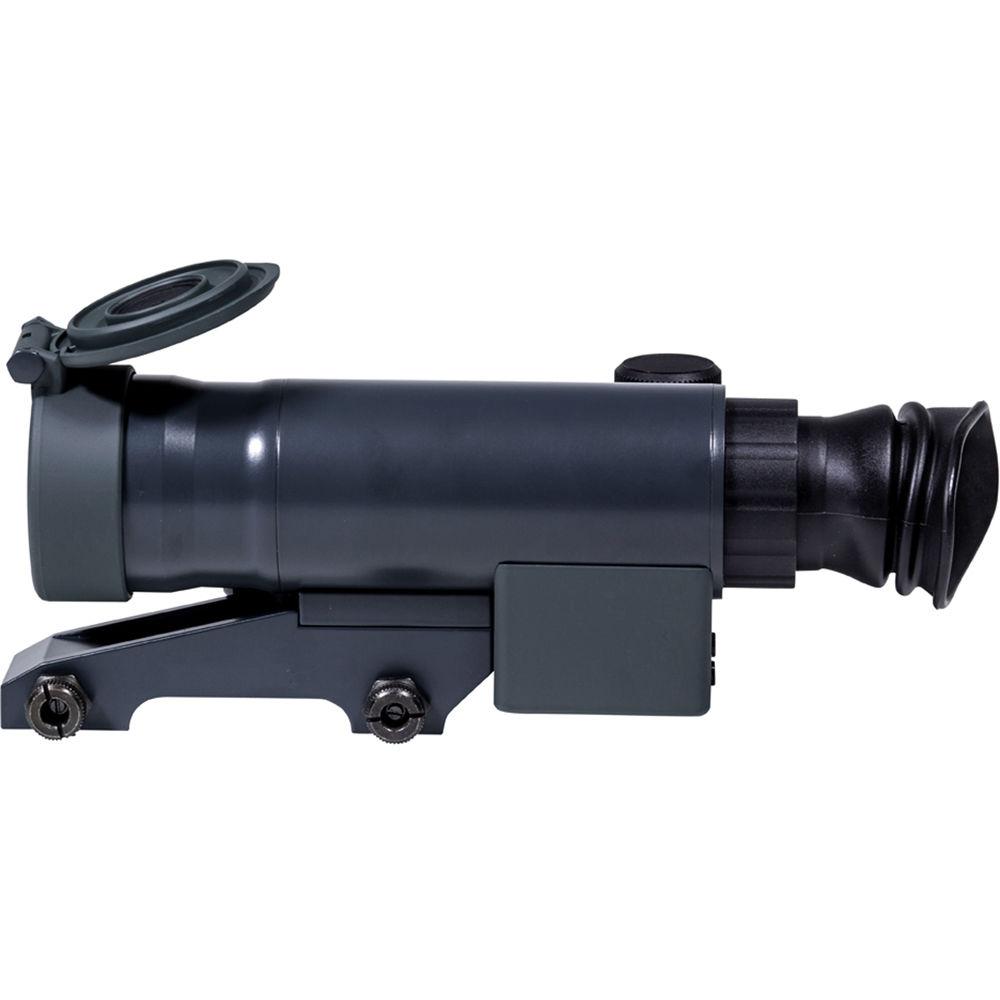

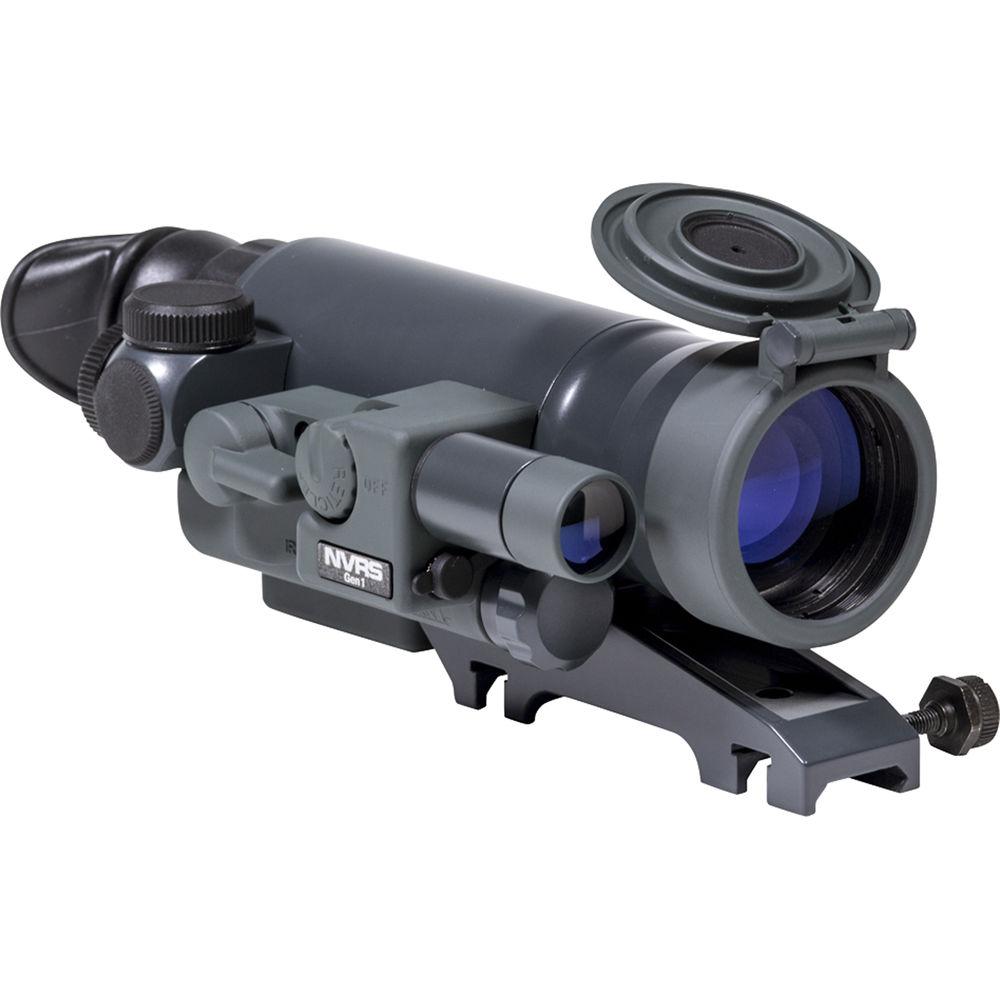

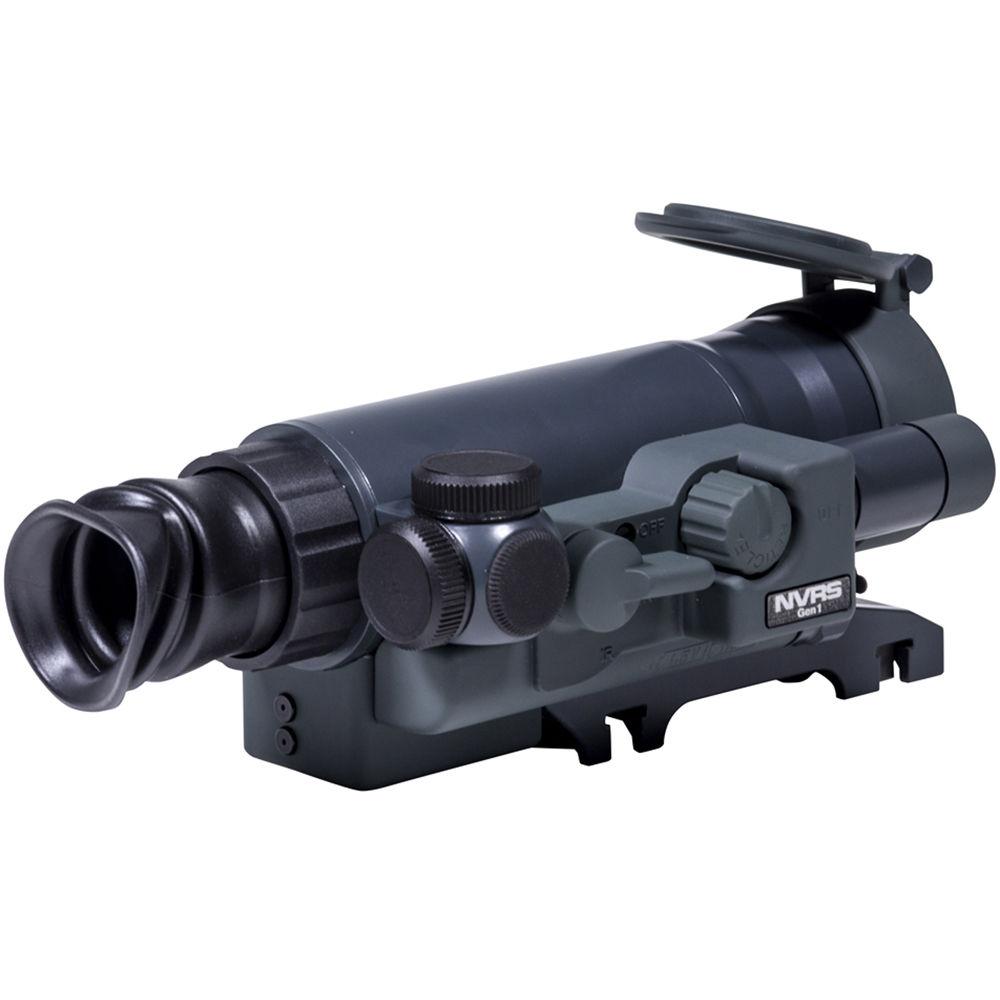

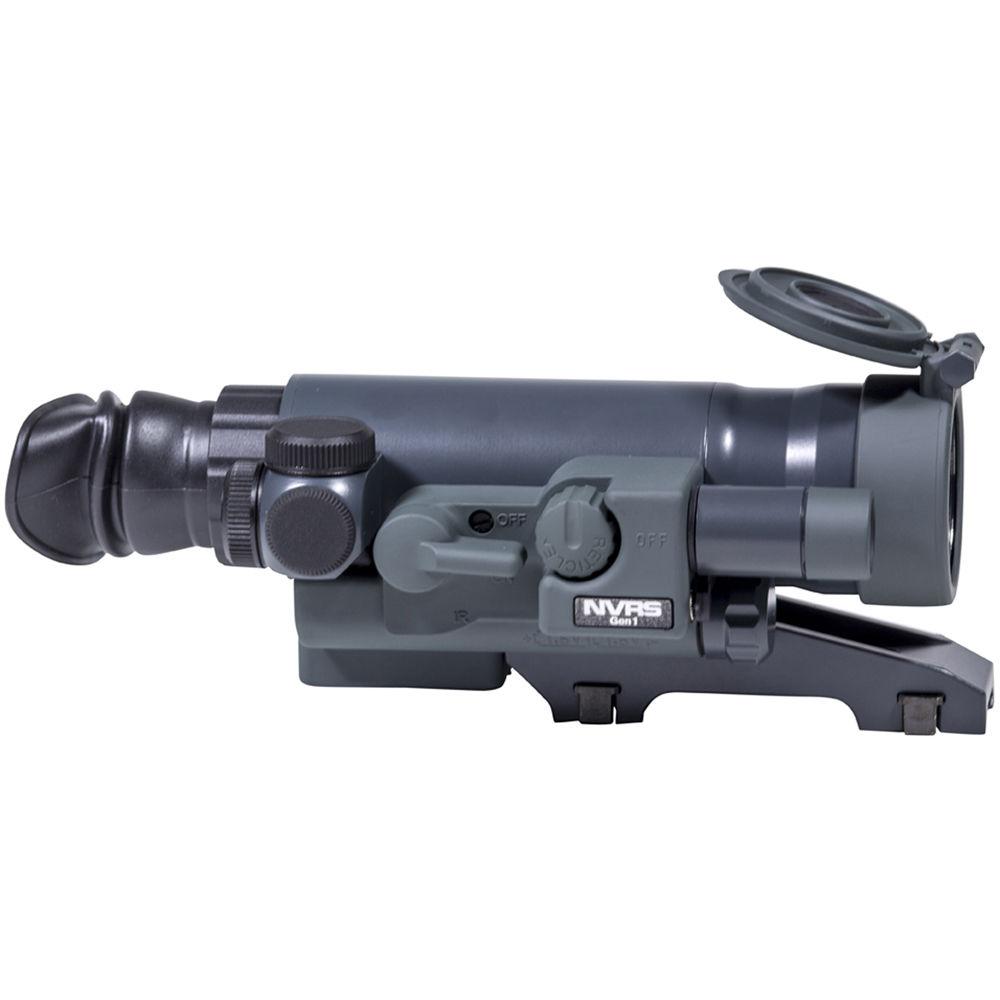

Product description The lightweight and durable NVRS Titanium 1.5x42 1st Gen Mini Varmint Hunter Riflescope from FireFieldfeatures 1st generation intensifier tube with a resolution of 30 lp/mm. The aperture of 42mm objective is large enough to provide sufficient image brightness in most low-light conditions. The optical system also features a 1.5x magnification, a 20° angular field of view, and a comfortable to use 45mm eye relief, and a red duplex reticle with adjustable illumination. If you are training or conducting a mission in complete darkness with no ambient infrared, you can use the included infrared illuminator to add brightness to your targets. To help you account of ballistics and crosswinds, there are a windage and elevation adjustments.

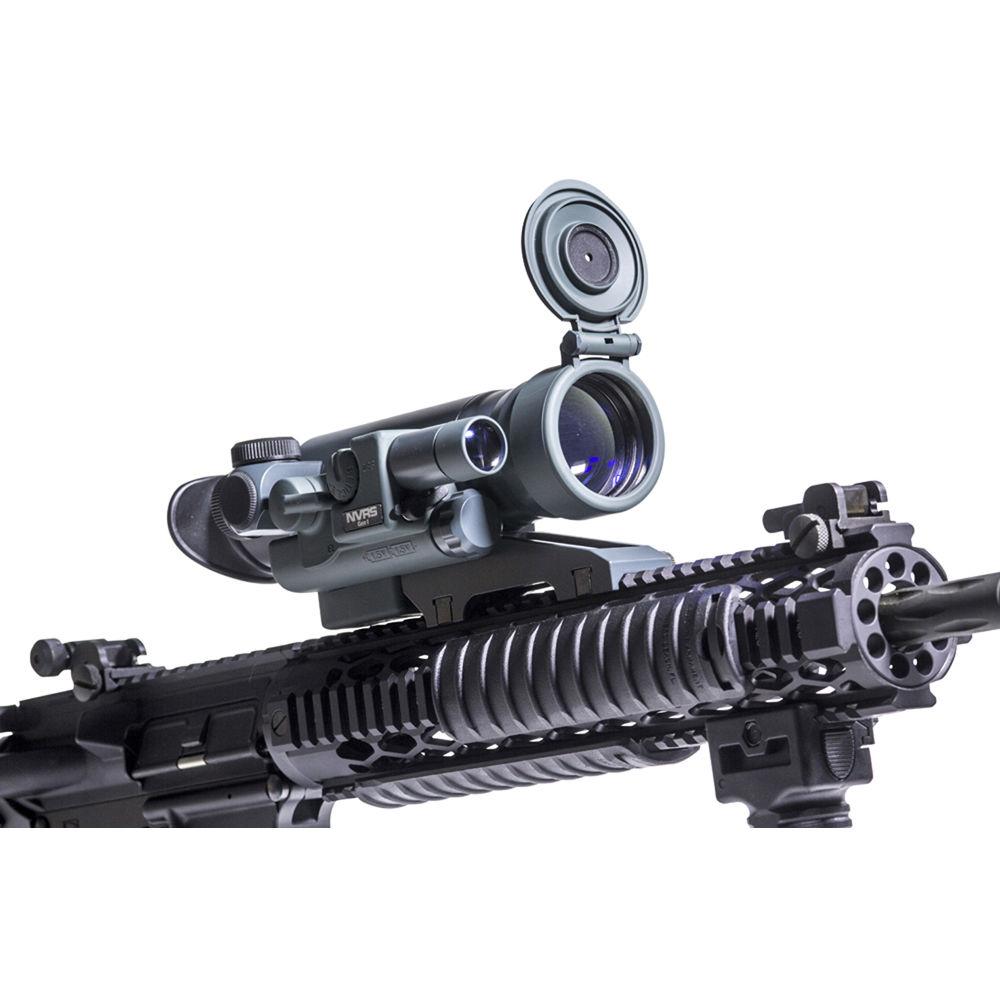

The durable and lightweight titanium housing is weather-resistant, endures extreme temperatures, and can be mountable to Picatinny or Weaver style rails. To help you seamlessly activate your night vision riflescope and infrared illumination, the scope includes a wired remote control. Also included with this NVD is a carrying case. - Intensifier Tube
-
- 1st generation intensifier tube
- Image resolution: 30 lp/mm
- Optical Performance
-
- Main unit magnification: 1.5x
- Objective lens diameter 42mm
- Windage and elevation adjustment
- Duplex red reticle has adjustable illumination
- Field of view: 20°
- Construction Details
-
- Activation remote control for night vision and infrared illumination is included
- Durable and lightweight titanium housing
- Compatible with most Picatinny and Weaver style rails
- Flip-up objective cover
- Wide rubberized eyecup
- Weather-resistant

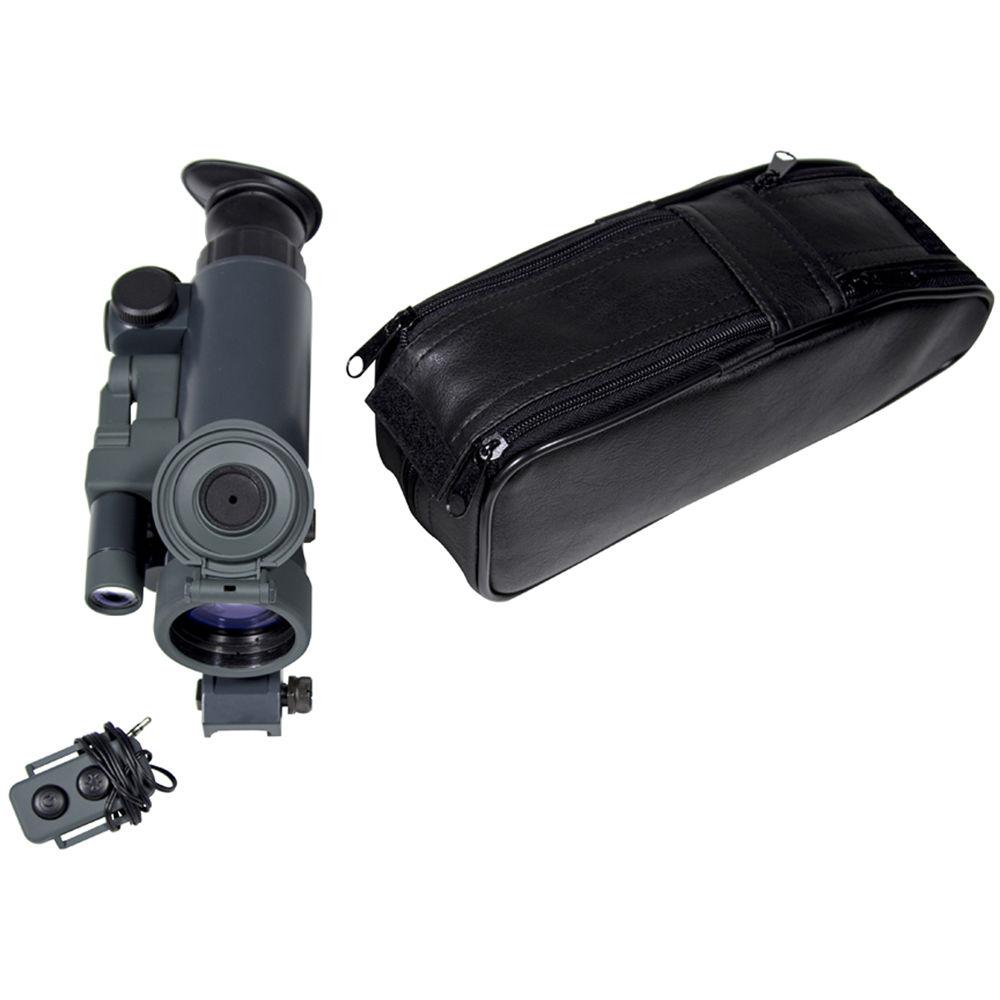

UPC: 812495020469 In the Box Firefield NVRS Titanium 1.5x42 1st Gen Mini Varmint Hunter Riflescope(Duplex Reticle) - Soft Carry Case
- Remote Control
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield NVRS Titanium 1.5x42 1st Gen Mini Varmint Hunter Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF26011 Specs | Intensifier Tube | 1st generation
Resolution: 30 lp/mm | | Reticle | Illuminated red duplex reticle | | Magnification | 1.5x | | Angle/Field of View | Angular: 20° | | Objective Diameter | 42 mm | | Infrared Illuminator | Yes | | Diopter Adjustment | -4 to +4 | | Eye Relief | 45 mm | | Battery / Runtime | 2 x AA battery / 50 hr max | | Weatherproofing | IPX3, resistant to spraying water | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Humidity | 93% | | Dimensions | 8.6 x 3.3 x 3.1" (218 x 85 x 80 mm) | | Weight | 30 oz (850 g) |
