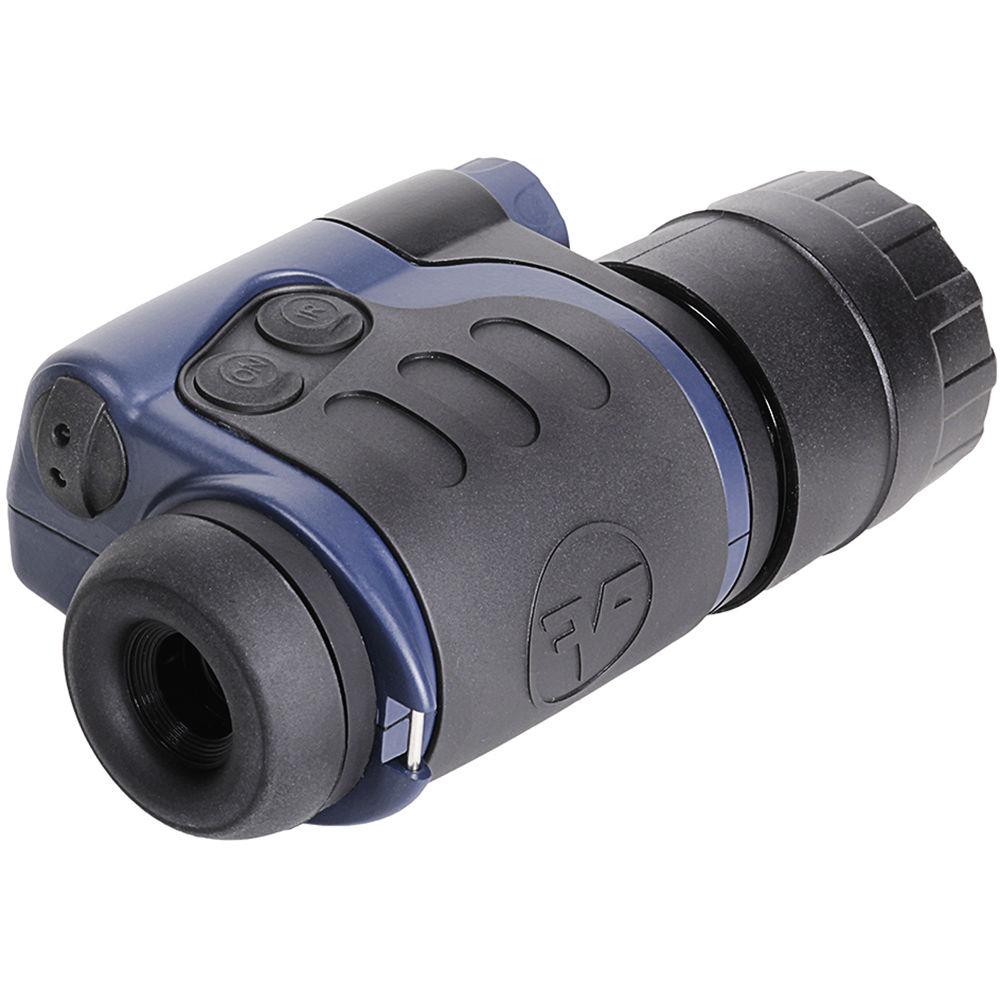

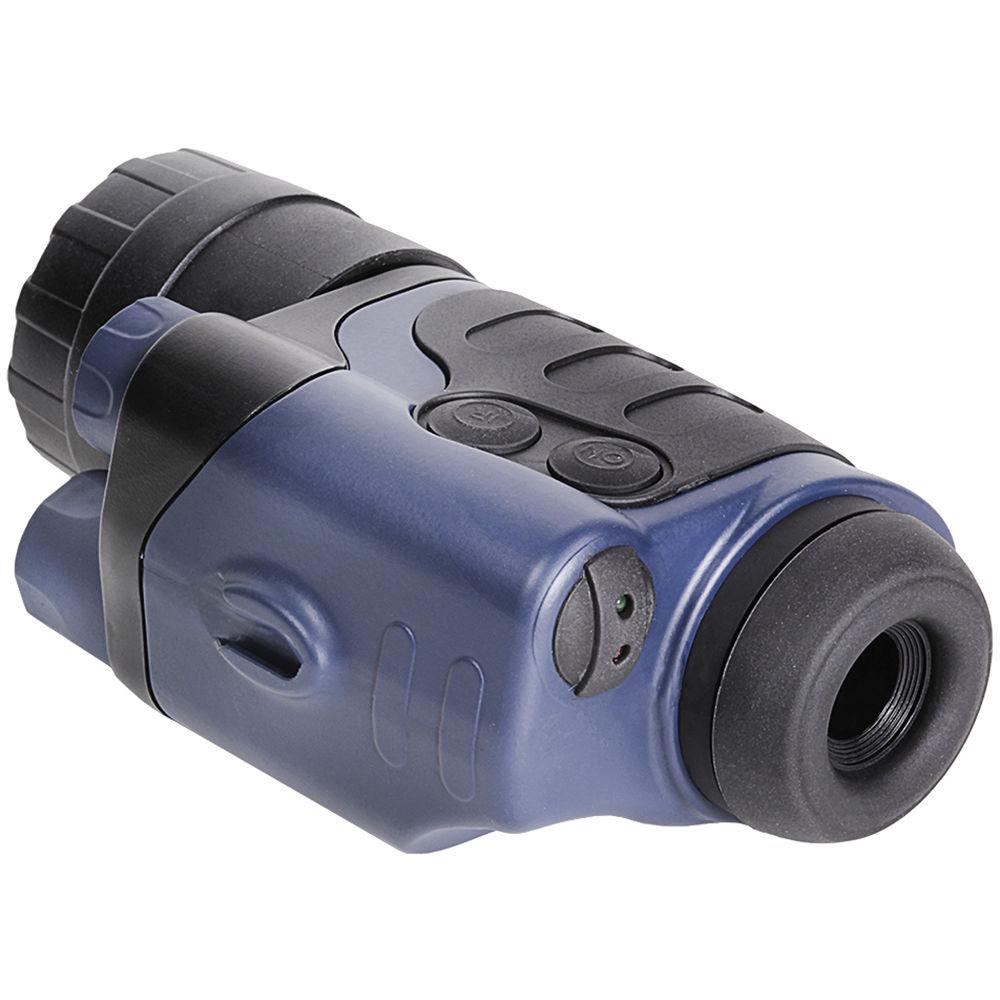

User Manual for Firefield Spartan 3x42 1st Generation NV Monocular Click to enlarge the picture
Contents of the user manual for the Firefield Spartan 3x42 1st Generation NV
- Product category: NV Monoculars & Multi-Systems Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield NV Monoculars & Multi-Systems
 |
User manual for the Firefield Spartan 3x42 1st Generation NV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

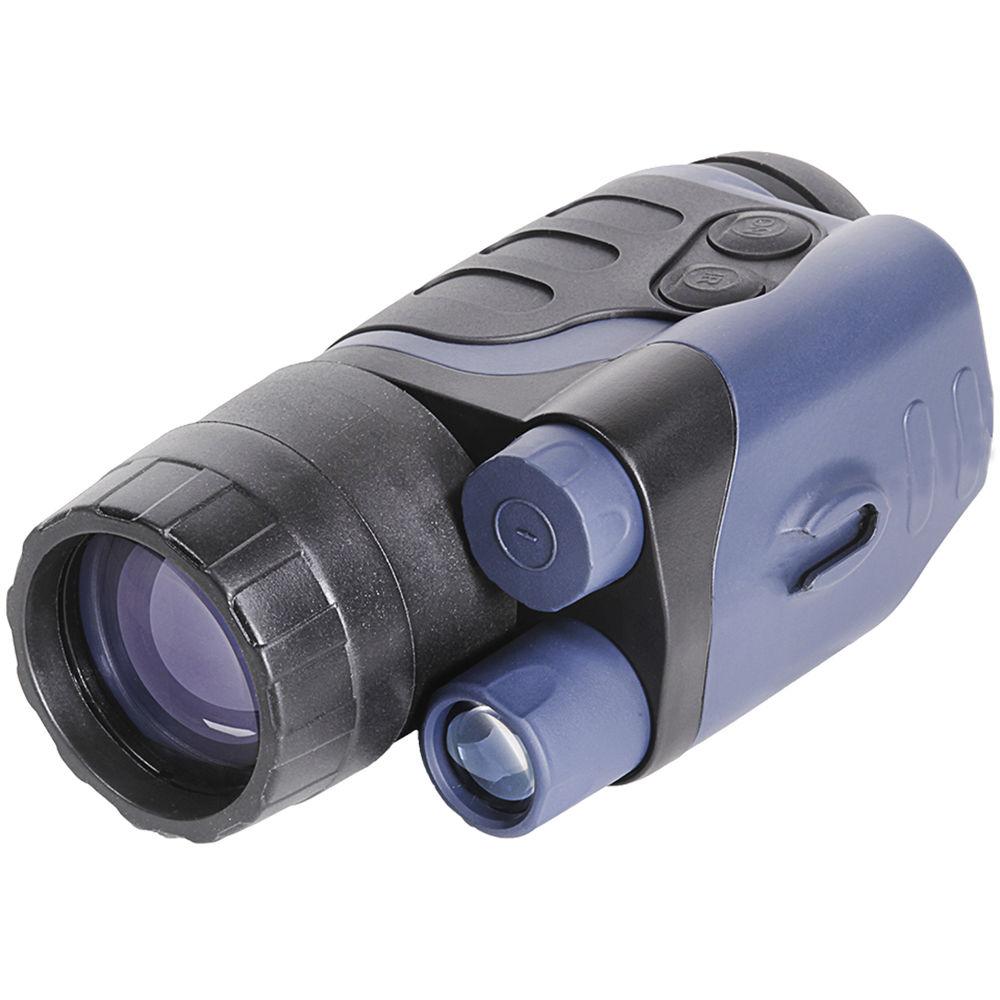

Product description FireField's Spartan 3x42 1st Generation NV Monocular offers users night vision capability with 36 lp/mm resolution, 3x magnification, an ergonomic body with rubber armoring, comfortable one-handed operation, and waterproof performance. To obtain better visibility in total darkness, you can turn on its built-in infrared LED illuminator, capable of producing 100mW of output power. In addition to observing distant objects, the rotating objective ring will allow you to focus as close as 3.3'. For prolonged viewing and to eliminate image jitter due to shaky hands, the monocular can also be mounted on a 1/4"-20 tripod. - Intensifier Tube & Optics
-
- 1st generation tube
- 36 lp/mm resolution
- 3x magnification
- 42mm objective diameter
- Glass optical elements
- 50.5mm focal length
- 3.3' minimum focusing distance
- 20° angular field of view
- Built-in Infrared illuminator
-
- LED illuminator
- Up to 100mW of power
- Use and Handling
-
- Objective ring focusing
- 12mm eye relief
- 5mm exit pupil
- ±4 diopter adjustment
- Mountable on 1/4"-20 tripod
- Two LED status indicators
- Construction
-
- Ergonomic ABS body
- Easy-to-reach menu buttons and controls
- Rubberized covering provides a secure and comfortable grip
- Powered by one user-supplied CR123 battery
- Waterproof and dustproof
- Rubber eyecup

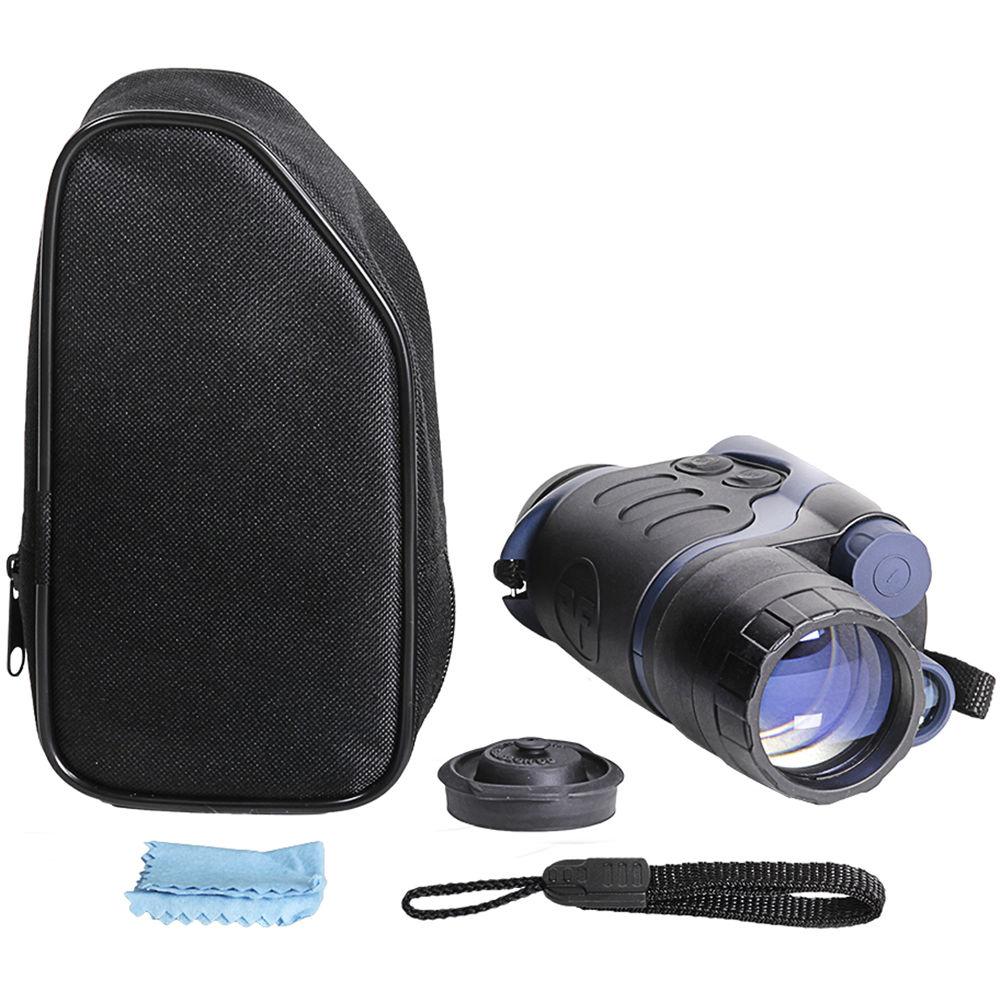

UPC: 812495020360 In the Box Firefield Spartan 3x42 1st Generation NV Monocular (Blue-Black) - Carrying Case
- Hand Strap
- Objective Cover
- Cleaning Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Spartan 3x42 1st Generation NV Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Spartan Specs | Intensifier Tube | 1st generation | | Resolution | 36 lp/mm | | Magnification | 3x | | Objective Diameter | 42mm | | Focal Length | 50.5mm | | Angular Field of View | 20° | | Linear Field of View | 106.5' at 100 yd / 35.5 m at 100 m | | Diopter Adjustment | ±4 | | Eye Relief | 12 mm | | Exit Pupil | 5 mm | | Close Focus | 3.3' / 1.0 m | | Infrared Illuminator | LED
805 nm
100 mW | | Battery / Runtime | 1 x CR123 battery / 20 hours with IR On, 40 hours with IR Off | | Material of Construction | Housing: Rubberized ABS plastic
Optics: Glass | | Weatherproofing | Waterproof, dustproof, rated IP66 | | Storage Temperature | -22 to 104°F / -30 to 50°C | | Dimensions | 6.4 x 3.2 x 2.4" / 16.2 x 8.2 x 6.0 cm | | Weight | 17.6 oz / 499.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 3.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
