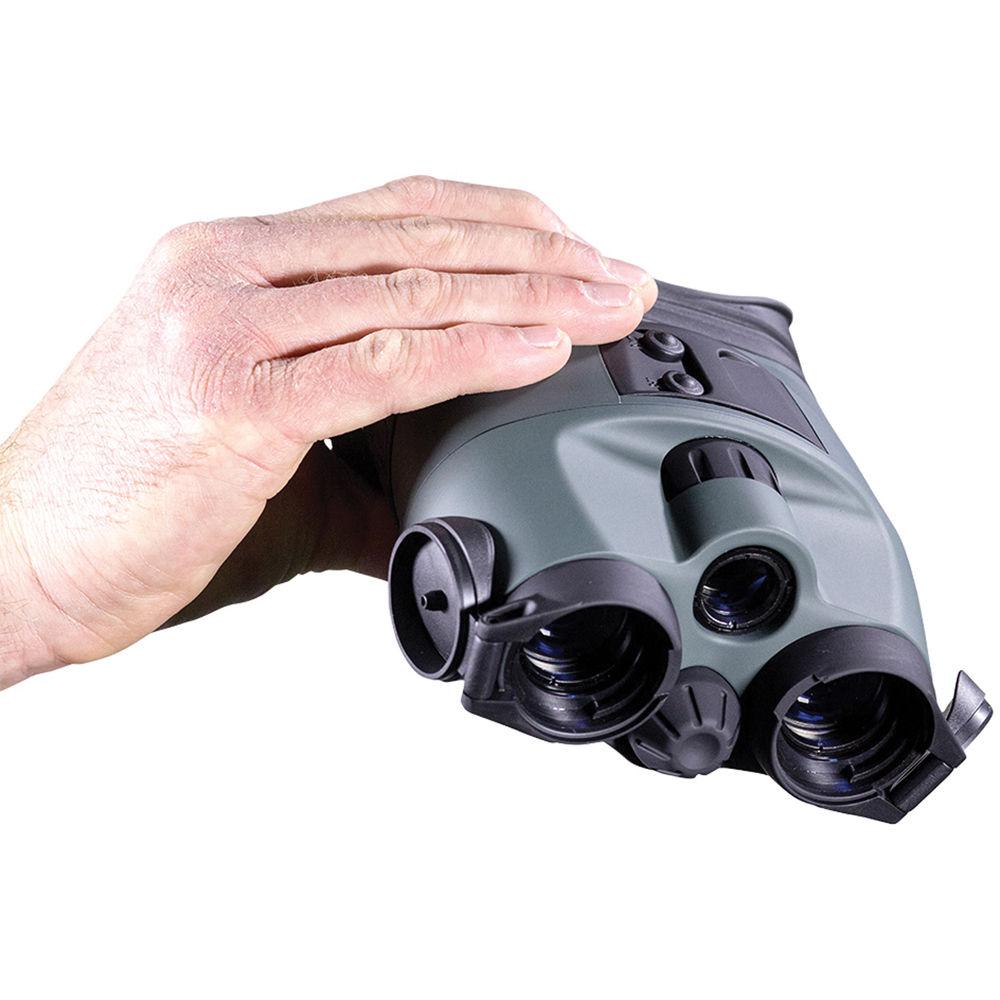

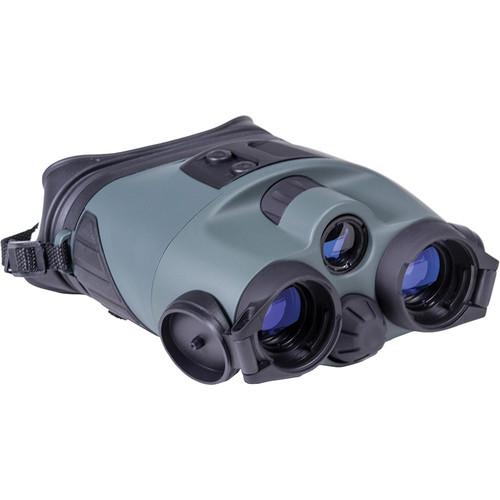

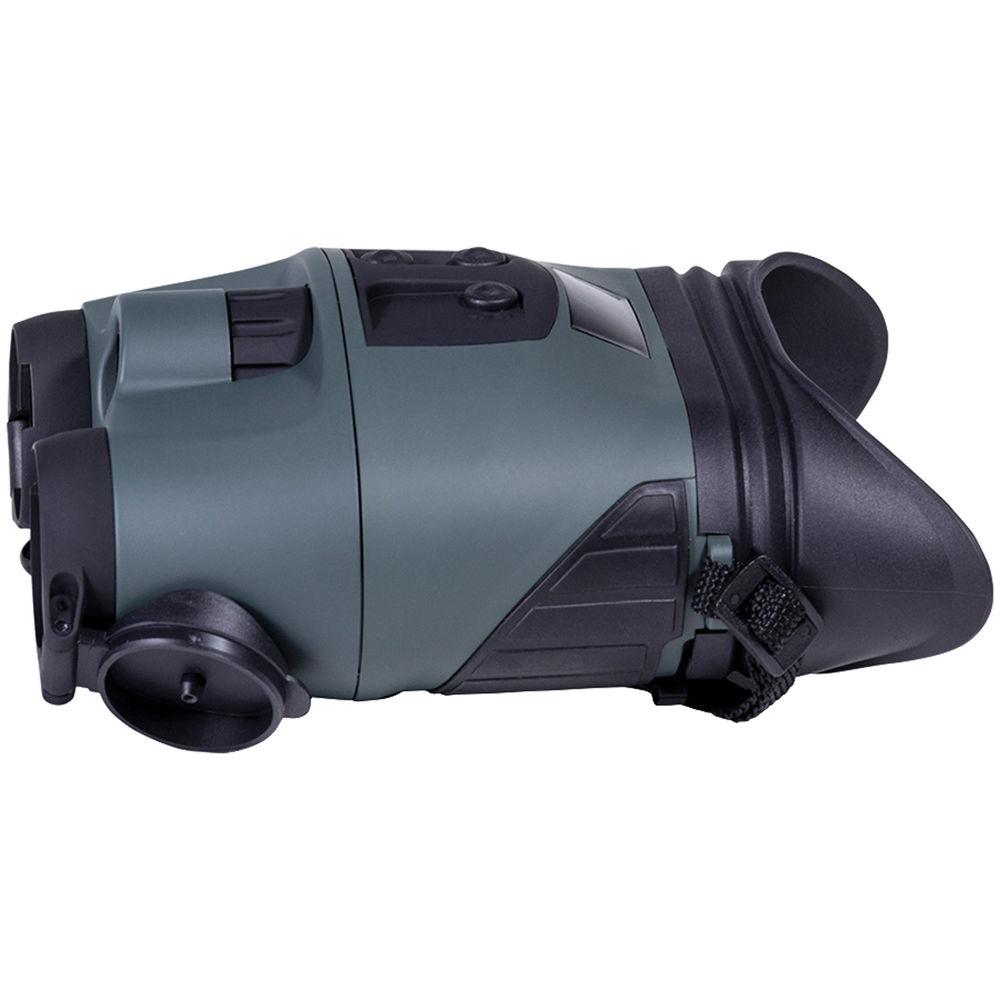

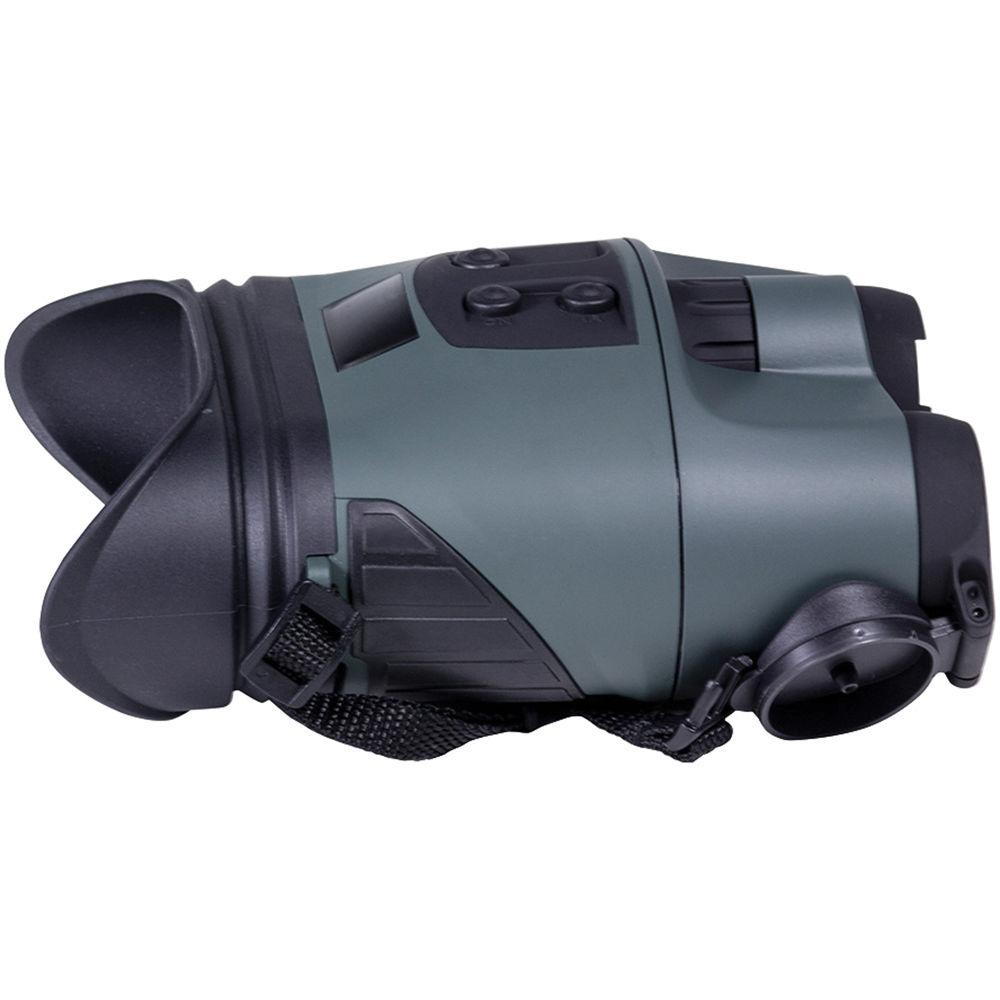

User Manual for Firefield Tracker Light 2x24 1st Gen Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Firefield Tracker Light 2x24 1st Gen
- Product category: Night Vision Binoculars Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Night Vision Binoculars
 |
User manual for the Firefield Tracker Light 2x24 1st Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|
Product description The Tracker Light 2x24 Night Vision Binocular from FireField features two independent 1st generation intensifier tubes, which provide more depth of perception and brightness than bi-ocular or single tube devices. The optical system combines 2x magnification with a wide 30° angular field of view, which allows you to easily spot and track your targets. If you are training or conducting a mission in complete darkness with no ambient infrared light, you can use the built-in infrared illuminator to add brightness to your targets.
The housing is water resistant, has a special non-slip coating, rubberized knurled thumb pads, and comfortable eyeshade. The menu buttons are conveniently located on top, within easy reach of your fingertips. To protect the lenses from exposure to dust, dirt, and sharp objects there are two flip-out lens covers attached to the body. Also included with this NVD are a neck strap and a lens cleaning kit. - Intensifier Tube
-
- Two independent 1st generation intensifier tubes
- Image resolution: 36 lp/mm
- Optical Performance
-
- Main unit magnification: 2x
- Objective lens diameter 24mm
- Field of view: 30°
- Use and Handling
-
- Central focusing
- Menu buttons located on top
- Built-in infrared illuminator
- Construction Details
-
- Contoured body with slip-free coating
- Rubberized thumb pads
- Attached flip-up lens covers
- Rubberized eyeshade
- The housing is water resistant
UPC: 812495020438 In the Box Firefield Tracker Light 2x24 1st Gen Night Vision Binocular (Water Resistant) - Lens Cleaning Kit
- Neck Strap
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield Tracker Light 2x24 1st Gen Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF25023WP Specs | Intensifier Tube | 1st generation
Resolution: 36 lp/mm | | Magnification | 2x | | Angle/Field of View | Angular: 30°
Linear: 158' @ 100 yd (53 @ 100 m) | | Objective Lens Diameter | 24 mm | | Minimum Focus Distance | Not provided by manufacturer | | Eye Relief | 12 mm | | Dioptric Correction | ±5 | | Interpupillary Adjustment | No | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123A / 10 hr max | | Operating Temperature | -22 to 104°F (-30 to 40°C) | | Weatherproofing | IPX5, resistant against water jets | | Dimensions | 7 x 4.8 x 2.8" (175 x 123 x 72 mm) | | Weight | 21 oz (595 g) |
