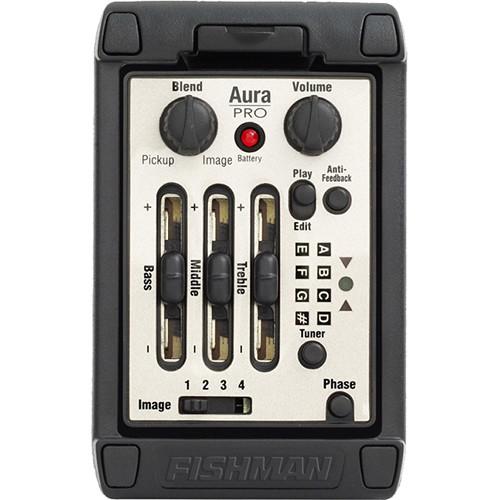

User Manual for Fishman Aura Pro Onboard Preamp System for Acoustic Instruments Click to enlarge the picture
Contents of the user manual for the Fishman Aura Pro Onboard Preamp System
- Product category: General Guitar Accessories Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman General Guitar Accessories
|
User manual for the Fishman Aura Pro Onboard Preamp System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|
Product description The wide format Aura Pro Onboard Preamp from Fishman is a preamp system designed to offer simple analog controls and versatile digital tonal options in a small housing for acoustic guitars. The system includes the preamp unit, a Fishman Switchjack stereo 1/4" endpin jack, and a Fishman Acoustic Matrix pickup. Load tone images via USB to the Aura preamp, then use the Blend knob to set the desired mix of the Fishman pickup and selected tone image.Using the downloadable Aura Gallery Mac/PC application, access tone images for hundreds of makes and models of guitars. Load up to four images to the Aura preamp via the supplied USB cable. Instantly change tone images with the four-position Image switch. Use the 3-band equalizer controls (Bass, Middle, and Treble) to EQ the pickup signal or customize the selected tone image. The Volume control can be used to make up for any level changes incurred by drastic equalization. Combat feedback problems, common in live performance scenarios, by pressing the Anti-Feedback button. When mixing signals from pickups and external microphones together, use the Phase switch to maintain phase coherency. You can even adjust the phase of the pickup signal relative to the image signal. A built-in digital chromatic tuner allows you to easily check your tuning.The Aura Pro is powered via a single 9V battery (available separately). A convenient low-battery LED indicator lights up when the battery is nearing the end of its life, which extends up to 27 hours on an alkaline battery, or up to 54 hours on a lithium battery. Battery replacement is easy due to the pivot design of the preamp’s control panel. -
- Includes a Fishman Acoustic Matrix pickup
- Wide format pickup width is 1/8" (3.2mm)
- Fishman Switchjack 1/4" TRS stereo endpin jack output
- Onboard preamp uses Aura Acoustic Imaging Technology
- Download up to four Aura Images to the preamp via USB
- Blend control to balance pickup/image signals
- Programmable digital equalization
- Bass, Middle, and Treble controls
- Volume knob
- Anti-feedback button
- Phase switch for global polarity inversion
- Programmable phase of pickup relative to image signal
- Built-in digital chromatic tuner
- Low-battery indicator
- Powered via 9V battery
- Alkaline battery life up to 27 hours
- Lithium battery life up to 54 hours
- Pivot design for easy access to battery compartment
UPC: 605609106841 In the Box Fishman Aura Pro Onboard Preamp System for Acoustic Instruments (Wide Format) USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Aura Pro Onboard Preamp System for Acoustic Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-MAT-P81 Specs | Pickup | Acoustic Matrix
Width: 1/8" (3.2 mm) | | Outputs | 1 x 1/4" TRS | | Load Impedance | 10 kOhms and up recommended | | Output Impedance | 1 kOhm | | Maximum Output Level | +5 dBV (onset of clipping) | | Noise Floor | -92 dBV | | Dynamic Range | 97 dB | | Notch Filter | -13.5 dB | | Equalizer | Bass Frequency: 90 Hz
Contour Frequency: 1 kHz
Treble Frequency: 6 kHz | | Controls | Volume
Bass
Middle
Treble
Blend | | Switches | Tuner
Phase
Anti-Feedback
Play/Edit | | Digital Conversion | A/D Conversion: 24-bit
D/A Conversion: 24-bit
Signal Processing: 32-bit | | Power Requirements | 9 V battery | | Battery Life | Alkaline: up to 27 hours
Lithium: up to 54 hours | | Current Consumption | 18 mA | | Dimensions (W x H) | 1.8 x 2.6" / 44.5 x 65.5 mm | | Weight | Not specified by manufacturer |
