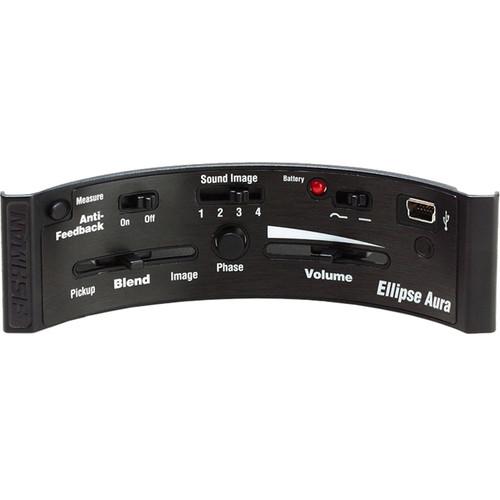

User Manual for Fishman Ellipse Aura Undersaddle Pickup Click to enlarge the picture
Contents of the user manual for the Fishman Ellipse Aura Undersaddle Pickup
- Product category: Pickups Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman Pickups
|
User manual for the Fishman Ellipse Aura Undersaddle Pickup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|
Product description Tailor the sound of your acoustic guitar with the Ellipse Aura Undersaddle Pickup from Fishman. Combining the sparkling, transparent sound of the Matrix undersaddle pickup with the power of an onboard preamp featuring Aura Acoustic Imaging Technology, the Ellipse Aura accurately replicates the sound of your instrument and enables you to blend Aura acoustic images into your pickup's signal. Up to four images can be loaded from the included Aura Image Gallery software onto the soundhole-mounted preamp. The preamp's controls are placed right at the inner edge of your guitar's soundhole, letting you comfortably adjust your sound while playing.
The onboard preamp's main controls are a pickup/image blend slider, a volume slider, a phase knob, an automatic anti-feedback switch, an image switch, and a voicing switch. The blend slider lets you tune the balance of pickup and Aura image sound in your mix, while the phase switch helps improve bass response at low volumes and suppress feedback at high volumes. With the anti-feedback switch you engage and disengage an automatic search-and-destroy notch filter, with the image switch you select one of the four uploaded images, and with the voicing switch you choose between boosted bass and flat response.
The wide-format 1/8"-wide pickup has a standard pickup length of 2.65", and fits most guitars with a 2.5" string spacing. It accommodates most round soundholes with diameters between 3.8" and 4.1". The Ellipse Matrix Blend runs on a single 9V battery and allows for up to 33 hours of playing time between battery changes. An LED light indicates when the battery is running low. - Switchable low-frequency tone-shaping built into preamp
- Neodymium magnetic mounting system for easy, solder-free installation
UPC: 605609106315 In the Box Fishman Ellipse Aura Undersaddle Pickup (Wide Format) Aura Image Gallery Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Ellipse Aura Undersaddle Pickup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-MAT-ELA Specs | Type | Undersaddle | | Design | Active |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
