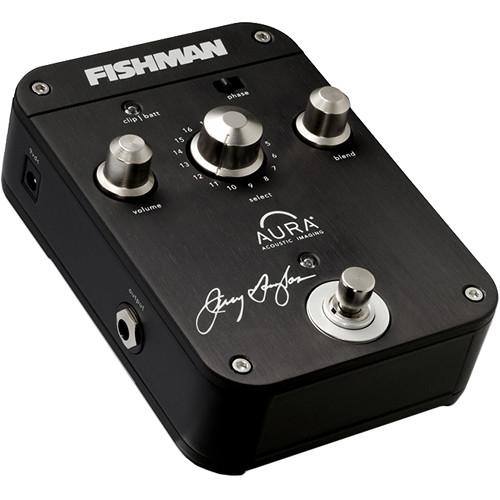

Product description Designed specifically for use with dobros and other resonator guitars, the Jerry Douglas Signature Series Aura Imaging Pedal from Fishman is intended to eliminate the need to mic your instrument by generating an emulated sound of your instrument while miked at various distances using one of sixteen different capsules. In this manner, the pedal circumvents the often-cumbersome process of placing a microphone on your instrument, as well as the restriction of your on-stage movement, and it offers up a much more natural tone than if you were to plug directly into the house PA. Please note that a pickup is required to amplify your resonator guitar and attain the benefits of this pedal. The pedal includes an input Trim pot to optimize the input level for your pickup, as well as Volume and Blend control knobs. The Blend knob allows you to dial your pickup’s natural sound into the signal, mixing it with the timbre provided by the pedal. The real focal point of this stompbox is its Image Selector, which allows you to choose among sixteen different emulations of various microphone configurations. U87s, U67s, Royer 121s, and more are represented here, as are settings intended for use with resonators which have been drop-tuned to more bluesy keys. A Clip/Battery indicator sits on the top left of the pedal, while a Phase switch on the top right helps to eliminate feedback on stage. The footswitch is used to bypass the Aura effect or can be set up to toggle between the effect and a muted output. The Aura Acoustic Imaging pedal itself provides 24-bit A/D/A and 32-bit internal processing to achieve a pristine digital signal path. Each microphone setting has been tested and approved by legendary guitarist Jerry Douglas, as well as studio engineer Bil VornDick and luthier Paul Beard, who specializes in building resonator-style instruments. The settings captured herein have been created with the aid of Class-A discreet mic preamps and all the microphones listed below in the Features section. - Key Features at a Glance
-
- 16 Fishman Aura Images created and used by Jerry Douglas specifically for resophonic guitars
- Volume, Blend, and Image Select controls
- Feedback-fighting Phase switch
- Bypass/Mute foot switch
- Input Trim with Clip/Low Battery indicator
- 24-bit A/D/A, 32-bit internal processing
- Available Microphone Images
-
- Neumann U67 large diaphragm tube condenser, 12” placement simulation
- Neumann U67 large diaphragm tube condenser, 18” placement simulation
- RCA 77 poly-directional ribbon, 12” placement simulation
- RCA 77 poly-directional ribbon, 12” placement simulation (instrument drop tuned to CAFCAF)
- Neumann M149 large diaphragm tube condenser, 18” placement simulation
- Neumann M149 large diaphragm tube condenser, 12” placement simulation
- Crowley Tripp El Diablo figure 8 ribbon, 12” placement simulation
- Shure SM81 uni-directional small condenser, 12” placement simulation
- Royer R-121 figure 8 Ribbon, 12” placement simulation (instrument drop-tuned to CAFCAF)
- Neumann U47 large diaphragm cardioid tube condenser, 12” placement simulation
- Neumann FET 47 cardioid FET large diaphragm condenser, 12” placement simulation
- Neumann FET 47 cardioid FET large diaphragm condenser, 12” placement simulation (instrument drop-tuned to CAFCAF)
- Crowley Tripp Soundstage Figure 8 Ribbon, 12” placement simulation
- Neumann KM84 small diaphragm cardioid condenser, 12” placement simulation
- Shure KSM 32 side-address cardioid condenser, 9” placement simulation
- Shure SM-57 cardioid dynamic, 12” placement simulation
UPC: 605609106643 In the Box Fishman Jerry Douglas Signature Series Aura Imaging Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Jerry Douglas Signature Series Aura Imaging Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-AIP-JD1 Specs | Audio Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | Volume knob
Image Select knob
Blend knob
Input Trim pot
Phase switch
Clip/Battery indicator
Bypass/Mute footswitch | | AD/DA | 24-bit | | Internal Processing | 32-bit | | Current Consumption | 18 mA, typical in-use current consumption | | Impedance | Input: 10 MOhms
Nominal Output: 3.5 kOhms | | Input Trim | Gain Range: -10 to +2 dB | | Maximum Output Level | +2.4 dBV (onset of clipping) | | Noise | Baseline: -92 dBV, A-weighted | | Dynamic Range | 94 dB, A-weighted | | Material | All-metal construction | | Power | 9 V battery (available separately)
ACC-BLE-POW 910R power adapter (available separately) | | Battery Life (approx.) | 27 hours | | Dimensions (L x W x H) | 5.6 x 4.0 x 2.1" / 14.2 x 10.1 x 5.3 cm | | Weight | 1.3 lb / 0.6 kg |
