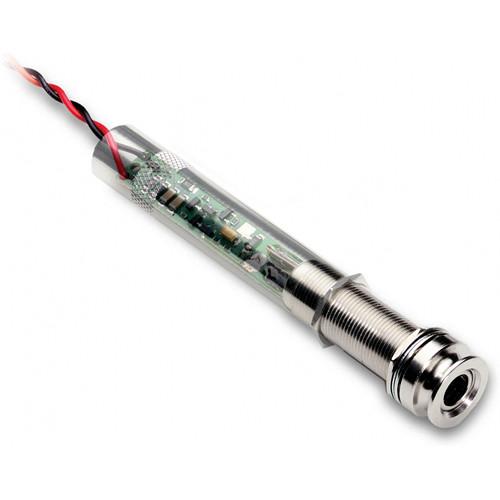

User Manual for Fishman Powerjack Onboard Preamp Endpin Jack for Acoustic Instruments Click to enlarge the picture
Contents of the user manual for the Fishman Powerjack Onboard Preamp Endpin Jack
- Product category: General Guitar Accessories Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman General Guitar Accessories
|
User manual for the Fishman Powerjack Onboard Preamp Endpin Jack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|
Product description The Powerjack from Fishman is a miniature preamp in an elongated 1/4” endpin jack designed to provide active performance to a passive piezo pickup in an acoustic instrument. It replaces the existing endpin jack.The Powerjack features a low-noise FET Class A input stage, and a bipolar Class AB output stage, yielding a signal-to-noise ratio of 94 dB.It is powered by a 9V battery (available separately). Battery life is up to 12,000 hours. -
- Miniature preamp in an elongated 1/4" jack
- Replaces existing endpin jack
- Designed for use in acoustic instruments
- Powered by 9V battery
- Battery life up to 12,000 hours
UPC: 605609104755 In the Box Fishman Powerjack Onboard Preamp Endpin Jack for Acoustic Instruments Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Powerjack Onboard Preamp Endpin Jack for Acoustic Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-PJA-001 Specs | Circuit Design | FET low-noise Class A input stage
Bipolar Class AB output stage | | Outputs | 1 x 1/4" TS | | Impedance | Input: 10 MOhms
Output: <5 kOhms | | System Gain | 3 dB | | Signal to Noise Ratio | 94 dB | | Input Overload | -0.7 dBV | | Maximum Output Voltage | 4 V (peak to peak) | | Power Requirements | 9 V battery | | Battery Life | Up to 12,000 hours | | Dimensions (W × H × D) | 4.7 x 2.2 x 6.7" / 120.0 x 55.8 x 171.4 mm | | Weight | 5.6 oz / 158.8 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.6 x 4.9 x 2.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
