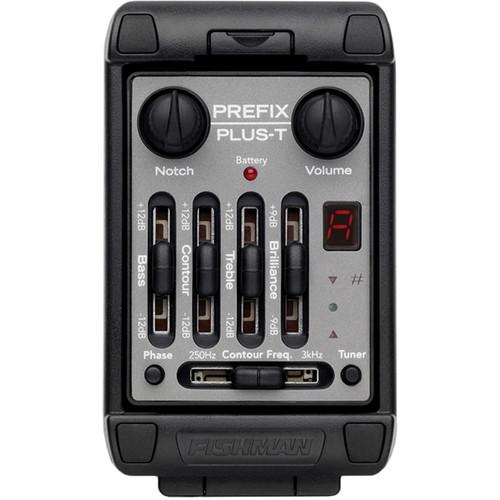

User Manual for Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments Click to enlarge the picture
Contents of the user manual for the Fishman Prefix Plus-T Onboard Preamp System
- Product category: General Guitar Accessories Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman General Guitar Accessories
|
User manual for the Fishman Prefix Plus-T Onboard Preamp System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|
Product description The wide format Prefix Plus-T from Fishman is a preamp system designed to offer simple and versatile controls in a compact housing for instruments such as acoustic guitars and basses. The system includes the preamp unit, a Fishman Switchjack stereo 1/4" endpin jack, and a Fishman Acoustic Matrix pickup. The Prefix Plus-T also delivers a built-in tuner with LED display.Equalization is handled via 3-band EQ controls (Bass, Contour, and Treble). The frequency of the Contour band can be varied from 250 Hz to 3 kHz. The Brilliance knob provides additional high-frequency tone shaping. The Volume control can be used to make up for any level changes incurred by drastic equalization. Combat feedback problems, common in live performance scenarios, by adjusting the Notch control. When mixing signals from pickups and microphones together, use the Phase switch to maintain phase coherency.The Prefix Plus-T is powered via a single 9V battery (available separately). A convenient low-battery LED indicator lights up when the battery is nearing the end of its life, which extends up to 150 hours. Battery replacement is easy due to the pivot design of the preamp’s control panel. -
- Includes a Fishman Acoustic Matrix pickup
- Wide format pickup width: 1/8" (3.2mm)
- Fishman Switchjack 1/4" TRS stereo endpin jack output
- Built-in tuner and LED display can be used without plugging in the guitar
- Bass, Contour, and Treble controls
- Adjustable Contour frequency
- Volume and Brilliance controls
- Anti-feedback Notch control
- Phase switch
- Low-battery indicator
- Powered via 9V battery
- Battery life up to 150 hours
- Pivot design for easy access to battery compartment
UPC: 605609106186 In the Box Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments (Wide Format) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-MAT-PT4 Specs | Pickup | Acoustic Matrix
Width: 1/8" (3.2 mm) | | Outputs | 1 x 1/4" TRS | | Nominal Input Level | -20 dBV | | Impedance | Input: 20 MOhms
Output: <3.5 kOhms | | Nominal Output Level | -12 dBV | | THD | <0.04% @ -20 dBV input | | Noise Floor | -97 dBV | | Dynamic Range | 104 dB | | Notch Filter | Range: 30 to 300 Hz (-15 dB) | | Equalizer | Bass Frequency: 60 Hz
Treble Frequency: 10 kHz
Contour Frequency: 250 Hz to 3 kHz
Contour Q: 0.5
Brilliance Frequency: 10 kHz
Brilliance Q: 0.5 | | Controls | Volume
Bass
Contour
Treble
Brilliance
Contour Frequency
Notch | | Switches | Tuner
Phase | | Power Requirements | 9 V battery | | Battery Life | Up to 150 hours | | Dimensions (W x H) | 2.5 x 4.0" / 62.5 x 102.3 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.0" |
