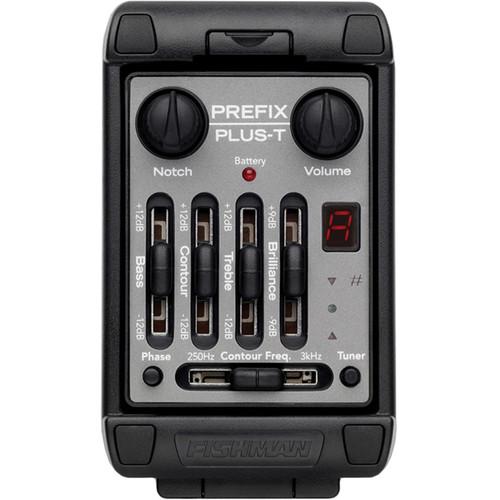

Product description The narrow format Prefix Plus-T from Fishman is a preamp system designed to offer simple and versatile controls in a compact housing for instruments such as acoustic guitars and basses. The system includes the preamp unit, a Fishman Switchjack stereo 1/4" endpin jack, and a Fishman Acoustic Matrix pickup. The Prefix Plus-T also delivers a built-in tuner with LED display.Equalization is handled via 3-band EQ controls (Bass, Contour, and Treble). The frequency of the Contour band can be varied from 250 Hz to 3 kHz. The Brilliance knob provides additional high-frequency tone shaping. The Volume control can be used to make up for any level changes incurred by drastic equalization. Combat feedback problems, common in live performance scenarios, by adjusting the Notch control. When mixing signals from pickups and microphones together, use the Phase switch to maintain phase coherency.The Prefix Plus-T is powered via a single 9V battery (available separately). A convenient low-battery LED indicator lights up when the battery is nearing the end of its life, which extends up to 150 hours. Battery replacement is easy due to the pivot design of the preamp’s control panel. -
- Includes a Fishman Acoustic Matrix pickup
- Narrow format pickup width: 3/32" (2.3mm)
- Fishman Switchjack 1/4" TRS stereo endpin jack output
- Built-in tuner and LED display can be used without plugging in the guitar
- Bass, Contour, and Treble controls
- Adjustable Contour frequency
- Volume and Brilliance controls
- Anti-feedback Notch control
- Phase switch
- Low-battery indicator
- Powered via 9V battery
- Battery life up to 150 hours
- Pivot design for easy access to battery compartment
UPC: 605609106179 In the Box Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments (Narrow Format) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-MAN-PT4 Specs | Pickup | Acoustic Matrix
Width: 3/32" (2.3 mm) | | Outputs | 1 x 1/4" TRS | | Nominal Input Level | -20 dBV | | Impedance | Input: 20 MOhms
Output: <3.5 kOhms | | Nominal Output Level | -12 dBV | | THD | <0.04% @ -20 dBV input | | Noise Floor | -97 dBV | | Dynamic Range | 104 dB | | Notch Filter | Range: 30 to 300 Hz (-15 dB) | | Equalizer | Bass Frequency: 60 Hz
Treble Frequency: 10 kHz
Contour Frequency: 250 Hz to 3 kHz
Contour Q: 0.5
Brilliance Frequency: 10 kHz
Brilliance Q: 0.5 | | Controls | Volume
Bass
Contour
Treble
Brilliance
Contour Frequency
Notch | | Switches | Tuner
Phase | | Power Requirements | 9 V battery | | Battery Life | Up to 150 hours | | Dimensions (W x H) | 2.5 x 4.0" / 62.5 x 102.3 mm | | Weight | Not specified by manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Fishman Prefix Plus-T Onboard Preamp System for Acoustic Instruments
| Subject: Fishman Prefix plus replacement | | Date: 08.02.2022 16:42:03 | Name: Lance Craig Perkins | Hi Guys
Is the Prefix plus T a direct replacement for the original Prefix plus screw hole placement in body?
Best regards
L Perkins | | Post reply |
