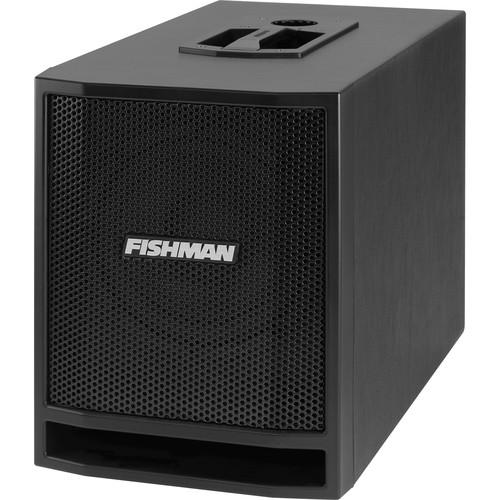

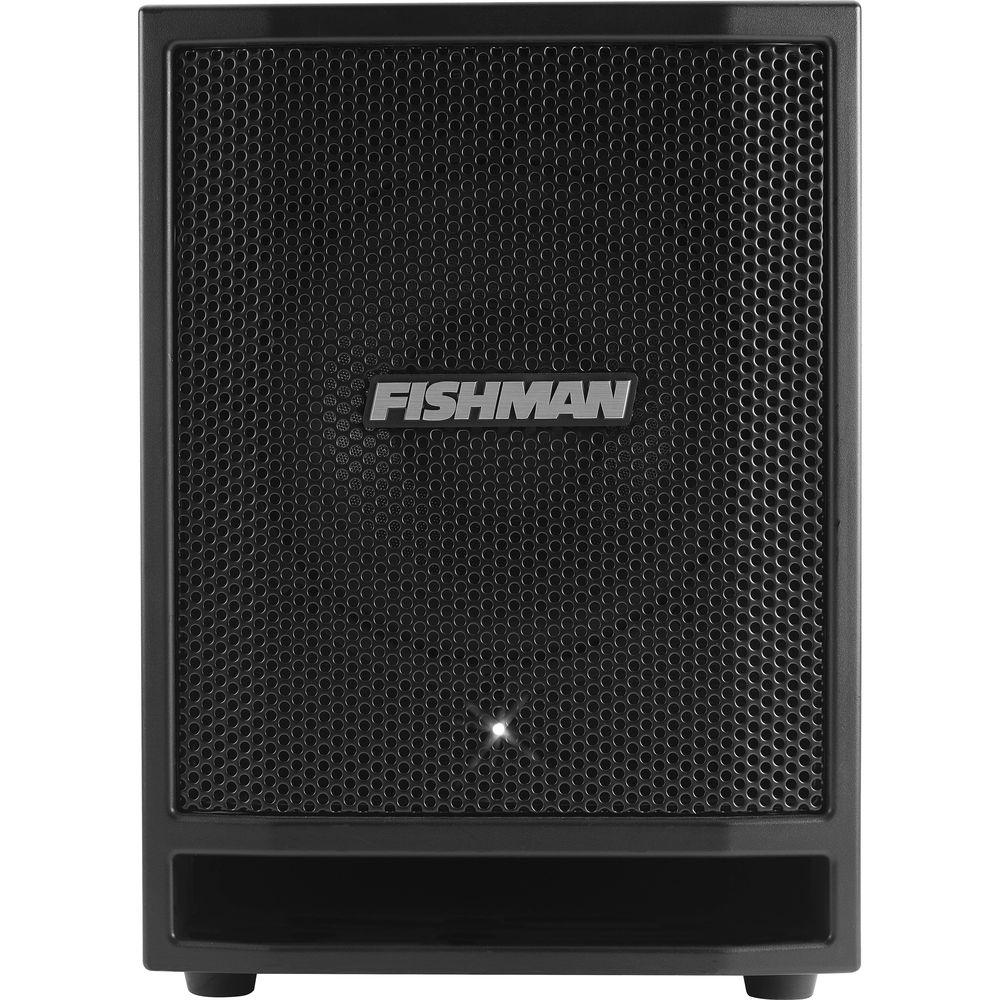

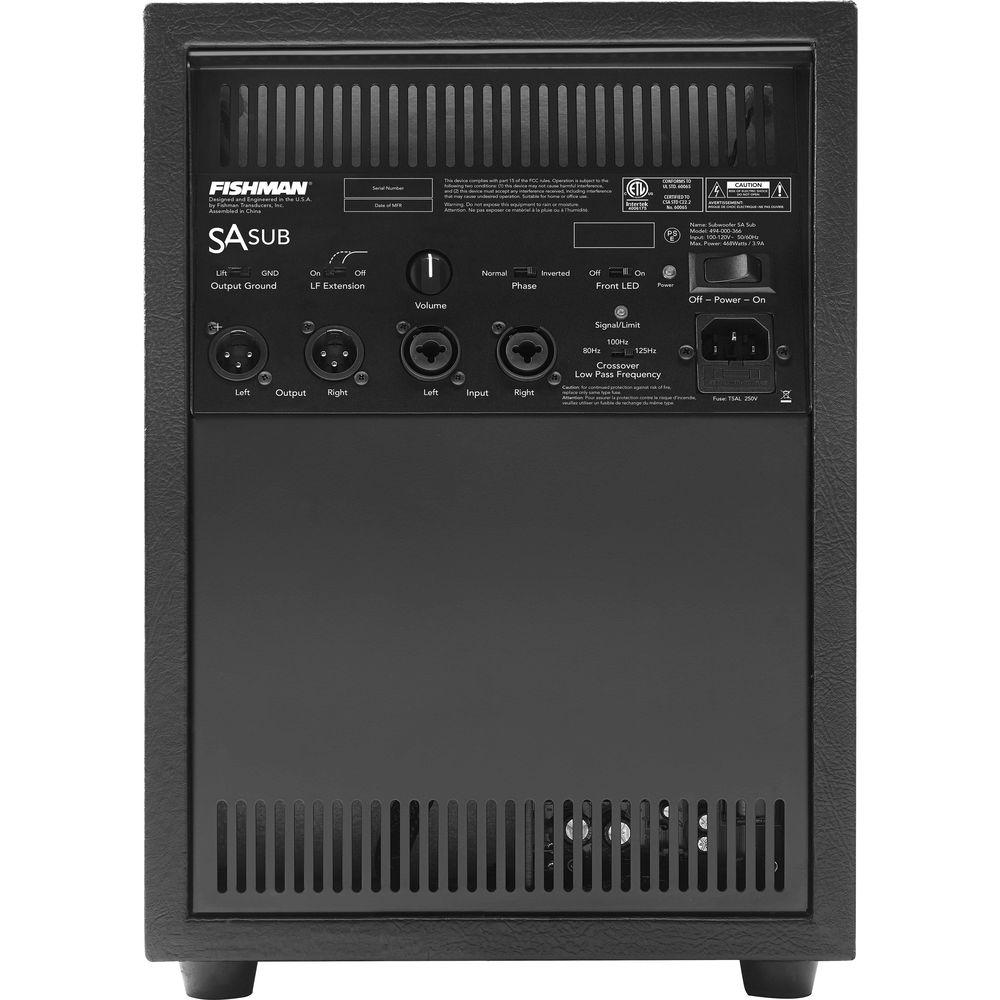

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The SA Sub from Fishman is an 8" powered subwoofer designed to provide 300W RMS of low frequency reinforcement for bassists, DJs, and presenters in small to medium size rooms.Its left and right XLR/TRS combo jack inputs are internally summed to mono before feeding the amp. The inputs are simultaneously passed through to the dual XLR outputs without summing or filtering. The SA Sub’s 30-125 Hz frequency response can be tailored to meet system-specific needs. The crossover’s low-pass filter offers three frequency settings, 80 Hz, 100 Hz, or 125 Hz. Switching off the separate low-frequency extension may help tame boomy lows resulting from problematic room acoustics. When more pronounced bass is desired, simply turn on the low-frequency extension from the back panel.There is an LED for indication of signal presence and limiting. Adjust the volume control to suit preferred bass levels or prevent limiting. Hum caused by ground loops can be addressed via a back-panel ground-lift switch. To combat phase issues, use the sub's phase switch to invert the polarity of the signal. -
- 8" woofer
- 300W RMS
- 30-125 Hz frequency response
- Left and right XLR/TRS combo jack inputs
- Left and right XLR pass-through outputs
- Crossover with adjustable low-pass filter at 80 Hz, 100 Hz, or 125 Hz
- Switchable low-frequency extension
- Volume control
- Signal/limit LED
- On/off switch for front LED indicator
- Phase invert switch
- Ground-lift switch
UPC: 605609154507 In the Box Fishman SA Sub 8" 300W Subwoofer IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman SA Sub 8" 300W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-SUB-300 Specs | Inputs | 2 x XLR/TRS combo jack | | Outputs | 2 x XLR | | Input Impedance | 20 kOhms (unbalanced 1/4" input)
40 kOhms (balanced 1/4" input)
40 kOhms (balanced XLR input) | | Driver | 8" custom-designed woofer, ferrite magnet | | Output Power | 300 W RMS
600 W Peak | | SPL | 109 dB SPL @ 1 m | | Frequency Response | 30 - 125 Hz | | Low Pass Crossover | Frequencies: 80 Hz, 100 Hz, or 125 Hz
Filter Slope: 24 dB/octave | | Power Consumption | 300 W maximum | | Power Requirements | 100 - 120 VAC, 50/60 Hz | | Dimensions (H x W x D) | 13.6 x 10.3 x 19.8" / 346 x 262 x 503 mm | | Weight | 27.3 lb / 12.4 kg
28.7 lb / 13.0 kg (with accessory feet) |
