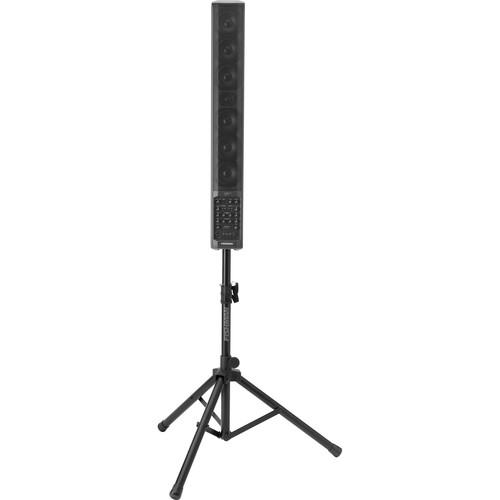

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The SA330x Performance Audio System from Fishman is a 330W 2-way speaker that delivers high-quality and professional sounding audio for small to medium sized venues. The modified line-array speaker system consists of six 4" mid-woofers and a single 1" neodymium soft dome tweeter that combine to deliver full-range audio at an SPL of 113 dB. The ultra-wide horizontal dispersion fills the room with deep penetrating sound without "blowing away" the front row.

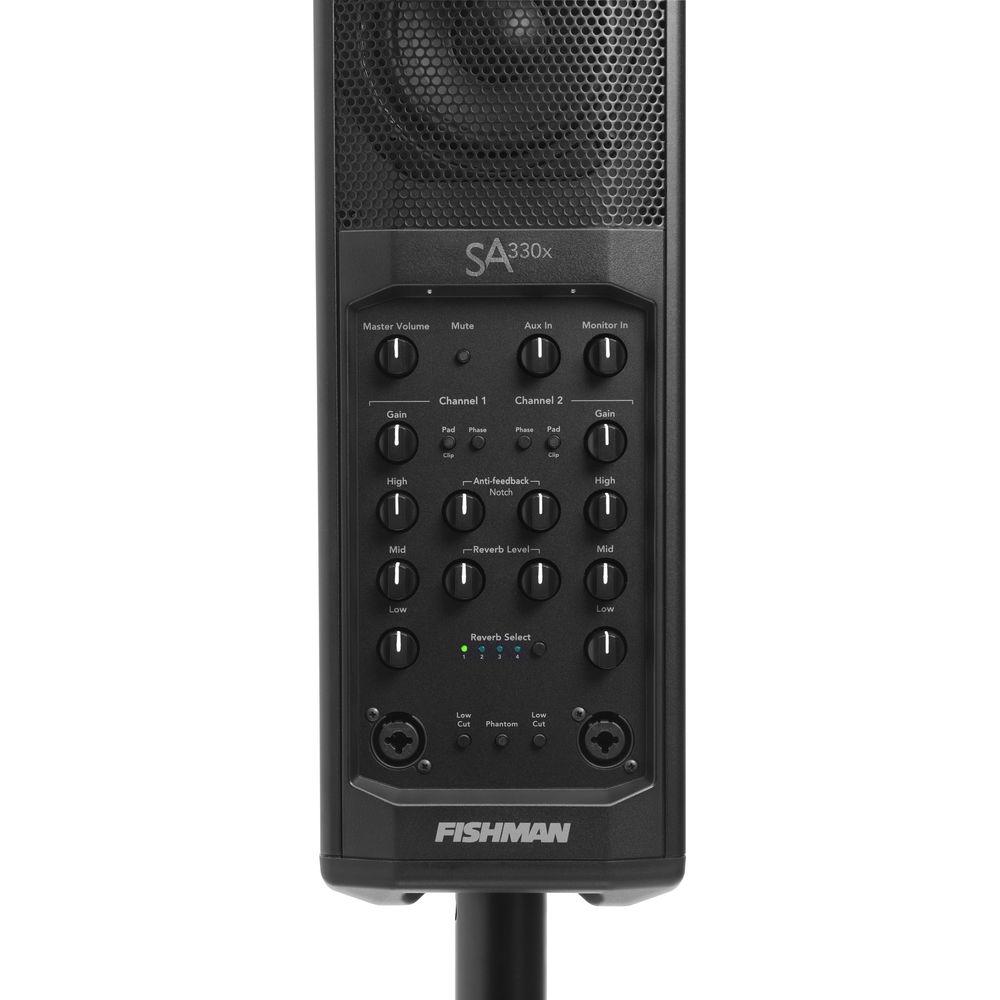

The built-in amplifier and mixer module offers two combo XLR/1/4" inputs with independent controls for gain, 3-band EQ, phase, pad, low cut filter, an anti-feedback notch filter, and dedicated digital reverb. A phantom power button engages 48V for both channels, allowing the system to accommodate condenser microphones. Additional optional accessories include the SA Expand 4-channel mixer and the Pro-Sub-300 for extended low frequency reproduction. The SA330x ships with a speaker stand and a padded sleeve to protect the speaker during transport. -
- 330W: More than enough power for small and medium sized venues
- Wide Dispersion Modified Line Array: Allows everyone in your audience to hear you clean and crisp, without “blowing away” the front row
- Channel Expandability via Accessory Port: Provides one-cable audio and power for the SA Expand
- Full-range audio source handling
- Subwoofer Output: Dedicated output optimizes system voicing
- Modern Industrial Design: Strong, lightweight, good looking and easy to set up. Appropriate for all kinds of situations
- Padded carry sleeve included

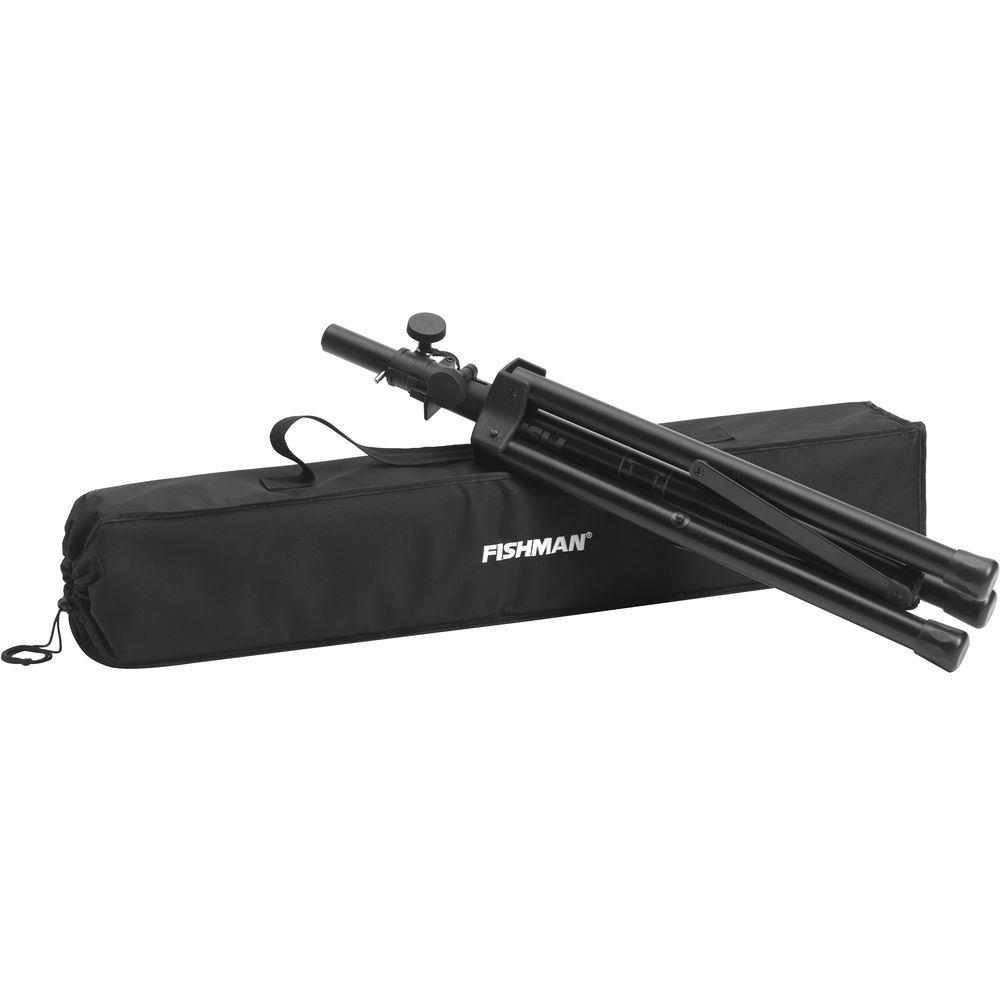

UPC: 605609154446 In the Box Fishman SA330x Performance Audio System Padded Carrying Case Speaker Stand Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman SA330x Performance Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-AMP-SL2 Specs | Input Impedances | 1/4" / 6.35 mm: 5 MOhms
XLR: 3 kOhms balanced
Aux Input (Stereo): 10 kOhms | | Tone Controls | Low: ±12.5 dB @ 50 Hz (resonant)
Mid: ±10.5 dB @ 750 Hz (resonant)
High: ±12.5 dB @ 10 kHz (shelving)

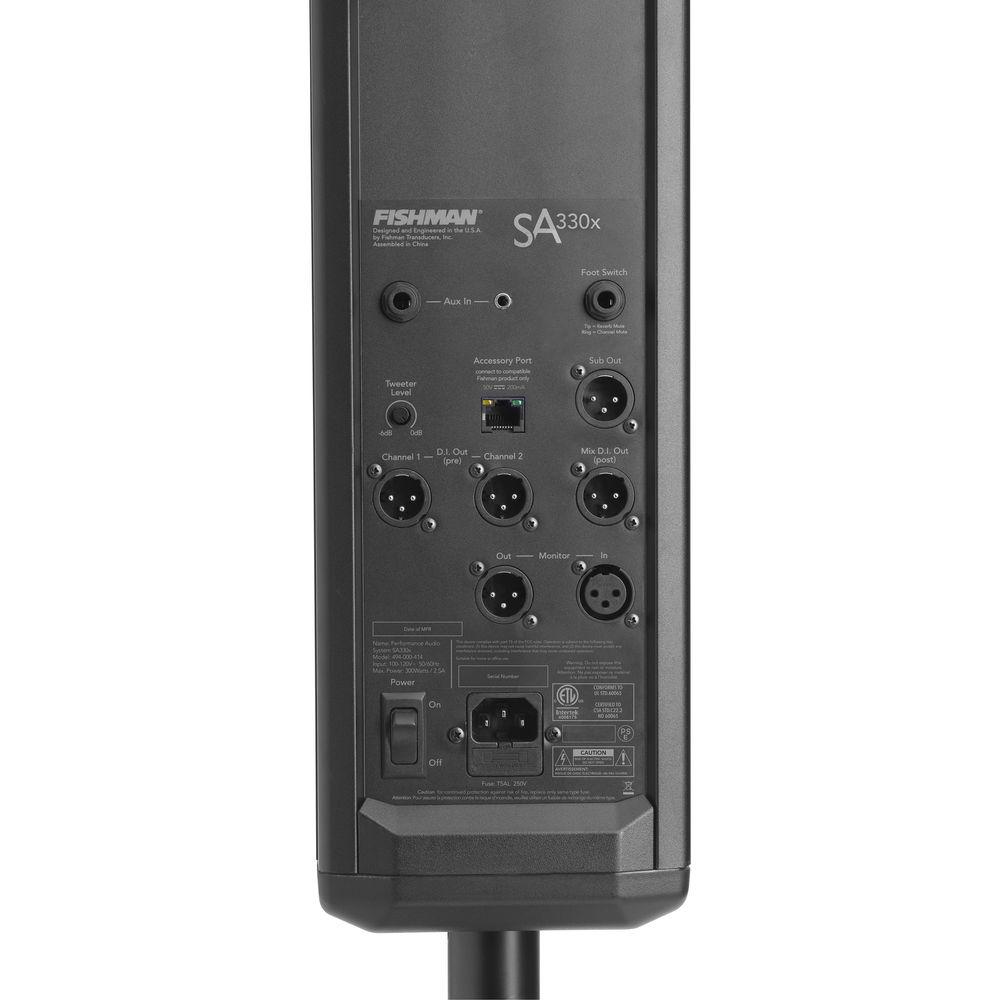

Anti Feedback: Range -14 dB @ 15 Hz to 330 Hz (Hi-Q resonant notch) | | Output Impedances | Channel 1 & 2 D.I. Output: 600 Ohms balanced, (Phantom power tolerant, ground isolated)
Mix D.I. Output: 600 Ohms balanced, (Phantom power tolerant, ground isolated)
Sub Output: 600 Ohms balanced, (Phantom power tolerant, ground isolated) | | Speaker System | Woofers: Six 4.0" / 101.6 mm patented dual-gap with neodymium magnet
Tweeter: 1.0" / 25.4 mm soft dome, neodymium magnet
Tweeter Level: Up to 6 dB cut @ 10 kHz
Crossover: Bi-amplified with active crossover, 100 Hz high-pass filter when Sub Out connected | | Drivers | Mid-Woofers: Patented dual gap, high excursion design, neodymium magnets
Soft Dome Tweeter: Neodymium with level control | | Configuration | Driver Configuration: Modified line array; ultra-wide horizontal dispersion and deeper sound penetration | | SPL Level | 113 dB SPL @ 1 meter | | Amplifier | Woofers: 280 W RMS; 484 W peak
Tweeter: 50 W RMS; 100 W peak
Frequency Response: 71 Hz - 20 kHz | | Power | Power: 330 W, bi-amped
Power Input: 100 - 120 VAC, 50/60 Hz
Max Power: 300 W, 2.5 A | | Dimensions (H x W x D) | 41.4 x 5.5 x 6.7" / 105.2 x 14.0 x 17.0 cm | | Weight | 27.5 lb / 12.8 kg (including stand and padded carrying sleeve)
SA330x: 20.0 lb / 9.1 kg (without stand and carry bag)
Stand: 6.7 lb / 3.0 kg
Carry Bag: 1 lb / .5 kg | | | | Package Weight | 32.25 lb | | Box Dimensions (LxWxH) | 45.25 x 17.25 x 10.0" |
