User Manual for Fishman ToneDEQ Preamp DI Click to enlarge the picture
Contents of the user manual for the Fishman ToneDEQ Preamp DI
- Product category: General Guitar Accessories Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman General Guitar Accessories
 |
User manual for the Fishman ToneDEQ Preamp DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|

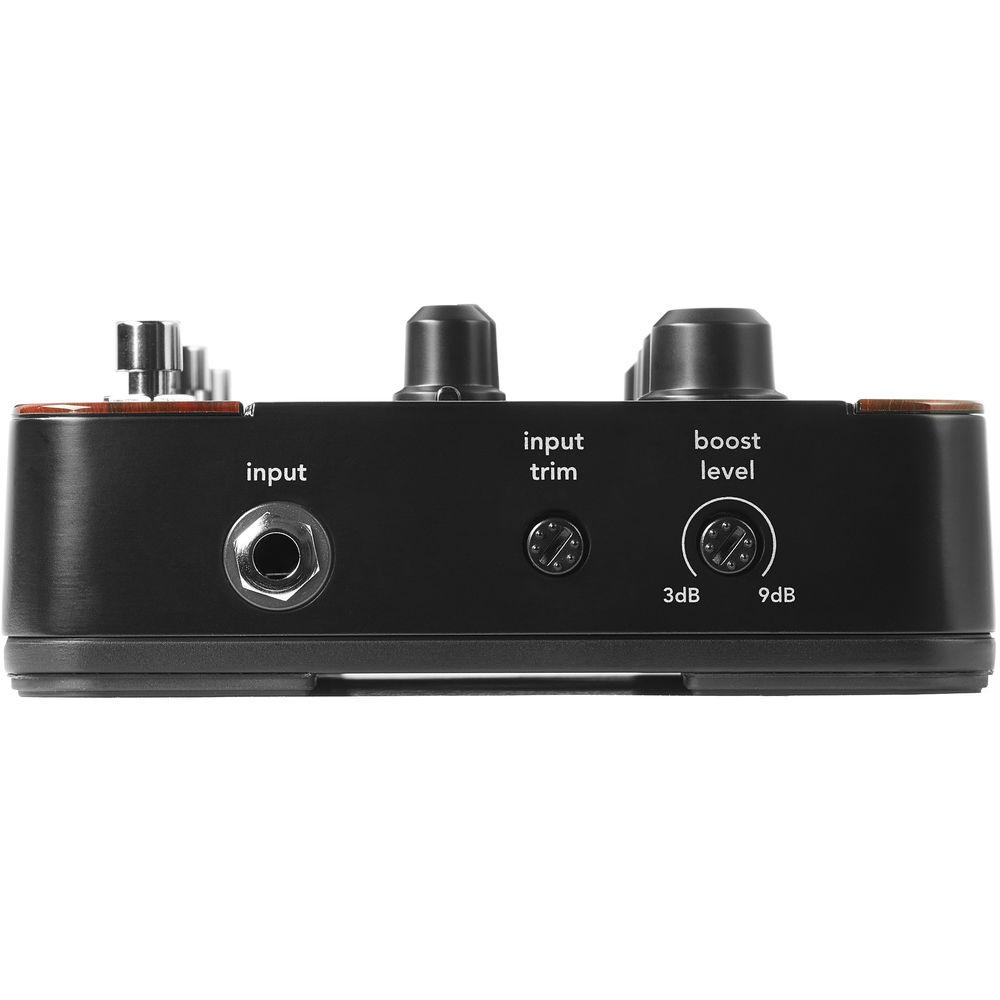

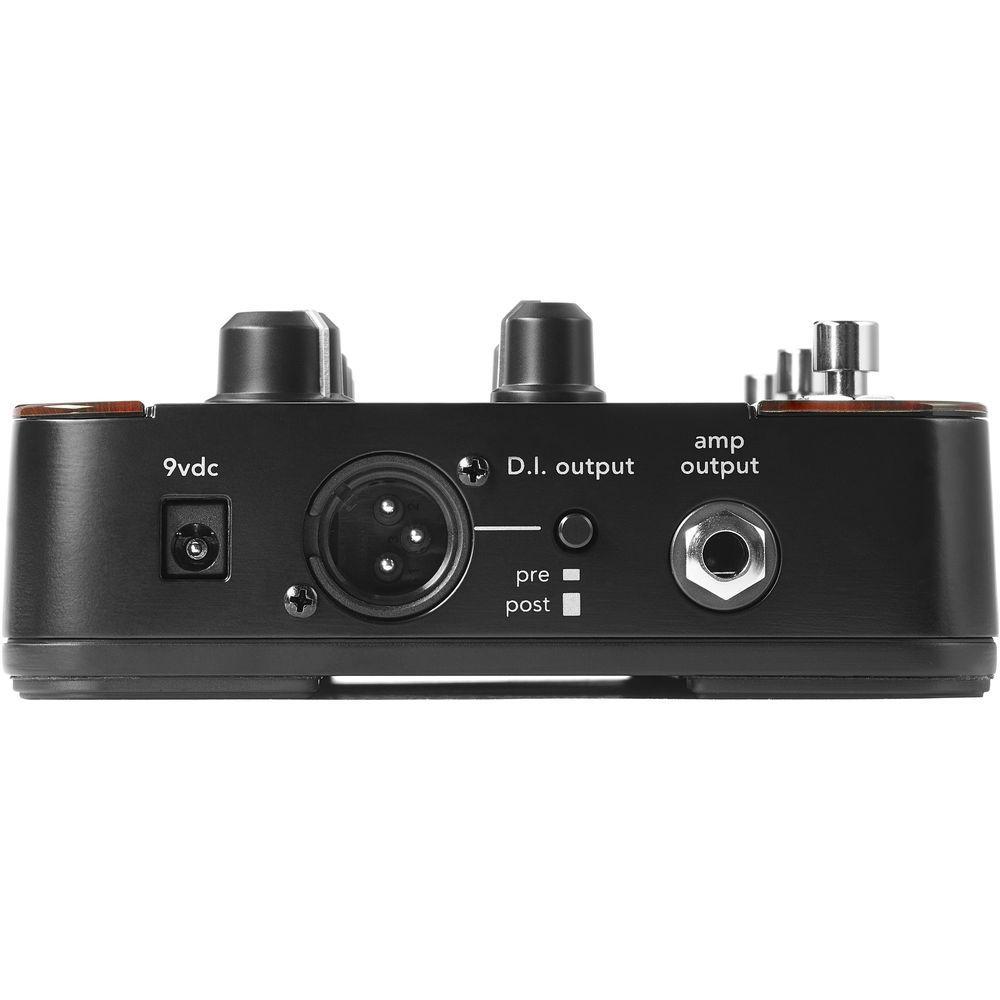

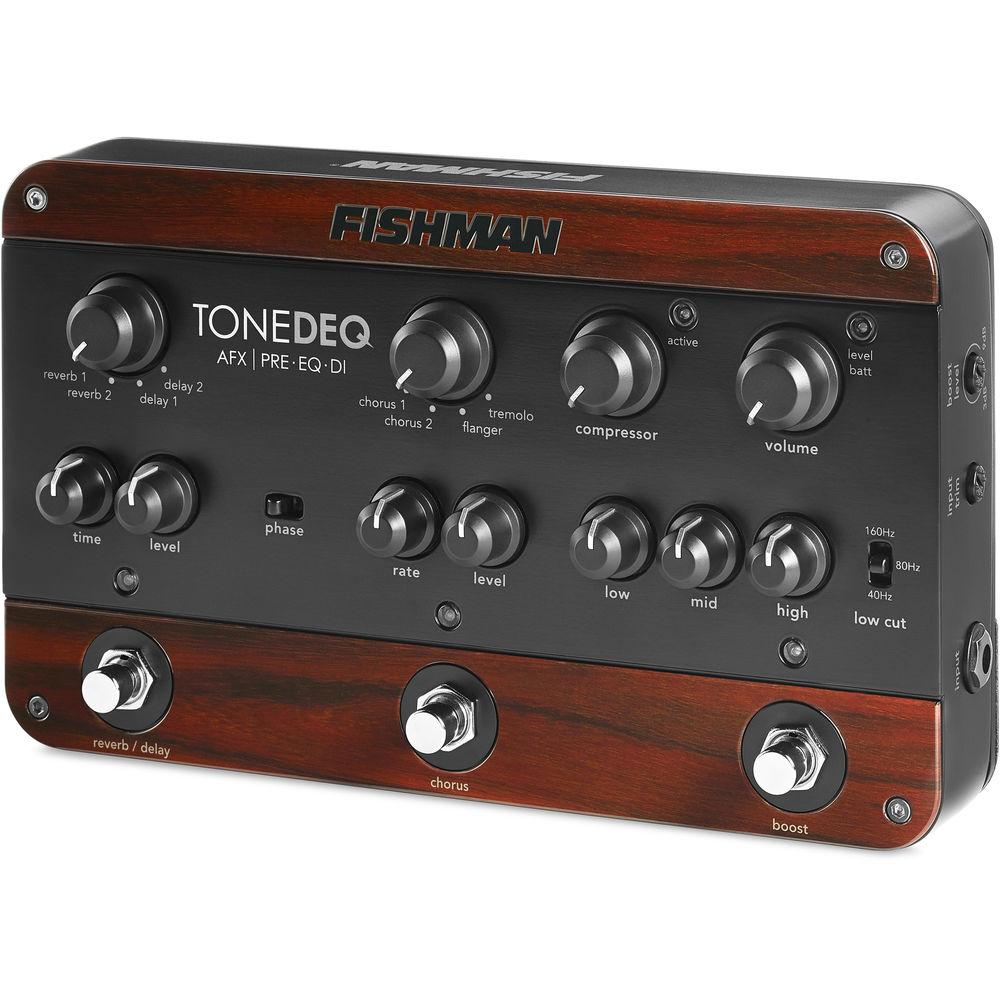

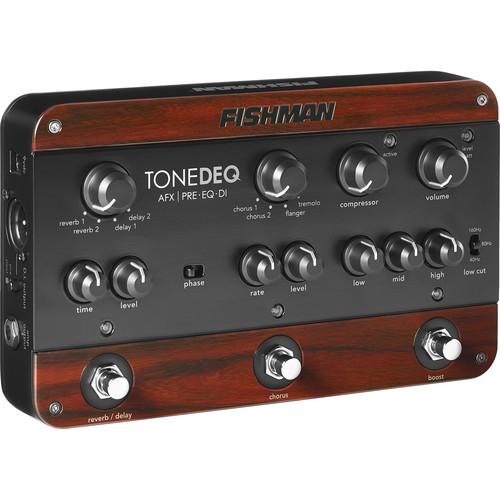

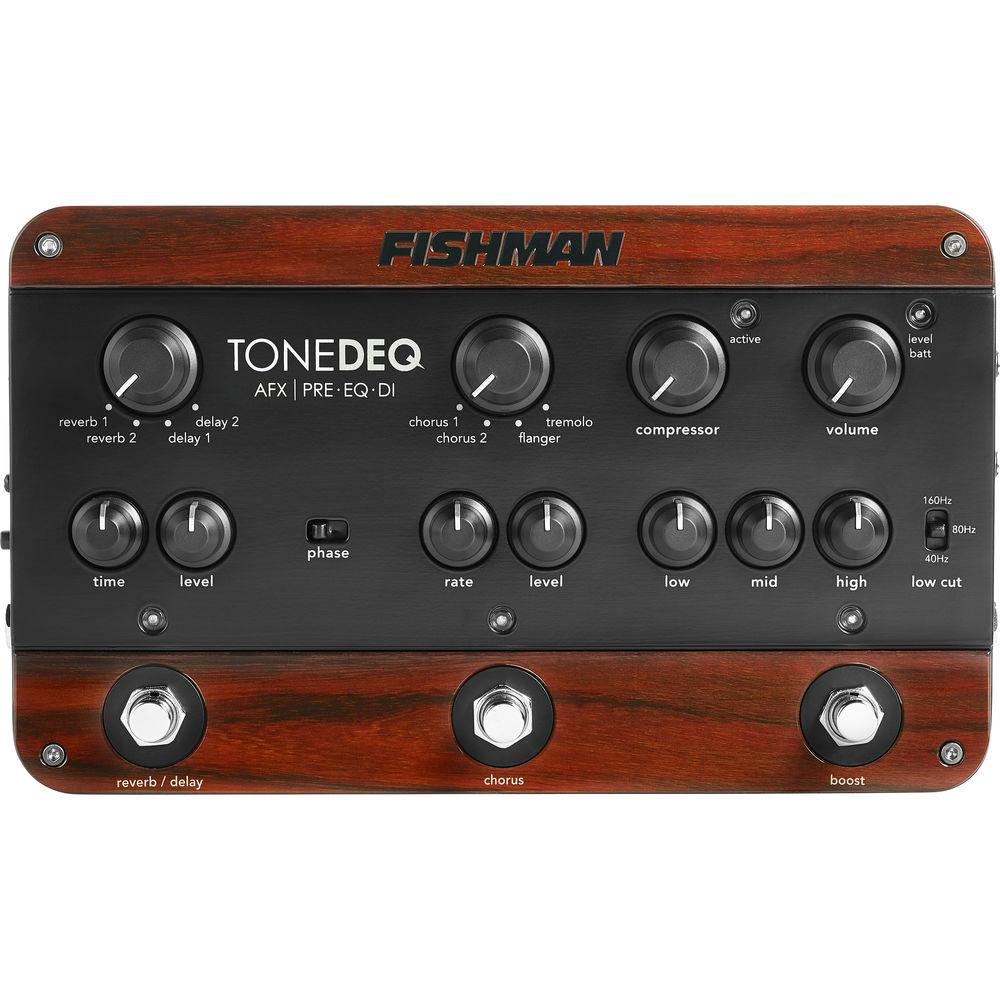

Product description Designed for acoustic instruments sporting passive electronics, the ToneDEQ Preamp from Fishman is designed to provide tonal shaping effects, compression, onboard digital effects, and a discrete, Class A JFET analog signal path. Quite suitable for use on stage, the device provides a 1/4" input jack specifically tailored to match passive pickups, as well as a 1/4" output for use with amplifiers or other compatible devices. Also offered is a balanced XLR DI output intended to interface with mixers, PAs, and recording equipment. This output, which is automatically ground-lifting to eliminate hum, sports the ability to route signal either before or after the EQ section.Note the selectable low-cut filter to the right of the Low, Mid, and High knobs. This filter helps eliminate rumbling, letting you to attenuate problematic noise at and below three selectable low frequencies. Additionally, a one-knob compressor with variable threshold helps tame your dynamics, giving you the ability to work a little less hard at obtaining an even level on stage. A digital effects section, routed completely parallel to the analog stage, provides two delays, two reverbs, two choruses, a flanger, and a tremolo. You can use the reverb/delay section and the modulation effects simultaneously.An input trim pot helps cut or boost the intrinsic level of your instrument’s pickups, while an output volume knob sets the overall level after the tonal, dynamics, and effects processing. Should you wish to add volume to solos or other such moments on stage, a boost switch has been provided. The variable gain can be tweaked by the boost pot located on the side of the unit. The ToneDEQ can run on a 9V battery or with an optional power supply. - Key Features at a Glance
-
- 10-MOhm, discrete Class A JFET design
- All-analog output signal path with parallel digital effects
- 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
- Reverbs, delays, choruses, flanger, and tremolo effects
- Soft-knee compressor
- Boost footswitch (up to 9 dB)
- Selectable phase invert for feedback suppression
- 1/4” mono instrument input, 1/4” amplifier output, and balanced XLR DI output with pre/post routing
- Powered by 9-volt battery (available separately), or Fishman 910-R power adapter (optional)
- Analog Circuitry
- The analog signal path goes from preamp to output in order to offer acoustic musicians a rich tonal quality. The digital effects are mixed in parallel so they don't affect the analog signal path.
- Fully Balanced Stage DI
- Flexible outputs include a 1/4" amplifier output and an XLR DI output. The XLR output boasts automatic ground-lifting and selectable pre- / post-EQ settings.
- Discrete Class-A Preamp
- This unit sports discrete Class A signal conditioning with a high-impedance input stage for use with passive instrument pickups.
- 4-Band EQ
- This 4-band equalizer design provides tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.
UPC: 605609151803 In the Box Fishman ToneDEQ Preamp DI Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman ToneDEQ Preamp DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman PRO-DEQ-AFX Specs | Audio Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type
1 x 1/4" return input, phone type
1 x 1/4" send output, phone type
1 x XLR DI output | | Tone Controls | Low Cut: 10 Hz to 160 Hz
Bass: ±12 dB at 115 Hz (guitar), ±12 dB at 85 Hz (bass)
Middle: ±12 dB at 200 Hz to 3.1 kHz; Q = 1.3
Treble: ±12 dB at 6 kHz (guitar), ±12 dB at 3 khz (bass)
Brilliance: ±7 dB at 10 kHz, Q = 0.8 (guitar); ±7 dB at 5 kHz, Q = 0.8 (bass) | | Notch Filter | 12 dB Attenuation, 45 to 370 kHz, Q = 8 | | Compressor | Ratio: 2.5:1
Attack time: 10 ms
Release time: 100 ms | | Tuner | Modes: Chromatic, guitar, bass, ukulele, violin
Detection Range: 27.5 (A0) to 4186 Hz (C8)
Pitch Accuracy: 0.5 cents
A Reference: 430 to 450 Hz | | Controls | Volume knob
Compressor knob
Low-cut knob
Bass knob
Middle knob
Treble knob
Brilliance knob
Frequency knob
Notch knob
Guitar/bass toggle switch
Phase toggle switch
Notch in/out toggle switch
Boost level pot
Input trim pot
Tune mode selector
Tune Ref. selector
Tuner footswitch
Boost footswitch | | Impedance | Input: 10 MOhms
Output: 1 kOhm (amp, nominal); 600 Ohms (XLR DI, nominal) | | Input Trim | Gain range: -6 to +14 dB | | Maximum Output Level | +8 dBV (onset of clipping) | | Noise | Baseline: -91 dBV, A-weighted | | Dynamic Range | 97 dB, A-weighted | | Power Supply | 9 V battery or 9 VDC adapter (available separately) | | Power Adapter | Fishman 910-R (for 110 V) or suitable filtered and regulated, 200 mA type, tip = negative | | Current Consumption | 17 mA, typical in-use (battery output) | | Battery Life (approx.) | 30 hours using alkaline battery | | Dimensions (L x W x H) | 5.5 x 9.5 x 2.2" / 139.0 x 241.0 x 56.0 mm | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.0" |
