User Manual for Fishman TriplePlay Wireless MIDI Guitar Controller Click to enlarge the picture
Contents of the user manual for the Fishman TriplePlay Wireless MIDI Guitar Controller
- Product category: Performance & Wind Controllers Fishman
- Brand: Fishman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fishman Performance & Wind Controllers
 |
User manual for the Fishman TriplePlay Wireless MIDI Guitar Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fishman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fishman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fishman product will considerably shorten its lifespan!
|

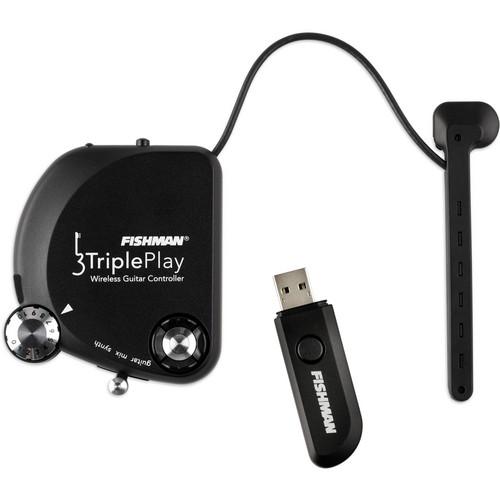

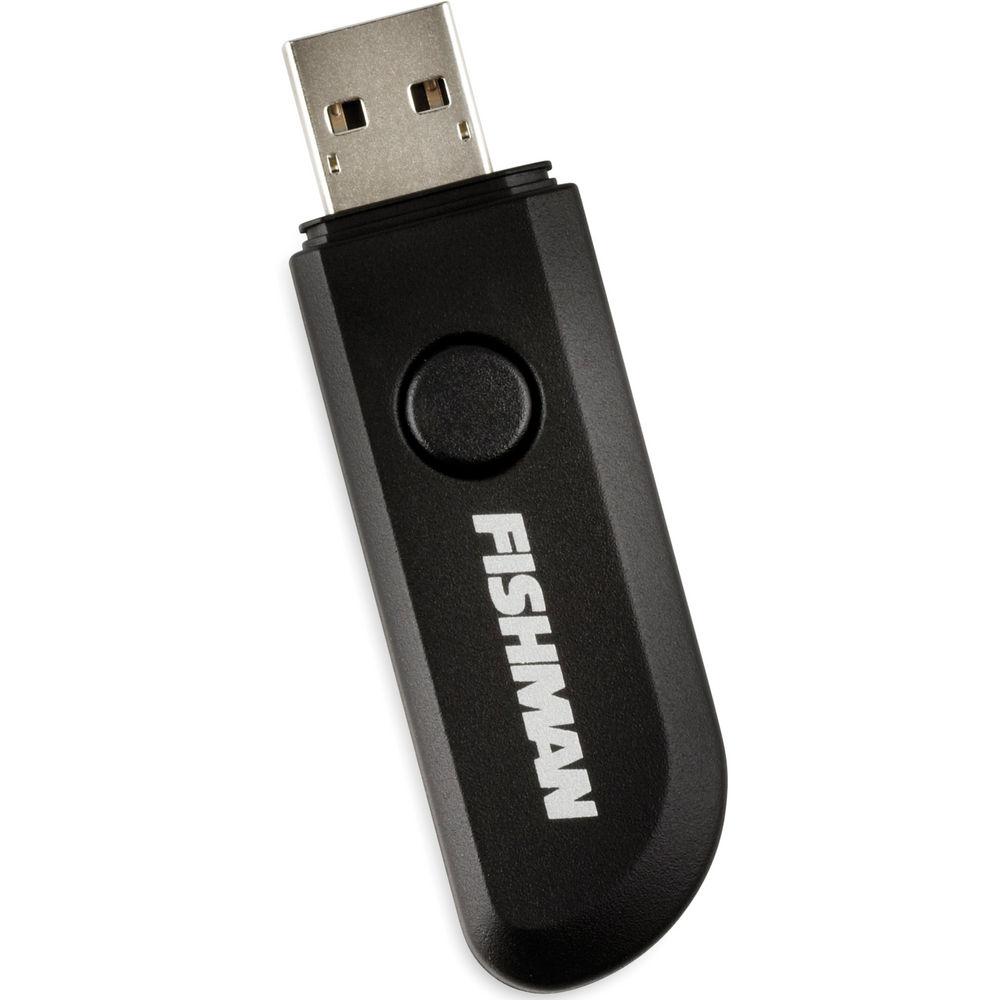

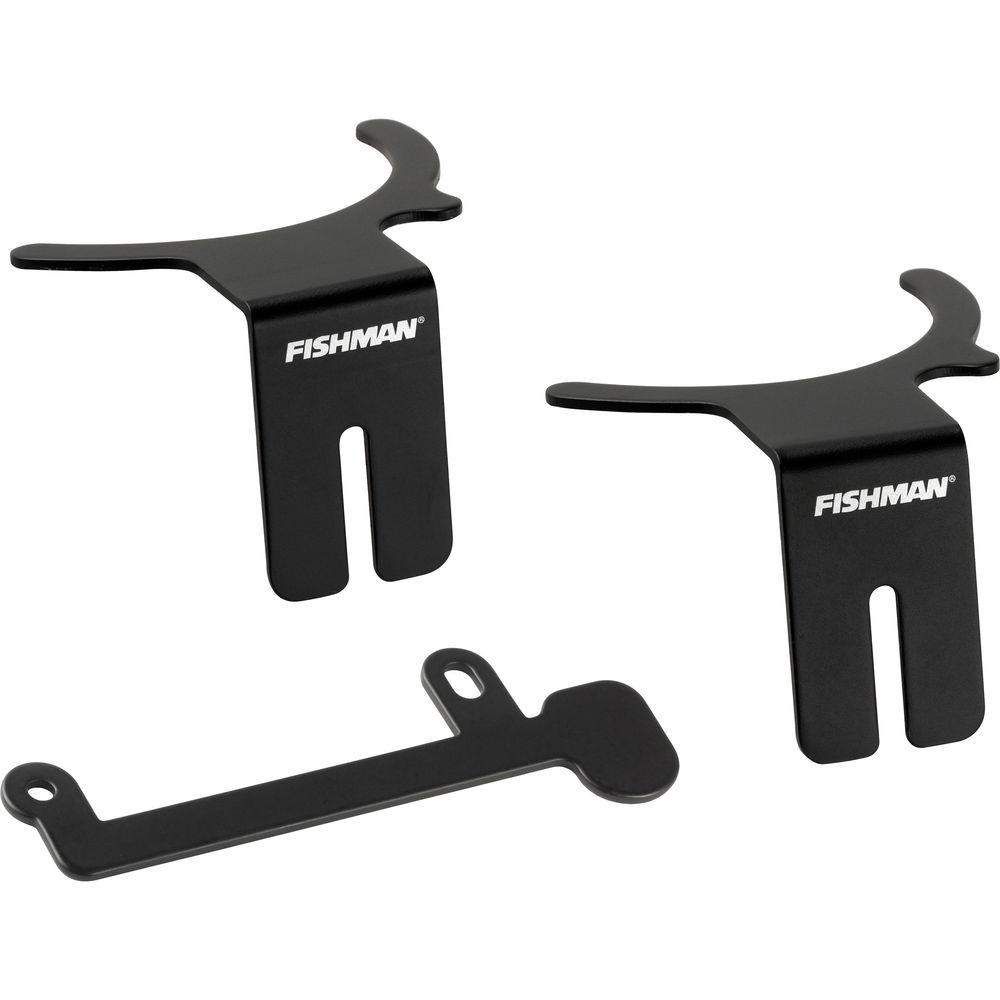

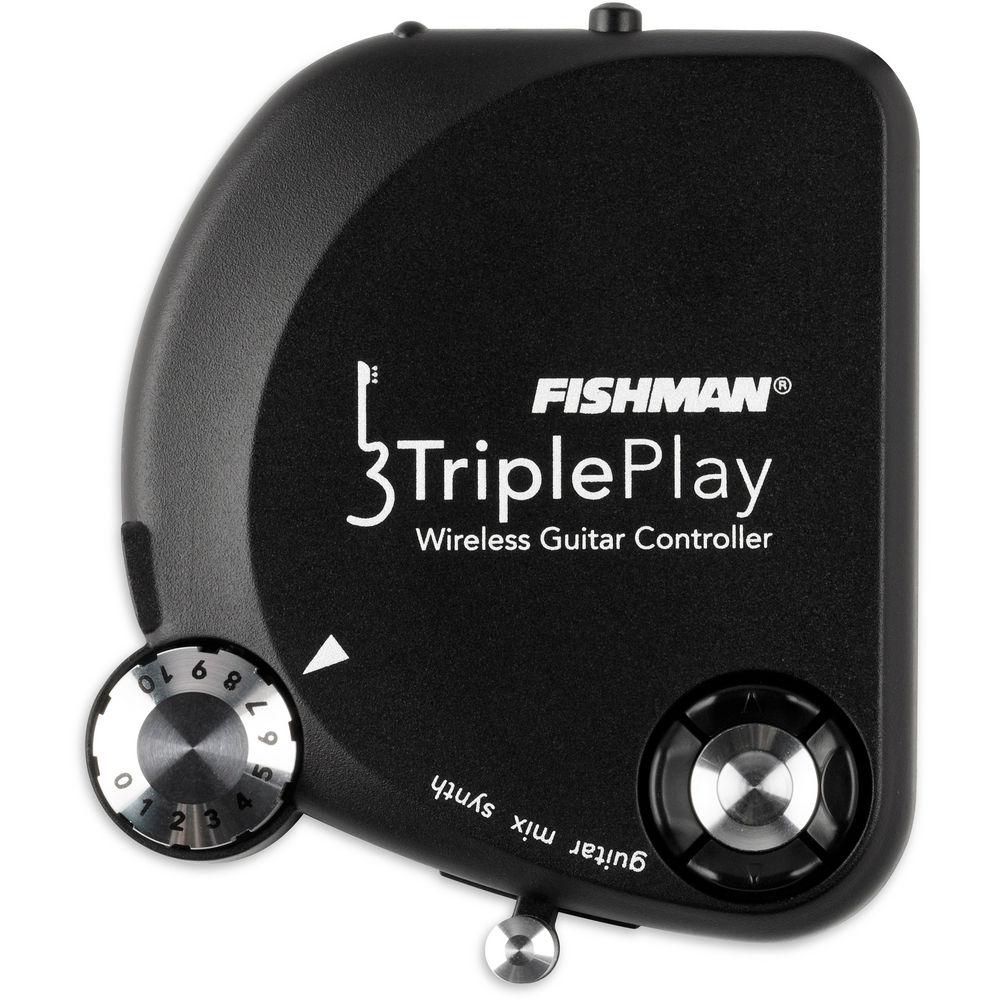

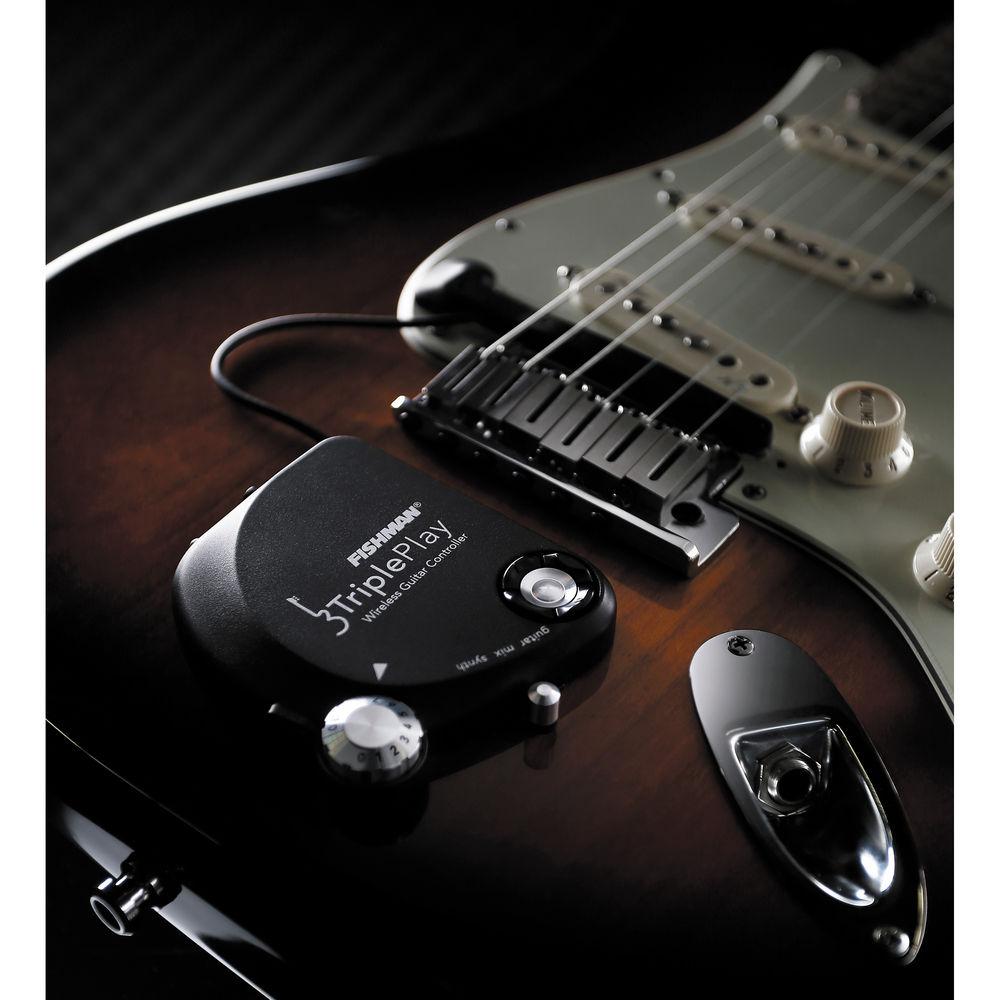

Product description The TriplePlay from Fishman is a wireless MIDI guitar controller that can be used to control virtual MIDI instruments for live performance, music composition, MIDI recording and more. The set includes the controller and hexaphonic pickup, wireless USB receiver, mounting brackets and hardware, rechargeable battery pack, and USB charging cable. It also includes the proprietary TriplePlay software, along with a suite of additional music production software. The TriplePlay is designed to be simple to install on to your guitar, and also simple to remove. Adding less than a 1/2 inch of height, the TriplePlay transmitter is attached to a metal bracket that fits to the strap button of your instrument. The transmitter secures to the bracket by magnet and the hexaphonic pickup secures to a clip that you attach under the strings. Both the pickup and transmitter are designed to be easily removable from the guitar at your discretion. The TriplePlay's compact, bus-powered USB receiver connects to your computer's USB port, or to an iOS device using the appropriate USB connector kit (not included). Giving you up to 100 feet of wireless range, you can move freely around the stage or studio while controlling all of your favorite virtual instruments with your guitar. The TriplePlay features a "guitar/synth/mix" switch on the controller unit that, when used in tandem with an audio interface (not included), allows you to mix your guitar's standard output with the output from your virtual instruments. The guitar output and the virtual instrument output each show up on separate tracks within the TriplePlay software which can run standalone, or within your AU or VST supported DAW. - Wireless technology eliminates bulky proprietary MIDI guitar cables
- Included rechargeable lithium-ion battery and USB charging cable gives up to 20 hours of battery life
- Navigation buttons and volume control on controller unit
- MIDI string and fret split, and "hold" functions with TriplePlay software
- Use TriplePlay software standalone, or within your AU or VST supported DAW as a plug-in. AU or VST virtual instruments can also be hosted within TriplePlay software
- Software bundle includes the TriplePlay software, KOMPLETE Elements, GuitarRig LE, PROGRESSION 2, SampleTank 2 XT, AmpliTube Custom Shop and Studio One Artist (TriplePlay Edition)
UPC: 605609149961 In the Box Fishman TriplePlay Wireless MIDI Guitar Controller Wireless Controller Hexaphonic Pickup Wireless USB Receiver Mounting Brackets and Hardware USB Charging Cable TriplePlay Software KOMPLETE Elements GuitarRig LE PROGRESSION 2 SampleTank 2 XT AmpliTube Custom Shop Studio One Artist TriplePlay Edition Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fishman TriplePlay Wireless MIDI Guitar Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFishman TriplePlay Specs | | | Material | Composite | | Processor | 16-bit processing | | Power | USB Power | | Dimensions | 2.7 x .82 x .36" (68.6 x 20.8 x 9.1 mm) | | | | Material | Composite and metal finish | | RF Range | 100' (30.48 m) | | Power | Rechargeable lithium ion battery | | Battery Life | 20 hours | | Height Range | .35" (8.9 mm) minimum to .58" (14.7 mm) maximum from tallest point between G & D strings | | Dimensions | Controller: 3.25 x 2.93 x 0.51" (82.5 x 74.4 x 12.9 mm)
Pickup: 4.11 x 0.34" (104.4 x 8.6 mm) | | | | Internet | Standard broadband connection to download and authenticate software | | Hardware | 4 GB of RAM and 10 GB free hard drive space | | Platforms Supported | Windows 7 or later , OS X 10.6.0 or later | | | | Package Weight | 1.11 lb | | Box Dimensions (LxWxH) | 7.15 x 5.85 x 2.5" |
