User Manual for FlashForge Creator Pro 3D Printer Click to enlarge the picture
Contents of the user manual for the FlashForge Creator Pro 3D Printer
- Product category: 3D Printers FlashForge
- Brand: FlashForge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FlashForge 3D Printers
 |
User manual for the FlashForge Creator Pro 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FlashForge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FlashForge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FlashForge product will considerably shorten its lifespan!
|

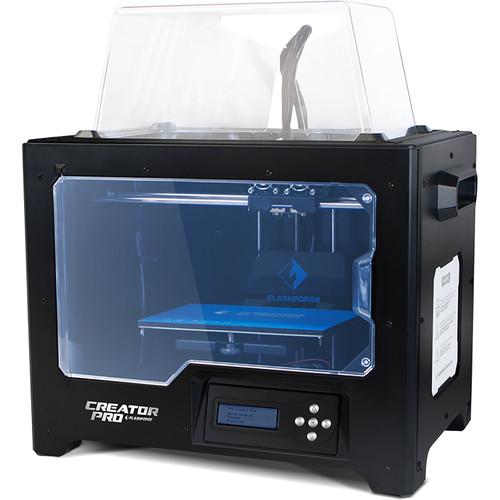

Product description Custom-Tailor the Open Source Flashforge Creator Pro 3D Printer Read More The Flashforge Creator Pro 3D Printer is based on the proven design of the previous Creator Pro chassis. The enclosed design allows you to print ABS or PLA efficiently. The upgraded three-point platform leveling system is intuitive. The heat resistant build platform support is made of durable metal and is less prone to deformation, which means more time printing. Additionally, a thicker Z-axis rod provides a more steady and precise movement. Features - Sturdy metal frame is substantially more stable than the Creator's original wood frame
- Warp-resistant 6.3mm aluminum build platform remains level under the stress of high heat
- Heat-resistant metal platform supports replace plastic supports
- Heavy-duty (10mm) z-axis guide rod ensures steady and precise movement
- Acrylic cover encloses the chamber to insulate and protect ABS prints
- LED light illuminates the build chamber
- Improved performance of the integrated LCD screen and button board functions
UPC: 737557590219 In the Box FlashForge Creator Pro 3D Printer 2 x Spool Holders 2 x Spools of Filament (2.2 lb Each, Material & Color Are Random) 2 x Filament Guide Tubes Accessory Bag (Nuts, Screws, & Hex Wrench Set) Power Supply Cable USB Cable End Stop Switch Cable (Spare Part) Acrylic Covers Kit 4GB SD Card (Contains Software, Test Sample Files, & User Manual) Limited 90-Day Warranty FL3DFFGNPRO User Manual PDF 5.6mbwsvbxtfdvybxadwfyvfrefyawfqcqcw Table of Contents
|
Upload User Manual
Have you got an user manual for the FlashForge Creator Pro 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlashForge 3D-FFG-NPRO Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 8.9 x 5.7 x 5.9" / 22.6 x 14.48 x 15.0 cm | | Number of Extruders | 2 | | Layer Resolution | XY Axis: 100 to 300 micron / 0.1 to 0.3 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA | | | | Build Area Type | Enclosed | | Build Plate Composition | Aluminum | | Filament Spool Storage | External | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | None | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .gcode, .stl, .x3g | | | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | Operating Temperature | 60 to 90°F / 15 to 32°C | | Storage Temperature | 32 to 100°F / 0 to 37°C | | Dimensions (W x H x D) | 12.6 x 18.39 x 15" / 320 x 467 x 381 mm | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 16.0" |
