User Manual for FlashForge Inventor II 3D Printer Click to enlarge the picture
Contents of the user manual for the FlashForge Inventor II 3D Printer
- Product category: 3D Printers FlashForge
- Brand: FlashForge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FlashForge 3D Printers
 |
User manual for the FlashForge Inventor II 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FlashForge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FlashForge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FlashForge product will considerably shorten its lifespan!
|

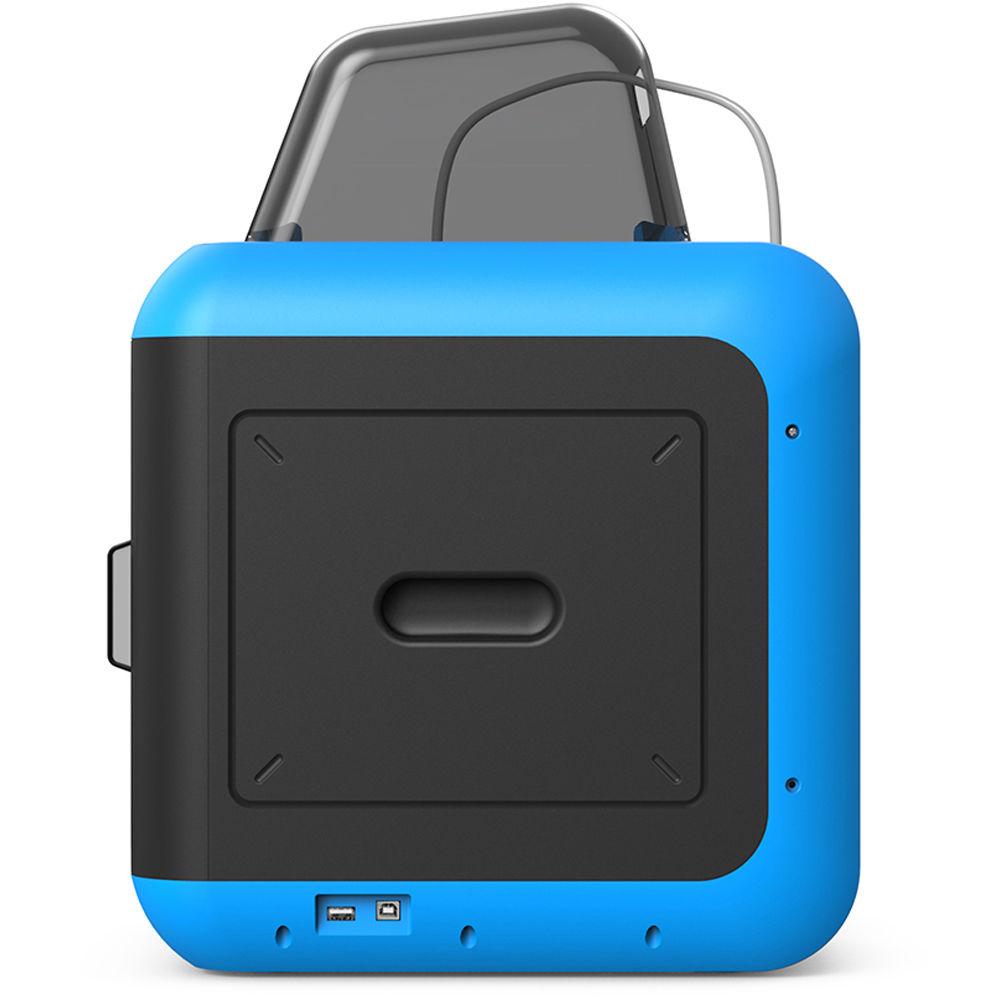

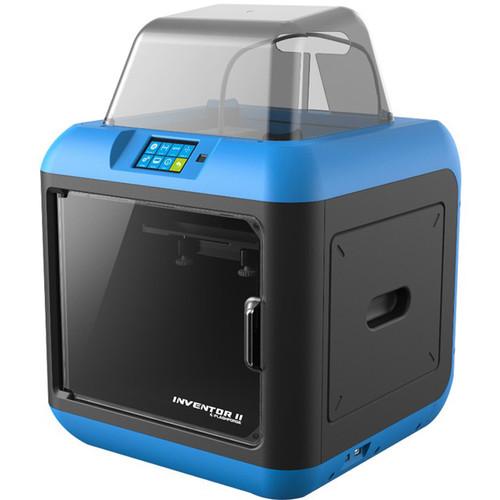

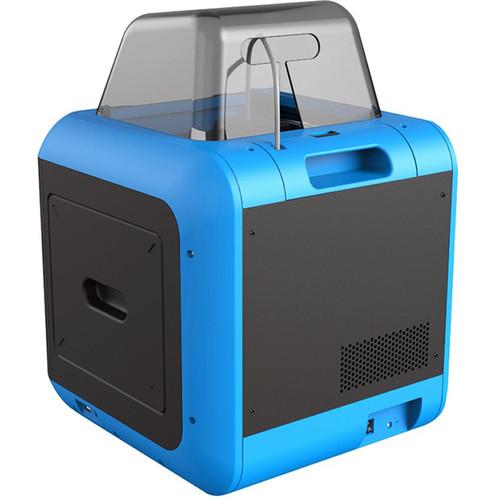

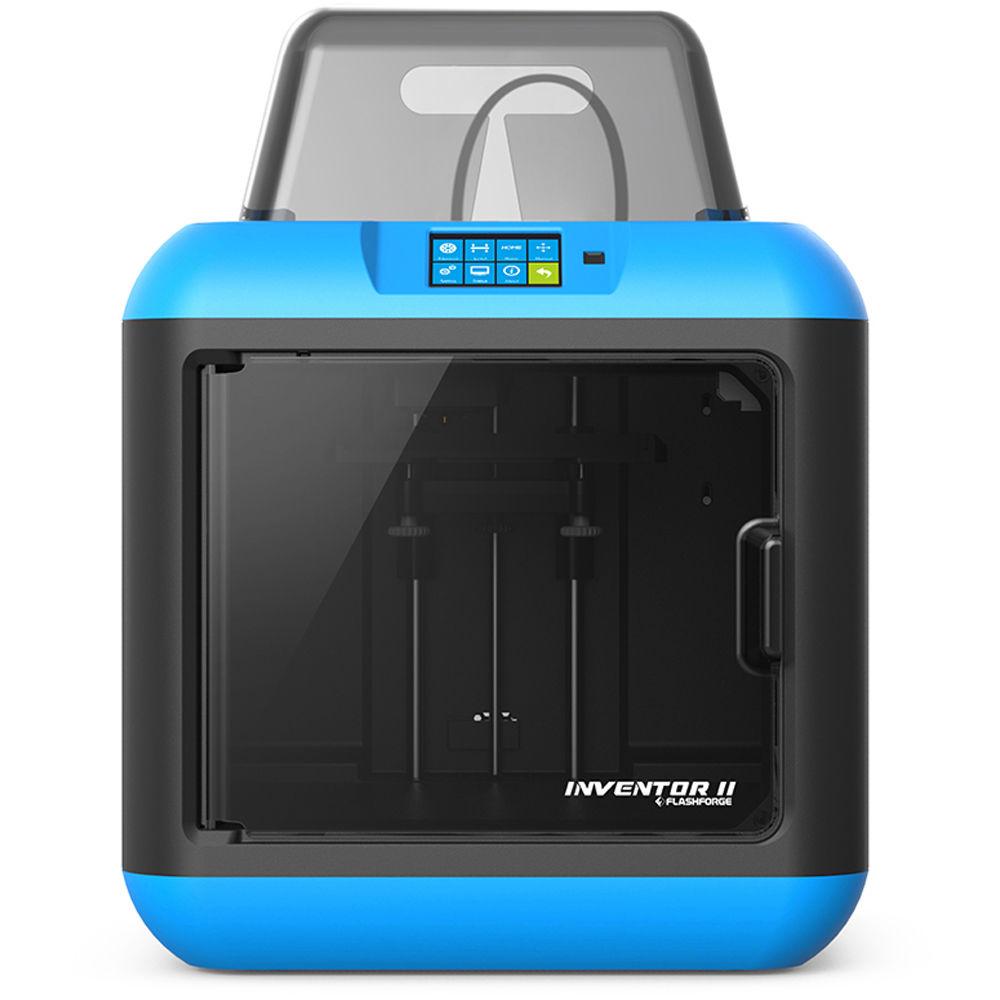

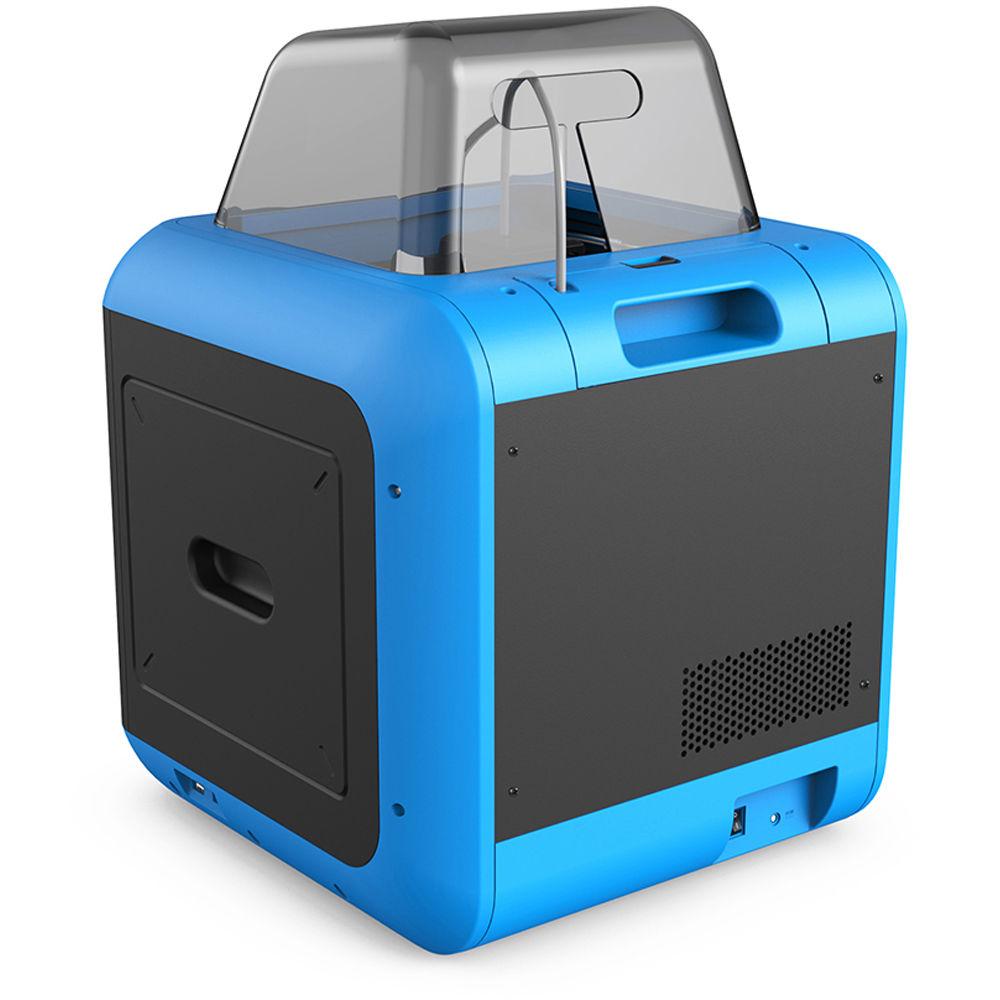

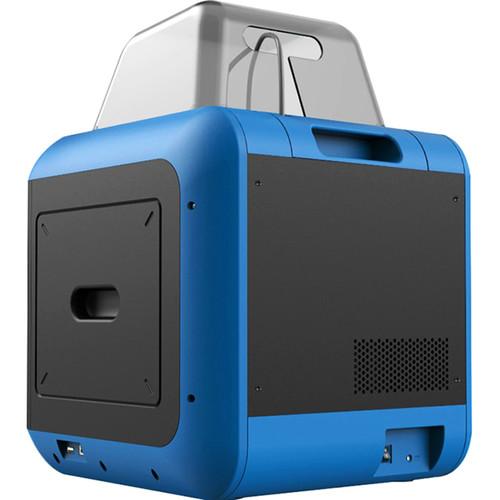

Product description "Forge" Ahead with Flashforge 3D Printers Read More Designed for children and beginners who are looking to venture into 3D printing, the Inventor II 3D Printer from Flashforge packs many safety features due to the hot temperatures of the build chamber. An intelligent sensor on its door automatically stops printing when the door is opened or closed, and the print head is enclosed to help protect prying hands from its heat. The Inventor II is only compatible with 1.75mm PLA filament, which is biodegradable, making it safe for use indoors, such as in classrooms. It also operates quietly with levels of 50 dB, so teachers can continue lecturing while prints are being made.
The Inventor II 3D Printer features Fused Filament Fabrication (FFF) printing technology, a build volume of 5.9 x 5.5 x 5.5", and a layer resolution of 50-400 microns. It is equipped with a single extruder nozzle and an enclosed print chamber. Users may print their compatible .stl, .obj, .3mf, .ffp, .g, and .gx files via wired USB connectivity, Wi-Fi, or an SD card using FlashPrint printing software. The Inventor II is compatible with Windows 10, 8, 7, Vista, and XP, Mac OS X, and Linux. General Features - User-friendly - start printing in four steps
- 50-400 micron layer resolution
- Uses biodegradable PLA filament for safe indoor use
- Stable Wi-Fi connectivity
- Intelligent door automatically senses opening/closing and pauses print jobs
- Smart support lays out structural support in areas of overhang
- Print bigger ideas by splitting large designs into multiple printable parts
UPC: 737557590516 In the Box FlashForge Inventor II 3D Printer 1 x PLA Filament Spool Allen Wrenches PTFE Tubes Print Bed Replacement Sheet Limited 3-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FlashForge Inventor II 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFlashForge Inventor II Specs | | | Build Volume | 5.9 x 5.51 x 5.5" / 15.0 x 14 x 14.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 50 to 400 micron / 0.05 to 0.4 mm
Z Axis: 2.5 micron / 0.0025 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Positioning Precision | XY Axis: 11 micron / 0.011 mm | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Enclosed | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .gx, .obj, .stl | | | | Dimensions (W x H x D) | 16.54 x 16.54 x 22.44" / 420 x 420 x 570 mm | | Warranty Length | Limited 3-Month Warranty | | | | Package Weight | 34.65 lb | | Box Dimensions (LxWxH) | 22.2 x 20.0 x 19.5" |
