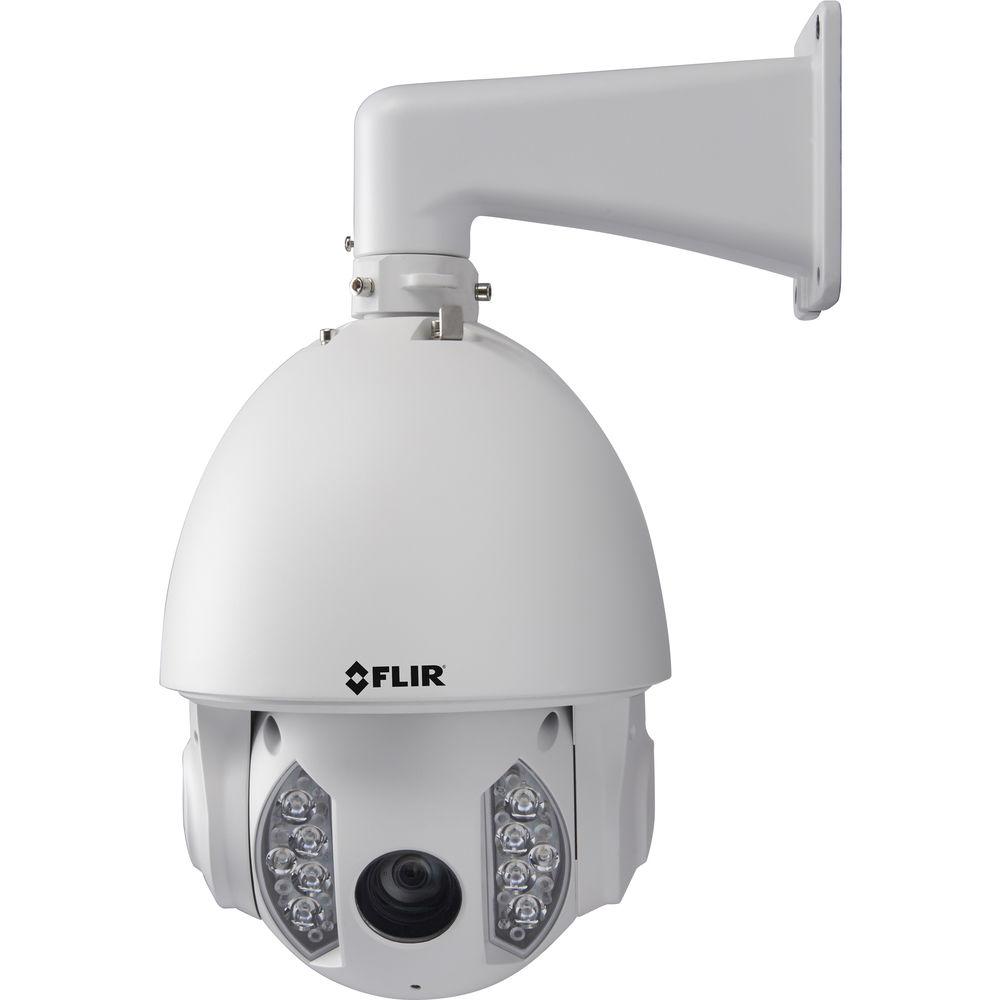

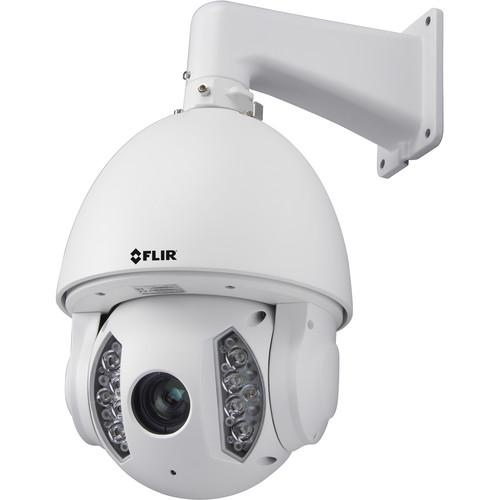

Product description The 1080p Day/Night IR PTZ Dome Camera from FLIR captures 2.1MP real-time high-definition images using a Sony Exmor 1/2.5” CMOS progressive-scan image sensor and a 4.3-129mm optical zoom lens. The camera utilizes IR technology to perform in low-light situations, providing up to 500’ of night vision. Equipped with a 30x optical zoom for clarity at long distances, the camera can also pan at 240° per second and provides 360° continuous rotation with a 90° tilt range.The camera offers a weatherproof enclosure powered by ArcticPro Technology for applications in inclement weather, and the defogging function enables the camera to produce clear images in misty or foggy conditions. A white balance feature allows you to capture high-quality images in ambient lighting, and a 16x digital zoom provides image magnification. Privacy masking of up to 24 zones focuses your view on the areas you are most interested in, cutting out unnecessary information. - 2.1MP Sony Exmor 1/3" CMOS progressive-scan image sensor
- 30x optical zoom (4.3-129mm) for long-range identification
- Up to 500' of IR night vision / True Day Night
- High-speed 240° per second maximum pan/tilt
- 360° continuous rotation with 90° tilt range
- Defog function enables good image clarity in misty conditions
- 1080p resolution at 25/30 fps
- ONVIF 2.1 compliant (backwards compatible)
- Dual streaming (H.264/MJPEG)

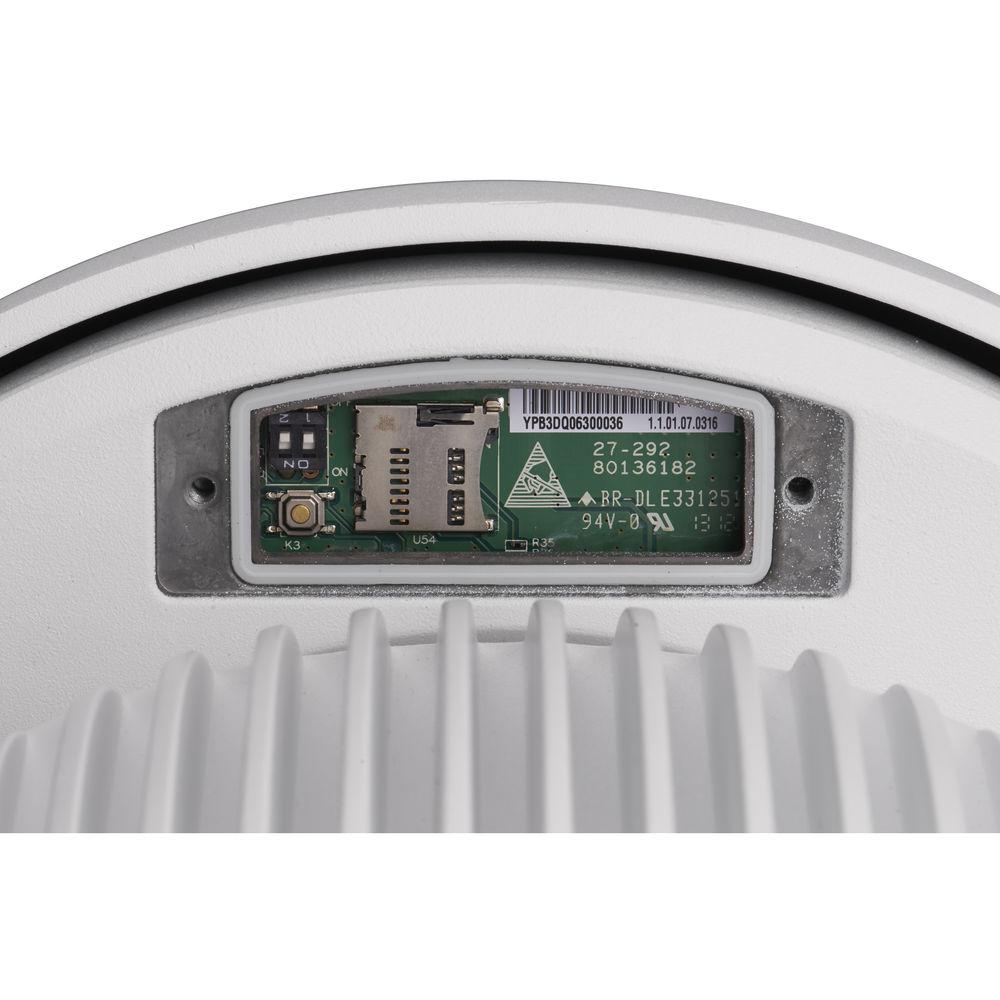

- Up to 32GB microSD card edge recording (microSD card not included)
- Central Management Software (CMS) by FLIR included
- Supports mobile device applications for iOS and Android
- Up to 255 preset positions, 5 auto scans, 8 tours, and 5 patterns
- Weatherproof with IP66 rating
- Wall-mount bracket included
- 1.5" NTP-compatible industry-standard mounting
- RS485 connection for selectable PTZ protocols, including Pelco-P/D
- ArcticPro Technology for operating in minimum temperature of -40°F
UPC: 841430008798 In the Box FLIR 1080p Day/Night IR PTZ Dome Camera with 4.3-129mm Varifocal Lens and Heater Insulated Glove Wall Mount Bracket Connector Safety Chain Thread Seal Tape Surface Mounting Template Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR 1080p Day Night IR PTZ Dome Camera with 4.3-129mm Varifocal Lens and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNZ30TL2R Specs | | | Image Sensor | 1/3" Sony Exmor CMOS | | Effective Pixels | 1944 (H) x 1092 (V) | | Scanning System | Progressive | | Resolution | 1920 x 1080, 2.1 MP @ 30 fps | | Day/Night | True day/night with ICR filter
High powered IR LEDs | | Minimum Illumination | Color: 0.05 lux @ f/1.6 B/W: 0.005 Lux @ f/1.6 | | IR LEDs | Up to 500' (150 m) | | Video Output | RJ45, service BNC | | Electronic Shutter | 1/1 to 1/30,000 sec | | | | Compression | G.711a / G.711u (32 kb/s) / PCM (128 kb/s) | | Interface | 1/1 channel in/out | | | | Compression | H.264, MJPEG | | Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 480) / CIF (352 x 240) | | Frame Rate | Main Stream: 1080p (1 to 30 fps)
Sub Stream: D1/CIF (1 to 30 fps) | | Bit Rate | H.264: 56K to 8192 kb/s, MJPEG: 56K to 20480 kb/s | | | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | S/N Ratio | More than 50 dB | | Noise Reduction | Ultra DNR (2D/3D) | | Gain Control | Auto / manual | | Privacy Masking | Up to 24 areas | | Digital Zoom | 16x | | Defog | On/off | | | | Focal Length | 4.3-129mm (30x optical zoom) | | Maximum Aperture | f/1.6-5.0 | | Focus Control | Auto / manual | | Angle of View | H: 58.9º to 2.1º | | Close Focus Distance | 10-1200 mm | | | | Pan/Tilt Angle | Pan: 0º to 360º endless
Tilt: -10º to 90º, auto flip 180º | | Manual Control Speed | Pan: 0.1º to 200º/sec
Tilt: 0.1º to 120º/sec | | Preset | 255 (Pelco-P/D)
Speed: Pan: 240º/sec; Tilt: 200º/sec | | PTZ Mode | 5 pattern, 8 tour, auto pan, auto scan | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset / pan / scan / tour / pattern | | Time Task | Auto activation of preset / pan / scan/ tour / pattern by preset time | | Protocol | ONVIF via RJ-45, RS485 selectable including Pelco-P/D | | | | Ethernet | RJ-45 (10/100Base-T) | | Compliance | ONVIF 2.1 Profile S | | Maximum Number of Users | 20 Users | | Mobile OS Support | iOS, Android | | Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filters, QoS, Bonjour, 802.1x | | | | Memory Slots | microSD, Maximum 32 GB (not included) | | RS485 | 1 | | Alarm | 7/2 channel in/out | | | | Power | 24 VAC, 3 A (included) | | Power Consumption | 45 W, 60 W (IR on, Heater on) | | Operating Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | Less than 90% RH | | Approvals | CE/FCC/RoHS compliant | | Weather Resistance | IP66 | | Dimensions (Ø x H) | 9.92 x 15.1" (25.2 x 38.4 cm) | | Weight | 14.9 lb (6.75 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 20.3 x 12.7 x 12.5" |
