FLIR 2.1MP Outdoor Dome Camera

Search your instruction manual in PDF to download

User Manual for FLIR 2.1MP Outdoor Dome Camera

Click to enlarge the picture
FLIR 2.1MP Outdoor Dome Camera Contents of the user manual for the FLIR 2.1MP Outdoor Dome Camera
  • Product category: Wired IP Cameras FLIR
  • Brand: FLIR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FLIR Wired IP Cameras

FLIR 2.1MP Outdoor Dome Camera FLIR 2.1MP Outdoor Dome Camera
User manual for the FLIR 2.1MP Outdoor Dome Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FLIR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!



Product description

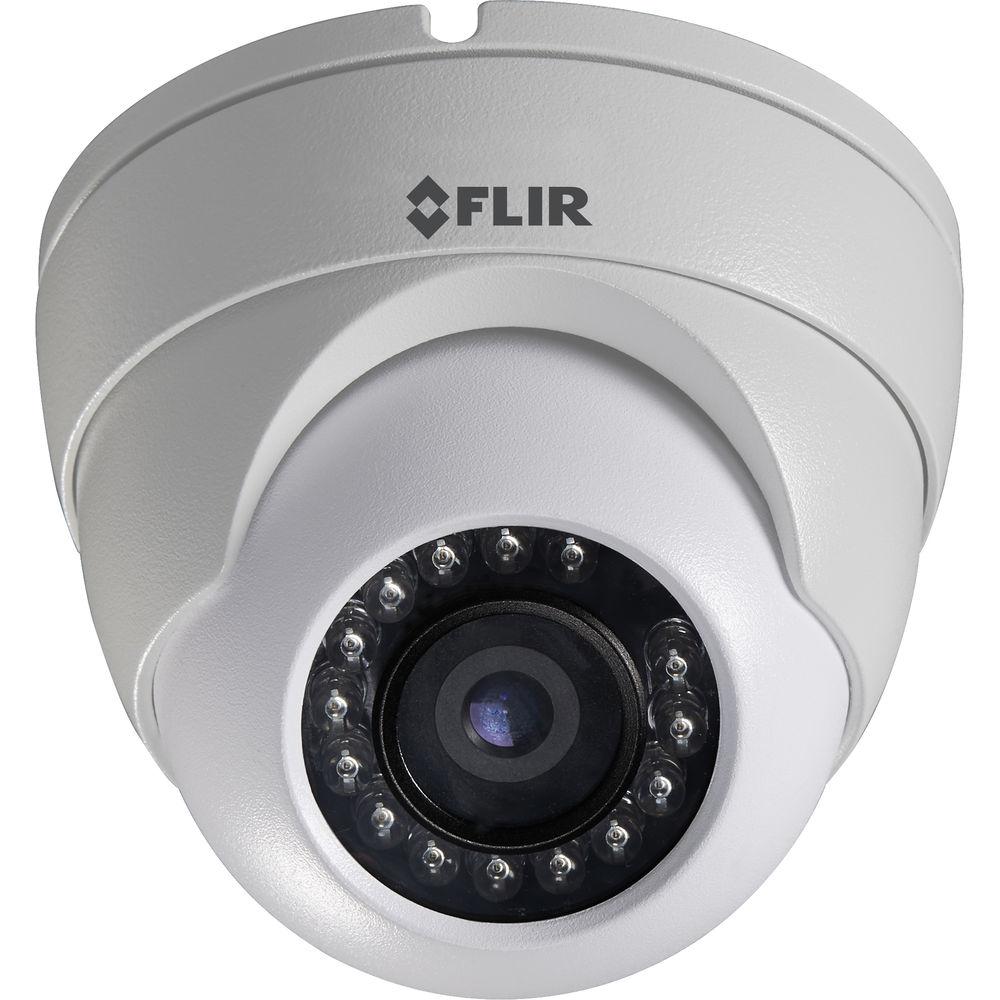

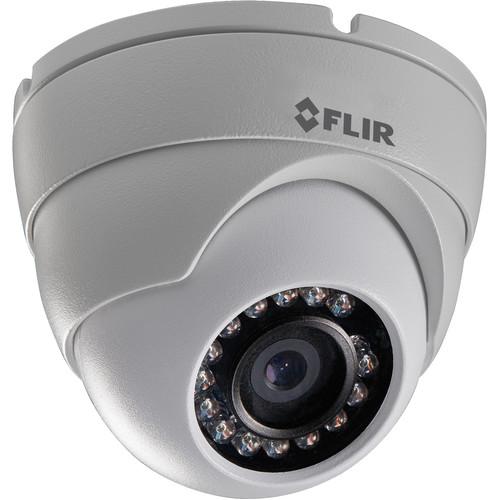

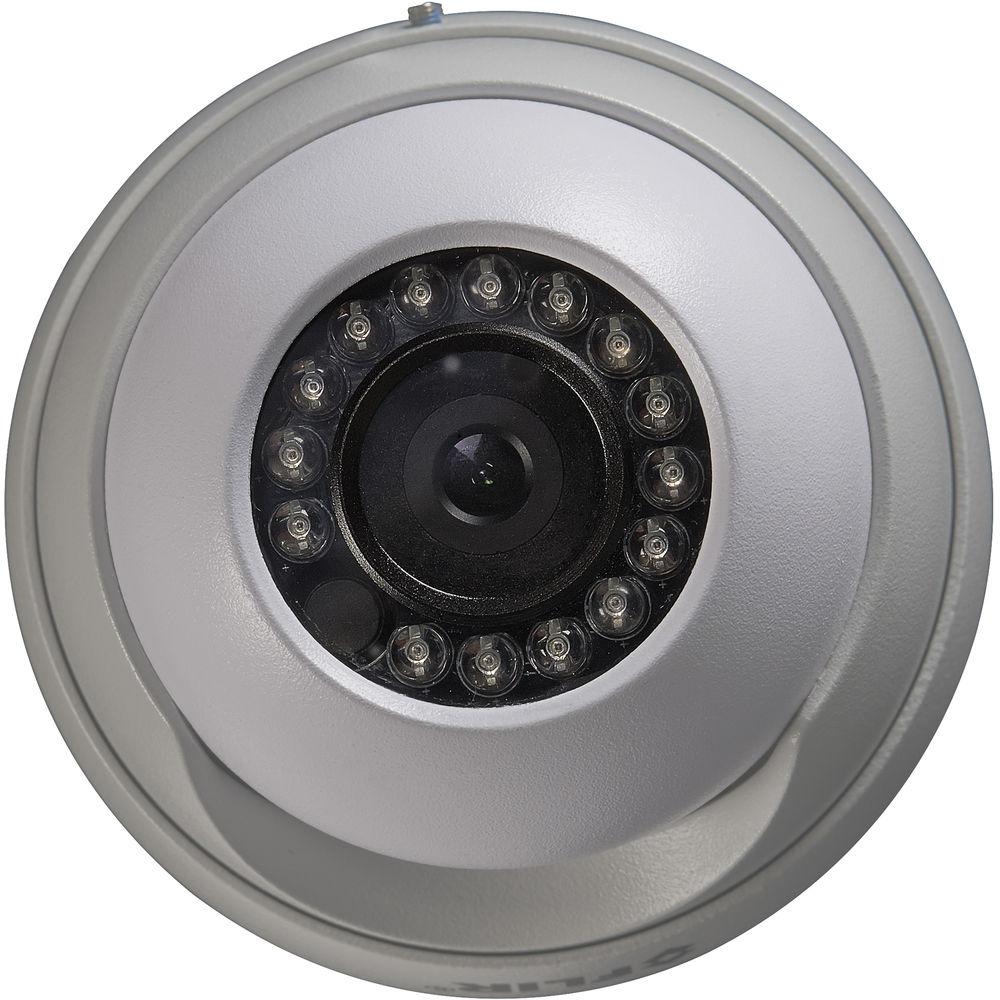

Equipped with cold climate capability and an IP66-rated weatherproof housing, the 2.1MP Outdoor Dome Camera from FLIR is designed to be used in a wide variety of scenarios. Additionally, PoE technology allows you to setup the camera with a minimum amount of wires, and a 3-axis wall/ceiling mount enables multiple viewing options. A 1/3" progressive-scan CMOS sensor provides a maximum resolution of 2048 x 1536 at 30 fps, and a 3.6mm fixed lens offers a 72° horizontal field of view. The mechanical IR cut filter coupled with 850nm IR LEDs provides true day/night functionality and automatic night vision at distances of up to 65.0'.

Additional features include digital wide dynamic range, backlight compensation, white balance, gain control, and 2D noise reduction. You can choose up to four areas that can be blocked from view for privacy, and video can be overlaid with the time, date, camera information, and customized data. With FLIR Cloud remote viewing, you can access your camera using an iOS or Android mobile device, or a Windows or Mac computer. Video can be streamed in either H.264 or MJPEG formats, and dual streaming is available for maximizing your bandwidth. The camera is ONVIF-compliant for compatibility with a wide range of surveillance devices.
    HD Picture Quality
    • High-quality image detail in day and night applications
    • 2.1MP (2048 x 1536) resolution at 30 fps
    • 1/3" progressive-scan CMOS sensor
    • 3.6mm fixed lens
    • IR LEDs provide 65.0' of illumination
    Easy Installation
    • PoE (Class 3) support for simplified cabling
    • 12V / PoE (802.3af) operation
    • ONVIF Profile S conformance
    • 3-axis design for wall/ceiling mounting
    Rugged Design
    • Durable weatherproof housing
    • IP66-rated protection
    • Operable in cold climates (-22°F)
    FLIR Cloud Remote Viewing
    • Remote access via iOS, Android, PC/Mac with FLIR Cloud
    • Centralized viewing and control of up to 64 cameras on each screen with PC/Mac (CMS included)
    • Supports live or recorded access of videos at any time on your iPad, iPhone, or Android device
    • Mobile app features include remote playback, push notifications for motion/alarm, E-map, and manual record/snapshot to device
    General
    • Dual-streaming (H.264/MJPEG)
    • True Day/Night with ICR
    • 2D DNR / Digital WDR
    • Free DDNS service by FLIR
UPC: 841430010371 In the Box FLIR 2.1MP Outdoor Dome Camera
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FLIR 2.1MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    FLIR N133ED Specs

    Imaging Device 1/3" 2.1MP progressive-scan CMOS
    Effective Pixels (H x V) 2048 x 1536
    Day/Night Auto (ICR) / Color / B&W
    IR Cut Filter Control On/Off
    Minimum Illumination 0.1 lux (color); 0 lux (B&W)
    S/N Ratio > 50 dB
    Field of View Horizontal: 72°
    IR Illumination 850 nm IR LEDs
    Illumination Distance: 65.0' / 19.8 m
    IR On/Off control
    Video Output RJ45
    Electronic Shutter 1/4 to 1/10000 seconds
    Lens 3.6mm fixed
    Aperture f/1.6
    Mount Type Board type
    Compression MJPEG / H.264
    Streaming H.264 and MJPEG dual stream
    Resolution 1080p (1920 x 1080)
    720p (1280 x 720)
    D1 (704 x 576/704 x 480)
    CIF (352 x 288/352 x 240)
    Aspect Ratio 16:9
    Frame Rates 1080p / 720p / D1 / CIF @ 25/30 fps
    Bit Rate Control: CBR / VBR
    Compression Type: 16 K to 8192 Kb/s
    Wide Dynamic Range Digital
    Backlight Compensation BLC / HLC / DWDR
    White Balance Auto / Manual
    Gain Control Auto / Manual
    Noise Reduction 2D
    Mirroring Horizontal Mirror
    Video Overlay Time / Date / Camera / Custom
    Privacy Masking Up to 4 areas
    Menu Language English
    Protocols IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
    ONVIF Conformance Profile S (v2.1)
    Users Up to 20 users
    PoE Network Ports 10 / 100 Base-T
    Power Input 12 VDC, PoE
    Power Consumption 3 W
    Current Consumption 250 mA
    Operating Temperature -22 to 140°F (-30 to 60°C)
    Operating Humidity Less than 95% RH
    Ingress protection IP66
    Dimensions (Ø x H) 3.7 x 3.2" (9.3 x 7.9 cm)
    Weight 0.8 lb (0.4 kg)
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 5.7 x 5.4 x 4.5"
