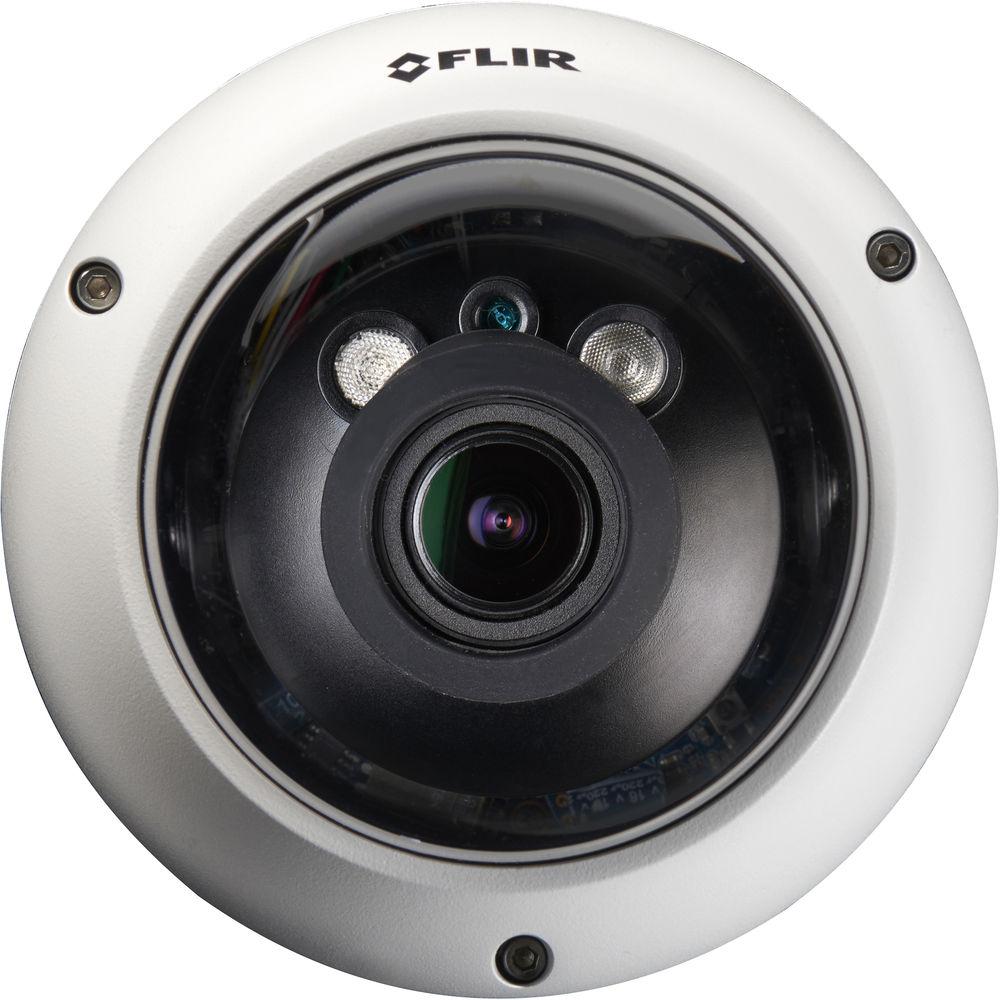

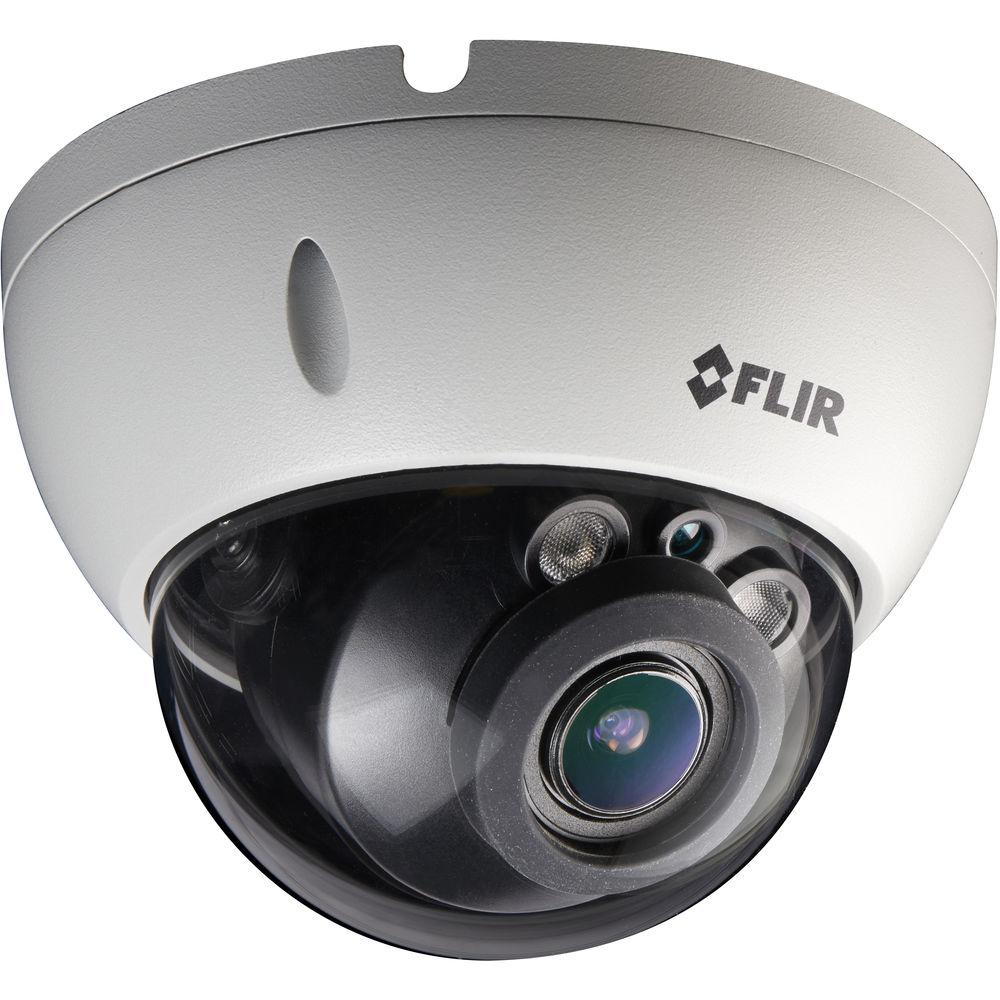

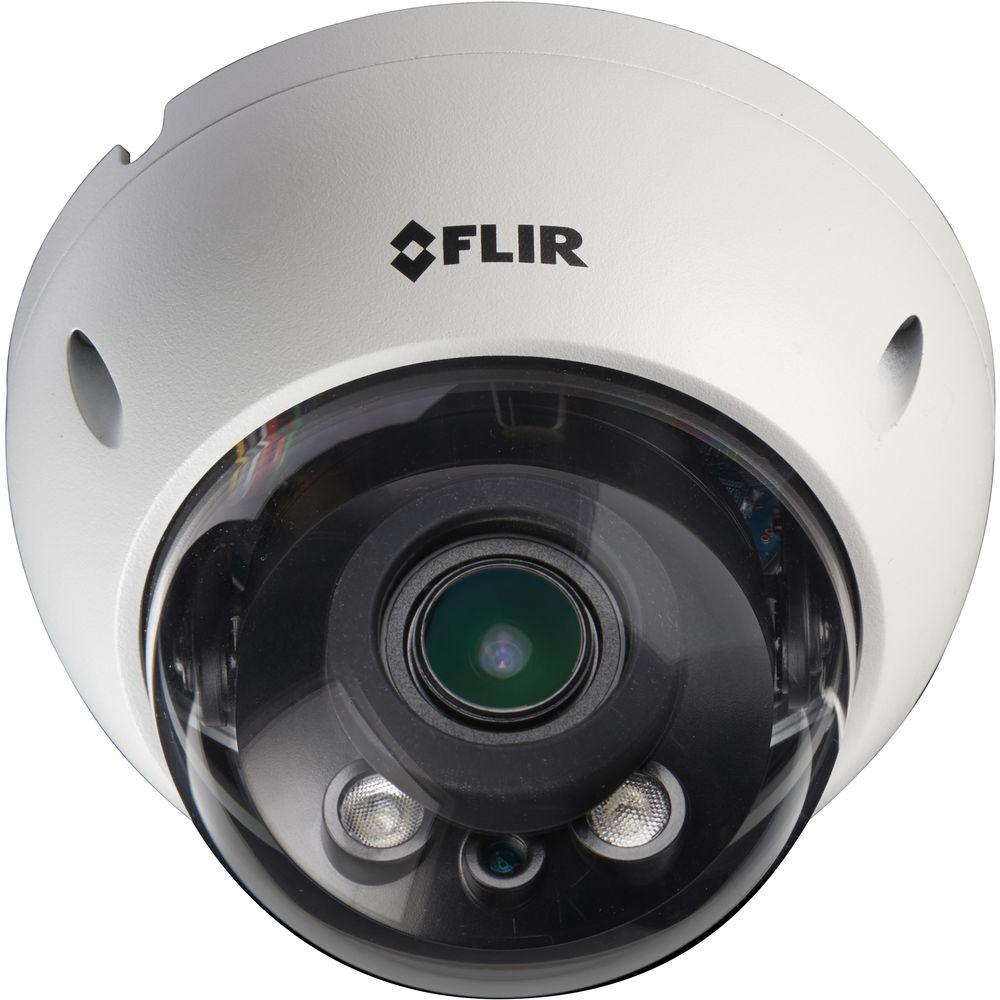

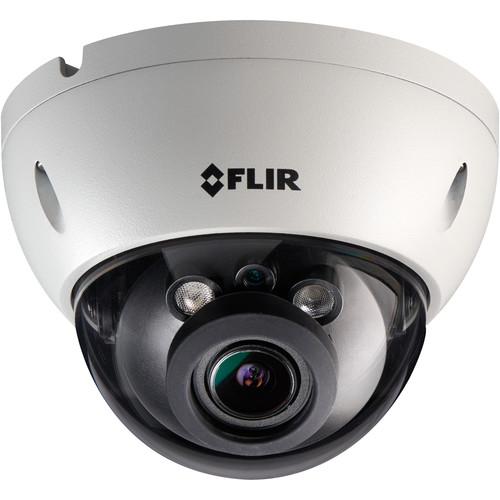

User Manual for FLIR 3MP Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the FLIR 3MP Outdoor Dome Camera
- Product category: Wired IP Cameras FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Wired IP Cameras
 |
User manual for the FLIR 3MP Outdoor Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description Equipped with cold climate capability and a vandal resistant, weatherproof housing, the 3MP Outdoor Dome Camera from FLIR is designed to be used in a wide variety of scenarios. Additionally, PoE technology allows you to setup the camera with a minimum amount of wires, and a 3.2x optical zoom allows you to capture detailed images. A 1/3" progressive-scan CMOS sensor provides a maximum resolution of 2048 x 1536 at 20 fps, and a 2.8-12mm motorized varifocal lens offers a 28° to 73° horizontal field of view. The mechanical IR cut filter coupled with 850nm IR LEDs provides true day/night functionality and automatic night vision at distances of up to 90'.
Additional features include digital wide dynamic range, backlight compensation, white balance, gain control, and 3D noise reduction. You can choose up to four areas that can be blocked from view for privacy, and video can be overlaid with the time, date, camera information, and customized data. With FLIR Cloud remote viewing, you can access your camera using an iOS or Android mobile device, or a Windows or Mac computer. Video can be streamed in either H.264 or MJPEG formats, and dual streaming is available for maximizing your bandwidth. The camera is ONVIF-compliant for compatibility with a wide range of surveillance devices. - HD Picture Quality
-
- High-quality image detail in day and night applications
- 3MP (2048 x 1536) resolution at 20 fps
- 1080p / 720p resolution at 30 fps
- 1/3" progressive-scan CMOS sensor
- 2.8-12mm motorized varifocal lens
- IR LEDs provide 90' of illumination
- Easy Installation
-
- PoE (Class 3) support for simplified cabling
- 12V / PoE (802.3af) operation
- ONVIF Profile S conformance
- Remote zoom and focus adjustment
- Rugged Design
-
- Durable weatherproof and vandal proof housing
- IP66- and IK10-rated ingress protection
- Operable in cold climates (-22°F)
- FLIR Cloud Remote Viewing
-
- Remote access via iOS, Android, PC/Mac with FLIR Cloud
- Centralized viewing and control of up to 64 cameras on each screen with PC/Mac (CMS included)
- Supports live or recorded access of videos at any time on your iPad, iPhone, or Android device
- Mobile app features include remote playback, push notifications for motion/alarm, E-map, and manual record/snapshot to device
- General
-
- Dual-streaming (H.264/MJPEG)
- True Day/Night with ICR
- 3D DNR / Digital WDR
- Free DDNS service by FLIR
UPC: 841430010821 In the Box FLIR 3MP Outdoor Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR 3MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR N237VE Specs | | | Imaging Device | 3 MP, 1/3" progressive-scan CMOS | | Effective Pixels (H x V) | 2048 x 1536 | | Day/Night | Auto / Color / B&W | | Mechanical IR Cut Filter | Yes | | Minimum Illumination | 0.01 lux @ 40 IRE f/1.8 (B&W)
0.1 lux @ 40 IRE f/1.8 (Color) | | S/N Ratio | > 50 dB | | Field of View | H: 28° to 73° | | IR Illumination | 90' (27 m), 850 nm
IR On/Off control | | Video Output | RJ45 | | Electronic Shutter | Range: 1/3(4) to 1/10,000 seconds | | | | Lens | 2.8-12mm motorized varifocal | | Aperture | f/1.4 | | Optical Zoom | 3.2x | | Focus | Auto | | Iris Control | Electronic | | Mount Type | Board type | | | | Video Compression | H.264 / MJPEG | | Video Streams | H.264 and MJPEG dual stream encoding | | Resolution | 3 MP (2052 x 1536)
1080p (1920 x 1080)
720p (1280 x 720)
D1 (704 x 576 / 704 x 480)
CIF (352 x 288 / 352 x 240) | | Aspect Ratio | 4:3 | | Frame Rates | 3 MP @ 20 fps
1080p / 720p @ 25/30 fps | | Bit Rate | Control: CBR / VBR with cap
Selection: H.264 40 K to 8192 Kb/s; MJPEG 40 K to 16384 Kb/s | | Wide Dynamic Range | Digital | | Backlight Compensation | BLC / HLC | | White Balance | Auto / Manual | | Gain Control | Auto / Manual | | Noise Reduction | 3D | | IR | Yes, user adjustable | | Digital Zoom | 3X | | Mirroring | Horizontal mirror / Vertical flip | | Video Overlay | Time / Date / Camera / Custom | | Privacy | Up to 4 areas | | Menu Languages | English | | | | Protocols | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | | ONVIF Conformance | Profile S | | Video | RTSP: Standard RFC2326, Support QuickTime/VLC | | Users | Up to 20 users | | | | Ports | RJ45 (10 / 100 Base-T) | | Power Input | 12 VDC | | PoE | 802.3af | | Power Consumption | 5 W maximum | | Current Consumption | 380 mA maximum | | | | Operating/Storage Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | Operating/Storage: Less than 95% RH | | Cold Start | -22°F (-30°C) | | Ingress Protection | IP66-rated | | Vandal Resistance | IK10-rated | | | | Dimensions | 3.5 x 4.8" (89 x 122 mm) | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.1 x 6.8 x 6.7" |
