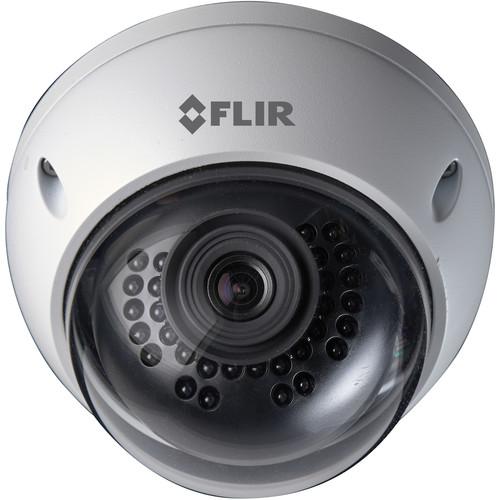

FLIR 3MP Outdoor Dome Camera

Search your instruction manual in PDF to download

User Manual for FLIR 3MP Outdoor Dome Camera

Click to enlarge the picture
FLIR 3MP Outdoor Dome Camera Contents of the user manual for the FLIR 3MP Outdoor Dome Camera
  • Product category: Wired IP Cameras FLIR
  • Brand: FLIR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FLIR Wired IP Cameras

User manual for the FLIR 3MP Outdoor Dome Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FLIR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!

Product description

Equipped with cold climate capability and a vandal resistant, weatherproof housing, the 3MP Outdoor Dome Camera from FLIR is designed to be used in a wide variety of scenarios. Additionally, PoE technology allows you to setup the camera with a minimum amount of wires, and a 3-axis wall / ceiling mount enables multiple viewing options. A 1/3" progressive-scan CMOS sensor provides a maximum resolution of 2048 x 1536 at 20 fps, and a 2.8mm fixed lens offers an 82° horizontal field of view. The mechanical IR cut filter coupled with 850nm IR LEDs provides true day/night functionality and automatic night vision at distances of up to 72'.

Additional features include digital wide dynamic range, backlight compensation, white balance, gain control, and 3D noise reduction. You can choose up to four areas that can be blocked from view for privacy, and video can be overlaid with the time, date, camera information, and customized data. With FLIR Cloud remote viewing, you can access your camera using an iOS or Android mobile device, or a Windows or Mac computer. Video can be streamed in either H.264 or MJPEG formats, and dual streaming is available for maximizing your bandwidth. The camera is ONVIF-compliant for compatibility with a wide range of surveillance devices.
    HD Picture Quality
    • High-quality image detail in day and night applications
    • 3MP (2048 x 1536) resolution at 20 fps
    • 1080p / 720p resolution at 30 fps
    • 1/3" progressive-scan CMOS sensor
    • 2.8mm fixed lens
    • IR LEDs provide 72' of illumination
    Easy Installation
    • PoE (Class 3) support for simplified cabling
    • 12V / PoE (802.3af) operation
    • ONVIF Profile S conformance
    • 3-axis design for wall/ceiling mounting
    Rugged Design
    • Durable weatherproof and vandal proof housing
    • IP66- and IK10-rated ingress protection
    • Operable in cold climates (-22°F)
    FLIR Cloud Remote Viewing
    • Remote access via iOS, Android, PC / Mac with FLIR Cloud
    • Centralized viewing and control of up to 64 cameras on each screen with PC / Mac (CMS included)
    • Supports live or recorded access of videos at any time on your iPad, iPhone, or Android device
    • Mobile app features include remote playback, push notifications for motion / alarm, E-map, and manual record / snapshot to device
    • Dual-streaming (H.264 / MJPEG)
    • True Day / Night with ICR
    • 3D DNR / Digital WDR
    • Free DDNS service by FLIR
UPC: 841430010548 In the Box FLIR 3MP Outdoor Dome Camera
  • Limited 3-Year Warranty
  • Guides & Manuals Table of Contents

    Upload User Manual

    Have you got an user manual for the FLIR 3MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)


    Download User Manual

    The user manual for the FLIR 3MP Outdoor Dome Camera can be downloaded in PDF format at the link stated below.
    Download PDF user manual - FLIR 3MP Outdoor Dome CameraDownload PDF User Manual - FLIR 3MP Outdoor Dome Camera
    (PDF file, 0.84 MB)

    Technical parameters

    FLIR N233VE Specs

    Imaging Device 3 MP, 1/3" progressive-scan CMOS
    Effective Pixels (H x V) 2048 x 1536
    Day/Night Auto (ICR) / Color / B&W
    Minimum Illumination 0.1 lux (Color) 0.01 lux (B&W)
    S/N Ratio > 50 dB
    Field of View H: 82°
    IR Illumination 72' (22 m), 850 nm
    IR On / Off control
    Video Output RJ45
    Electronic Shutter Range: 1/4 to 1/10,000 seconds
    Lens 2.8mm fixed
    Aperture f/2.0
    Mount Type Board type
    Video Compression H.264 / MJPEG
    Video Streams H.264 and MJPEG dual stream
    Resolution 3 MP (2048 x 1536)
    1080p (1920 x 1080)
    720p (1280 x 720)
    D1 (704 x 480)
    CIF (352 x 240)
    Aspect Ratio 4:3
    Frame Rates 3 MP @ 20 fps
    1080p / 720p @ 25/30 fps
    Bit Rate Control: CBR / VBR with cap
    Selection: H.264 40 K to 8192 Kb/s; MJPEG 40 K to 16384 Kb/s
    Wide Dynamic Range Digital
    Backlight Compensation BLC / HLC
    White Balance Auto / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D
    Mirroring Horizontal mirror / Vertical flip
    Video Overlay Time / Date / Camera / Custom
    Privacy Up to 4 areas
    Menu Languages English
    Protocols IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
    ONVIF Conformance Profile S
    Users Up to 20 users
    Ports RJ45 (10 / 100 Base-T)
    Power Input 12 VDC, PoE (802.3 af)
    Power Consumption 4.8 W maximum
    Current Consumption 400 mA maximum
    Operating Temperature -22 to 140°F (-30 to 60°C)
    Operating Humidity Less than 95% RH
    Ingress Protection IP66
    Vandal Resistance IK10 rated
    Dimensions (Ø x H) Ø 4.3 x 3.2" (Ø 109.2 x 81.2 mm)
    Weight 0.8 lb (0.4 kg)
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 5.669 x 5.433 x 4.646"
