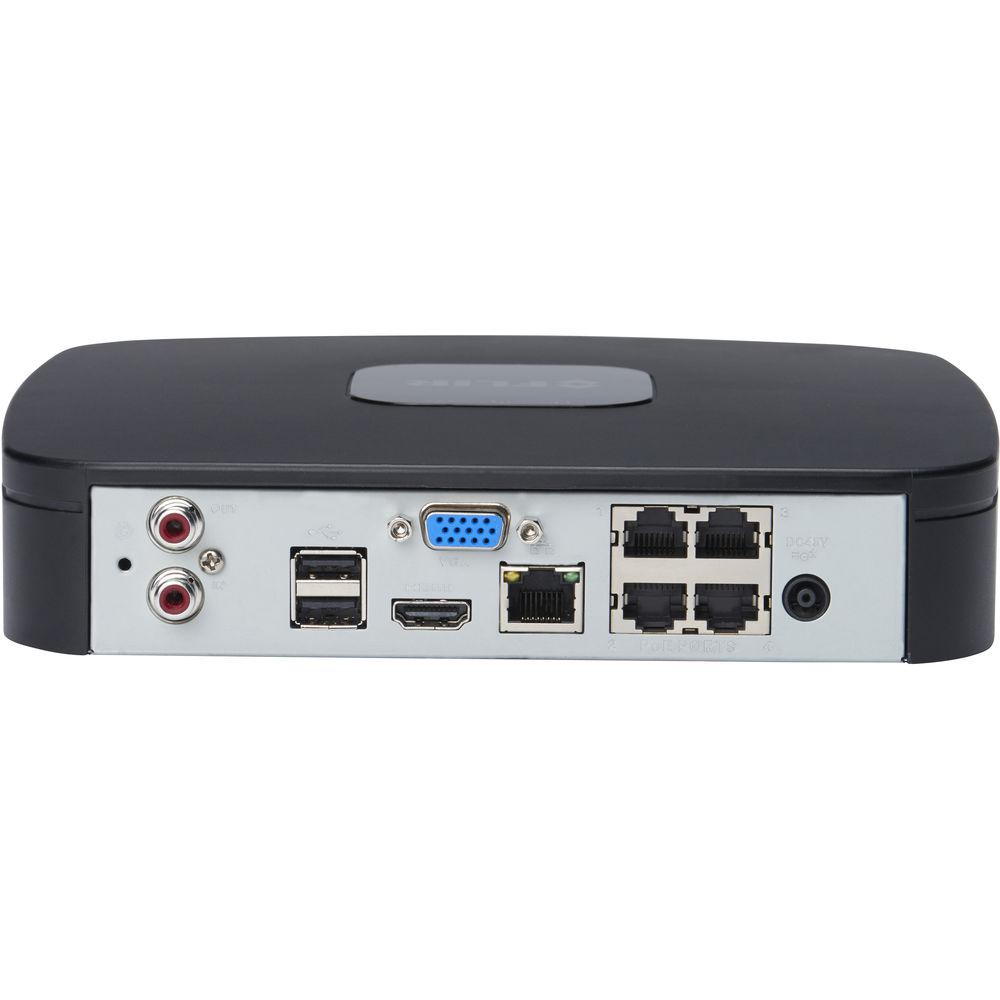

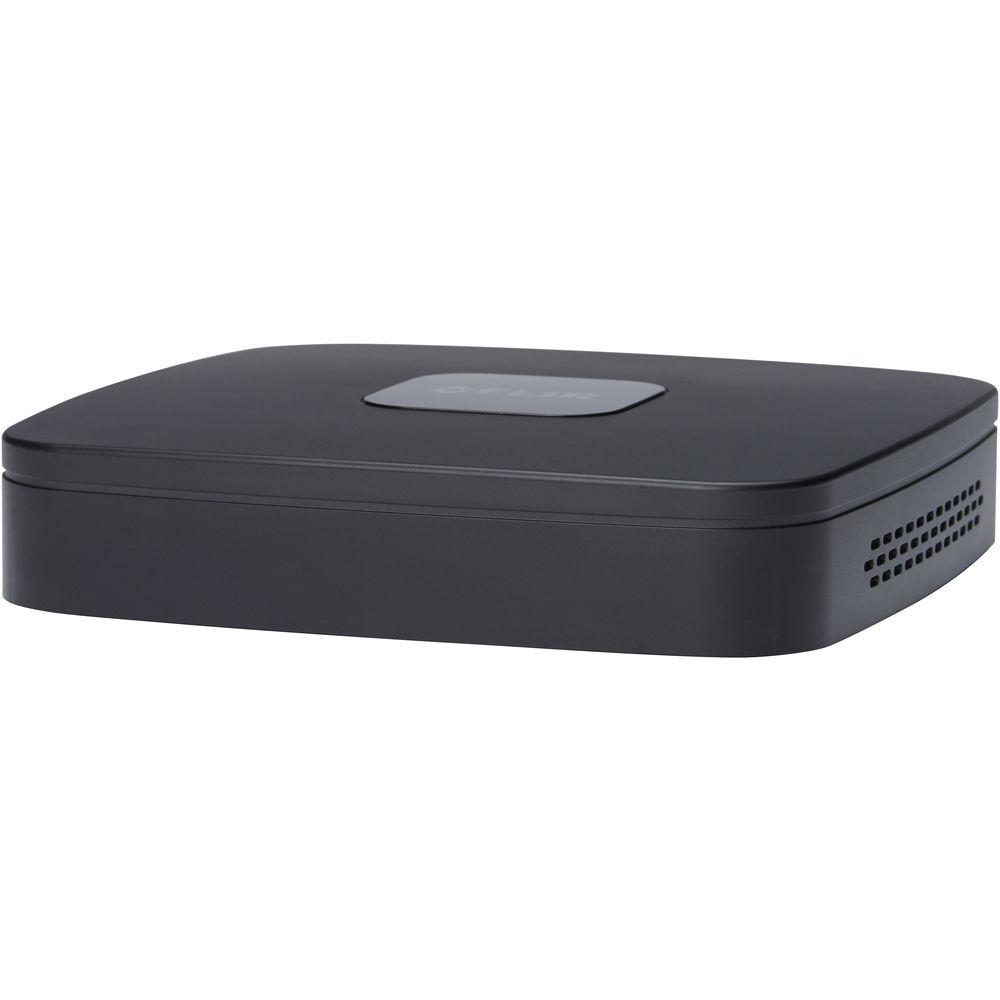

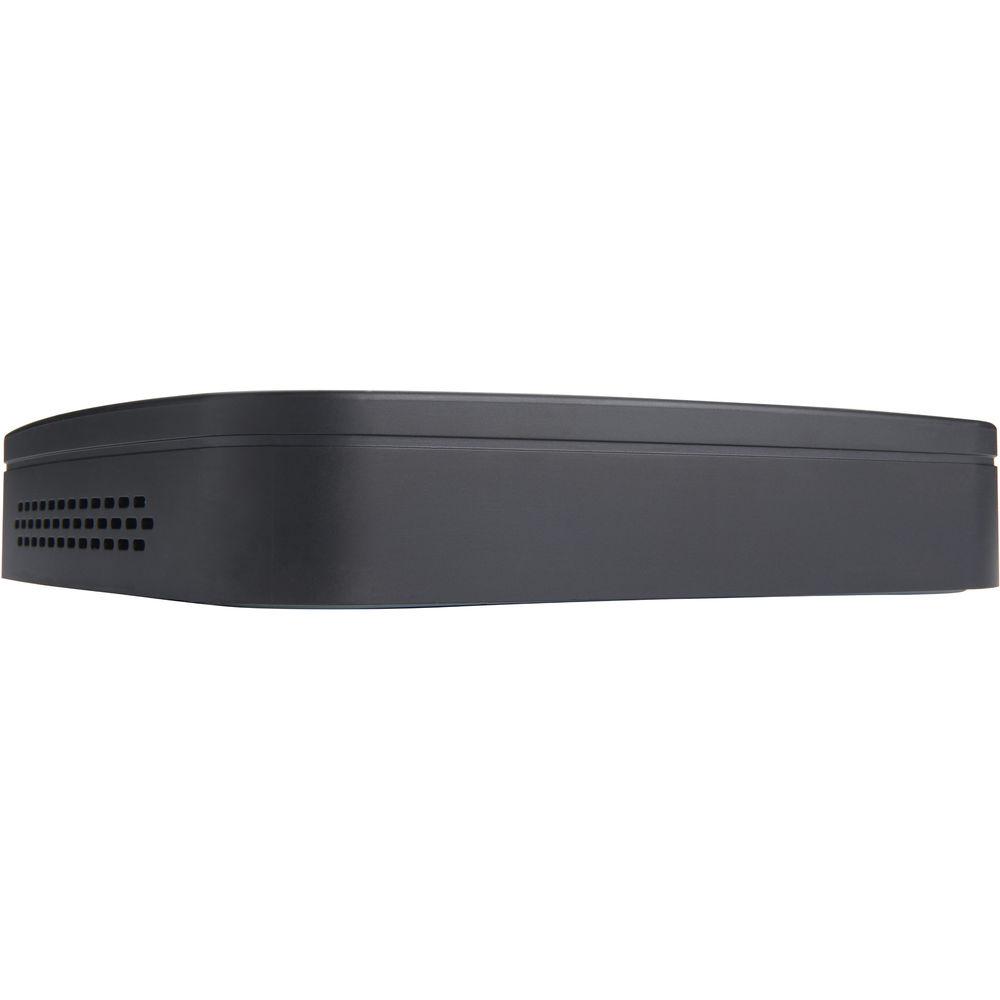

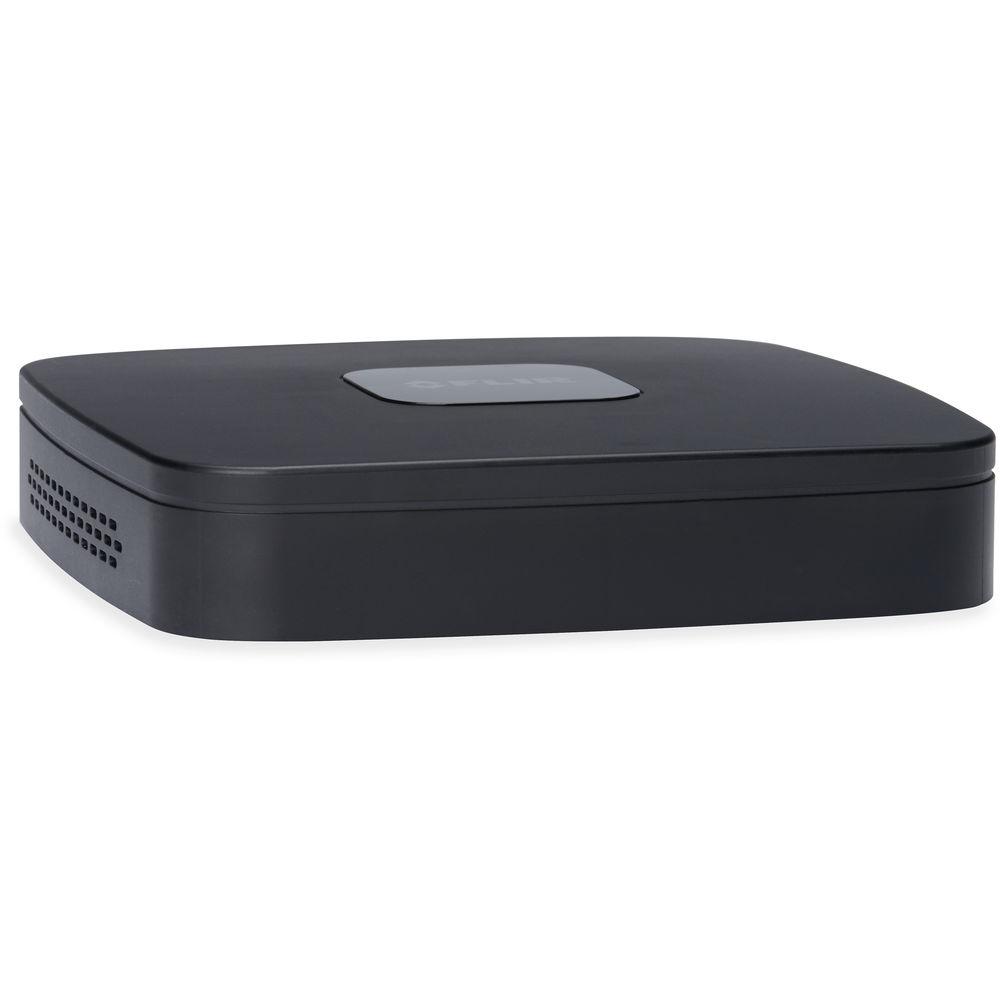

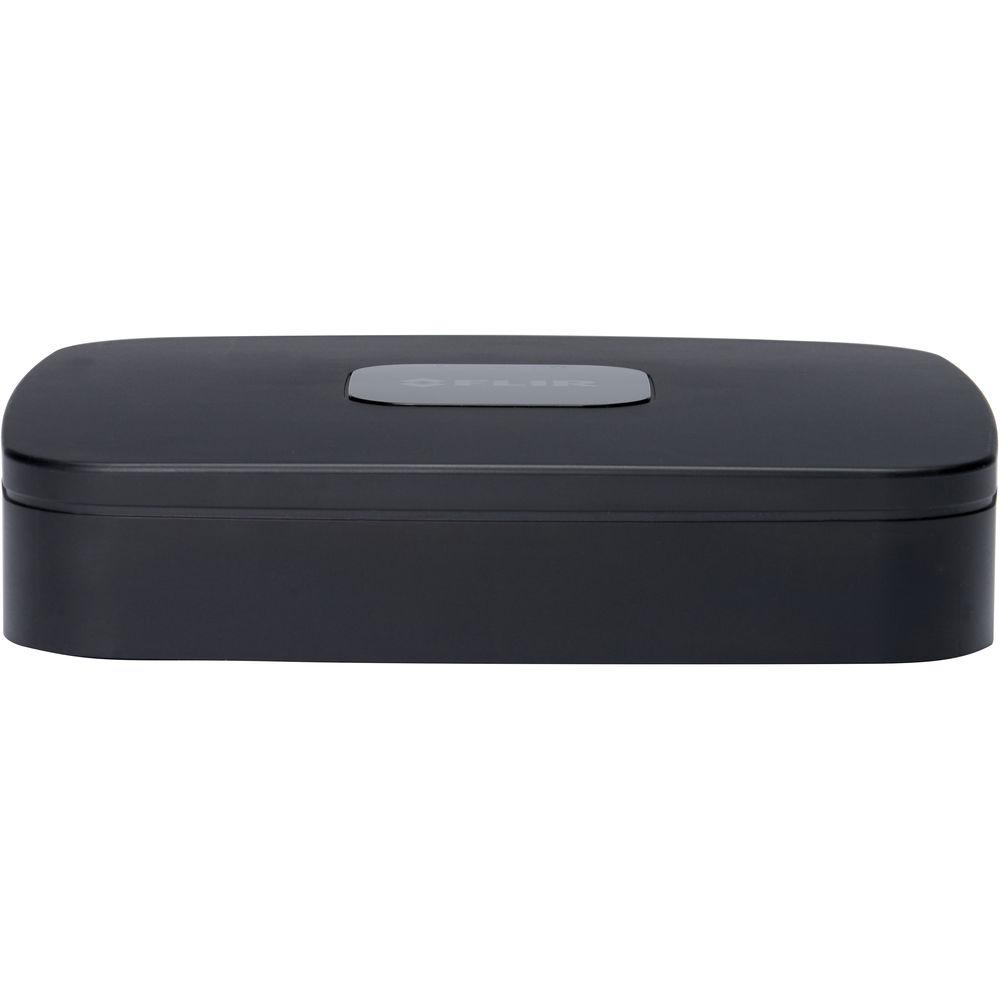

Product description With four integrated PoE inputs, the 4-Channel 5MP NVR with 4 1080p Outdoor Dome Cameras from FLIR offers a quick setup for an easy-to-use surveillance kit. The kit features a 4-channel NVR with up to 5MP recording resolution at 120 fps per channel, and it uses H.264 video compression for maximizing storage and bandwidth without compromising video quality. Pentaplex operation allows up to 20 users to simultaneously view live video, record, playback, backup, and remotely monitor from multiple locations. An RCA input and output allow for 2-way audio, HDMI and VGA interfaces provide high-definition video output, and two USB ports enable data transfer and mouse navigation.
The kit's four included dome cameras utilize 1/3" CMOS sensors for up to 1080p video resolution at 30 fps. With 3.6mm fixed lenses, each camera offers a 72° field of view, and IR LEDs surrounding the lenses provide up to 65' of night vision. An integrated IR cut filter enables the camera to switch from color to black & white imaging depending on the lighting situation, for high-quality video in a wide range of scenarios. Additionally, 2D-DNR, digital WDR, and backlight compensation features allow for high-quality images in bright or low light situations. Dual streaming in both H.264 and MJPEG formats provide flexibility when compressing video streams. The cameras are ONVIF-compliant for a wide range of compatibility, and they are all IP66-rated for outdoor use.
The NVR comes with a 2TB preinstalled HDD, however, it can be upgraded to 4TB when more storage is required. The system features a FLIR Cloud connection for remote access, and it supports Windows and Mac web browsers as well as iOS and Android mobile devices. Email notifications with text and snapshots can be sent when motion is detected, and the NVR records up to 30 seconds before the event and up to 5 minutes after the event for full surveillance of any movement. Auto-discovery will automatically register FLIR IP cameras to the system, without requiring programming or confusing instructions. To set up the cameras, simply download the FLIR Cloud app, scan the QR code on the NVR, and begin viewing live video. - High Capacity Processing
-
- Real-time recording in full HD on each channel
- Supports HD recording with cameras up to 5MP resolution
- Simultaneous view, record, playback, backup, and remote monitoring
- 80 Mbps network bit rate processing
- Easy Installation
-
- Four integrated PoE inputs for quick, convenient connection
- 50W total PoE (up to 25W per channel)
- Auto-discovery of FLIR IP cameras with no programming
- HD Cameras
-
- 1080p Resolution at 30 fps
- 2.1MP 1/3" CMOS progressive-scan sensor
- Up to 65' of night vision with integrated IR LEDs
- IP66-rated weatherproof housing
- 2D-DNR and digital WDR for clear pictures in ambient lighting
- Quick & Secure Remote Viewing
-
- Remote access via iOS and Android mobile devices, as well as PC/Mac
- Three easy steps for setup: install cloud app, scan QR code on NVR, view live video
- Multisite viewing on FLIR Cloud CMS for PC/Mac
- Receive Video Surveillance as a Service (VSaaS)
UPC: 841430010906 In the Box FLIR 4-Channel 5MP NVR with 2TB HDD and 4 1080p Outdoor Dome Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR 4-Channel 5MP NVR with 2TB HDD and 4 1080p Outdoor Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DN114P2E4 Specs | | | Operating System | Embedded Linux | | Pentaplex Operation | Simultaneous view, record, playback, backup, remote viewing | | Number of Channels | 4 | | | | Video | Inputs: 4 x PoE
Outputs: 1 x HDMI, 1 x VGA | | Audio | Input: 1 x RCA
Output: 1 x RCA | | USB | 2 x ports (in rear) | | Video Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | FLIR IP PTZ cameras only | | | | Live Display | 1, 4 | | Speed | 120 NTSC, 100 PAL | | OSD | On/Off | | System Navigation | USB mouse | | Motion Area Setting | Adjustable grid (22 x 18) | | Sensitivity Levels | 100 | | Firmware Upgrade | Automatic over Internet, USB device, network | | Time Synchronization | Auto sync by NTP server | | | | Video Compression | H.264 | | Audio Compression | G.711 | | Resolution | 720p (1280 x 720), 1080p (1920 x 1080), 3 MP (2028 x 1536), 5 MP (2560 x 1920) | | Frames Per Second | NTSC: 120 fps @ 720p / 1080p / 3 MP / 5 MP
PAL: 100 fps @ 720p / 1080p / 3 MP / 5 MP | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by channel | | Pre Recording | 30 seconds (max) | | Post Recording | 5 minutes (max) | | Covert Video | Yes | | | | Playback Channel | 1, 4 | | Playback Speed | Variable, max: 16x | | Playback Players | Backup player | | Search | By time and event | | Log Search | Up to 1000 lines for motion detected, configuration changes, connects/disconnects and video loss | | Audio Play | Yes (audio camera required) | | | | Storage | Included: 2 TB
Capacity: Up to 1 x 4 TB HDD (SATA) | | Backup Media | USB flash drive, HDD, network | | Backup File Format | DAV or ASF file | | | | Cloud Connection | FLIR Cloud | | Supported OS | Windows, Mac OS | | Remote Software | Client Software (PC/Mac) | | Email Notification | Text with snapshot | | Mobile OS Support | iOS, Android | | DDNS | FLIR DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filter | | Network Interface | 10/100-BaseTX, RJ45 | | Bit Rate | 80 Mbps total
48 to 8192 kbps per camera | | IP Cameras Supported | FLIR | | | | Power Consumption | 10 W (No HDD installed) | | Supply Voltage | 100 to 240 VAC, 48 VDC, 50/60 Hz | | PoE Power Output | Total: 50 W (max 25 W per camera) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% (non-condensing) | | Dimensions | 8.1 x 1.8 x 8.1" / 20.6 x 4.6 x 20.6 cm | | Weight | 1.1 lb / 0.5 kg | | | | Image Sensor | 2.1 MP 1/3" Progressive-scan CMOS | | Effective Pixels | 2048 x 1536 | | IR LEDs | Illumination Distance: 65' / 20 m | | Day/Night | Auto (ICR) / Color / B&W | | Mechanical IR Cut Filter | Yes | | Minimum Illumination | Color: 0.1 lux
B&W: 0.01 lux | | Signal to Noise Ratio | > 50 dB | | Field of View | 72° | | IR Illumination | 850 nm
On/Off Control | | Video Output | 1 x RJ45 | | Electronic Shutter Speed | 1/3 to 1/10000 seconds | | | | Lens | 3.6mm fixed, f/1.6 | | Mount | Board type | | | | Compression | MJPEG / H.264 | | Video Streams | H.264 & MJPEG dual stream | | Resolution Selection | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Aspect Ratio | 16:9 | | Frame Rates | 1080p / 720p / D1 / CIF @ 30/25 fps | | Bit Rate Control | CBR / VBR | | Bit Rate Selection | Compression Type: 56 K to 8129 Kbps | | Wide Dynamic Range | Digital | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto / Manual | | Gain Control | Auto / Manual | | Noise Reduction | 2D | | Video Mirroring | Horizontal Mirror | | Video Overlay | Time / Date / Camera / Custom | | Privacy Zone | Up to 4 areas | | Menu Languages | English | | | | Protocols | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | | ONVIF Conformance | Profile S (v2.1) | | Users | Up to 20 | | | | Network Port | 10 / 100 BaseT | | Power Input | 12 VDC, PoE | | Power Consumption | 3 W | | Current Consumption | 250 mA | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | Less than 95% RH | | Environmental Rating | IP66 | | Dimensions | 3.7 x 3.2" / 9.4 x 8.1 cm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 14.7 x 10.9 x 9.5" |
