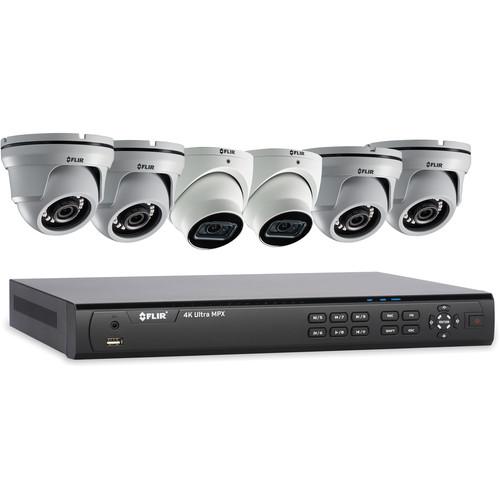

Product description Monitor your property with the 8-Channel 4K UHD Analog DVR with 3TB HDD, 2 4K Dome Cameras & 4 4MP Dome Cameras from FLIR. The 8-channel DVR manages and can record from up to 8 cameras. It comes with a 3TB HDD preinstalled. HDD capacity is expandable to 8TB if more storage space is required. H.264+ video compression reduces data bandwidth requirements for efficient data storage while maintaining the best possible video quality. An audio input and output enable two-way audio communication. Remote access via an iOS or Android device, and Windows or Mac PCs, is possible thanks to the free FLIR Cloud apps.
The included 4K dome cameras each have a 1/2" progressive scan CMOS sensor to transmit 3840 x 2160 resolution video at 15 fps, and a 3.6mm fixed lens to deliver an 87° horizontal field of view. IR LEDs provide up to 100' of illumination. Additionally, they have a built-in microphone and input for audio. The cameras are IP67-rated for outdoor use.
The included 4MP dome cameras each have a 1/3" progressive scan CMOS sensor to transmit 2688 x 1520 resolution video at 30 fps. They have a 3.6mm fixed lens to deliver an 85° horizontal field of view. IR LEDs provide up to 80' of illumination. The cameras are IP66-rated for outdoor use. - M61083 4K UHD DVR Features
-
- Embedded Linux OS
- Ideal for retrofit analog applications
- Pentaplex operation allows for simultaneous view, record, playback, backup, and remote monitoring
- Supports up to 4 IP cameras at 4MP each
- Supports both HD and SD analog simultaneously
- Extended distance cable runs up to 1000' for 4MP cameras, and 500' for 4K cameras
- HDMI and VGA video outputs
- PTZ control
- Auto time sync by NTP server
- Text with snapshot
- Backup media includes USB flash drive, HDD, and network
- DAV, ASF, AVI, or MP4 backup file formats
- RJ45 network interface
- ME373A 4K UHD Outdoor Universal HD Analog Dome Camera Features
-
- Analog HD output enables you to upgrade to HD without the expense of recabling
- Mechanical IR cut filter for day and night functionality
- Smart IR delivers up to 100' of IR illumination
- Auto and manual white balance
- Auto and manual gain control
- 4x digital zoom
- Backlight compensation (BLC/HLC)
- 2D-DNR and 3D-DNR
- Time, date, camera, and custom video overlay
- Horizontal mirror and vertical flip
- Built-in microphone and audio input
- Window blanking for up to 8 areas
- IP67-rated aluminum alloy enclosure that is suitable for outdoor use
- ME363 4MP Outdoor HD-CVI Dome Camera Features
-
- Analog HD output enables you to upgrade to HD without the expense of recabling
- Mechanical IR cut filter for day and night functionality
- Smart IR delivers up to 80' of IR illumination
- ATW and manual white balance
- Color gain and adjustable gain control
- Digital wide dynamic range
- 2D-DNR
- Horizontal flip, vertical flip, and HV (horizontal & vertical) flip
- IP66-rated aluminum alloy enclosure that is suitable for outdoor use
UPC: 841430019572 In the Box FLIR 8-Channel 4K UHD Analog DVR with 3TB HDD, 2 4K Dome Cameras & 4 4MP Dome Cameras M61083 4K UHD DVR 12 VDC Power Supply & Power Cable Remote Control USB Mouse Ethernet Cable HDMI Cable Limited 3-Year Warranty for DVR Limited 5-Year Warranty for HDD 2 x FLME373A 4K UHD Dome Cameras 8 x Mounting Screws & Drywall Anchors Allen Key 2 x Mounting Templates 2 x Power Pigtails 4 x FLME363 4MP Dome Cameras 16 x Mounting Screws & Drywall Anchors Allen Key 4 x Mounting Templates Limited 3-Year Warranty for Cameras Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR 8-Channel 4K UHD Analog DVR with 3TB HDD, 2 4K Dome Cameras & 4 4MP Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR M832K44 Specs | | | Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 8 | | Video In | 8 x 1 V p-p, BNC | | Video Out | 1 x VGA
1 x HDMI | | VGA Out | 1080p output resolution | | HDMI Out | Up to 4K output resolution | | Audio In | 1 channel (RCA), supports 2-way talk | | Audio Out | 1 channel (RCA), supports 2-way talk | | USB Ports | 1 x rear
1 x front | | Video Output Resolution | 4K | | PTZ Control | BNC-CVI + RS-485 Pelco D & P Protocols | | Live Display | 1, 4, 8, 9, 16 | | Live Display Speed | NTSC: Up to 480 fps
PAL: 400 fps | | OSD | On/off | | System Navigation | USB mouse, IR remote controller, front panel | | Motion Area Setting | Fixed grid 396 (22 x 18) NTSC & PAL | | Sensitivity | 100 | | Firmware Upgrade | Via USB device / network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264+ | | Audio Compression | G.711 | | Recording Resolutions | NTSC
HD: 8 to 1 MP
SD: 960H to 352 x 240
PAL
HD: 8 to 1 MP
SD: 960H to 352 x 288 | | Recording Frame Rates | NTSC/PAL
8 MP at 112 fps
4 MP at 240 fps
3/2/1 MP at 480 fps | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel | | Pre-Recording | Maximum 30 seconds | | Post-Recording | Maximum 5 minutes, minimum 10 seconds | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channels | 1/4/8 | | Playback Speed | Variable max 4x | | Playback Players | Backup player | | Search | By time/date, MD, and exact search (accurate to second) | | Log Search | Up to 1000 lines for motion detected, configuration changes, connects/disconnects, and video loss | | Audio Play | Yes | | Storage | 1 x 3 TB HDD (SATA) | | Maximum Capacity | Up to 8 TB | | Backup Media | USB flash drive, HDD, and network | | Backup File Format | DAV, ASF, AVI, or MP4 | | Cloud Connection | FLIR Cloud | | Supported Operating Systems | Windows and Mac OS X | | Remote Software | Client Software (Windows) and Safari (Mac) | | Email Notification | Text with snapshot | | Supported Mobile Devices | FLIR Cloud iPad, iPhone, Android apps | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter | | Network Interface | 10/100Base-TX, RJ45 | | Network Speed Control | 96 to 6144 kb/s per camera | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Power Consumption | Approximately 10 W with no HDD installed | | Power Supply | 100-240 VAC, 12 VDC, 2 A, 60/50 Hz | | Dimensions (W x D x H) | 12.8 x 10 x 2.2" / 325 x 255 x 55 mm | | Weight | 3.3 lb / 1.5 kg without HDD | | | | Camera Model | ME373A | | Image Sensor | 1/2" 4K UHD / 8 MP progressive scan CMOS | | Effective Pixels (H x V) | 3840 x 2160 | | Day/Night | Auto IR cut filter, color, B&W | | Mechanical IR Cut Filter | Yes | | Minimum Illumination | Color: 0.1 lux at f/1.6
B&W: 0.01 lux at f/1.6 | | S/N Ratio | ≥65 dB | | Horizontal Field of View (degree) | 87° | | IR Range | 100' / 31 m | | IR Wavelength | 850 nm | | Video Output | BNC (4K MPX/CVI, 5 MP / 4 MP / 1080p / CVBS multi-format) | | Electronic Shutter | 1/100,000 to 1/3 (1/4) seconds | | Lens Type | Fixed | | Mount Type | Board type | | Iris Type | Fixed iris | | Iris Control | AIS | | Focal Length | 3.6mm | | Aperture | f/1.6 | | Focus | Fixed | | Maximum Frame Rates | 8 MP at 15 fps (MPX/CVI)
5 MP at 20 fps (AHD/TVI)
4 MP at 30 fps (MPX/CVI)
1080p at 30 fps (MPX/CVI/AHD/TVI)
960H at 30 fps (CVBS) | | Aspect Ratio | 16:9 | | Wide Dynamic Range | True WDR up to 100 dB | | Backlight Compensation | BLC/HLC | | White Balance | Auto, manual | | Gain Control | Auto, manual | | Noise Reduction | 2D-DNR, 3D-DNR | | Smart IR | Yes, adjustable | | Digital Zoom | 4x | | Video Mirroring / Rotation | Horizontal mirror, vertical flip | | Video Overlay | Time, date, camera, custom | | Privacy | Window blanking for up to 8 areas | | Menu Languages | English, Spanish, Portuguese, Korean, Japanese, Chinese, Russian, Polish, French, German, Italian | | Audio I/O | 1 x input
Built-in microphone | | Audio Encoding | G.711a, G.711u, PCM | | Analog Video Out | Yes, full time (service only) | | Power Input | 12 VDC, power adapter available separately | | Power Consumption | 7.1 W max | | Current Consumption | 585 mA max | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Storage Humidity (Relative) | <90% | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity (Relative) | <90% | | Cold Start Temperature | -22°F / -30°C | | IP Rating | IP67 | | Certifications | CE, FCC, RoHS | | Construction Material | Aluminum alloy | | Dimensions (Diam. x H) | 3.9 x 2.5" / 99 x 64 mm | | Weight | 0.77 lb / 0.35 kg | | | | Camera Model | ME363 | | Image Sensor | 1/3" 4 MP progressive scan CMOS sensor | | Effective Pixels (H x V) | 2688 x 1520 | | Day/Night | Auto IR cut filter, color, B&W | | Mechanical IR Cut Filter | Yes | | Minimum Illumination | Color: 0.2 lux at f/1.2
B&W: 0.05 lux at f/1.2 | | S/N Ratio | ≤50 dB | | Horizontal Field of View (degree) | 85° | | IR Range | 80' / 24 m | | IR Wavelength | 840-850 nm | | Video Output | BNC (4 MP multi-format) | | Electronic Shutter | 1/50,000 to 1/60 seconds | | Lens Type | Fixed | | Mount Type | Board type | | Iris Type | Fixed iris | | Iris Control | AIS | | Focal Length | 3.6mm | | Aperture | f/2.0 | | Focus | Fixed | | Maximum Frame Rate | 4 MP at 30 fps | | Wide Dynamic Range | DWDR | | Backlight Compensation | BLC | | White Balance | ATW, manual | | Gain Control | Color gain, adjustable | | Noise Reduction | 2D-DNR | | Smart IR | Yes | | Video Mirroring / Rotation | Horizontal flip, vertical flip, horizontal & vertical flip | | Menu Language | English | | Power Input | 12 VDC | | Maximum Power Consumption | 4.7 W | | Current Consumption | Maximum: 390 mA | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | <95% RH | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <85% RH | | Cold Start Temperature | -22°F / -30°C | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | Construction Material | Aluminum alloy | | Dimensions (Diam. x H) | 3.7 x 2.5" / 93 x 64 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 13.985 lb | | Box Dimensions (LxWxH) | 15.3 x 12.6 x 10.9" |
