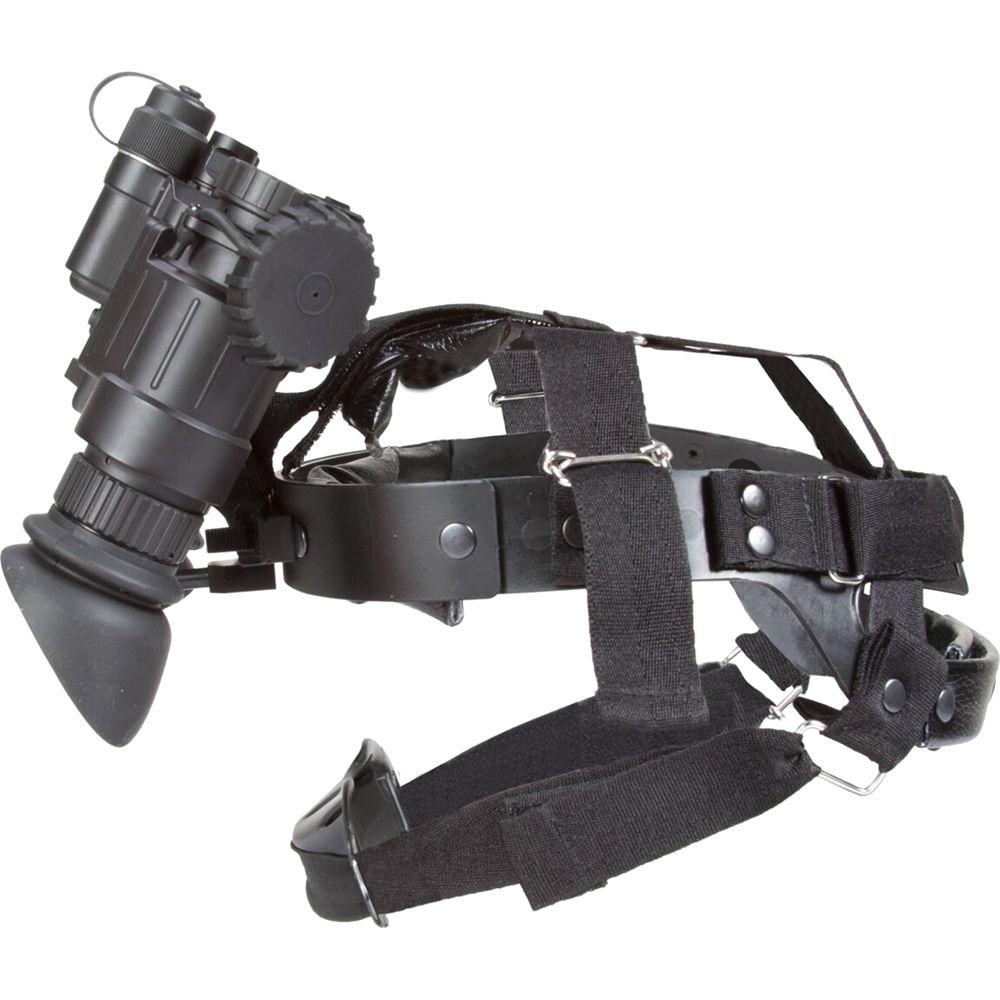

Product description Go on your next mission using the FLIR BNVD-51 2HD 2nd-Generation Compact Dual-Tube Night Vision Binocular. The device detects (invisible to the naked eye) near-infrared images of your surroundings, people, and objects. The imagery has high enough resolution to allow you to identify individuals and fine artifacts at considerable distances. To provide this penetrating night vision capability, FLIR outfitted the device with two high-definition 2nd-generation image intensifier tubes (IITs) (one for each optical path) that generate high-resolution green images. The dual-tube (binocular) configuration also allows for better perception of depth, which can be a valuable asset in quickly changing hunting or tactical situations.
This version of night vision devices offers users a manual gain control for adjusting image brightness and contrast, a bright light cutoff function for preventing tube overload and burnout, and an automatic off function for saving battery power when not in use. With the multi-coated 1x optical system you will see clear and sharp images and a wide 51° field of view. In addition to viewing distant targets, the opto-mechanics of allow you to focus as close as 0.8' away, which is helpful for reading maps or instructions without stowing the binocular. To improve the effectiveness of close-range visibility in very low light, this night vision device also has a built-in infrared LED illuminator with a fixed flood lens. With the help of internal electronics and in-view indicators, you can monitor the battery life and the infrared illumination's status. In order to adjust the optics to the features of your face and vision, the binocular also provides an adjustable diopter and interpupillary distance.
Outfitted with a strong, lightweight, and water-resistant composite body, the BNVD-51 can accompany you on any of your missions and adventures. It is also slip-free, thanks to an ergonomic design. For comfort and ease of adjustments, the focusing and diopter rings are heavily knurled. The device is ready to use out of the box, as it ships with a battery and two headgear mounting adapters. Also included are two demist shields and two sacrificial windows to protect the external lenses from damage, and a soft carrying case for storage and transport. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Image Intensification Tubes
-
- 2nd generation
- HD: high-definition
- IITs produce green images
- Multi-alkali photocathode
- Manual gain control
- Bright light cutoff
- Infrared illuminator with pivotal flood lens for reading maps
- Maximum built-in IR illuminator range is 10'
- Optical Performance
-
- 19mm, f/1.26 lens system
- 1x magnification
- Compatible with optional 3x objectives
- Multi-coated optics
- Wide 51° angular field of view
- Binocular configuration provides improved perception of depth
- 0.82' minimum focus distance
- Use and Handling
-
- Auto shut-off function
- Individual focusing
- +2 to -6 diopter range
- 54 - 78 mm interpupillary range
- 17mm eye relief
- Low battery indicator
- Infrared on indicator
- Construction Details
-
- Composite housing
- Lightweight and durable

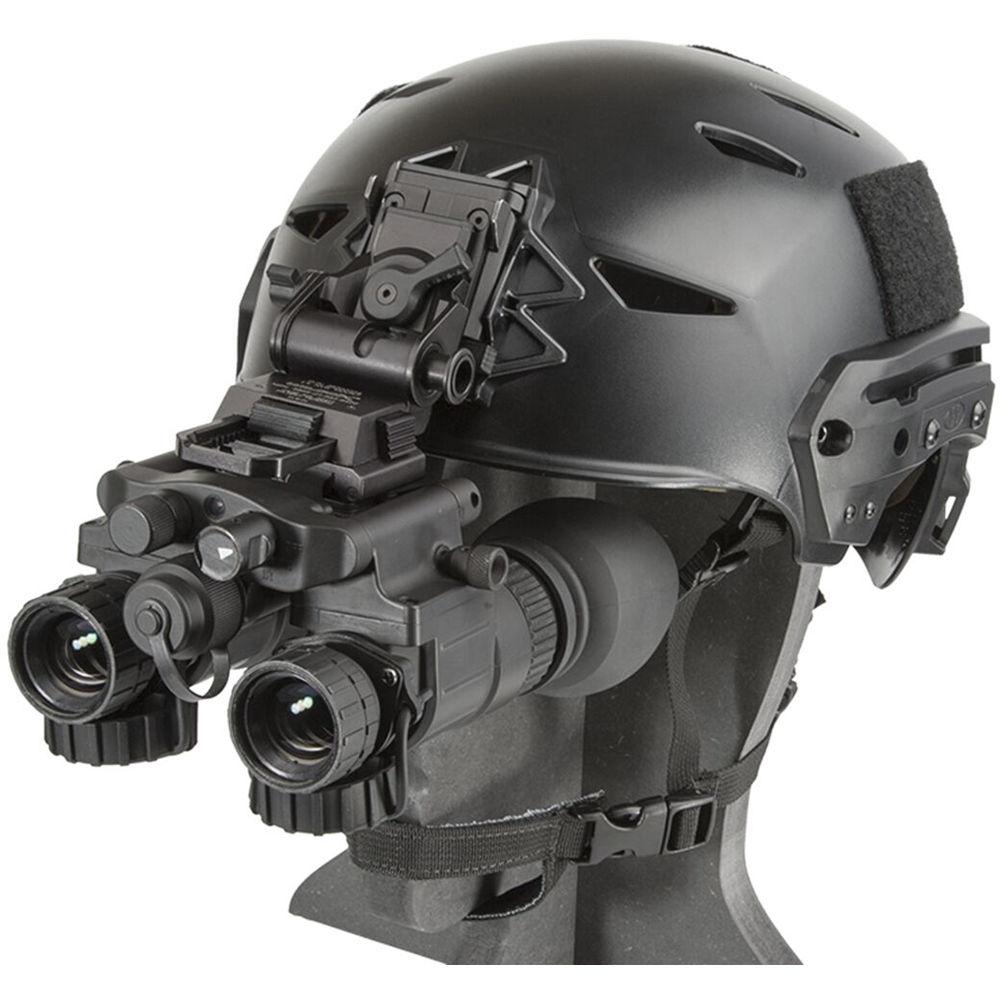

- Integrated interface shoe for mounting on headgear or helmets
- Bayonet/horn interface shoe included
- Knurled focusing and diopter rings
- Tethered battery compartment cap
- Rubber winged eyecups
- Tethered objective covers
UPC: 849815009484 In the Box FLIR BNVD-51 2HD 2nd-Generation Compact Dual-Tube Night Vision Binocular (Matte Black) - NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- CR-123A Battery
- 2 x Sacrificial Windows
- 2 x Demist Shields
- Soft Carrying Case
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR BNVD-51 2HD 2nd-Generation Compact Dual-Tube Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR BNVD-51 2HD Specs | Intensifier Tube | 2 x 2nd generation tubes | | Photocathode Type | Multi-alkali | | Resolution | Not provided by manufacturer | | Magnification | 1x | | Angular Field of View | 51° | | Lens System | 19mm, f/1.26 | | Minimum Focus Distance | 0.82' / 0.25 m | | Eye Relief | 17 mm | | Dioptric Correction | +2 to -6 | | Interpupillary Adjustment | 54 - 78 mm | | Infrared Illuminator | Built-in
Maximum Range: 9.8' / 3.0 m | | Battery / Runtime | 1 x AA battery / up to 20 hours (at 68°F / 20°C)
1 x 123A battery / up to 20 hours (at 68°F / 20°C)
Optional external battery pack / up to 80 hours (at 68°F / 20°C) | | Weatherproofing | Water and fog resistant | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.6 x 4.4 x 2.8" / 11.8
