Product description - Introducing the FLIR Breach Thermal Monocular
Built to enhance the effectiveness of law enforcement personnel and outdoor gurus, the FLIR Breach PTQ136 320 x 256 Thermal Monocular passively detects the thermal signatures of objects and allows you to spot suspects, intruders, wildlife, and other warm objects in total darkness. Additionally, due to the nature of thermal imaging, it allows you to see through smoke, fog, and light foliage. To provide penetrating thermal vision, FLIR outfitted the device with their Boson VOx microbolometer, featuring a 320 x 256 pixel resolution, long-wave infrared sensitivity, and a 60 Hz refresh rate.
With the help of internal electronics and a 1280 x 960 Quad-VGA FLCO display, you can view or save high-contrast imagery and enhance it with FLIR's proprietary Digital Detail Enhancement feature with seven color palettes to choose from. To enhance your viewing experience, the device provides 1-4x digital zoom and a short 0.82' minimum focusing distance. You can save up to 1000 still images or 2.5 hours of video on internal memory and transfer them later to your computer via a built-in USB Type-C port.

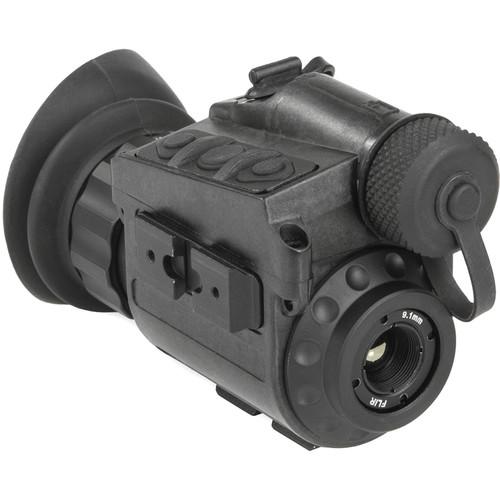

To ensure functionality anywhere you go, the lightweight (7.4 oz) and durable polymer body is waterproof (rated IP67) and impact-resistant. The device also provides a wide winged rubber eyecup to ensure comfortable contact with your face and to prevent leakage of light. On the right side, you will find a short mounting rail, compatible with many optional FLIR adapters, for attaching the monocular to headgear or firearms. On the top, it has a control pad with buttons and a CR-123A battery compartment with a tethered cap. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Sensor and Optical Performance
-
- 320 x 256 FLIR Boson core VOx microbolometer
- Long-wave infrared sensitivity range: 7.5 - 13.5µm
- Lens system: 9.1mm, f/1.04
- 60 Hz refresh rate
- 1x optical magnification
- 1-4x digital zoom
- 24 x 19° wide field of view
- +5 to -5 diopter adjustment range
- 0.82' close focus distance
- 16mm eye relief
- Video, Display, and Imaging Enhancements
-
- 1280 x 960 Quad-VGA FLCO high-definition display
- FLIR Proprietary Digital Detail Enhancement

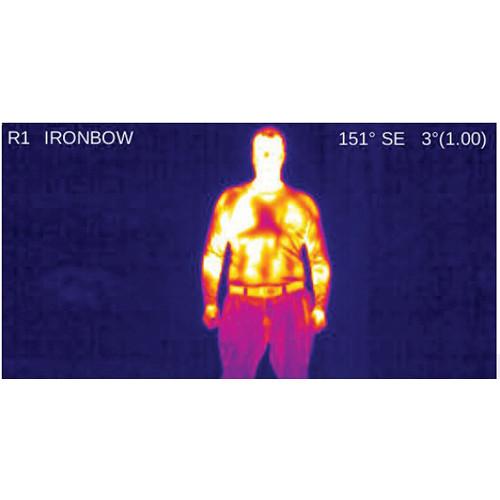

- White Hot, Black Hot, Rainbow HC, Ironbow, Sepia, Artic, and Outdoor Alert image palettes
- Internal memory can store up to 1000 images or 2.5 hours of video
- Digital video output
- Use and Handling
-
- Less than 1.5-second wake-up time
- Digital compass and inclinometer
- Compatible with select FLIR mounting adapters
- Construction
-
- Lightweight
- Winged rubber eyecup
- Tethered battery cap
- Mounting point for headgear and firearms
- Compact and ergonomic body
- Accommodates one CR-123A battery
UPC: 849815008364 In the Box FLIR Breach PTQ136 320 x 256 Thermal Monocular (60 Hz, Matte Black) - CR-123A Battery
- Hard Case
- Lens Cloth
- Limited 3-Year Warranty on Monocular
- Limited 10-Year Warranty on Thermal Sensor
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR Breach PTQ136 320 x 256 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR Breach PTQ136 Specs | Array Configuration | 320 x 256 Boson core VOx microbolometer | | Spectral Sensitivity | 7.5-13.5 µm | | Refresh Rate | 60 Hz | | Sleep / Wake Up | <1.5 seconds | | Sensitivity | <50 mK | | Spectral Response | Long-wave infrared | | Magnification | Optical: 1x
Digital: 1 - 4x | | Lens System | 9.1mm, f/1.04 | | Field of View | 24 x 19° | | Diopter Adjustment | +5 to -5 | | Eye Relief | 16 mm | | Minimum Focus Distance | 0.82' / 0.25 m | | Display | 1280 x 960 Quad-VGA FLCOS | | Video Output | Digital, via USB Type-C | | PC Compatible | Yes | | Internal Memory | Up to 1000 images
Up to 2.5 hours of video | | Ports | USB Type-C: Power, digital video out, file transfer (images and videos) | | Battery / Runtime | 1 x CR-123A battery / 90 minutes at 68°F (20°C) | | External Power | USB Port: 5 VDC | | Weatherproofing | Weather-resistant | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 5.5 x 2.7 x 1.9" / 13.9 x 7.0 x 4.9 cm | | Weight | 7.1 oz / 210.0 g | | | | Package Weight | 4.29 lb | | Box Dimensions (LxWxH) | 11.1 x 10.3 x 7.3" |
