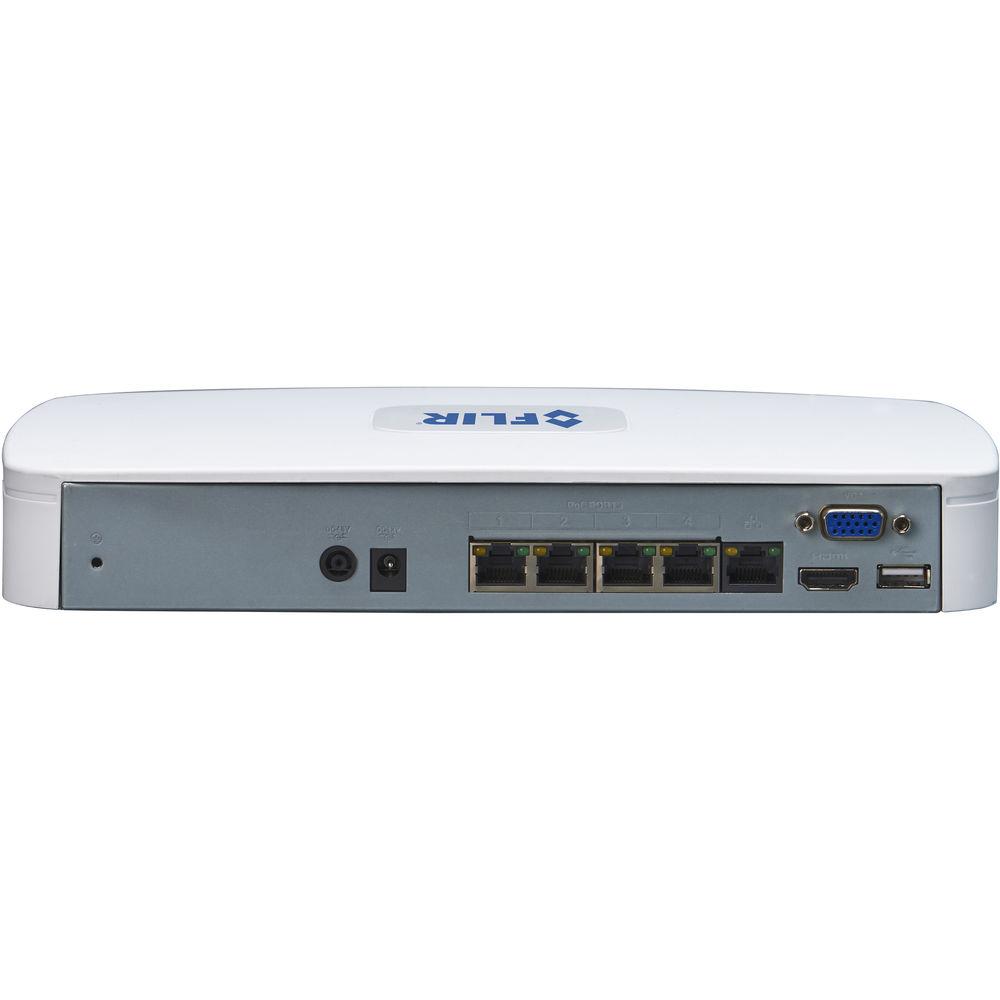

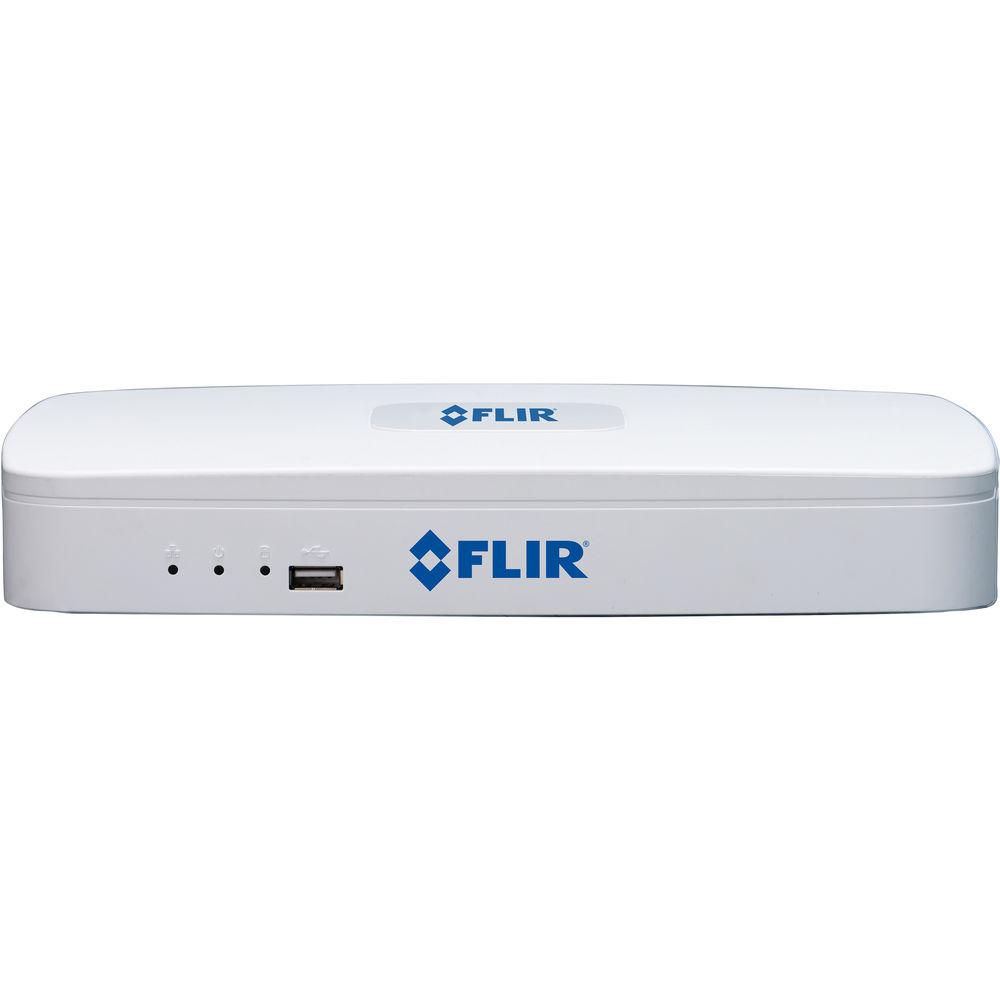

Product description Create a surveillance solution using the DNR100 Series 4-Channel NVR with 2TB HDD and 4 2.1MP IP Dome Cameras from Flir. Ideal for small offices and home monitoring, the mini-form-factor NVR and cameras can provide 1080p resolution footage that can be viewed in real-time speed of 30 fps.
The NVR comes with a 2TB HDD preinstalled, but can be upgraded to 4TB. The pentaplex NVR allows you to view, record, playback, backup, and remotely access the system simultaneously so you never have to stop recording to work with the system. With up to 20 simultaneous users, the NVR can be accessed remotely through a web browser or via a mobile device using the Flir Cloud application.

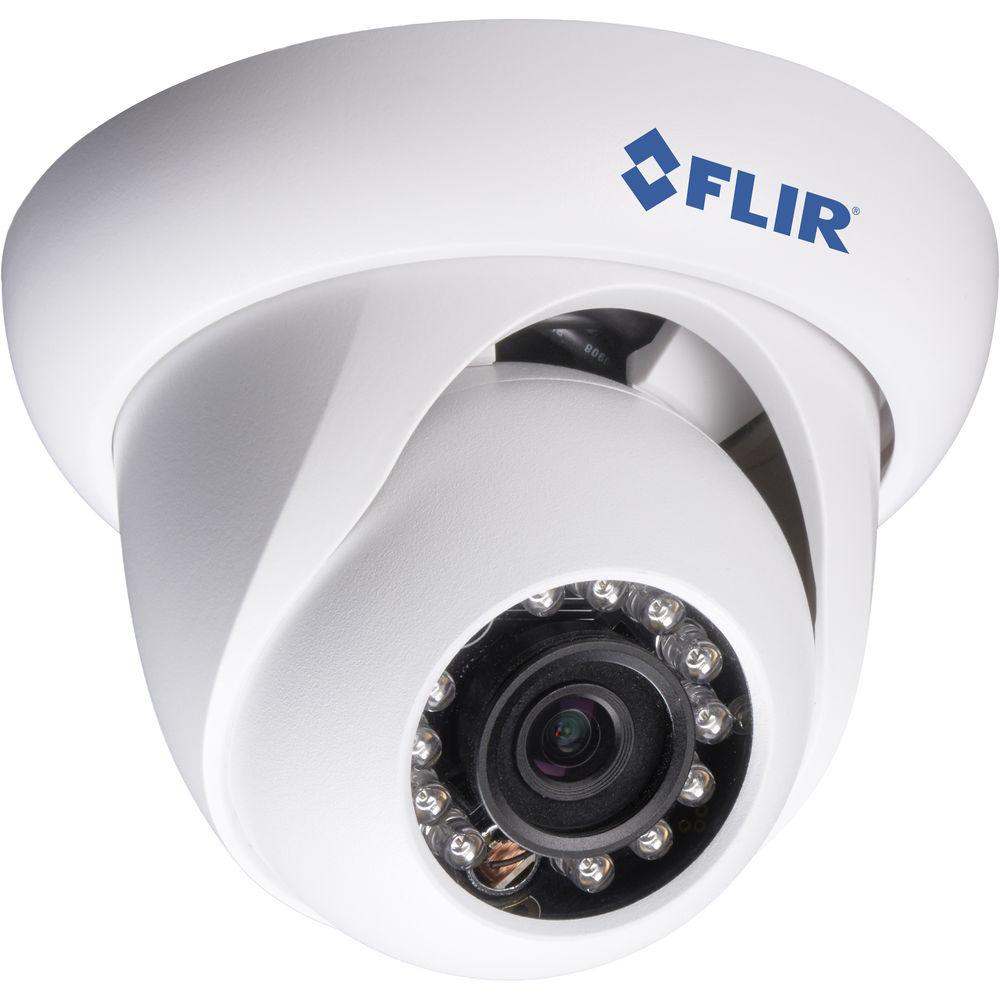

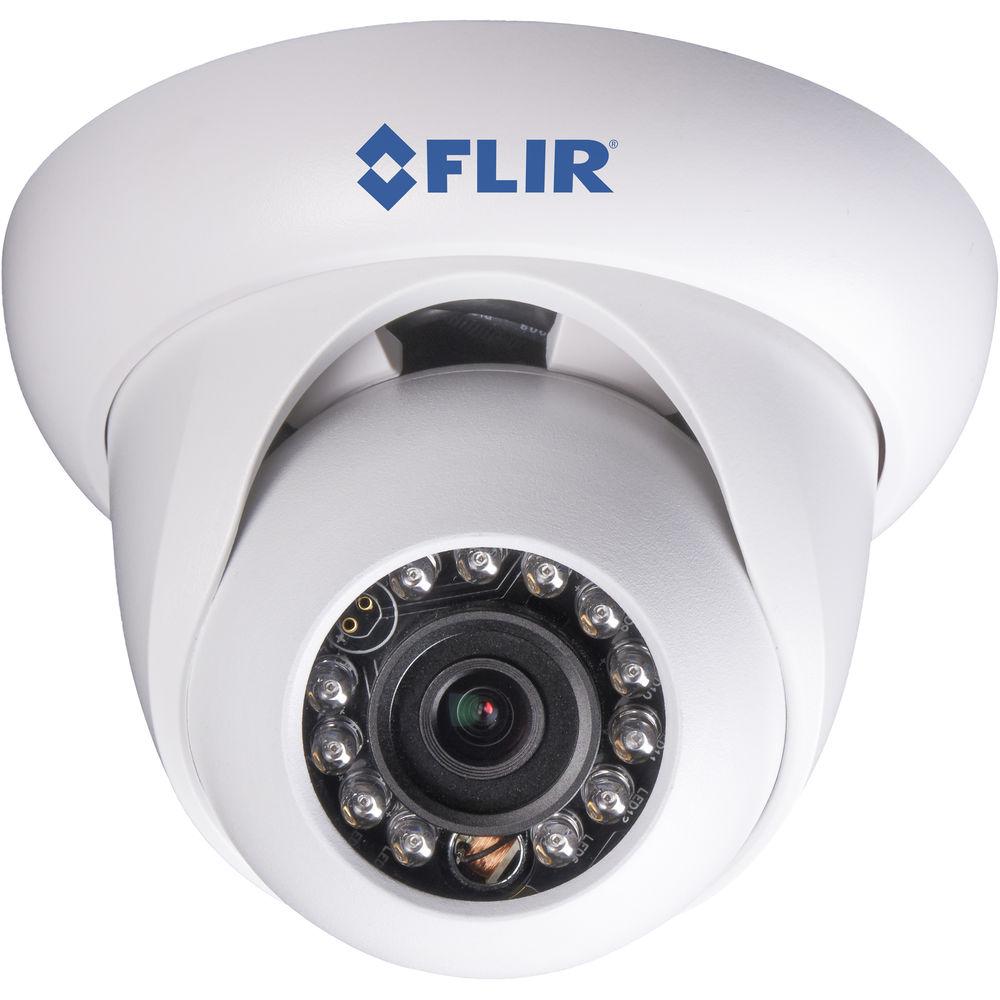

Complementing the four channels on the NVR are four IP dome cameras. Each camera is IP66-rated to be weather and dustproof for outdoor installation and features a 1/3" CMOS image sensor and 3.6mm fixed lens for capturing images in 2.1MP resolution. Integrated IR LEDs allow for effective night vision up to 62' and adjustable light features create clean imaging even in environments with changing light levels. The cameras can be easily installed to the NVR and require only one cable each, allowing you to create a neat solution without excessive cabling, and will be auto-detected by the NVR once connected. - Hardware
-
- Four channel, PoE camera input
- 2TB installed HDD, user upgradeable to 4TB
- HDMI and VGA to connect multiple monitors
- Two USB ports for accessories and backup devices
- Software
-
- H.264 video compression for efficient bandwidth and HDD use
- Pentaplex operation: View, record, playback, backup, and remotely access the system simultaneously
- Control DVR via OSD with mouse, included remote control, and remote access
- Recording
-
- Up to 1080p resolution at 30fps
- Scheduled: Schedule by hour, day, recording mode, motion, channel
- Motion recording: Record only when motion is detected
-
- Camera Imaging
-
- 1/3" CMOS image sensor
- Records in up to 2.1MP at 30 fps
- IR LEDs provide up to 62' of night vision
- Backlight compensation and digital wide dynamic range provide detailed pictures regardless of changing light levels
- Adjustable white balance creates accurate color depiction
- Gain control adjusts for maintaining strong illumination signals
- Privacy masking zones allow you to record only desired areas
- Remote Access
-
- Windows, Mac OSX, Android, and iOS mobile device compatible
- Computer, tablet and smartphone remote accessibility
- Live-view, remote playback, push notifications for motion/alarm, E-map, and snapshot
- Security/Accessibility
-
- Individual user ID and password protection for on-site and remote access
- Two levels of access
- Administrator: Full access to all features and functions
- User: Access to live-view
UPC: 841430009405 In the Box FLIR DNR100 Series 4-Channel NVR with 2TB HDD and 4 2.1MP IR Dome Cameras - 2 x 2.1MP IR Dome IP Camera with 3.6mm Fixed Lens (2-Pack) fvfsdttfbtdbesd
- USB Mouse
- 2 x Power Adapter
- Ethernet Cable
- CMS Software CD
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR100 Series 4-Channel NVR with 2TB HDD and 4 2.1MP IR Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DN104P2E4 Specs | | | Signal System | Linux, embedded | | Multiplexing | Simultaneous view, record, playback, backup and remote monitoring | | Compression | H.264 | | Channels | 4 | | Storage | Up to 4TB (1 x 2TB HDD included) | | Resolution | 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 768 | | Recording Rate | 120 fps at 1080p | | Switching Method | USB mouse, IR remote controller, front panel | | Display Split | 1/4 | | Recording Modes | Manual, schedule, motion detection, alarm | | Video Inputs | 4 x PoE ports | | Video Outputs | 1 x VGA
1 x HDMI | | Audio | No | | USB Port | 2 | | Network Interface | 1 x RJ-45 10/100/1000 Mb/s | | Power Requirements | NVR: 12 VDC, 2 A
PoE: 48 VDC, 1 A | | Dimensions (WxHxD) | 10.5 x 8.0 x 1.8" / 26.7 x 20.3 x 4.6 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 10.565 lb | | Box Dimensions (LxWxH) | 17.5 x 11.2 x 9.0" |
