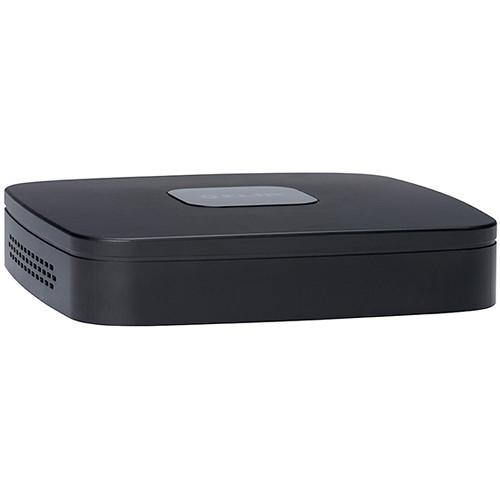

User Manual for FLIR DNR1100 Series 8-Channel 5MP NVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the FLIR DNR1100 Series 8-Channel 5MP NVR
- Product category: Network Video Recorders (NVRs) FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Network Video Recorders (NVRs)
|
User manual for the FLIR DNR1100 Series 8-Channel 5MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description With 8 integrated PoE inputs, the DNR1100 Series 8-Channel 5MP NVR with 2TB HDD from FLIR offers a quick setup for an easy-to-use surveillance solution. The NVR supports up to 8 cameras, with up to 5MP recording resolution at 240 fps per channel, and it uses H.264 video compression for maximizing storage and bandwidth without compromising video quality. Pentaplex operation allows up to 20 users to simultaneously view live video, record, playback, backup, and remotely monitor from multiple locations. An RCA input and output allow for 2-way audio, HDMI and VGA interfaces provide high-definition video output, and two USB ports enable data transfer and mouse navigation.
The NVR comes with a 2TB preinstalled HDD, however, it can be upgraded to 4TB when more storage is required. The system features a FLIR Cloud connection for remote access, and it supports Windows and Mac web browsers as well as iOS and Android mobile devices. Email notifications with text and snapshots can be sent when motion is detected, and the NVR records up to 30 seconds before the event and up to 5 minutes after the event for full surveillance of any movement. Auto-discovery will automatically register FLIR IP cameras to the system, without requiring programming or confusing instructions. To connect cameras to the NVR, simply download the FLIR Cloud app, scan the QR code on the NVR, and begin viewing live - High-Capacity Processing
-
- Real-time recording in full HD on each channel
- Supports HD recording with cameras up to 5MP resolution
- Simultaneous view, record, playback, backup, and remote monitoring
- 80 Mbps network bit rate processing
- Easy Installation
-
- Four integrated PoE inputs for quick, convenient connection
- 50W total PoE (up to 25W per channel)
- Auto-discovery of FLIR IP cameras with no programming
- Backup and Recording
-
Backup to keep data secure - Includes 2TB of storage
- Supports SATA HDD up to 4TB
- Back-up via 2 x USB 2.0 ports
- Quick and Secure Remote Viewing
-
- Remote access via iOS and Android mobile devices, as well as Windows/Mac
- Three easy steps for setup: install cloud app, scan QR code on NVR, view live video
- Multisite viewing on FLIR Cloud CMS for Windows/Mac
UPC: 841430013631 In the Box FLIR DNR1100 Series 8-Channel 5MP NVR with 2TB HDD - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR1100 Series 8-Channel 5MP NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNR1182 Specs | Operating System | Embedded Linux | | Pentaplex Operation | Simultaneous view, record, playback, backup, remote monitoring | | Number of Channels | 8 | | | | Video | Inputs: 8 PoE
Outputs: HDMI, VGA | | Audio | Input: 1 x RCA
Output: 1 x RCA | | USB | 2 x USB ports | | Video Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | FLIR IP PTZ cameras only | | | | Live Display | 1, 4, 8 | | Speed | 240 | | OSD | On/Off | | System Navigation | USB Mouse | | Motion Area Setting | Adjustable grid (22 x 18) | | Sensitivity Levels | 100 | | Firmware Upgrade | Automatic over the Internet, via USB device, network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | | | Video Compression | H.264 | | Audio Compression | G.711 | | Resolution | 720p (1280 x 720), 1080p (1920 x 1080), 3 MP (2028 x 1536), 5 MP (2560 x 1920) | | Frame Rates | 240 fps @ 720p, 1080p, 3 MP, 5 MP | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by channel | | Pre Recording | 30 seconds (max) | | Post Recording | 5 minutes (max) | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | | | Playback Channel | 4 | | Playback Speed | Variable, max 16x | | Playback Players | Backup player | | Search | By time and event | | Log Search | Up to 1000 lines for motion detected, configuration changes, connects/disconnects, video loss | | Audio Play | Yes (audio camera required) | | | | Storage | Included: 2 TB
Capacity: Up to 1 x 4 TB HDD (SATA) | | Backup Media | USB flash drive, HDD, network | | Backup File Format | DAV or ASF file | | | | Cloud Connection | FLIR Cloud | | Supported OS | Windows, Mac OS | | Remote Software | Client Software (Windows/Mac) | | Email Notifications | Text with snapshot | | Mobile OS Support | iOS, Android | | DDNS | FLIR DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | | Network Interface | 10/100 Base-TX, RJ45 | | Bit Rate | Total: 80 Mbps
48 to 8192 kbps per camera | | IP Cameras Supported | FLIR | | | | Power Consumption | 12 W (no HDD installed) | | Power Supply | 100 to 240 VAC, 48 VDC, 2 A, 50/60 Hz | | PoE Power Output | 120 W (max 25 W per camera) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% (non-condensing) | | Dimensions | 10.6 x 1.8 x 8.1" (26.9 x 4.6 x 20.6 cm) | | Weight | 1.5 lb (0.7 kg) (without HDD) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 16.7 x 10.4 x 3.6" |
