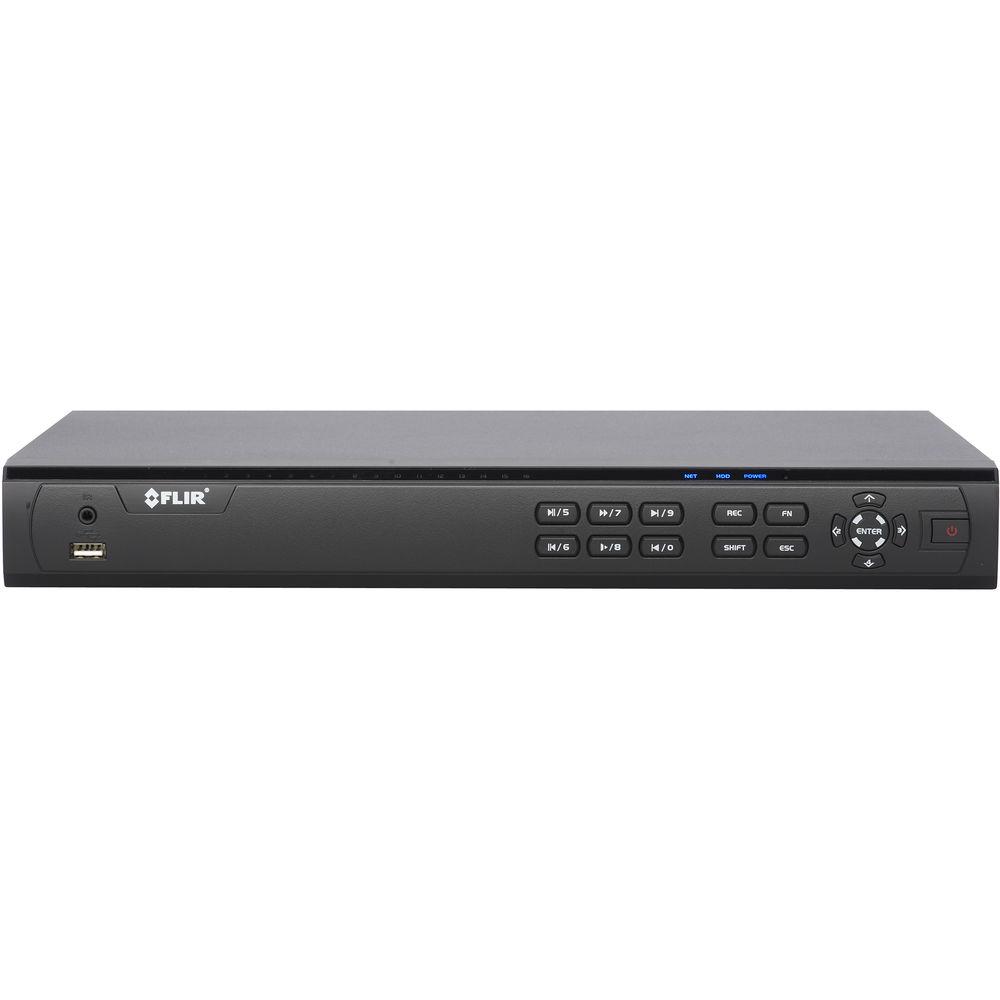

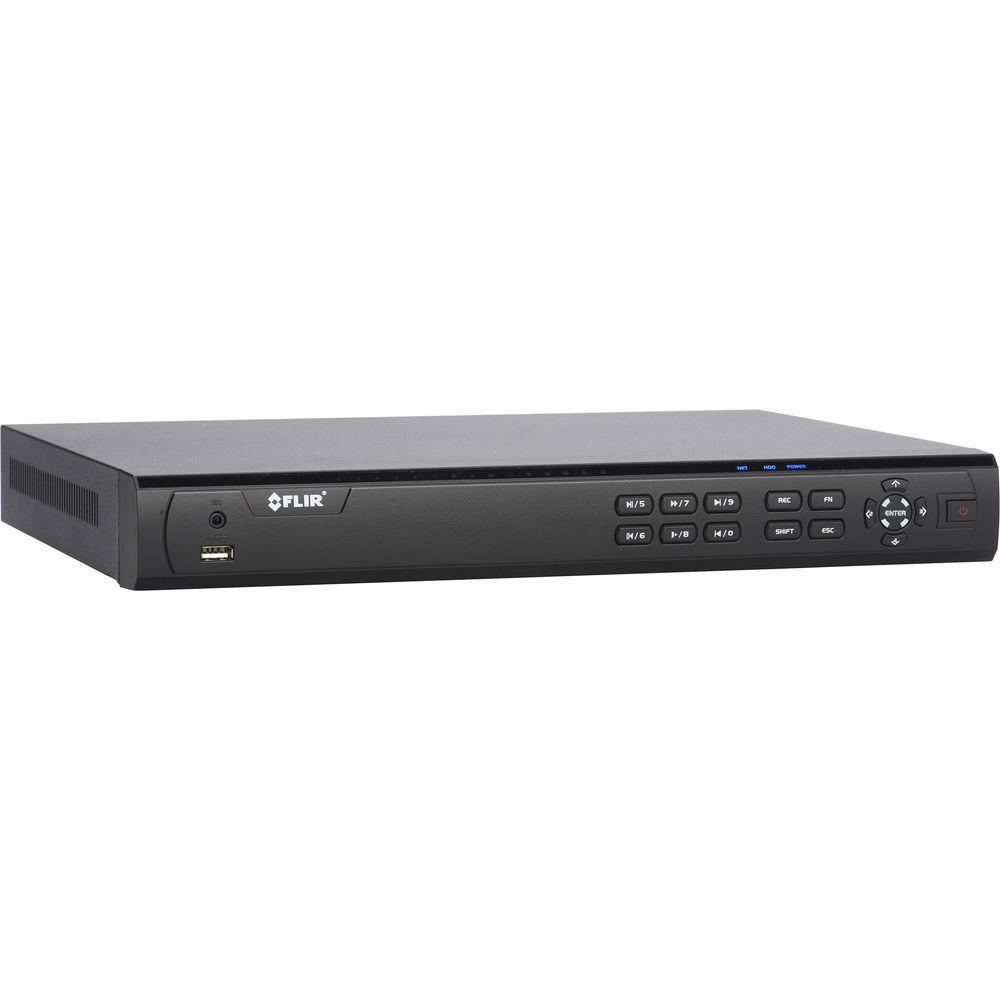

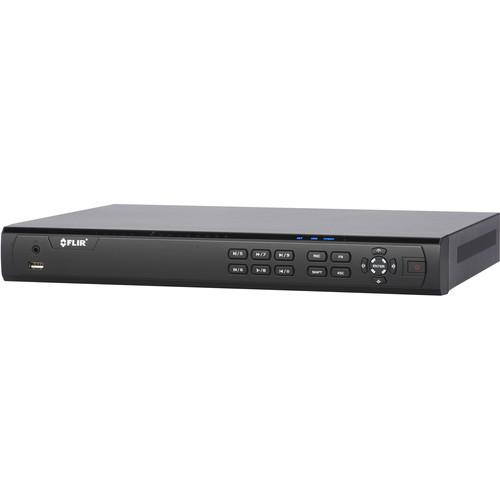

User Manual for FLIR DNR200 Series 8-Channel NVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the FLIR DNR200 Series 8-Channel NVR with
- Product category: Network Video Recorders (NVRs) FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Network Video Recorders (NVRs)
 |
User manual for the FLIR DNR200 Series 8-Channel NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description Supporting a variety of cameras, the DNR200 Series 8-Channel NVR with 1TB HDD from FLIR can be used to view and store 1080p video resolution in real-time for up to 8 cameras. 1TB of memory comes preinstalled on the recorder, but can be upgraded up to 6TB using the two SATA slots. The pentaplex NVR allows you to view, record, playback, backup, and remotely access the system simultaneously so you never have to stop recording to work with the system. With up to 20 simultaneous users, the NVR can be accessed remotely through a web browser or via a mobile device using the FLIR Cloud application. With PoE connections and auto-detection of cameras, the NVR is designed for easy setup. Note: If connecting more than 4 cameras, a PoE switch is required. - Hardware
-
- 8-channel, PoE camera input
- 1TB installed HDD

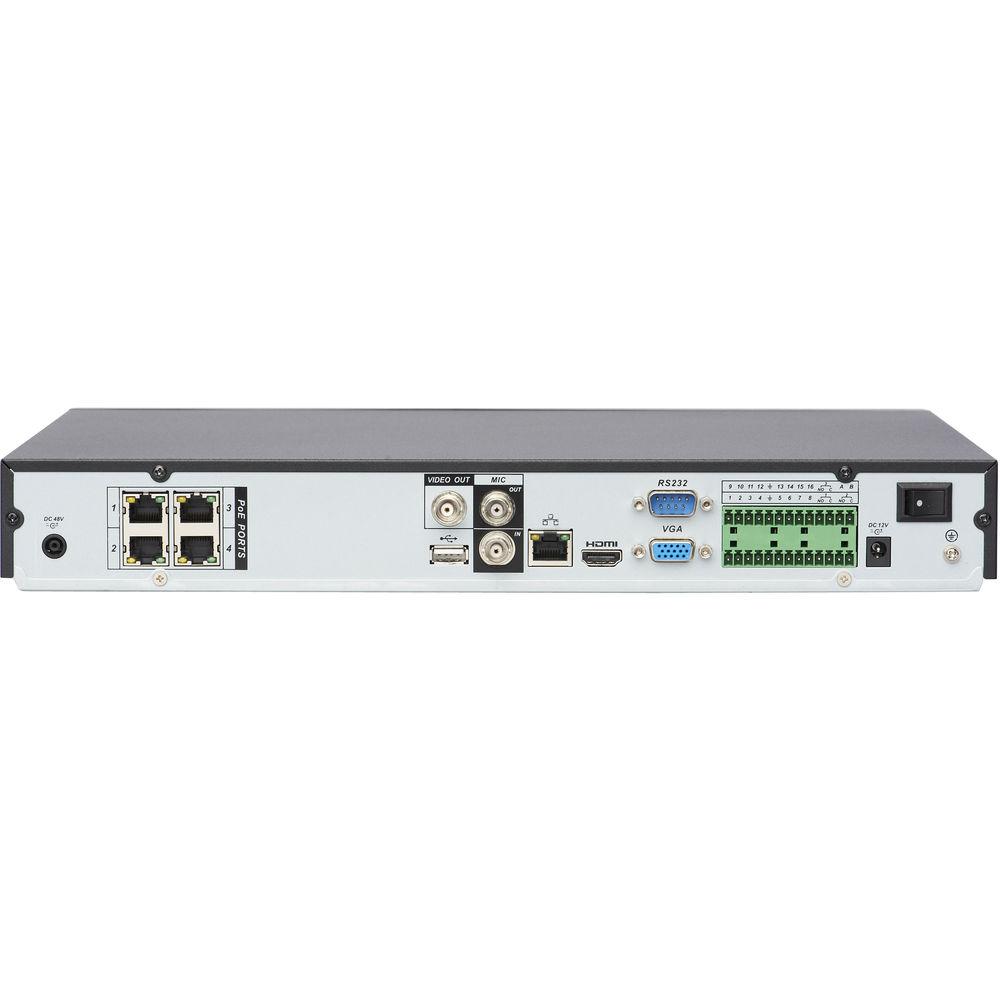

- BNC, HDMI, and VGA ports to connect multiple monitors
- RCA audio-in and audio-out ports
- Two USB ports for accessories and backup devices
- Software
-
- H.264 video compression for efficient bandwidth and HDD use
- Pentaplex operation: View, record, playback, backup, and remotely access the system simultaneously
- Control DVR via OSD with mouse, included remote control, and remote access
- Fast-forward/Rewind scan
- Recording
-
- Up to 1080p resolution
- Scheduled: Schedule by hour, day, recording mode, motion, channel
- Motion recording: Record only when motion is detected
- Supports audio recording with external mics or cameras equipped with mics
- Remote Access
-
- Windows, Mac OSX, Android, and iOS mobile device compatible
- Computer, tablet and smartphone remote accessibility
- Remote playback, push notifications for motion/alarm, E-map, and snapshot abilities from mobile application
- Security/Accessibility
-
- Individual user ID and password protection for on-site and remote access
- Two levels of access
- Administrator: Full access to all features and functions
- User: Access to live-view
UPC: 841430008026 In the Box FLIR DNR200 Series 8-Channel NVR with 1TB HDD - USB Mouse
- Remote Control
- Ethernet Cable
- 2 x Power Adapter
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR200 Series 8-Channel NVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNR208P1 Specs | Number of Supported Cameras | 8 | | Compatible Cameras | FLIR, Digimerge, Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Bosch, Canon, Honeywell, Pelco, Panasonic, Vivotek | | Multiplexing | Simultaneous view, record, playback, backup, and remote monitoring | | Compression | H.264 | | Frame Rate | 120 fps at 1080p
240 fps at 720p
480 fps at D1 | | Resolution | 1080p (1920×1080), 720P (1280×720), D1 (704×576, 704×480) | | Storage | Up to 6TB via 2 x SATA slots (1TB preinstalled) | | Display Modes | 1,4,8 | | Recording Modes | Manual, schedule, motion detection, alarm | | Audio Support | Yes | | PTZ Control | 1 x RS-485
Supports Pelco D and P | | USB | 2 ports | | Monitor Out | 1 x HDMI
1 x VGA
1 x BNC | | Audio I/O Connectors | 1 x BNC input
1 x BNC output | | Control Ports | 4 x PoE ports | | Alarm I/O | 8 x inputs | | Network Interface | 1 x RJ-45 port (10/100M/1000M) | | Protocols Supported | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search | | System Requirements | CPU: Core 2 Duo 3.0 GHz
OS: Windows 8/7/Vista
Memory: 2 GB
Video: 512 MB of video, minimum
LAN: 10/100 Base-T Network
WAN: 1 Mb/s upstream | | Power | NVR: 1 x 12 VDC, 5 A
PoE: 48 VDC, 1 A | | Operating Temperature | Not specified by manufacturer | | Dimensions (WxHxD) | 14.8 x 11.2 x 2.0" / 37.6 x 28.4 x 5.1 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 20.4 x 16.8 x 3.6" |
