User Manual for FLIR DNR500 Series 32-Channel 5MP NVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the FLIR DNR500 Series 32-Channel 5MP NVR
- Product category: Network Video Recorders (NVRs) FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Network Video Recorders (NVRs)
 |
User manual for the FLIR DNR500 Series 32-Channel 5MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

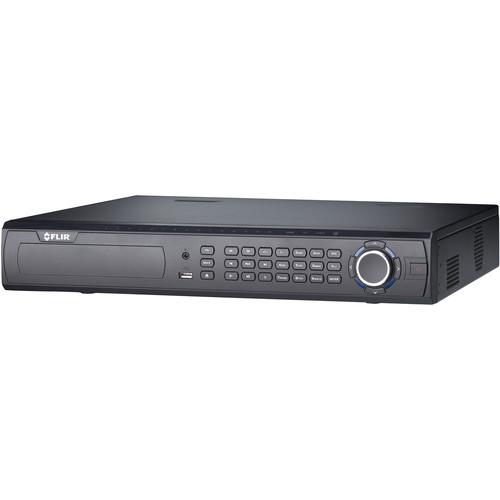

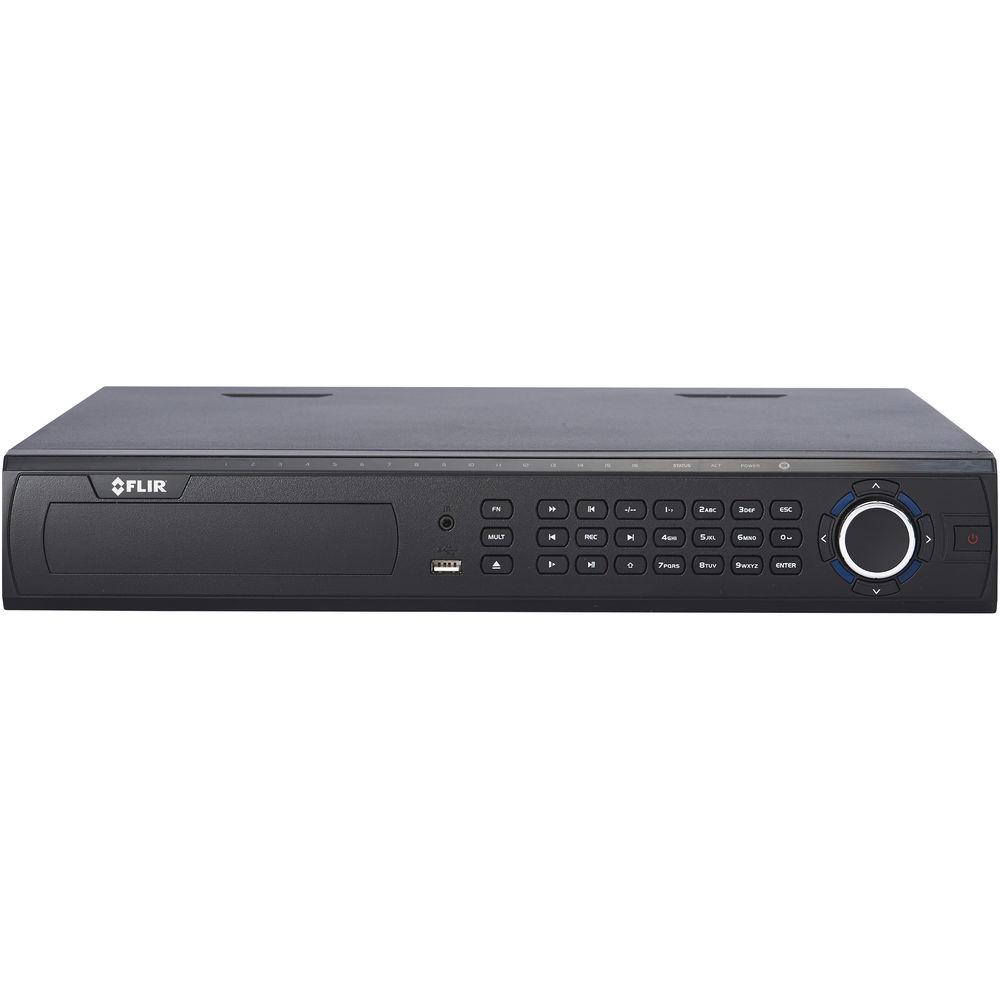

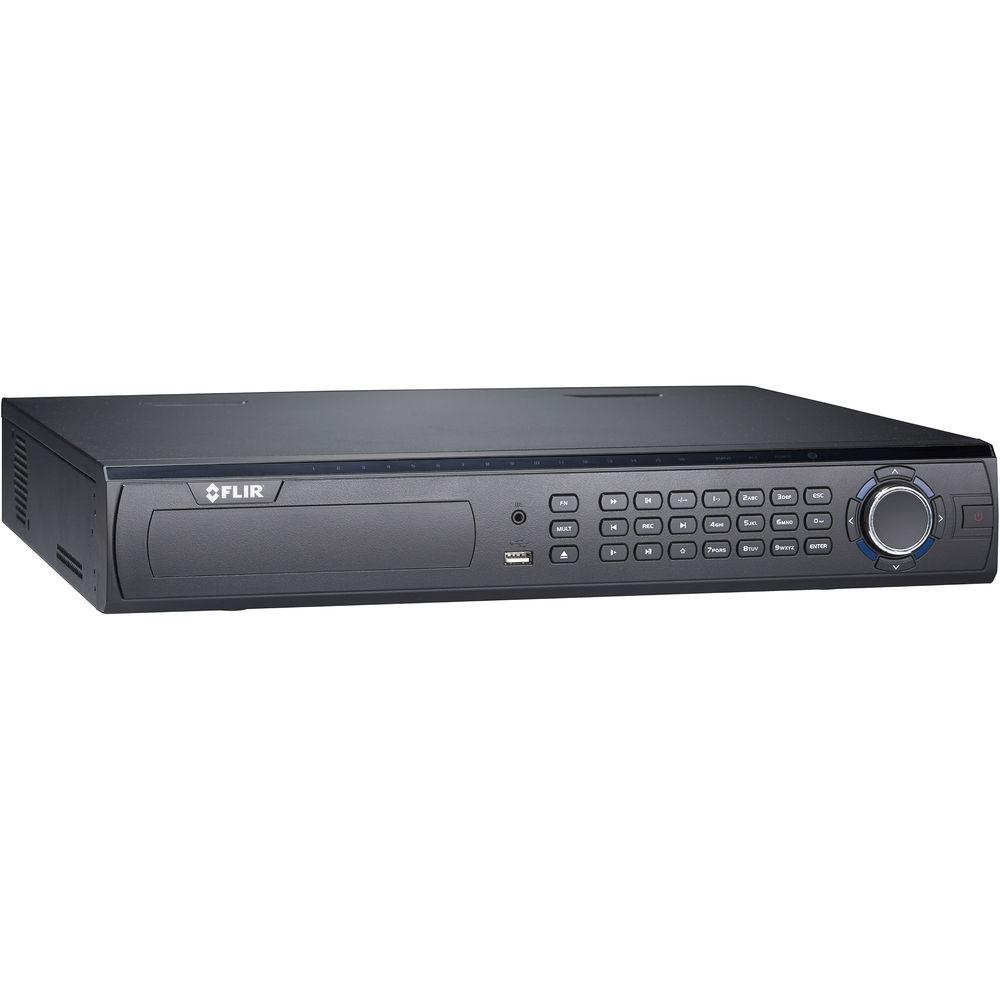

Product description The 8TB DNR500 Series 32-Channel 5MP NVR from FLIR can be used to view and store up to 5MP video, and it displays video in up to 1080p resolution. This pentaplex recorder allows you to simultaneously view, record, playback, backup, and remotely access the NVR, so that you never have to stop recording to work with the system. With sixteen integrated Power over Ethernet (PoE) inputs and PoE+ support, the NVR is designed for easy setup. No programming or configuration is necessary as the NVR automatically discovers FLIR IP Cameras on the network. The NVR can be accessed remotely through a web browser or via a mobile device using the FLIR Cloud application. By downloading the FLIR Cloud app on your PC/Mac/Android/iOS device you can get remote access to live or recorded video. Recording - Turbo 200 Mb/s network bit rate
- Supports HD real-time recording with up to 5MP cameras
- Pentaplex operation allows simultaneous view, record, playback, backup, and remote monitoring
- 8TB of preinstalled storage
- Drive mirroring using up to 4 internal HDDs
- Supports up to 4 SATA HDDs with a total capacity of 16TB
- eSata support for four external drives

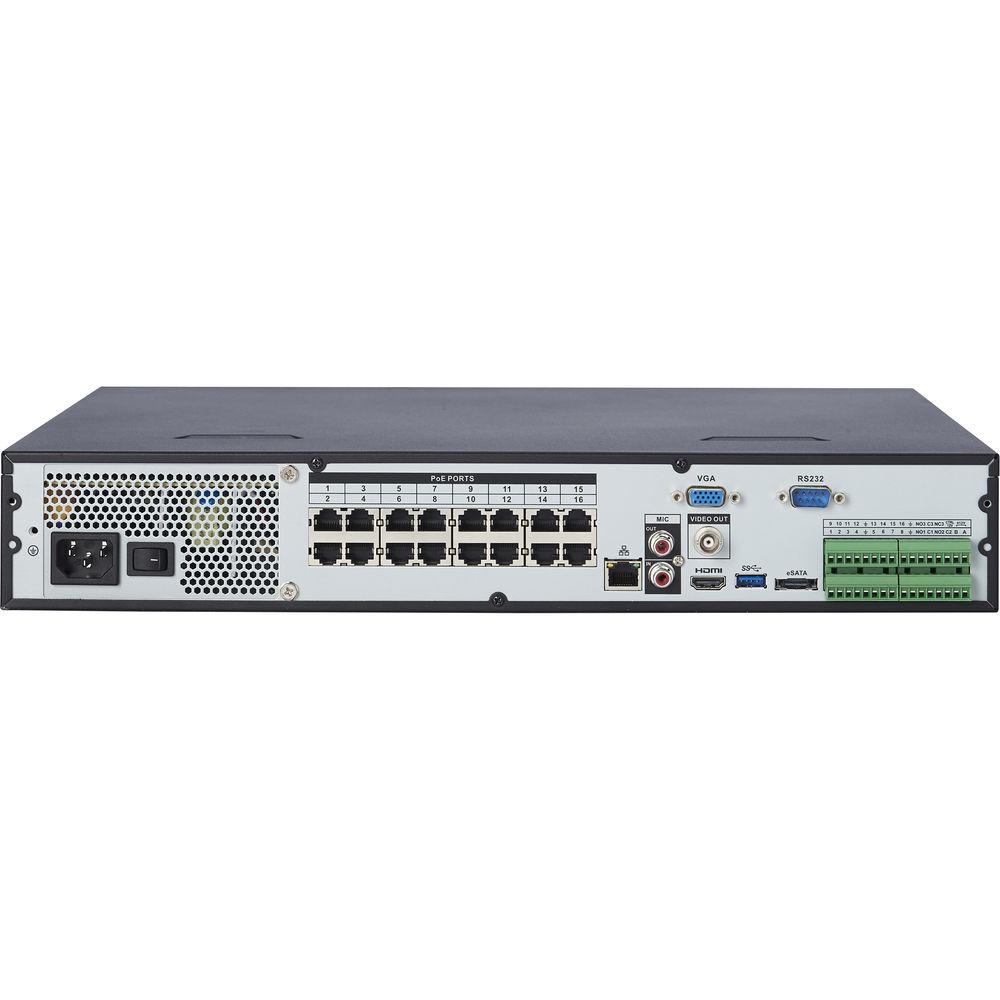

Hardware - 16 integrated PoE ports with PoE+ support
- 120W total PoE (up to 25W per channel)
- Auto-discovery of FLIR IP Cameras with no programming
FLIR Cloud Remote Viewing - Set up remote viewing in 3 easy steps: Install FLIR Cloud app, scan QR code on NVR, view live video
- Multisite viewing on FLIR Cloud CMS for PC / Mac
- Cloud platform offers premium services to receive Video Surveillance as a Service (VSaaS)
UPC: 841430009665 In the Box FLIR DNR500 Series 32-Channel 5MP NVR with 8TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR500 Series 32-Channel 5MP NVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNR532P8 Specs | | | Operating System | Embedded LINUX | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 32 | | | | Video In | 16 PoE video input | | Video Out | Yes, BNC | | Audio In | 1 x line input (RCA) for 2-way audio | | Audio Out | 1 x line output (RCA) for 2-way audio | | USB Port | 1 at the back, 1 at the front | | Alarm Input / Output | 16 alarm inputs
4 alarm outputs | | Video Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | RS-485, supports Pelco-D, and Pelco-P | | | | Live Display | 1/4/8/9/16 | | Live Display Speed | 480 fps NTSC | | OSD | Camera title, time, camera lock, motion detection, recording status | | System Navigation | USB mouse | | Motion Area Setting | Adjustable grid (22x18) | | Sensitivity | 100 | | Firmware Upgrade | Automatic over the Internet and via USB device and network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | | | Compression | H.264 | | Recording Resolution | 720p: 1280 x 720
1080p: 1920 x 1080
3 MP: 2028 x 1536
5 MP: 2560 x 1920
Total FPS: 960
Per Channel: 30 | | Recording Rate | 960 fps @ 720p / 1080p / 3 MP / 5 MP | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by channel | | Pre Recording | Maximum 30 seconds | | Post Recording | Maximum 5 minutes | | Reliability | Watchdog, auto-recovery after power failure | | | | Playback Channel | 1/4 | | Playback Speed | Variable max 16x | | Playback Players | Backup player | | Search | By time and event | | Log Search | Up to 1,000 lines for motion detected, configuration changes, connects/disconnects and video loss | | Audio Play | Yes (audio camera required) | | | | Storage | Included: 8 TB
Up to 4 HDDs (SATA) internal
Up to 4 HDD external using 1x eSATA port | | Maximum Capacity | 16 TB | | Backup Media | USB flash drive and HDD | | Backup File Format | DAV or ASF file | | | | Supported Operating Systems | Windows, Mac OSX | | Remote Software Configuration | Client Software (PC/Mac) | | Email Notification | Text with snapshot | | Mobile Connectivity | iPad, iPhone, Android | | DDNS | Free FLIR DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | | Network Interface | 10/100/1000Mbps, RJ-45 | | Bit Rate | 200 Mbs total 48 to 8192 kb/s per camera | | Supported Camera | IP Cameras: FLIR, Digimerge, Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Bosch, Canon, Honeywell, Pelco, Vivotek | | | | Power Consumption | Approximately 40 W (No HDD installed) | | Supply Voltage | 100 to 240 VAC, 50/60 Hz | | PoE | Total Power Output: 150 W (Max 25 W per camera) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Humidity | 10 to 90% RH | | Dimensions (W x H x D) | 17.3 x 16.1 x 2.8" (43.9 x 40.8 x 7.1 cm) | | Weight | 13.2 lb (5.9 kg) | | | | Package Weight | 17.8 lb | | Box Dimensions (LxWxH) | 20.9 x 19.2 x 8.0" |
