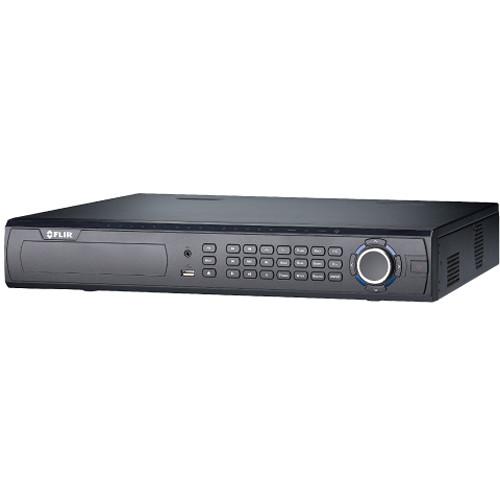

Product description Record from and manage up to 16 cameras with the DNR500R Series 16-Channel 4MP NVR with 2TB HDD from FLIR. This NVR has a recording resolution of up to 2688 x 1520. It comes with a preinstalled 2TB HDD. In the event more space is required, storage can be expanded to 24TB. Both H.264 and MJPEG compressions keep file sizes manageable while maintaining quality. The recorder is equipped with an audio input and output, along with HDMI and VGA video outputs. Remote access is available via a Windows or Mac PC, or via an iOS or Android mobile device using the FLIR Cloud app. - Auto-discovery of FLIR IP cameras without programming
- Drive mirroring between up to four internal HDDs
- eSATA supports up to four external drives (24TB total)
- Pentaplex operation enables simultaneous viewing, recording, playback, backup, and remote monitoring
- 200 Mb/s network bit rate
- FLIR Cloud app for iOS and Android enables remote access
- FLIR Cloud CMS for Windows and Mac
- Automatic firmware upgrades over the internet & via USB device and network
- 16 alarm inputs and four alarm outputs
- RS-485 PTZ control with support for Pelco D and Pelco P protocols
UPC: 841430014119 In the Box FLIR DNR500R Series 16-Channel 4MP NVR with 2TB HDD AC Power Cable Remote Control USB Mouse Ethernet Cable Rack Mount Brackets & Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR500R Series 16-Channel 4MP NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNR500R Specs | | | Operating System | Embedded Linux | | Pentaplex Operation | Simultaneous View, Record, Playback, Backup & Remote Monitoring | | Number of Channels | 16 | | | | Video In | 16 x PoE | | Video Out | BNC | | VGA Out | Yes | | HDMI | Yes | | Audio In | 1 x RCA Line In for Two-Way Audio | | Audio Out | 1 x RCA Line Out for Two-Way Audio | | USB Ports | 1 x Rear
1 x Front | | Alarm In | 16 | | Alarm Out | 4 | | Video Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | RS-485
Pelco D and Pelco P Protocols Supported | | | | Live Display | 1/4/9/16 | | Live Display Speed | NTSC: 480 fps
PAL: 400 fps | | OSD | Camera Title, Time, Camera Lock, Motion Detection, Recording Status | | System Navigation | USB Mouse | | Motion Area Setting | Adjustable Grid (22 x 18) | | Sensitivity | 100 | | Firmware Upgrade | Automatic Over the Internet & via USB Device and Network | | User Authority | By User Group | | Time Synchronization | Auto Time Sync by NTP Server | | | | Compression | H.264, MJPEG | | Recording Resolutions | 2688 x 1520 (4 MP), 2028 x 1536 (3 MP), 1920 x 1080 (1080p), 1280 x 720 (720p) | | Frame Rates | NTSC: 4 MP, 3 MP, 1080p, 720p at 480 fps
PAL: 4 MP, 3 MP, 1080p, 720p at 400 fps | | Recording Quality Control | 6 Levels | | Recording Schedule | By Hour, By Day, By Recording Mode, By Motion, By Channel | | Pre Recording | Maximum 30 Seconds | | Post Recording | Maximum 5 Minutes | | Reliability | Watch-Dog, Auto-Recovery After Power Failure | | Covert Video | Yes | | | | Playback Channel | 1/4 | | Playback Speed | Variable, Maximum 16x | | Playback Players | Backup Player | | Search | By Time & Event | | Log Search | Up to 1000 Lines for Motion Detected, Configuration Change, Connects/Disconnects, and Video Loss | | Audio Play | Yes (Audio Camera Required) | | | | Storage | Up to 4 SATA HDDs (Internal)
Up to 4 HDDs Using eSATA Port (External) | | HDD Included | 2 TB | | HDD Capacity | 4 x 6 TB (Internal)
4 x 6 TB (External, eSATA) | | Backup Media | USB Flash Drive & HDD | | Backup File Format | H.264 | | | | Cloud Connection | FLIR Cloud | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client Software (Windows/Mac) | | Email Notification | Text with Snapshot | | Supported Mobile Devices | Android, iPad, iPhone | | DDNS | Free FLIR DDNS | | System Configuration | Full Setup Configuration Over Network | | Ports | Programmable by User | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter | | Network Interface | 1 x 1000M RJ45 | | Network Bit Rate | 200 Mb/s Total
48 to 8192 kb/s per Camera | | IP Cameras Supported | FLIR, Digimerge, Panasonic, Sony, Dynacolor, Samsung, Axis Communications, Arecont, Bosch, Canon, Honeywell, Pelco, Panasonic, and Vivotek | | | | Power Consumption | 40 W (No HDD Installed) | | Supply Voltage | 100 to 240 VAC, 50/60 Hz | | PoE Power Output | 150 W (Maximum 25 W per Camera) Across All Channels | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Dimensions (W x H x D) | 17.3 x 16.1 x 2.8" / 440 x 410 x 70 mm | | Weight | 13.2 lb / 6 kg | | | | Package Weight | 17.3 lb | | Box Dimensions (LxWxH) | 20.7 x 19.8 x 7.6" |
