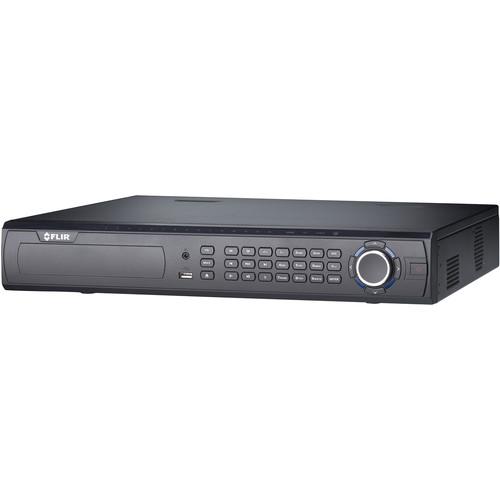

User Manual for FLIR DNR800 Series 32-Channel 8MP PoE NVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the FLIR DNR800 Series 32-Channel 8MP PoE
- Product category: Network Video Recorders (NVRs) FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Network Video Recorders (NVRs)
|
User manual for the FLIR DNR800 Series 32-Channel 8MP PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 video channels with this DNR800 Series PoE NVR from FLIR at resolutions of up to 4K at 8MP. Equipped with four SATA ports, each of which can accommodate an HDD up to 6TB, this NVR supports up to 24TB of internal storage (2TB preinstalled). External storage options include PCs via Internet connection, network servers, eSATA drives, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.264 or H.265 compression. An integrated PoE switch powers up to 16 IP cameras directly via the network connection.
The NVR enables simultaneous live-view of up to 32 channels and simultaneous playback of up to four channels via its VGA and HDMI ports, supporting video output resolutions of up to 3840 x 2160. Up to 32 channels can be recorded simultaneously with a maximum incoming bandwidth of 320 Mbps. Internet connectivity enables remote monitoring via PCs as well as from iOS and Android devices. The NVR is equipped with RCA input and output connectors. Note: Not compatible with FLIR Quasar and Horizon 4K cameras - Pentaplex operation with simultaneous view, record, playback, backup, and remote monitoring
- Auto-discovery of FLIR IP Cameras with no programming
- Drive mirroring between up to four internal HDDs
- eSATA support for four external drives
- Easy setup of remote live-view by installing FLIR Cloud app and scanning QR code on NVR
- Multisite viewing on FLIR Cloud CMS for Windows or Mac
UPC: 841430017851 In the Box FLIR DNR800 Series 32-Channel 8MP PoE NVR with 2TB HDD AC Power Cable Remote Control USB Mouse Ethernet Cable Mounting Hardware Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR DNR800 Series 32-Channel 8MP PoE NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR DNR800 Specs | | | Compatibility | Not compatible with FLIR Quasar and Horizon 4K cameras | | Number of Channels | 32 | | Operating System | Linux, embedded | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | | | Video Inputs | 16 x PoE ports | | Video Output Ports | 1 x VGA
1 x HDMI | | Audio | 1 x RCA line input, for service only
1 x RCA line output, for service only | | USB Port | 1 x USB 2.0 port, front panel
1 x USB 3.0 port, rear panel | | Alarm | 16 x alarm inputs
6 x alarm outputs | | Video Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | FLIR IP PTZ cameras only | | | | Live Display | 1, 4, 9, 16, 32 | | Live Display Speed | NTSC: 960 fps
PAL: 900 fps | | OSD | On/off | | System Navigation | USB mouse, IR remote controller, and front panel buttons | | Motion Area Setting | Fixed grid (22 x 18) | | Sensitivity | 100 levels | | Firmware Upgrade | Automatic (via Internet, USB device, or network) | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | | | Video Compression | H.264 / H.265 | | Audio Compression | G.711 | | Recording Resolution | 720p (1280 x 720), 1080p (1920 x 1080), 4K 8 MP (3840 x 2160) | | Recording Frame Rate | 960 fps
30/25 fps per channel at 8 MP, 4 MP, 3 MP, 1080p, 720p | | Recording Quality | 6 control levels | | Recording Schedule | By hour, day, recording mode, motion, alarm, or channel | | Pre-Recording | 4 seconds max. | | Post Recording | 5 minutes max. | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4 | | Playback Speed | Variable, maximum 16x | | Playback Players | Backup Player | | Search | By time and event | | Log Search | Up to 1000 lines for motion detected, configuration changes, connects/disconnects, and video loss | | Audio Play | Yes (audio camera required) | | | | Storage | 4 x SATA HDDs
1 x external eSATA | | Storage Capacity | 2 TB preinstalled, 24 TB max (4 x 6 TB) | | Backup Media | USB flash drive and HDD | | Backup File Format | DAV or ASF file | | | | Cloud Connectivity | FLIR Cloud | | Supported OS | Windows, Mac OS X | | Remote Setup | Client Software (Windows/Mac) | | Email Notifications | Text with snapshot | | Mobile OS Support | iOS, Android | | DDNS | FLIR DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP filter | | Bit Rate | 320 Mbps total, 48 to 8192 kbps per camera | | Network Interface | 10/100/1000-Base-TX, RJ45 | | | | Power Consumption | 15 W approx. (without HDDs) | | Supply Voltage | 100 to 240 VAC, 50/60 Hz | | PoE Power Output | 130 W (25 W max. per camera) | | Operating Temperature | 14° to 131°F (-10 to 55°C) | | Humidity | 10 to 90% RH | | Dimensions | 17.3 x 16.4 x 2.9" (440 x 417 x 76 mm), 1.5 RU | | Weight | 10.3 lb (4.7 kg) | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 20.5 x 19.5 x 7.5" |
