Product description - First Look: FLIR FX
- FLIR FX: More
- FLIR FX: RapidRecap Intro

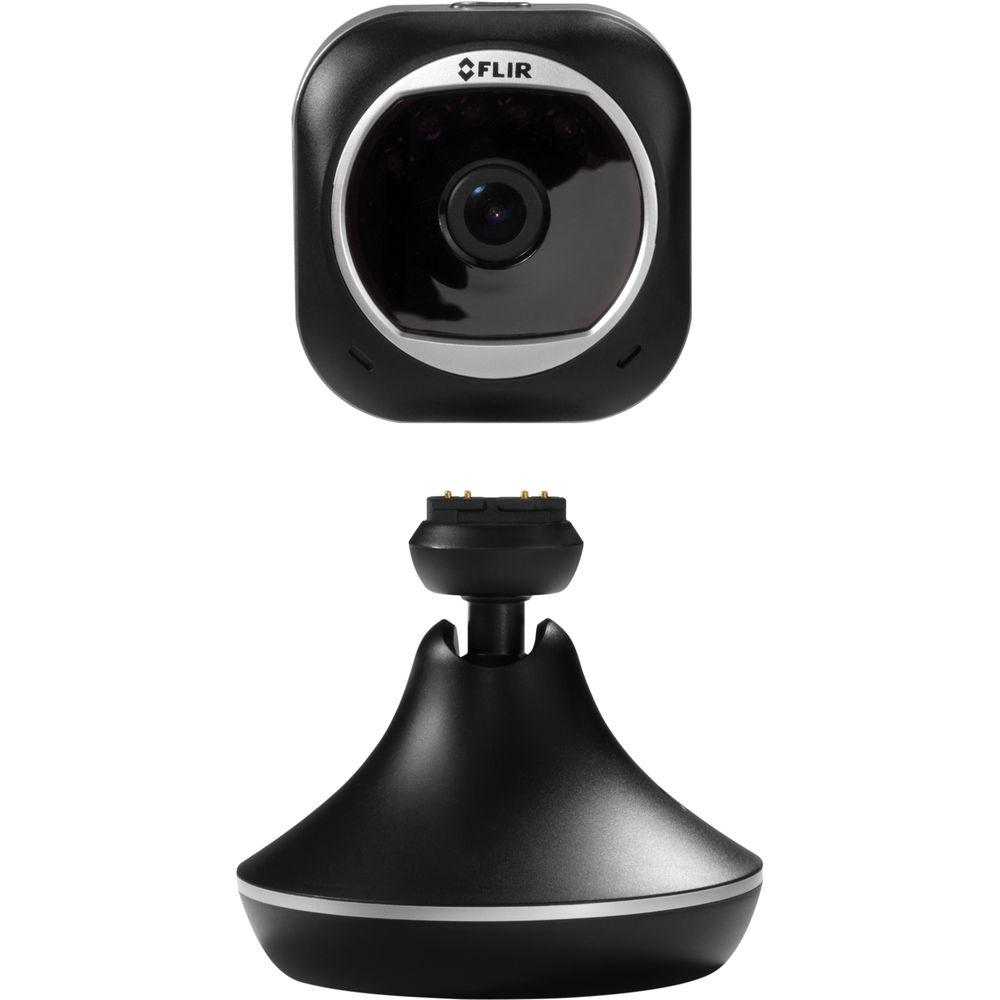

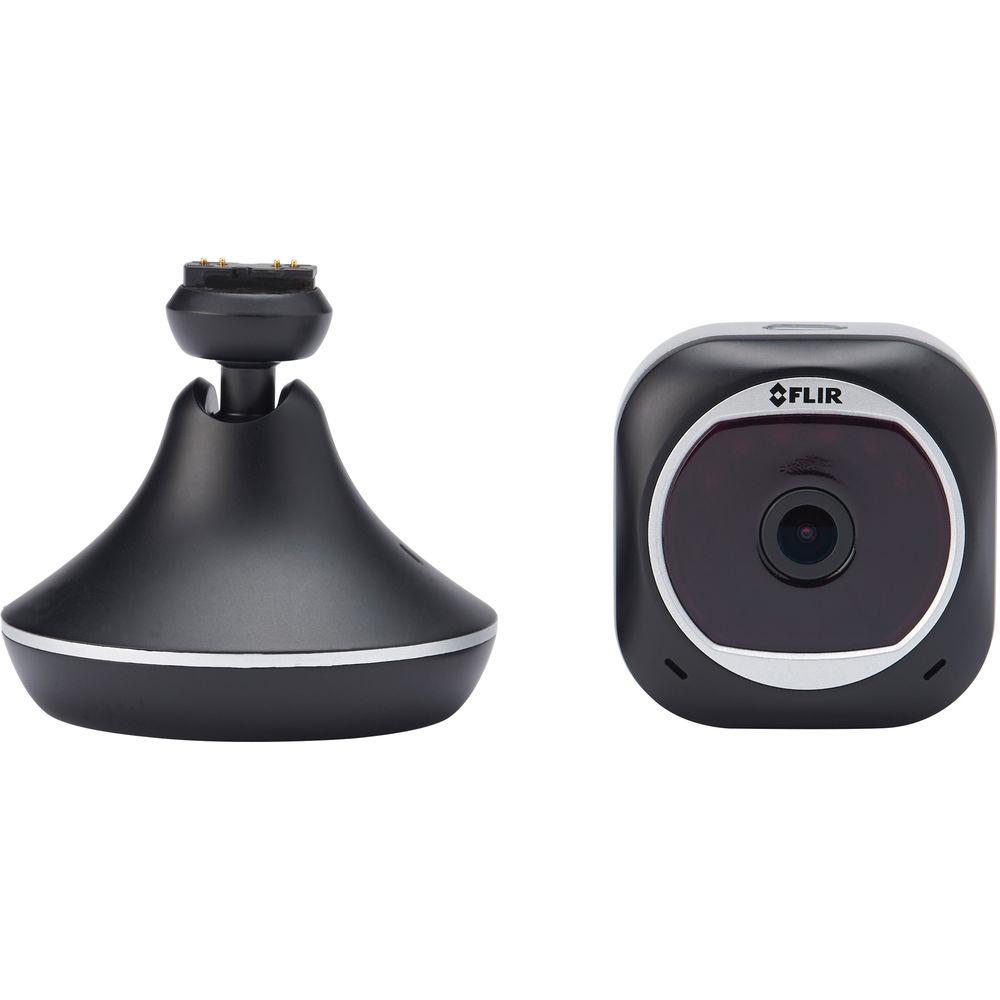

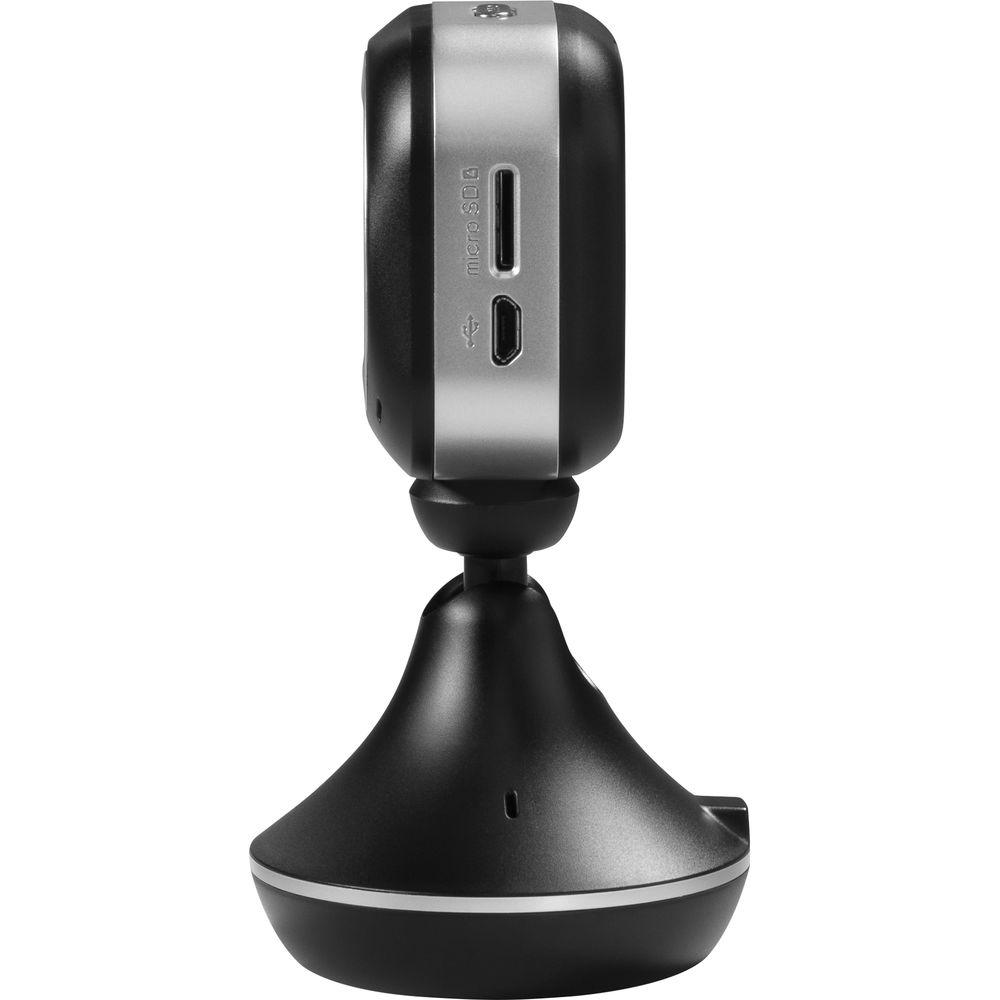

The portable FLIR FX is a versatile wireless HD monitoring camera lets you keep an eye on the things that you care about most, at any time and from any place, on your mobile device. The camera records up to 1080p video at 30 fps, takes 4MP still images, and is equipped with an ultra-wide 160° lens to capture nearly the entire scene in front of it. Built for maximum versatility, the FX can be used with a range of optional accessories, including a waterproof housing, dashboard mount, and a weatherproof outdoor housing. This configuration is designed for indoor use and includes a camera stand that can be placed on a flat surface or wall-mounted for a more permanent installation.
Built-in Wi-Fi lets you remotely monitor and review your videos using the FLIR FX app for iOS and Android devices. The app also lets you take advantage of the camera's SmartZone feature, which lets you select specific areas to monitor and have recording triggered and alerts sent to you when motion is detected. Video is recorded to Class 10 microSDHC/SDXC memory cards up to 64GB in size. An 8GB card is included. Additionally, you can send WVGA resolution files directly on FLIR's Cloud server for storage and review. A free Cloud Basic option is available for storing up to three videos on the cloud for up to 48 hours. For unlimited clips and longer storage duration, paid Cloud Plus and Cloud Premium subscriptions are available.
The camera has an internal battery that provides up to two hours of use. An additional battery within the camera stand extends battery life to four hours. The camera can also be powered continuously using via its USB port using an included 10' USB cable and power adapter. In the event that the power goes out, the camera will revert to its internal battery. - Key Features
-
- Wireless, portable HD camera for indoor use
- 4MP 1/3" CMOS sensor
- Records up to 1080p30 video
- 4MP still images
- Ultra-wide 160° lens
- Built-in Wi-Fi
- iOS and Android app for remote monitoring and playback of recorded clips on your mobile device
- SmartZone: Recording and alerts only happen when motion is detected in areas you select
- FLIR Cloud service lets you upload WVGA files on FLIR's servers (free and paid subscriptions available)
- RapidRecap for reviewing hours of footage stored on the FLIR Cloud
- Night Vision: 6x IR LEDs with up to 33' range
- Mic in microphone and speaker for 2-way audio support
- LED indicators: Cloud mode, direct mode, recording, charging
- Internal battery provides 2 hours of use (4 hours of use when combined with the Indoor Stand's built-in battery)
- Optional outdoor housing, waterproof sports case, and dashboard mount
UPC: 841430009832 In the Box FLIR FX Versatile HD Monitoring Camera Indoor Stand Wall Mounting Hardware 8GB microSDHC Class 10 Card 10' USB Cable USB Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR FX Versatile HD Monitoring Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR FX Series Specs | Image Sensor | 4-Megapixel, 1/3" CMOS | | Video Resolution | Up to 1080p | | Frame Rate | Up to 30 fps | | Video Compression | H.264 | | Lens | 2.45 mm, f/2.5 | | Field of View | Up to 160° horizontal (video de-warping) | | Night Vision | 6 x IR LED
Range: 33' (10 m) | | Wi-Fi | 2.4 GHz, 802.11 b/g/n | | Recording Media | microSDHC/SDXC, 8 GB to 64 GB (class 10 or higher) | | Built-In Microphone | Yes | | Built-in Speakers | Yes | | Battery | Camera: 1130 mAh
Indoor Stand: 1130 mAh | | Battery Life (approx.) | Camera Battery Only: 2 hours
Camera Battery Plus Indoor Stand: 4 hours | | USB Interface | Micro-USB for power / file transfers | | Power Adapter | 5 VDC, 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | Camera: 2.0 x 1.2 x 2.3" (5.1 x 3.1 x 5.9 cm)
Stand: 2.7 x 2.3 x 4.7" (7.0 x 6.0 x 12.1 cm) | | Weight | Camera Only: 2.8 oz (80 g)
Camera with Stand: 7.2 oz (204 g) | | | | Package Weight | 1.59 lb | | Box Dimensions (LxWxH) | 8.35 x 7.6 x 2.8" |
