FLIR LS-X 336 x 256 Thermal

Search your instruction manual in PDF to download

User Manual for FLIR LS-X 336 x 256 Thermal Monocular

Click to enlarge the picture
FLIR LS-X 336 x 256 Thermal Monocular Contents of the user manual for the FLIR LS-X 336 x 256 Thermal
  • Product category: Thermal Imagers FLIR
  • Brand: FLIR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FLIR Thermal Imagers

FLIR LS-X 336 x 256 Thermal Monocular FLIR LS-X 336 x 256 Thermal Monocular FLIR LS-X 336 x 256 Thermal Monocular
User manual for the FLIR LS-X 336 x 256 Thermal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FLIR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!



Product description

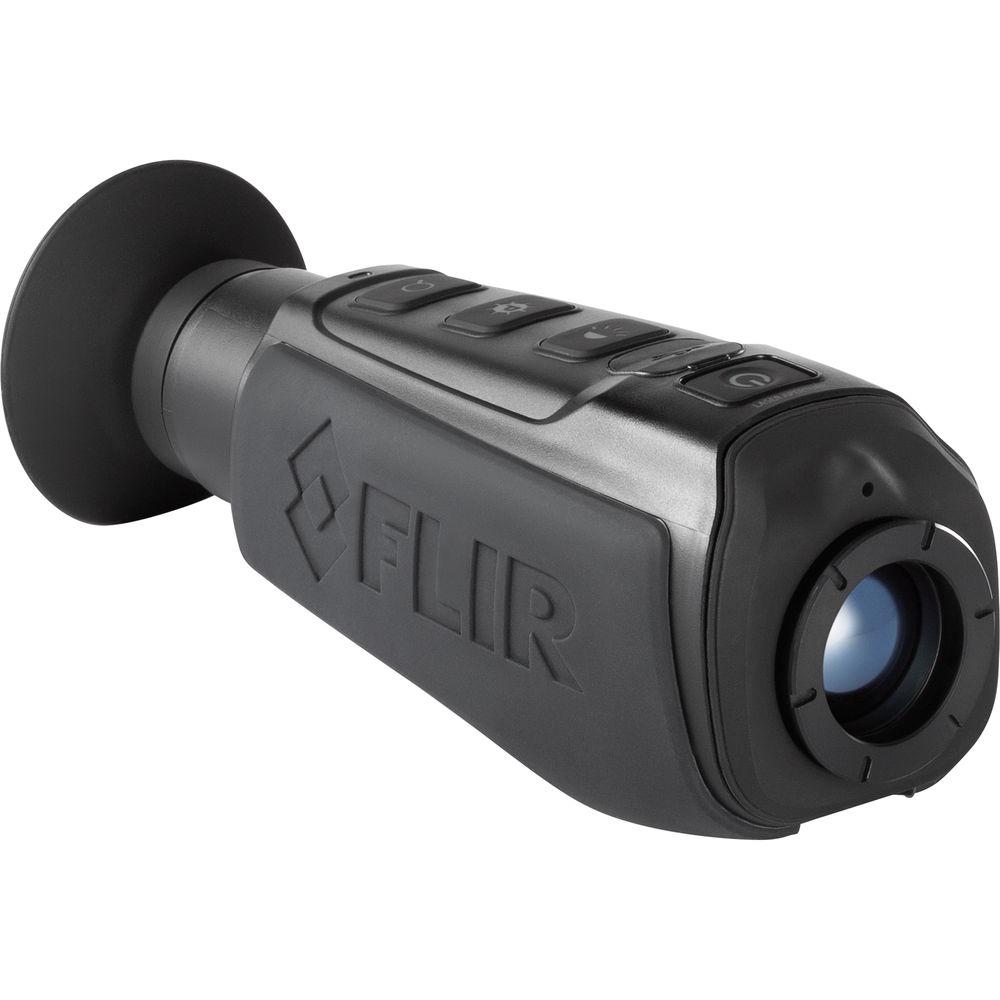

FLIR LS-X 336 x 256 Thermal Monocular is a handheld thermal imaging device designed primarily for law enforcement professionals but can be useful for anyone. You can view, record, or relay images and videos of thermal signatures through fog, smoke, and foliage during the day or at night. At the core of this device is the 336 x 256 VOx uncooled microbolometer that operates at room temperature at a 7.5 Hz refresh rate. This thermal imager features a 19mm lens with a 17 x 13° field of view, 2-4x digital zoom, and a number of palettes and digital enhancements like the FLIR Proprietary Digital Detail Enhancement. You can view scenery on the built-in 640 x 480 LCD display or relay 640 x 512-pixel NTSC or PAL videos to external displays and recorders. To enhance user experience, the monocular offers a simple but effective control pad and an in-view menu.

This thermal imaging device is packaged into a lightweight, durable, and ergonomic polymer body. Its rubberized covering provides a non-slip grip, and its rubber eye cup offers comfort and protects eyepiece optics from rain and snow. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security.
    Imaging Performance
    • 336 x 256 VOx microbolometer
    • 19mm lens with 17 x 13° field of view
    • 7.5 Hz refresh rate
    • 2x and 4x digital zoom
      Video, Display, Memory
      • FLIR Proprietary Digital Detail Enhancement
      • 640 x 480 LCD display with brightness adjustment
      • Black Hot, White Hot, InstAlert polarity modes
      • Built-in red laser pointer allows precise aiming
      • Default NTSC video output via custom USB to RCA cable
      • Output switchable to PAL via user GUI
      • Manual focus lens
        Construction Details
        • Durable and lightweight polymer housing
        • Rubber covering for a non-slip grip
        • Impact-resistant
        • Rubber eyecup
        • Waterproof
        UPC: 812462020355 In the Box FLIR LS-X 336 x 256 Thermal Monocular (7.5 Hz)
      • USB Power Adapter/Charger
      • Wrist strap
      • Custom Video Out Cable
      • USB Cable
      • Molle Bag
      • Limited 3-Year Warranty
      • Limited 10-Year Warranty on Thermal Sensor
