User Manual for FLIR MNVD 40 2nd Gen SD Multi-Purpose Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the FLIR MNVD 40 2nd Gen SD
- Product category: NV Monoculars & Multi-Systems FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR NV Monoculars & Multi-Systems
 |
User manual for the FLIR MNVD 40 2nd Gen SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

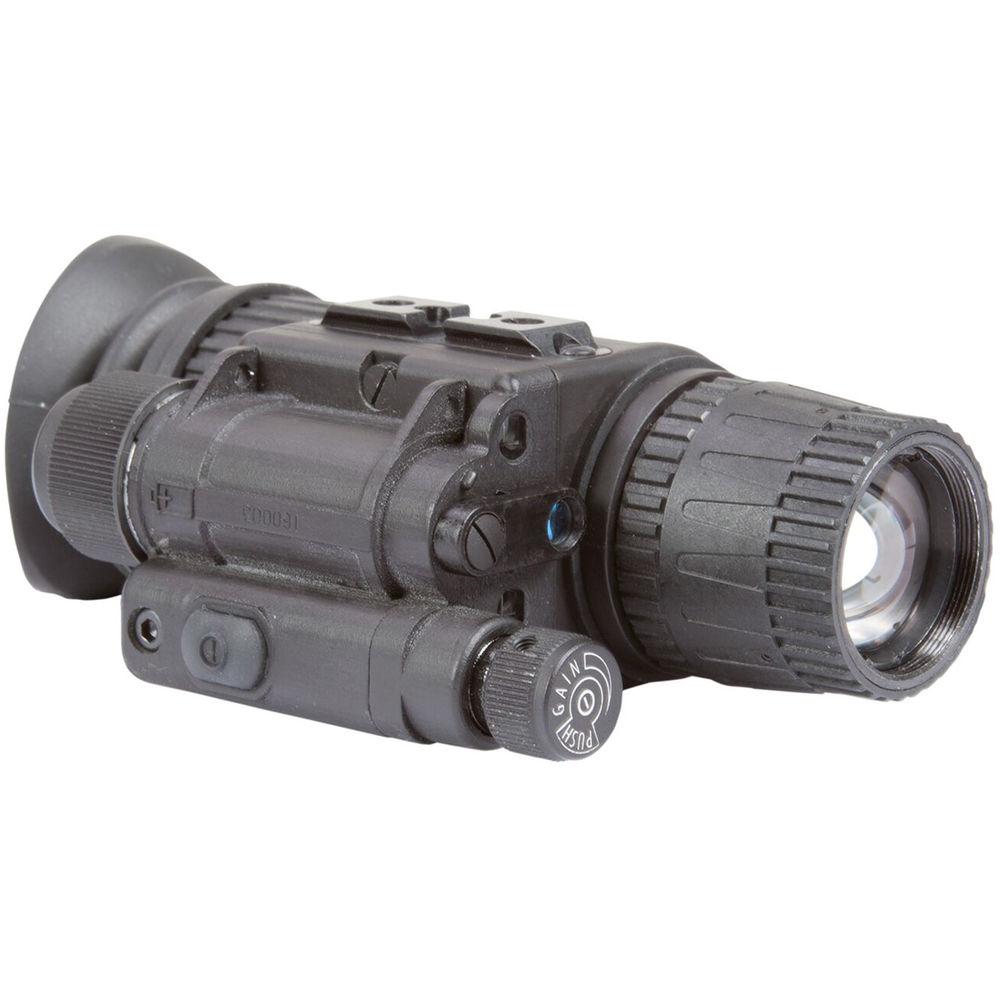

Product description Own the night with the PVS14-style MNVD 40 2nd Gen SD Multi-Purpose Night Vision Monocular from ARMASIGHT by FLIR. This 2nd-generation night vision monocular can be used as a handheld device or mounted on your firearm or headgear. Measuring only 4.5" in length, the monocular is ultracompact and can readily fit in the palm of your hand. The device features a a standard-definition (SD) 2nd-genearation image intensifier tube (IIT) and an f/1.3 27mm lens system with a short, 9.8", close-focus distance and a wide 40° angle of view. To protect the tube from accidental damage due to flashes of light, the electronics feature a bright light cutoff function, and to ensure proper brightness and contrast, it has a manual gain control. Another highlight is a built-in illuminator for reading maps.
To enable to you to venture almost anywhere, this night vision device has a weather-resistant composite body, designed to withstand extreme temperatures. For ease of adjustment and non-slip operation in any weather, all the rings and adjusters are heavily knurled. To make for a comfortable fit and prevent leakage of light exiting the eyepiece, the ocular is outfitted with an extra wide rubber winged eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Night Vision Sensor & IR Illuminator
-
- 2nd-generation SD intensifier tube
- Bright light cutoff
- Manual brightness control
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification

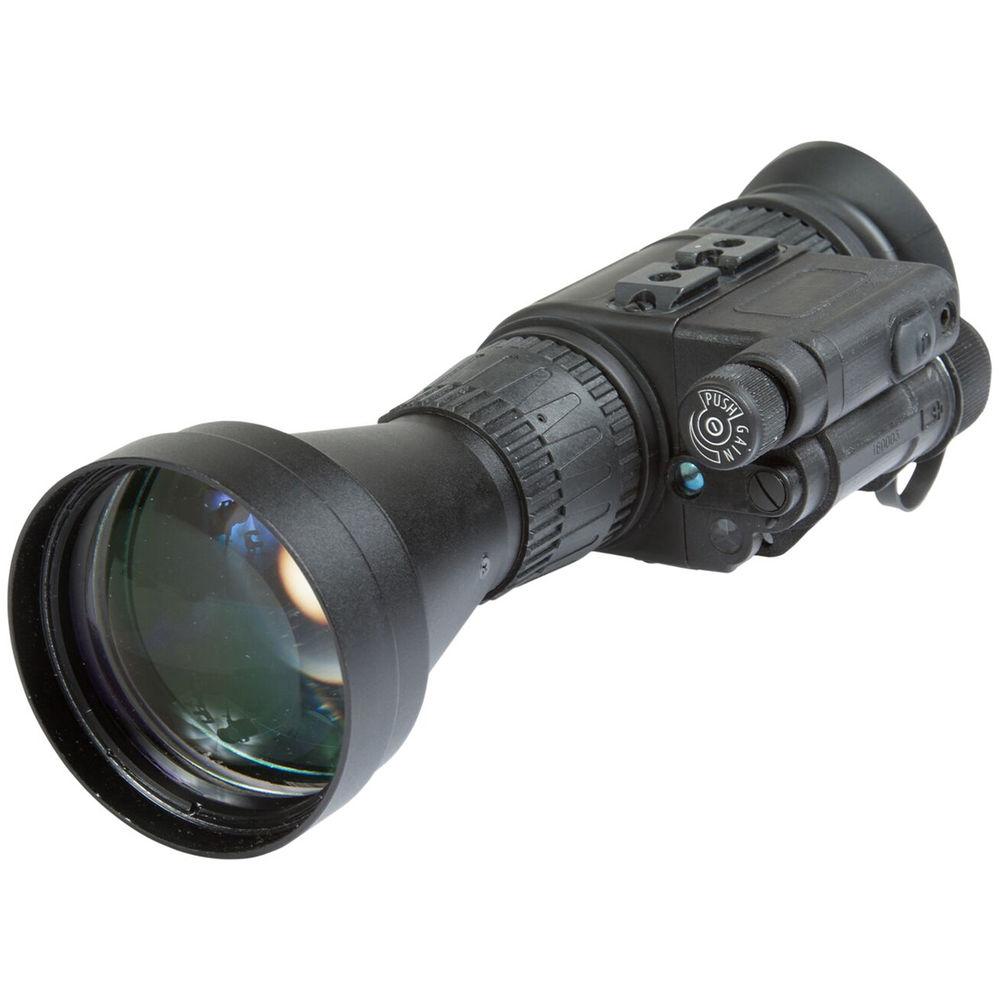

- Compatible with optional lenses
- 40° wide angle of view
- f/1.3, 27mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +2 to -6 diopter correction
- Built-in IR and low-battery indicators

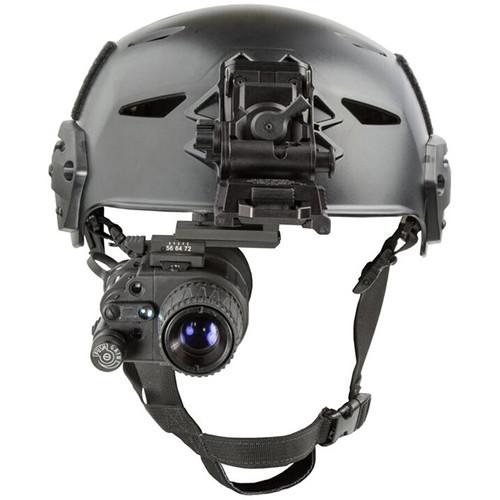

- Can be used as a handheld device or mounted on a firearm and headgear
- Construction Details
-
- Composite polymer housing
- Durable and lightweight
- Compact and ergonomic design
- Mounting point for headgear
- Knurled adjusters and rings give a non-slip grip
- Wide winged rubber eyecup
- Weather resistant
UPC: 849815009934 In the Box FLIR MNVD 40 2nd Gen SD Multi-Purpose Night Vision Monocular (Matte Black) - CR123A Battery
- Soft Carry Case
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR MNVD 40 2nd Gen SD Multi-Purpose Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR MNVD 40 Specs | Intensifier Tube | 2nd-generation SD tube
Multi-alkali photocathode | | Magnification | 1x | | Angle of View | 40° | | Lens System | f/1.3, 27mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Eye Relief | 1.0" / 2.5 cm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes | | Battery | 1 x AA battery
or 1 x CR123A battery | | Runtime | 40-hour maximum | | Weatherproofing | Not provided by manufacturer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.6 x 2.8 x 1.9" / 11.5 x 7.3 x 4.8 cm | | Weight | 12.0 oz / 340.0 g |
