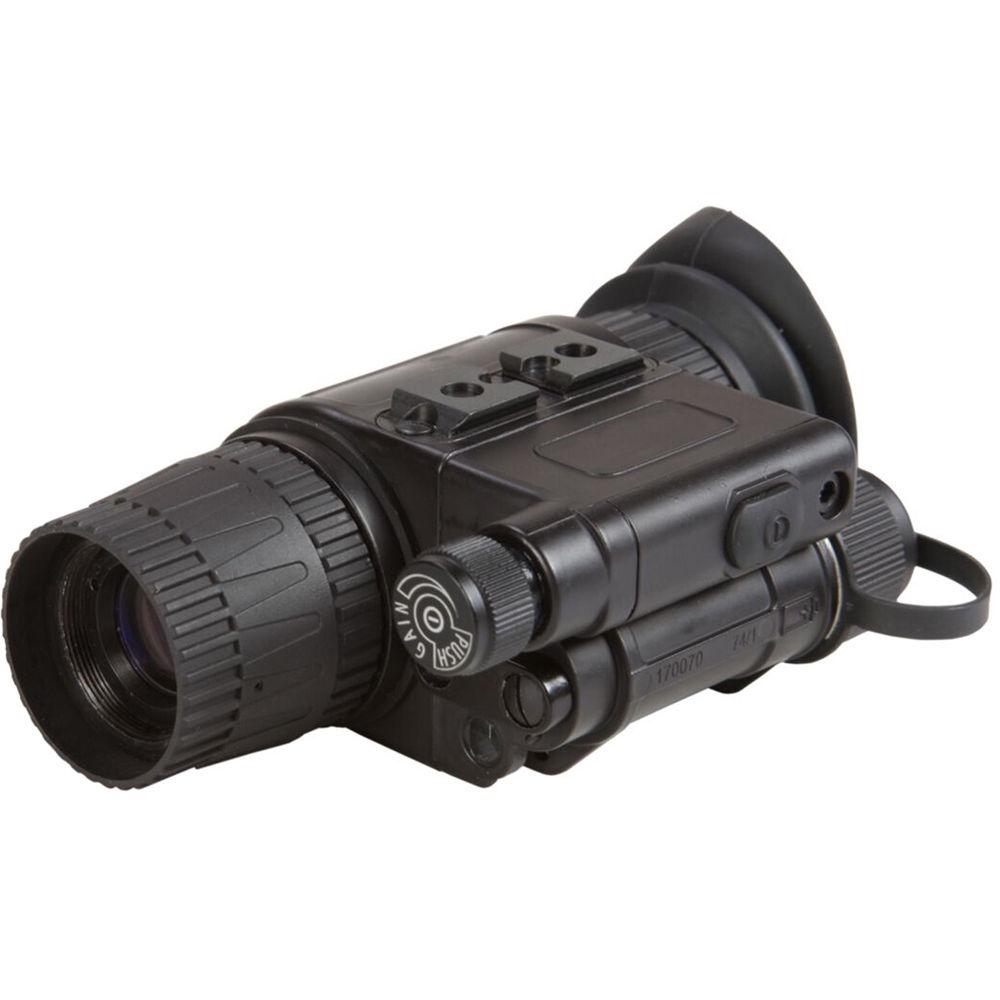

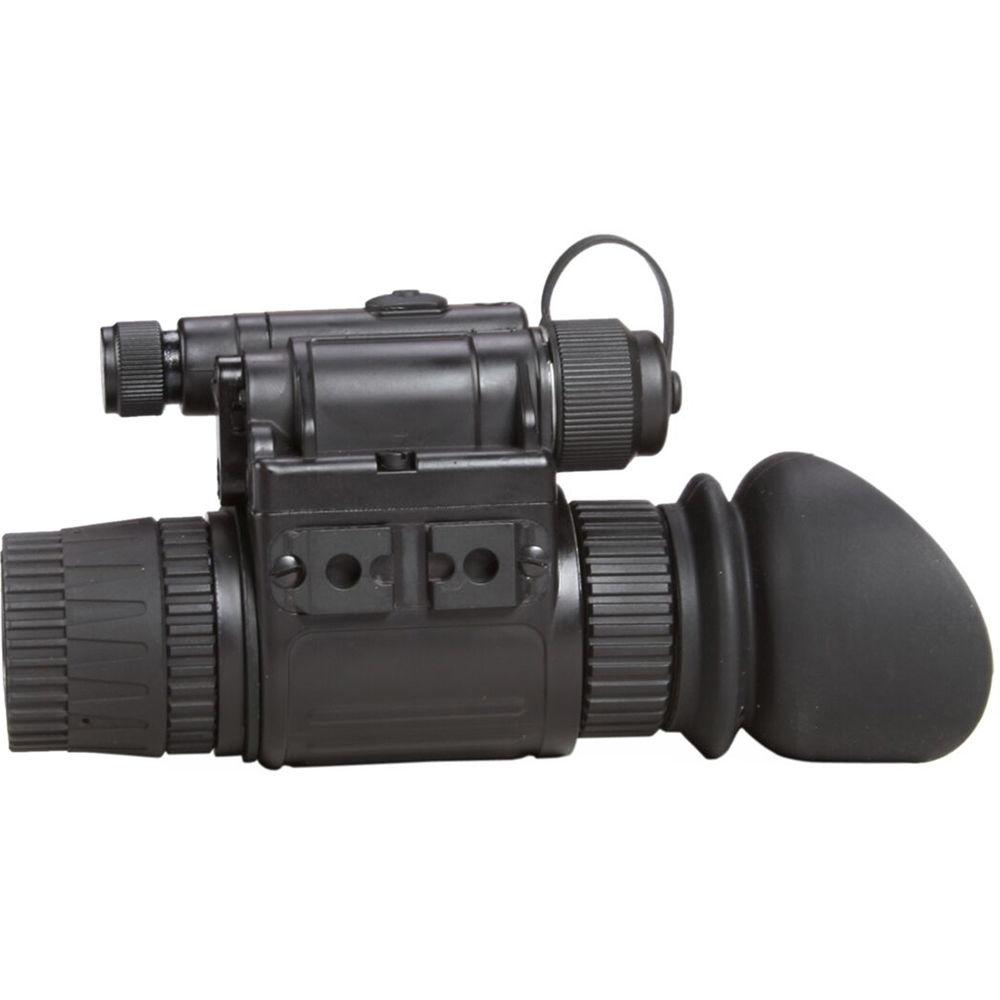

Product description Conquer the night using the MNVD-51 1x Gen 3AG Multi-Purpose Monocular from ARMASIGHT by FLIR. This handheld device offers a wider (51°) field of view than its peers and can be mounted on your firearm or optional headgear. At the core of this night vision device is a 3rd-generation image intensifier tube (IIT) that converts the infrared images into visible ones. Its high-performance thin film microchannel plate offers a higher tube life, and its auto-gated power supply allows operation under bright light conditions. The IIT is also enhanced with a bright light cutoff function for preserving the tube from accidental burnout by bright flashes and a manual gain for controlling image brightness and contrast. To improve close-range visibility and allow reading maps in total darkness, the device has a built-in illuminator.
The composite body, designed to withstand impact and extreme temperatures, allows you to venture almost anywhere. It offers heavily knurled rings and adjusters for a non-slip grip and a wide winged rubber eyecup for comfortable contact with your face and to prevent leakage of light. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier Tube
-
- 3rd generation
- High-performance thin film microchannel plate has higher tube life
- Auto-gated power supply allows operation under bright light conditions
- Bright light cutoff
- Manual gain control
- Built-in IR illuminator
- Optical Performance
-
- 1x magnification
- Multi-coated optics
- Compatible with optional lenses
- 51° wide angle of view
- f/1.26, 19mm lens system
- 9.8" minimum focus distance
- Use and Handling
-
- +2 to -6 diopter correction
- Built-in IR and low-battery indicators

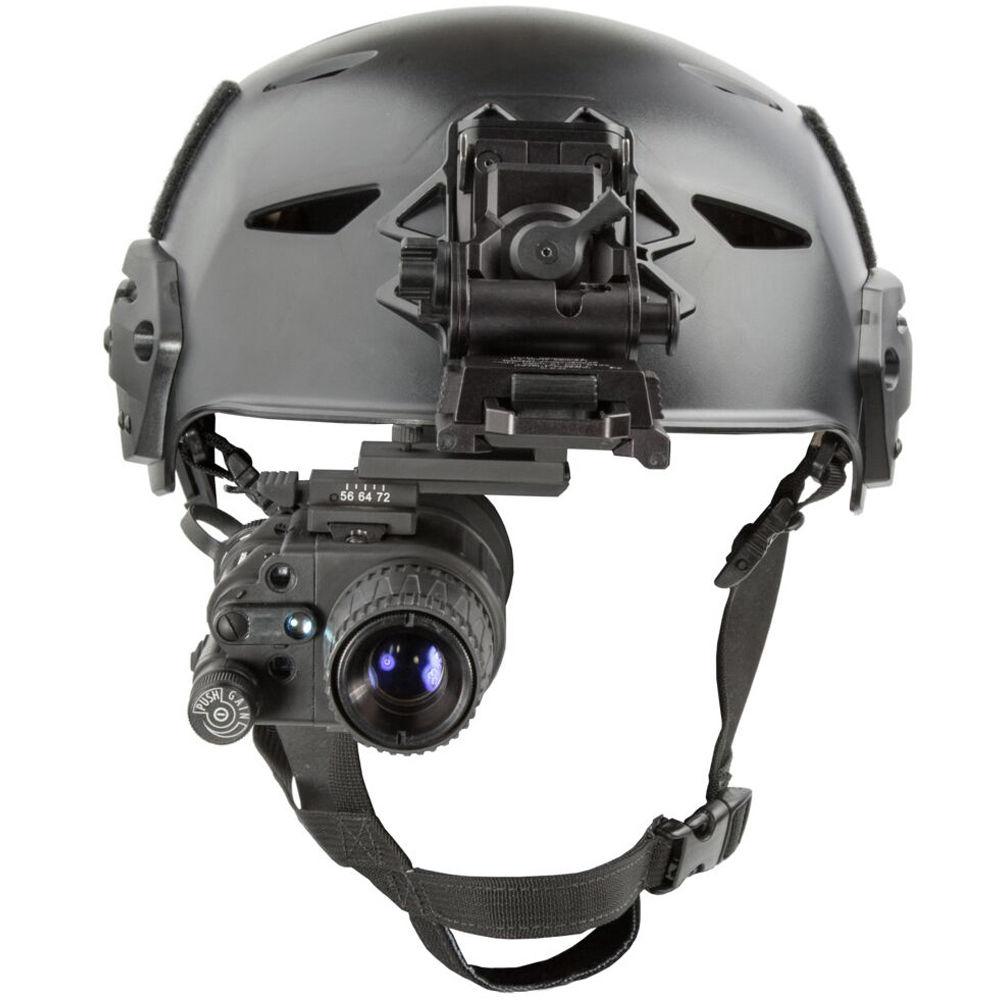

- Can be used as a handheld device or mounted on a firearm and headgear
- Construction Details
-
- Composite polymer housing
- Durable and lightweight
- Compact and ergonomic design

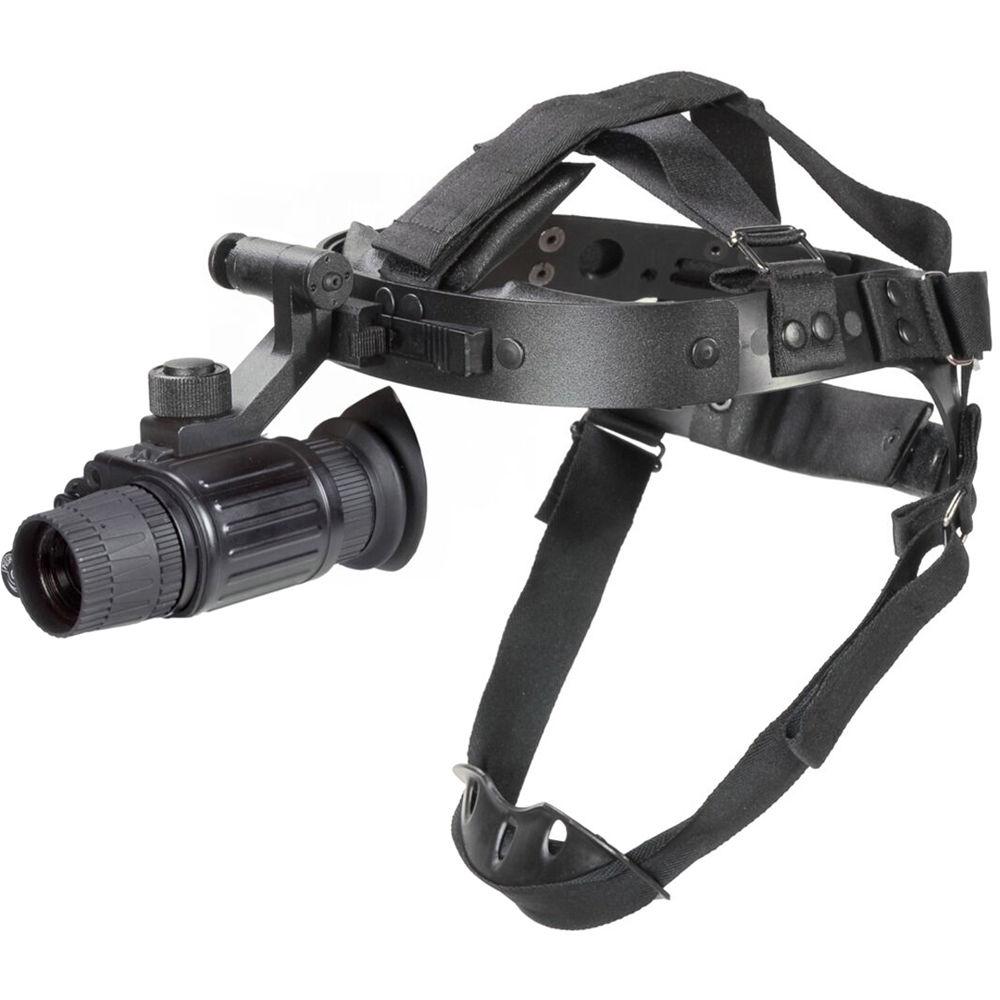

- Mounting point for headgear
- Knurled adjusters and rings give a non-slip grip

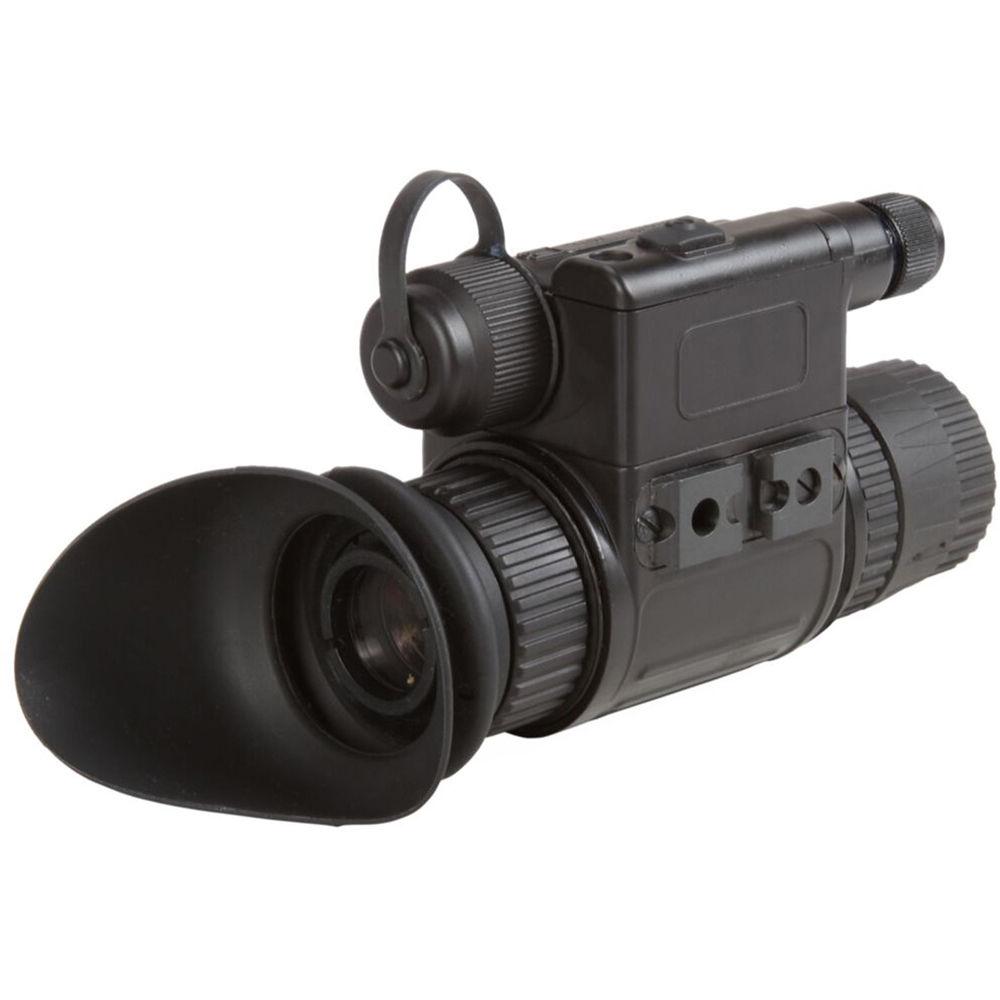

- Wide winged rubber eyecup
UPC: 849815009705 In the Box FLIR MNVD-51 1x Gen 3AG Multi-Purpose Monocular (Matte Black) - CR123A Battery
- Soft Carry Case
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR MNVD-51 1x Gen 3AG Multi-Purpose Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the FLIR MNVD-51 1x Gen 3AG Multi-Purpose Monocular can be downloaded in PDF format at the link stated below.
Technical parametersFLIR MNVD-51 Specs | Intensifier Tube | 3rd generation
Thin film auto-gated | | Magnification | 1x | | Angle/Field of View | 51° | | Lens System | f/1.26, 19mm | | Minimum Focus Distance | 9.8" / 0.25 m | | Eye Relief | 17.0 mm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes | | Battery | 1 x AA battery
1 x CR123A battery | | Runtime | 40 hours | | Weatherproofing | Not provided by manufacturer | | Temperature Ranges | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.1 x 2.8 x 1.9" / 10.9 x 7.3 x 4.8 cm | | Weight | 10.9 oz / 310.0 g |
