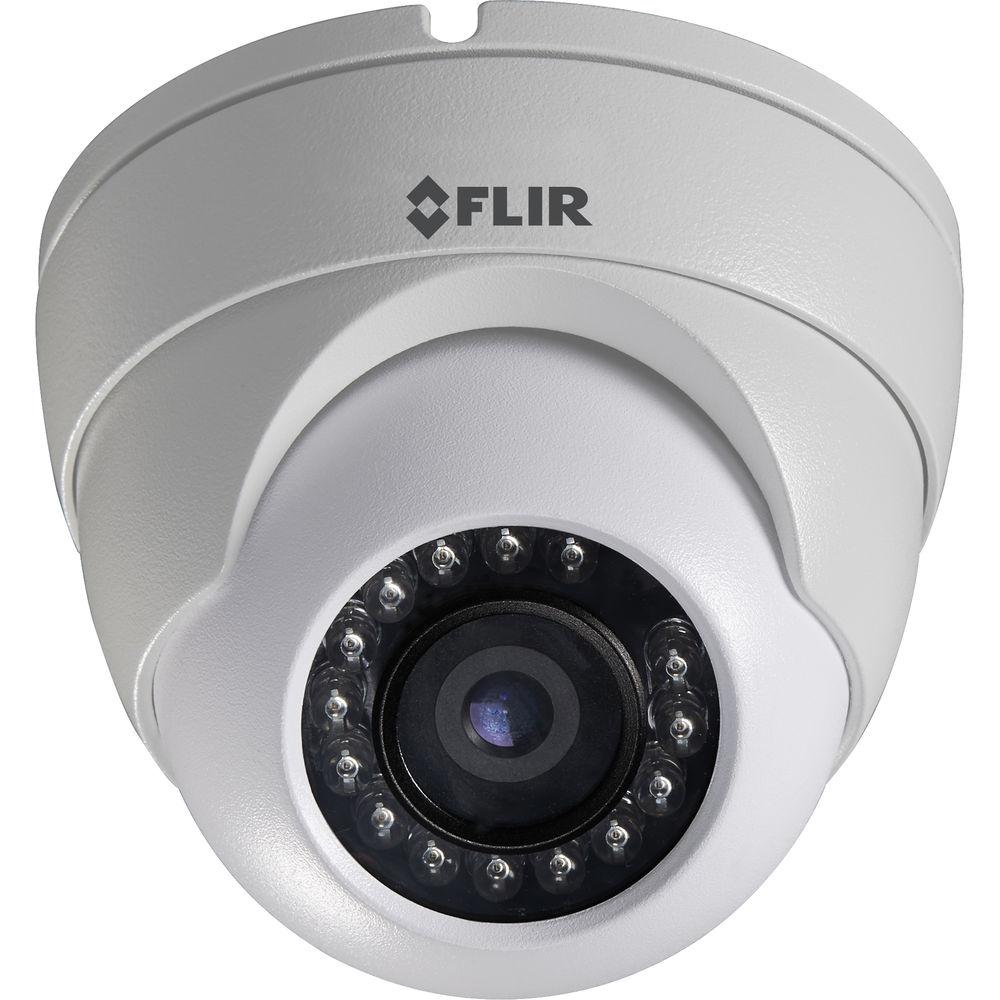

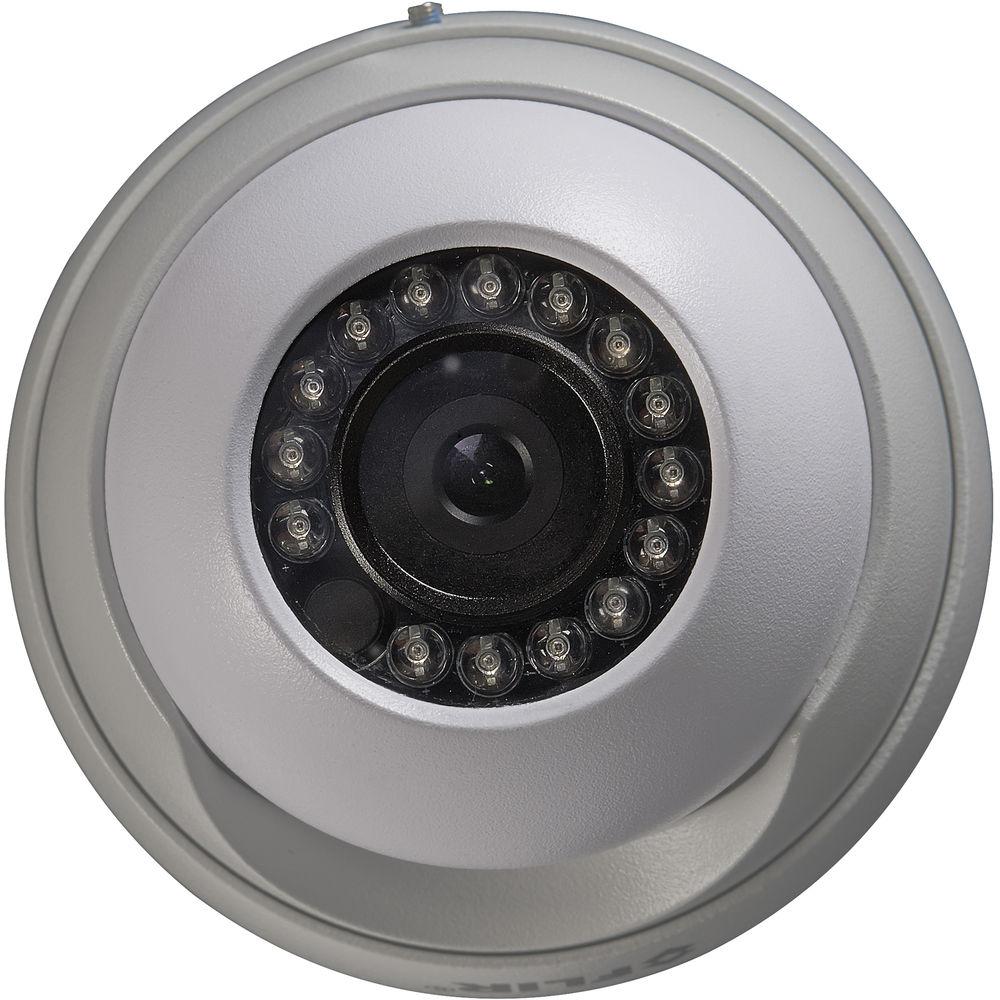

User Manual for FLIR N133ED-2 2.1MP PoE Day Night IR Fixed Outdoor Mini Dome IP Camera Click to enlarge the picture
Contents of the user manual for the FLIR N133ED-2 2.1MP PoE Day Night
- Product category: Wired IP Cameras FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Wired IP Cameras
 |
User manual for the FLIR N133ED-2 2.1MP PoE Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|

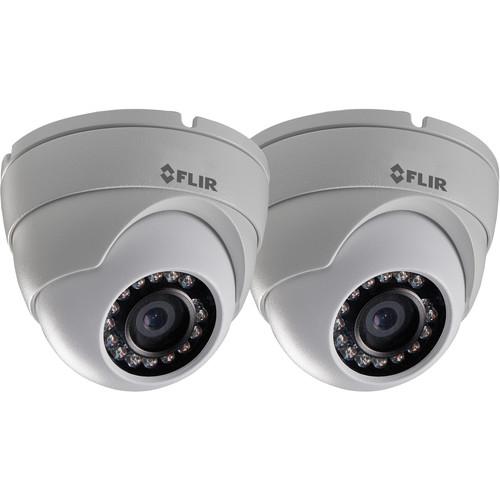

Product description The pack of N133ED-2 2.1MP PoE Day/Night IR Fixed Mini Dome IP Camera from FLIR contains two N133ED Cameras. Each camera uses the 1/3" CMOS image sensor and 3.6mm lens to offer HD picture quality in real-time with remarkable night-vision capabilities. Installation is made easy thanks to the included PoE (802.3af) operation. With a rugged design, this camera is suitable for both indoor and outdoor installations with IP66-rated weather resistance and a minimal operable temperature of -22°F. - HD Picture Quality
-
- Outstanding image detail at both day and night
- 2.1MP HD, 1080p @ 30/25 fps
- 1/3" CMOS image sensor
- 3.6mm fixed lens
- IR range of 65'
- Easy Installation
-
- PoE (Class 3) support for simplified cabling
- 12V / PoE (802.3af) operation
- ONVIF Profile S conformance
- 3-axis design for wall/ceiling mounting
- Rugged Design
-
- Durable weatherproof housing
- IP66 ingress protection
- Operable in cold climate (-22°F)
- FLIR Cloud Remote Viewing
-
- Remote access via iOS, Android, PC/Mac with FLIR Cloud
- Centralized viewing and control of up to 64 cameras on each screen with PC/Mac (CMS included)
- Supports live or recorded access of videos at any time on your iPad, iPhone, or Android device
- Advanced mobile app features include remote playback, push notifications for motion/alarm, E-map, and manual record/snapshot to device
- General
-
- Dual-streaming (H.264/MJPEG)
- True Day/Night with ICR
- 2D-DNR / D-WDR
- Free DDNS service by FLIR
UPC: 841430010517 In the Box FLIR N133ED-2 2.1MP PoE Day/Night IR Fixed Outdoor Mini Dome IP Camera (2-Pack) 2 x 2.1MP Outdoor Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR N133ED-2 2.1MP PoE Day Night IR Fixed Outdoor Mini Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR N133ED-2 Specs | | | Imaging Device | 2.1 MP, 1/3" CMOS image sensor | | Effective Pixels (H x V) | 2048 x 1536 | | Imager Readout | Progressive scan | | Day/Night | Auto(ICR)/Color/B&W | | IR Cut Filter | Control On/Off | | Minimum Illumination | 0.1 lux (color); 0 lux (B&W) | | S/N Ratio | > 50 dB | | Field of View | 72° | | IR Illumination | Yes, 850 nm | | Video Output | RJ45 | | Electronic Shutter | 1/4 to 1/10000 sec | | | | Lens Type | Fixed | | Mount Type | Board type | | Focal Length | 3.6 mm | | Aperture | F1.6 | | | | Compression | MJPEG / H.264 | | Streaming | H.264 & MJPEG Dual Stream | | Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576/704 x 480) / CIF (352 x 288/352 x 240) | | Aspect Ratio | 16:9 | | Frame Rates | 1080p / 720p / D1 / CIF @ 25/30 fps | | Bit Rate | Control: CBR / VBR
Compression Type: 16k to 8192 kb/s | | Wide Dynamic Range | Digital WDR | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto / Manual | | Gain Control | Auto / Manual | | Noise Reduction | 2D | | Mirroring | Horizontal mirror | | Video Overlay | Time / Date / Camera / Custom | | Privacy Masking | Up to 4 areas | | Menu Language | English | | | | Protocols | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, & Bonjour | | ONVIF Conformance | Profile S (v2.1) | | Users | Up to 20 users | | | | PoE Network Ports | 10 / 100 Base-T | | Power Input | 12 VDC, PoE | | Power Consumption | 3 W | | Current Consumption | 250 mA | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | Less than 95% RH | | Ingress protection | IP66 | | | | Dimensions (Ø x H) | 3.7 x 3.2" (9.3 x 7.9 cm) | | Weight | 0.8 lb (0.4 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 9.37 x 5.827 x 5.748" |
