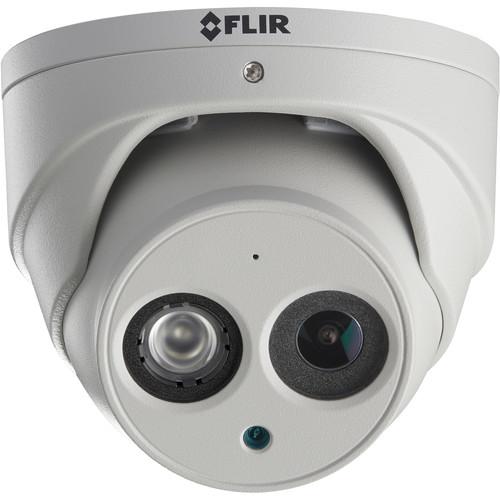

User Manual for FLIR N253EA8 8MP Outdoor Network Dome Camera with Night Vision & Audio Click to enlarge the picture
Contents of the user manual for the FLIR N253EA8 8MP Outdoor Network Dome
- Product category: Wired IP Cameras FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Wired IP Cameras
|
User manual for the FLIR N253EA8 8MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description The gray N253EA8 8MP Outdoor Network Dome Camera with Night Vision & Audio from FLIR has a 1/2.5" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 15 fps. IR LEDs provide a night vision range up to 82'. The 2.8mm fixed lens delivers a 112° horizontal field of view. Audio recording is possible thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by delivering power and data transmission over one cable.
This camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated aluminum alloy enclosure that is suitable for outdoor use. - H.264, H.265, and MJPEG triple streaming
- True wide dynamic range up to 100 dB
- Mechanical IR cut filter enables day and night functionality
- Backlight compensation, highlight compensation, and Smart IR help provide clearer images
- Auto and manual white balance
- Auto and manual gain control
- CBR and VBR bit rate control
- 2304 to 10,240 kb/s H.264 and 768 to 6912 kb/s H.265 bit rate selection
- Window blanking for up to 4 areas
- Video mirroring/rotation modes include horizontal mirror and vertical flip
- Video overlay for time, date, channel, title, and custom text
- Video quality setting range
- Region of Interest monitoring for 4 zones
- Supports QuickTime and VLC player
- CE, FCC, and RoHS certified
- IP67-rated aluminum alloy enclosure that is suitable for outdoor use
UPC: 841430019503 In the Box FLIR N253EA8 8MP Outdoor Network Dome Camera with Night Vision & Audio (Gray) Mounting Kit RJ45 Cap Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR N253EA8 8MP Outdoor Network Dome Camera with Night Vision & Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR N253EA8 Specs | | | Sensor | 8 MP 1/2.5" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.4 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 112° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.2 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 3840 x 2160 at 15 fps
3072 x 2048 at 15 fps
3072 x 1728 at 15 fps
2592 x 1944 at 15 fps
2688 x 1520 at 25 fps
2560 x 1440 at 25 fps
2304 x 1296 at 25/30 fps
1920 x 1080 at 25/30 fps
1280 x 1024 at 25/30 fps
1280 x 960 at 25/30 fps
1280 x 720 at 25/30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | Built-In Speaker | No | | | | Security | HTTPS, IP Address Filtering | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Event Trigger | None | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 82' / 24.99 m | | Supported Languages | English | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5.4 W | | Material of Construction | Aluminum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions |
