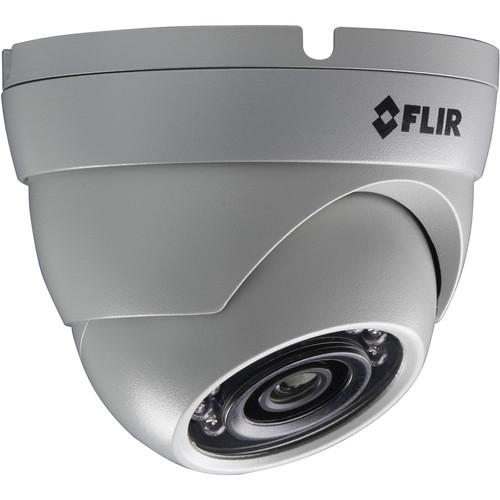

User Manual for FLIR P143E4 4MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the FLIR P143E4 4MP Outdoor Network Dome
- Product category: Wired IP Cameras FLIR
- Brand: FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FLIR Wired IP Cameras
|
User manual for the FLIR P143E4 4MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FLIR product will considerably shorten its lifespan!
|
Product description The P143E4 4MP Outdoor Network Dome Camera with Night Vision from FLIR has a 4MP 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 20 fps. It has a 2.8mm fixed lens that offers a 90° horizontal field of view, and an aperture of f/2.0. Additionally, this device delivers up to 82' of night vision. Power over Ethernet simplifies connectivity by delivering power and data transmission over one cable.The camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated aluminum alloy enclosure, and is suitable for outdoor use. - True wide dynamic range up to 100 dB delivers more accurate details in high contrast scenes
- Backlight compensation and Smart IR help provide clearer images
- Auto and manual white balance
- Auto and manual gain control
- 3D digital noise reduction
- H.265, H.264, and MJPEG triple stream
- Window blanking for up to 4 areas ensures privacy for areas you don't want recorded
- Up to 20 unicast and multicast users
- IP66-rated aluminum alloy enclosure suitable for outdoor use
UPC: 841430018247 In the Box FLIR P143E4 4MP Outdoor Network Dome Camera with Night Vision Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FLIR P143E4 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFLIR P143E4 Specs | | | Image Sensor | 4 MP 1/3" CMOS | | Effective Pixels (H x V) | 2688 x 1520 | | Image Type | CMOS | | Progressive Scan | Yes | | Day/Night | Auto (ICR), color, B&W | | Adjustment | Day/Night Delay: Yes | | Mechanical IR Cut Filter | Yes | | Minimum Illumination | Color: 0.38 lux at f/2.0
B&W: 0 lux at f/1.8
| | S/N Ratio | 46 dB (AGC OFF) | | Horizontal Field of View (degree) | 90° | | IR Range | 82' (25 m) | | IR Wavelength | 850 nm | | IR | On/off control | | Video Output | IP | | Electronic Shutter | 1/3 (1/4) to 1/100,000 Seconds | | | | Lens Type | Fixed lens | | Lens Mount | Board type | | Iris Type | AES | | Focal Length | 2.8mm | | Aperture | f/2.0 | | Focus | Fixed | | | | Compression | H.265, H.264, MJPEG | | Streams | H.265, H.264, MJPEG triple stream | | Resolution Selection | 4 MP (2688 x 1520), 3.7 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720) | | Aspect Ratio | 16:9 (excluding 1.3 MP at 4:3) | | Maximum Frame Rates | 4 MP at up to 20 fps
3 MP, 1080p, 720p at 25/30 fps
| | Bit Rate Control | CBR/VBR (with cap) | | Bit Rate Selection | H.264: 2304 to 10,240 kbps
H.265: 768 to 7680 kbps/Custom
| | Quality Setting Range | 1-6 (6) | | Region of Interest | Yes (4) | | Wide Dynamic Range | True WDR, user selectable | | Dynamic Range | Up to 100 dB | | Backlight Compensation | BLC/HLC | | White Balance | Auto, manual | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Smart IR | Yes, user adjustable | | Image Stabilization | No | | Digital Zoom | Up to 10X | | Tamper Detection | Yes | | Video Mirroring | Horizontal mirror | | Rotation | 90°, 180°, 270°, hallway mode | | Video Overlay | Time, date, channel, title, custom | | Privacy | Window Blanking: Up to 4 Areas | | Menu Languages | English | | | | Protocols | IPv4/IPv6, HTTP, TCP/IP, ARP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS | | ONVIF Conformance | Profile S | | RTSP Video | Standard RFC2326, supports QuickTime/VLC player. User security authentication (enabled/disabled) | | Unicast Users | Up to 20 | | Multicast Users | Up to 20 | | | | Network Port | 1 x RJ45, 10/100Base-T | | Power Input | 12 VDC | | Power Over Ethernet (PoE) Support | PoE (802.3af) | | Power Consumption | 2.8 W (max) | | Current Consumption | 230 mA (max) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Storage Humidity | >95% RH | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | >95% RH | | Cold Start | -22°F (-30°C) | | IP Rating | IP66 | | Certifications | CE, FCC | | Construction Material | Aluminum alloy | | Dimensions (W x D x H) | 3.8 x 2.9" (95 x 73 mm) | | Weight | 0.65 lb (0.30 kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.6 x 5.4 x 4.6" |
